Android Matrix的使用与自定义动画

变形矩阵的原理

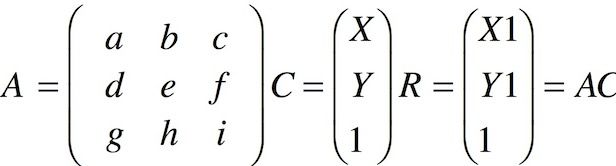

Android对图形的处理通过矩阵,每个像素点都有其X,Y坐标信息,图形变换矩阵是一个3X3的矩阵,通过变换矩阵与位置矩阵相乘得到新的位置矩阵,从而可以通过不同的变换矩阵实现不同的变换效果。
Android Matrix的使用与自定义动画_第1张图片
图形变换主要有以下四个基本的变换:

  • Translate,平移
  • Rotate,旋转
  • Scale,缩放
  • Skew,错切

可以知道基本的变换矩阵是对角a e i为1,其余为0,这样变换后不会改变坐标,一般使g h为0, i为1,这样坐标矩阵的最后一个为1恒成立。
以平移为例,假设x方向平移dx,y方向平移dy,那么应该是在基本矩阵的基础上将c f分别改为dx dy,这样的到的坐标矩阵就是X+dx, Y+dy, 1。

下面以一个小例子说明
自定义一个类MyVIew继承View

public class MyView extends View {

    Context context;

    private Matrix mMatrix;

    private float[] m;

    private int i = 1;


    public MyView(Context context) {
        super(context);
        m = new float[]{1, 0, 0, 0, 1, 0, 0, 0, 1};
        mMatrix = new Matrix();
        mMatrix.setValues(m);
        this.context = context;
    }

    public MyView(Context context, AttributeSet attrs) {
        super(context, attrs);
        m = new float[]{1, 0, 0, 0, 1, 0, 0, 0, 1};
        mMatrix = new Matrix();
        mMatrix.setValues(m);
        this.context = context;
    }

    @Override
    protected void onDraw(Canvas canvas) {
        super.onDraw(canvas);
        canvas.drawBitmap(BitmapFactory.decodeResource(context.getResources(), R.mipmap.ic_launcher), mMatrix, null);
    }

    public void change(Matrix matrix) {
        mMatrix = matrix;
        invalidate();
    }

}

初始变换矩阵就是基础矩阵,通过drawBitmap传入矩阵画出bitmap,定义一个方法传入matrix传入心得matrix,然后改变mMtrix绘图。
布局文件


<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical">

    <com.example.wulinpeng.matrixtest.MyView
        android:id="@+id/iv_test"
        android:layout_width="match_parent"
        android:layout_height="300dp" />

    <RelativeLayout
        android:layout_width="match_parent"
        android:layout_height="0dp"
        android:layout_weight="1">

        <LinearLayout
            android:id="@+id/btns"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_alignParentBottom="true">

            <Button
                android:id="@+id/change"
                android:layout_weight="1"
                android:layout_width="0dp"
                android:layout_height="wrap_content"
                android:text="Change"/>

            <Button
                android:id="@+id/reset"
                android:layout_weight="1"
                android:layout_width="0dp"
                android:layout_height="wrap_content"
                android:text="Reset"/>

        LinearLayout>

        <LinearLayout
            android:id="@+id/bottom"
            android:layout_above="@id/btns"
            android:layout_width="match_parent"
            android:layout_height="wrap_content">

            <EditText

                android:id="@+id/G"
                android:layout_width="0dp"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:text="0"/>

            <EditText
                android:id="@+id/H"
                android:layout_width="0dp"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:text="0"/>

            <EditText
                android:id="@+id/I"
                android:layout_width="0dp"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:text="1"/>

        LinearLayout>

        <LinearLayout
            android:id="@+id/center"
            android:layout_above="@id/bottom"
            android:layout_width="match_parent"
            android:layout_height="wrap_content">

            <EditText

                android:id="@+id/D"
                android:layout_width="0dp"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:text="0"/>

            <EditText
                android:id="@+id/E"
                android:layout_width="0dp"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:text="1"/>

            <EditText
                android:id="@+id/F"
                android:layout_width="0dp"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:text="0"/>

        LinearLayout>

        <LinearLayout
            android:layout_above="@id/center"
            android:layout_width="match_parent"
            android:layout_height="wrap_content">

            <EditText

                android:id="@+id/A"
                android:layout_width="0dp"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:text="1"/>

            <EditText
                android:id="@+id/B"
                android:layout_width="0dp"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:text="0"/>

            <EditText
                android:id="@+id/C"
                android:layout_width="0dp"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:text="0"/>

        LinearLayout>

    RelativeLayout>
LinearLayout>

设置9个EditText设置Matrix,并为change按钮设置监听,调用change方法

                float[] m = new float[]{
                        Integer.parseInt(a.getText().toString()),
                        Integer.parseInt(b.getText().toString()),
                        Integer.parseInt(c.getText().toString()),
                        Integer.parseInt(d.getText().toString()),
                        Integer.parseInt(e.getText().toString()),
                        Integer.parseInt(f.getText().toString()),
                        Integer.parseInt(g.getText().toString()),
                        Integer.parseInt(h.getText().toString()),
                        Integer.parseInt(i.getText().toString())};

                Matrix matrix = new Matrix();
                matrix.setValues(m);

                myView.change(matrix);

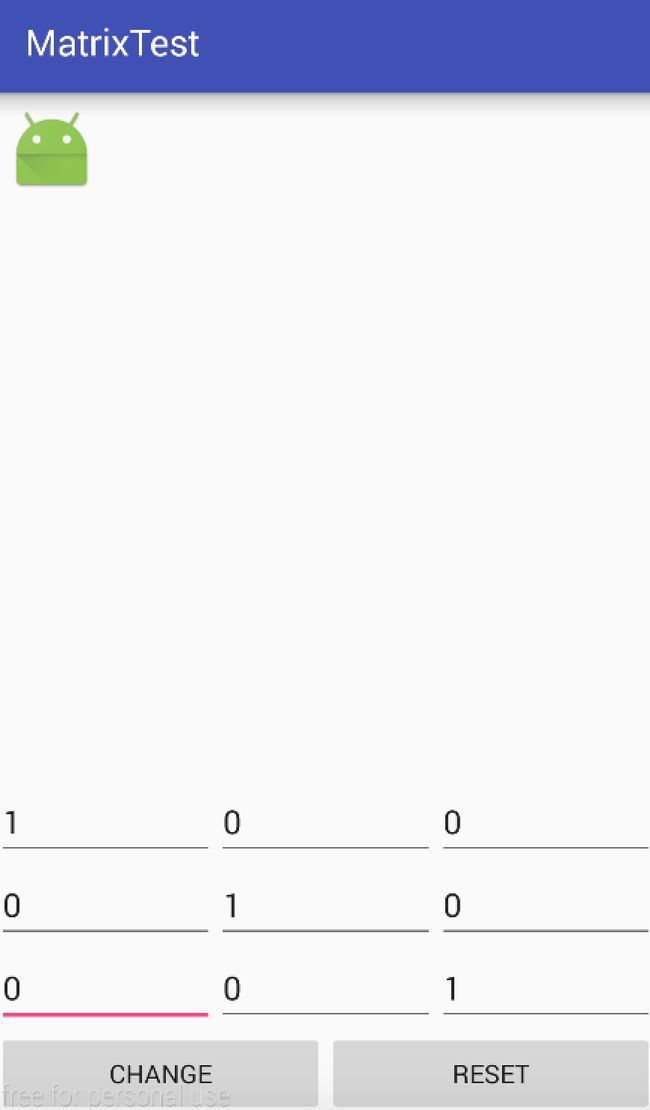

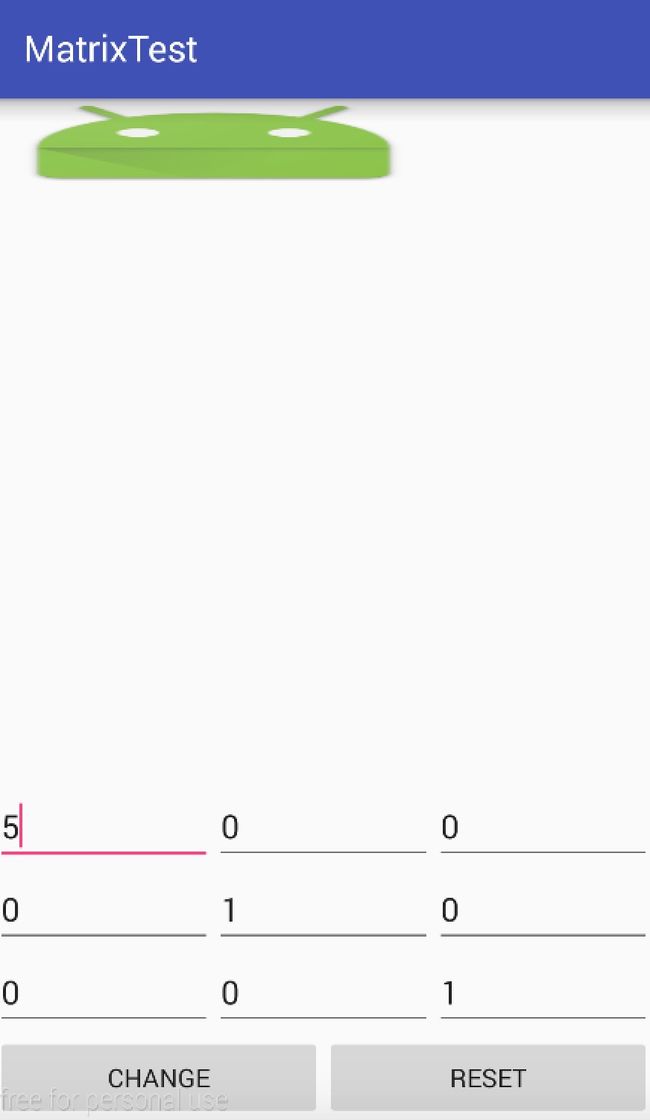

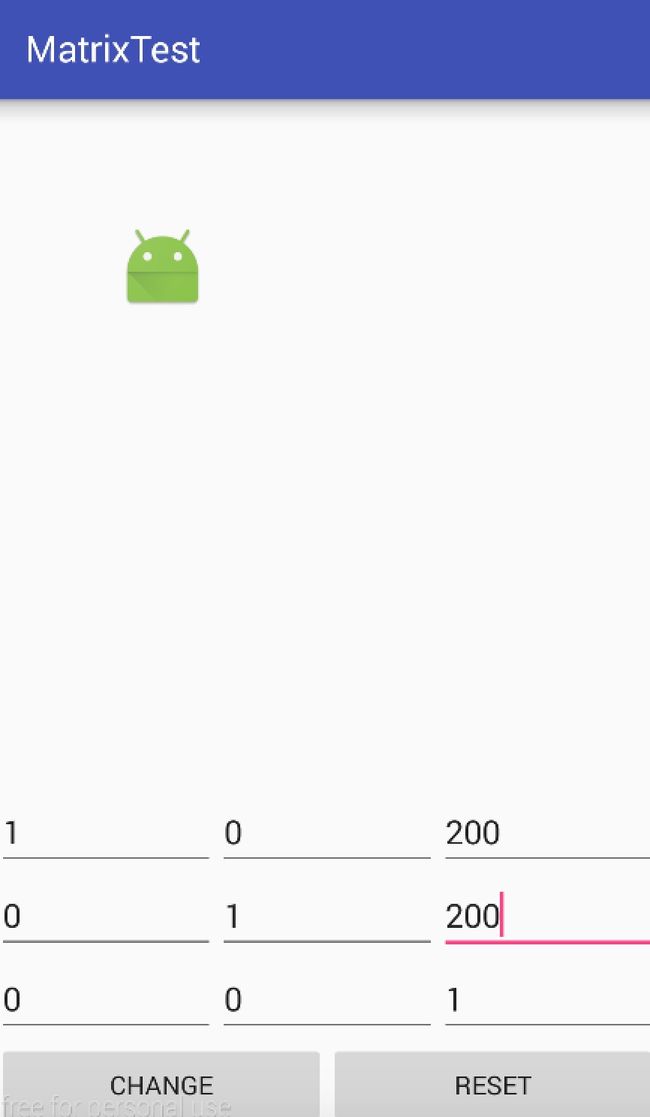

效果如图
Android Matrix的使用与自定义动画_第2张图片

Android Matrix的使用与自定义动画_第3张图片

Android Matrix的使用与自定义动画_第4张图片

Matrix封装的方法

Matrix为开发者封装了实现上述四种变换的方法,有三个系列set pre post。
三个系列的方法区别在与先后与是否重置矩阵,对于同一个Matrix对象来说可以看作有一个控制操作先后的队伍,每次执行一次pre那么该操作就会到第一位去,当然后面的pre会在前面的pre前面,post和pre相反,一次post就到最后,此时可以看作任何操作进来刚开始都在中间(然后pre和post会移动),而get操作就会清空前面的操作,也就是重置矩阵,说的很抽象,举个例子,

        matrix.postScale(0f, 1f);
        matrix.postScale(1f, 0f);
        matrix.preTranslate(0, 500f);
        matrix.preTranslate(500f, 0);

按上述代码执行那么实际执行顺序就是
Translate(500f, 0)->Translate(0, 500f)->Scale(0f, 1f)->Scale(1f, 0f)
如果代码如下所示

        matrix.preTranslate(0, 500f);
        matrix.postScale(0f, 1f);
        matrix.setTranslate(300f, 500f);
        matrix.preTranslate(500f, 0);
        matrix.postScale(1f, 0f);

那么顺序就是
Translate(500f, 0f)->Translate(300f, 500f)->Scale(0f, 1f)->Scale(1f, 0f)

总之就是对于同一个Matrix如果调用set就会取消前面所有效果,从头开始
