Ztree整合SpringMVC实现异步加载树

          本篇文章已同步发布在笔者的个人网站上 Ztree整合SpringMVC实现异步加载树
         正值清明时节，天气也将开始升温了，夏天即将到来，你做好准备了吗？好了，废话少扯，切入正题，本文笔者将要讲解的是JQuery的树插件Ztree。现在web项目基本上也都是使用Ztree作为树组件进行实现的。
         好了，来看下最终实现的效果图：

笔者这里使用的是Mysql数据库，先创建一张表。

CREATE TABLE `city_ztree` (
              `id` varchar(36) NOT NULL,
              `city_name` varchar(50) DEFAULT NULL,
              `parent_id` varchar(36) DEFAULT NULL,
              PRIMARY KEY (`id`)
            ) ENGINE=InnoDB DEFAULT CHARSET=utf8

而后插入些测试数据。

insert into `city_ztree`(`id`,`city_name`,`parent_id`) values ( '1a','福建省','0');
 insert into `city_ztree`(`id`,`city_name`,`parent_id`) values ( '2b','浙江省','0');
 insert into `city_ztree`(`id`,`city_name`,`parent_id`) values ( '3c','广东省','0');
 insert into `city_ztree`(`id`,`city_name`,`parent_id`) values ( '4d','江苏省','0');
insert into `city_ztree`(`id`,`city_name`,`parent_id`) values ( '1a1','福州市','1a');
 insert into `city_ztree`(`id`,`city_name`,`parent_id`) values ( '1a2','厦门市','1a');
 insert into `city_ztree`(`id`,`city_name`,`parent_id`) values ( '1a3','泉州市','1a');
 insert into `city_ztree`(`id`,`city_name`,`parent_id`) values ( '1a4','漳州市','1a');
 insert into `city_ztree`(`id`,`city_name`,`parent_id`) values ( '1a5','莆田市','1a');
 insert into `city_ztree`(`id`,`city_name`,`parent_id`) values ( '1a6','宁德市','1a');
 insert into `city_ztree`(`id`,`city_name`,`parent_id`) values ( '1a7','三明市','1a');
 insert into `city_ztree`(`id`,`city_name`,`parent_id`) values ( '1a8','南平市','1a');
 insert into `city_ztree`(`id`,`city_name`,`parent_id`) values ( '1a9','龙岩市','1a');

由于篇幅原因，只截取部分数据，自己想要更多数据，可自行插入，只要id和parent_id保持上下级关系就好了。而后在创建一个与表对应的javabean实体类。

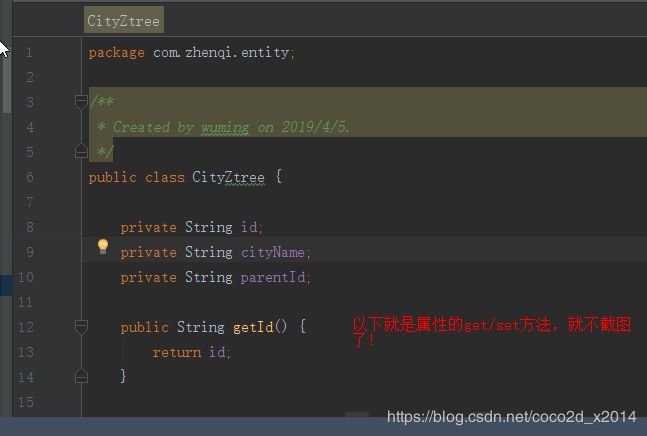

public class CityZtree {

    private String id;
    private String cityName;
    private String parentId;
    //由于篇幅原因，在此省略get/set方法
    }

表有了，测试数据也有了，与表对应的实体类也创建了，那现在就可以操作Dao了，来建一个Dao接口。

import com.zhenqi.entity.CityZtree;

import java.util.List;

/**
 * Created by wuming on 2019/4/5.
 */
public interface CityZtreeDao {

    /**
     * 根据父id查找树
     * @param parentId
     * @return
     */
    public List findCityZtreeByParentId(String parentId);

    /**
     * 当前节点是否还有子节点
     * @param id
     * @return
     */
    public Integer hasChild(String id);
}

 笔者使用的是Mybatis作为ORM，故而写上对应的xml文件，文件内容如下：








        select * from city_ztree where parent_id=#{parentId}



        select count(1) from city_ztree where parent_id=#{id}


再者写个Service实现业务逻辑处理。先建个接口，然后再建个实现接口的实现类。

package com.zhenqi.service;

import com.zhenqi.entity.CityZtree;

import java.util.List;
import java.util.Map;

/**
 * Created by wuming on 2019/4/5.
 */
public interface CityZtreeService {

    public List findByParentId(String parentId);

    public List> getParent(List list,String parentId);

    public boolean hasChild(String id);
}

package com.zhenqi.service.impl;

import com.zhenqi.dao.CityZtreeDao;
import com.zhenqi.entity.CityZtree;
import com.zhenqi.service.CityZtreeService;
import org.apache.commons.lang3.StringUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

/**
 * Created by wuming on 2019/4/5.
 */
@Service("cityZtreeService")
public class CityZtreeServiceImpl implements CityZtreeService {

    @Autowired
    private CityZtreeDao cityZtreeDao;

    @Override
    public List findByParentId(String parentId) {
        if(StringUtils.isNotBlank(parentId)){
            parentId=parentId;
        }else{
            parentId="0";
        }
        return cityZtreeDao.findCityZtreeByParentId(parentId);
    }

    @Override
    public List> getParent(List list,String parentId) {
        List> rootList=new ArrayList<>();
        for(CityZtree cityZtree : list){
            Map cityMap=new HashMap<>();
            cityMap.put("id",cityZtree.getId());
            cityMap.put("name",cityZtree.getCityName());
            if(StringUtils.isNotBlank(parentId)){
                cityMap.put("pId",parentId);
            }else{
                cityMap.put("pId","0");
            }
            if(hasChild(cityZtree.getId())){
                cityMap.put("isParent",true);
            }
            rootList.add(cityMap);
        }
        return rootList;
    }

    @Override
    public boolean hasChild(String id) {
        Integer count=cityZtreeDao.hasChild(id);
        if(count>0)
            return true;
        return false;
    }
}

 当然，是时候来写个controller类了！

package com.zhenqi.controller;

import com.zhenqi.entity.CityZtree;
import com.zhenqi.service.CityZtreeService;
import org.apache.commons.lang3.StringUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.util.ArrayList;
import java.util.List;
import java.util.Map;

/**
 * Created by wuming on 2019/4/5.
 */
@Controller
@RequestMapping
public class ZtreeController {

    @Autowired
    private CityZtreeService cityZtreeService;

    @RequestMapping("/cityZtree/getCityZtree")
    @ResponseBody
    public Object getCityZtree(HttpServletRequest request, HttpServletResponse response){
        String parentId=request.getParameter("parentId");

        List parentCityList=new ArrayList<>();
            parentCityList=cityZtreeService.findByParentId(parentId);
            return cityZtreeService.getParent(parentCityList,parentId);

    }
}

你要事先下载好Ztree的包，在你的模板文件中引入以下文件：

界面完整源码如下：
