rabbitmq延迟队列demo

 1. demo详解

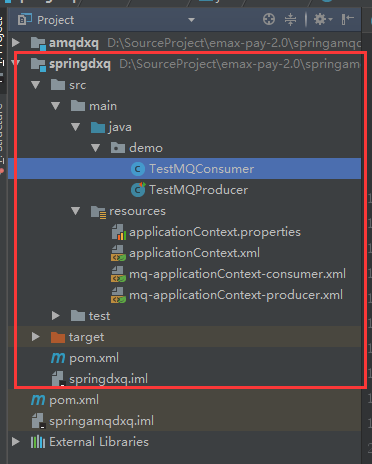

1.1 工程结构：



1.2 pom

定义jar包依赖的版本。版本很重要，rabbit依赖spring，两者必须相一致，否则报错：

<properties>
    <springframework.version>4.2.7.RELEASEspringframework.version>
    <spring-rabbit.version>1.6.1.RELEASEspring-rabbit.version>
properties>

dependencies：

<dependencies>


    <dependency>
        <groupId>org.slf4jgroupId>
        <artifactId>slf4j-apiartifactId>
        <version>1.7.5version>
    dependency>
    <dependency>
        <groupId>ch.qos.logbackgroupId>
        <artifactId>logback-coreartifactId>
        <version>1.0.13version>
    dependency>
    <dependency>
        <groupId>ch.qos.logbackgroupId>
        <artifactId>logback-classicartifactId>
        <version>1.0.13version>
    dependency>

    <dependency>
        <groupId>org.slf4jgroupId>
        <artifactId>jcl-over-slf4jartifactId>
        <version>1.7.5version>
    dependency>



    <dependency>
        <groupId>org.springframeworkgroupId>
        <artifactId>spring-coreartifactId>
        <version>${springframework.version}version>
    dependency>
    <dependency>
        <groupId>org.springframeworkgroupId>
        <artifactId>spring-contextartifactId>
        <version>${springframework.version}version>
    dependency>


    <dependency>
        <groupId>org.springframework.amqpgroupId>
        <artifactId>spring-rabbitartifactId>
        <version>${spring-rabbit.version}version>
    dependency>

dependencies>



1.3 spring配置

spring-applicationContext：

xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:rabbit="http://www.springframework.org/schema/rabbit"

       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.2.xsd
       http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.2.xsd
       http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.1.xsd
         http://www.springframework.org/schema/rabbit http://www.springframework.org/schema/rabbit/spring-rabbit.xsd">

    <bean class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer">
        <property name="fileEncoding" value="UTF-8">property>
        <property name="locations">
            <list>
                <value>classpath:applicationContext.propertiesvalue>
            list>
        property>
    bean>

    <context:annotation-config/>

    <bean class="org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor"/>

    <context:component-scan base-package="demo">context:component-scan>


    <rabbit:connection-factory id="connectionFactory"
                               username="${paycenter.mq.user.username}"
                               password="${paycenter.mq.user.password}"
                               addresses="${paycenter.mq.user.host}">rabbit:connection-factory>

    <import resource="classpath:mq-applicationContext-producer.xml"/>
    <import resource="classpath:mq-applicationContext-consumer.xml"/>
beans>



mq-applicationContext-producer.xml：

xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:rabbit="http://www.springframework.org/schema/rabbit"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
     http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
     http://www.springframework.org/schema/beans
     http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
     http://www.springframework.org/schema/rabbit
     http://www.springframework.org/schema/rabbit/spring-rabbit-1.6.xsd">


    <rabbit:admin connection-factory="connectionFactory"/>


    <bean id="mqMessageConverter"
          class="org.springframework.amqp.support.converter.SimpleMessageConverter">
    bean>





    <rabbit:queue id="agentpayqueryQueue2" durable="true" auto-delete="true" exclusive="false"
                  name="agentpayqueryQueue2"/>
    <rabbit:direct-exchange id="agentpayqueryExchange2" durable="true" auto-delete="true" name="agentpayqueryExchange2">
        <rabbit:bindings>
            <rabbit:binding queue="agentpayqueryQueue2" key="delay"/>
        rabbit:bindings>
    rabbit:direct-exchange>


    <rabbit:queue id="agentpayqueryQueue1" durable="true" auto-delete="true" exclusive="false"
                  name="agentpayqueryQueue1">
        <rabbit:queue-arguments>
            <entry key="x-dead-letter-exchange" value="agentpayqueryExchange2"/>
            <entry key="x-message-ttl" value="10000" value-type="java.lang.Long"/>
        rabbit:queue-arguments>
    rabbit:queue>
    <rabbit:direct-exchange id="agentpayqueryExchange1" durable="true" auto-delete="true" name="agentpayqueryExchange1">
        <rabbit:bindings>
            <rabbit:binding queue="agentpayqueryQueue1" key="delay"/>
        rabbit:bindings>
    rabbit:direct-exchange>



    <rabbit:template id="agentpayQueryMsgTemplate"
                     exchange="agentpayqueryExchange1" routing-key="delay"
                     connection-factory="connectionFactory" message-converter="mqMessageConverter"
                     mandatory="true"
    />


beans>



mq-applicationContext-consumer.xml：

xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:rabbit="http://www.springframework.org/schema/rabbit"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
     http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
     http://www.springframework.org/schema/beans
     http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
     http://www.springframework.org/schema/rabbit
     http://www.springframework.org/schema/rabbit/spring-rabbit-1.6.xsd">


    <bean id="agentpayQueryConsumer" class="demo.TestMQConsumer" />




    <rabbit:listener-container connection-factory="connectionFactory" acknowledge="auto"
                               max-concurrency="20"
                               concurrency="5"
                               prefetch="10">
        <rabbit:listener ref="agentpayQueryConsumer" queue-names="agentpayqueryQueue2" />
    rabbit:listener-container>
beans>



 1.4 class

Producer类：

package demo;

import org.junit.Test;
import org.junit.runner.RunWith;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;

@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration(locations = "classpath:applicationContext.xml")
public class TestMQProducer {

    private static Logger logger = LoggerFactory.getLogger(TestMQProducer.class.getSimpleName());

    @Autowired
    private RabbitTemplate agentpayQueryMsgTemplate;

    @Test
    public void test() throws Exception {
        for (int i = 0; i <= 100; i++) {
            Object data = String.valueOf(i);
            agentpayQueryMsgTemplate.convertAndSend(data);
            logger.info("入队:{}", data);
        }
        Thread.sleep(12000);
    }
}





Consumer类：

package demo;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.core.MessageListener;

public class TestMQConsumer implements MessageListener {

    private static Logger logger = LoggerFactory.getLogger(TestMQConsumer.class.getSimpleName());

    public void onMessage(Message message) {
        String data = new String(message.getBody());

        try {
            //模拟处理慢
            Thread.sleep(1);

            logger.info("出队:{}", data);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }

    }

}

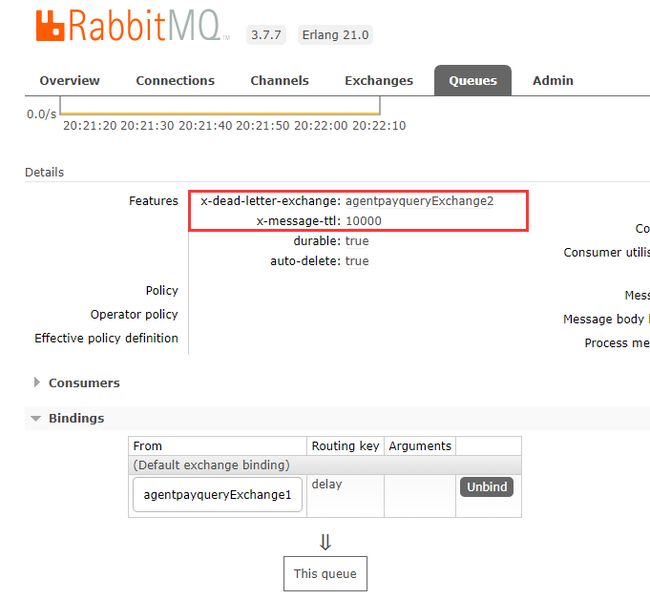

 1.5 rabbitmq控制台页面截图

我这里rabbit版本是3.7.7



2. 说明

2.1 auto-delete

上面定义队列时我把auto-delete属性设置为true， 所以，当消费者消费完并关闭连接后，队列会自动删除。exchange也如是。（通过mq控制台看，栗子中的agentpayqueryQueue2和agentpayqueryExchange2在执行完就自动消失了，agentpayqueryQueue1和agentpayqueryExchange1还存在。）

spring-rabbit-x.xml里对queue和exchange的auto-delete属性的解释：

Flag indicating that an queue will be deleted when it is no longer in use, i.e. the connection that declared it is closed. Default is false.（rabbit:queue）

Flag indicating that an exchange will be deleted when no longer in use, i.e. the connection that declared it is closed. Default is false.（rabbit:exchange）



2.2 消费端的concurrency

同样，看spring-rabbit-x.xml的解释：

The number of concurrent consumers to start for each listener initially.
See also 'max-concurrency'.

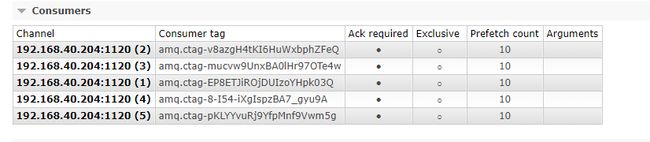

上面我设置的值是5，从mq控制台里看queue的consumer见下图（消息消费完之后，channel关闭，连接断开，consumer自动清空）：

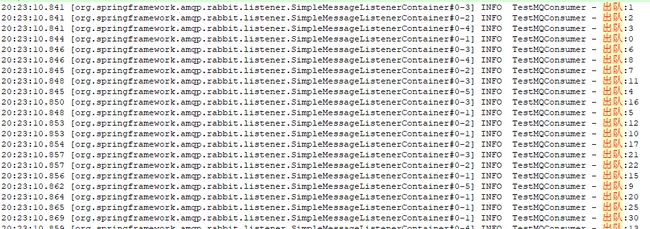

从出队日志，可以看出来，共有5个线程在消费这些消息。



2.3 consumer配置补充

注意上面rabbitmq的consumer配置文件。因为是测试demo，所以没有定义queue。而在实际的企业应用开发中，是需要先定义queue的，否则找不到queue，启动容器会报错的，见下面stacktrace。因此必须修改consumer配置文件。

java.lang.IllegalStateException: Failed to load ApplicationContext
...
Caused by: org.springframework.context.ApplicationContextException: Failed to start bean 'org.springframework.amqp.rabbit.listener.SimpleMessageListenerContainer#0'; nested exception is org.springframework.amqp.AmqpIllegalStateException: Fatal exception on listener startup
...
... 24 more
Caused by: org.springframework.amqp.AmqpIllegalStateException: Fatal exception on listener startup
...
... 36 more
Caused by: org.springframework.amqp.rabbit.listener.QueuesNotAvailableException: Cannot prepare queue for listener. Either the queue doesn't exist or the broker will not allow us to use it.
...
Caused by: org.springframework.amqp.rabbit.listener.BlockingQueueConsumer$DeclarationException: Failed to declare queue(s):[agentpayqueryQueue2]
at org.springframework.amqp.rabbit.listener.BlockingQueueConsumer.attemptPassiveDeclarations(BlockingQueueConsumer.java:587)
at org.springframework.amqp.rabbit.listener.BlockingQueueConsumer.start(BlockingQueueConsumer.java:486)
... 2 more
Caused by: java.io.IOException
...
Caused by: com.rabbitmq.client.ShutdownSignalException: channel error; protocol method: #method(reply-code=404, reply-text=NOT_FOUND - no queue 'agentpayqueryQueue2' in vhost '/', class-id=50, method-id=10)
at com.rabbitmq.utility.ValueOrException.getValue(ValueOrException.java:67)
at com.rabbitmq.utility.BlockingValueOrException.uninterruptibleGetValue(BlockingValueOrException.java:33)
at com.rabbitmq.client.impl.AMQChannel$BlockingRpcContinuation.getReply(AMQChannel.java:361)
at com.rabbitmq.client.impl.AMQChannel.privateRpc(AMQChannel.java:226)
at com.rabbitmq.client.impl.AMQChannel.exnWrappingRpc(AMQChannel.java:118)
... 11 more
Caused by: com.rabbitmq.client.ShutdownSignalException: channel error; protocol method: #method(reply-code=404, reply-text=NOT_FOUND - no queue 'agentpayqueryQueue2' in vhost '/', class-id=50, method-id=10)
at com.rabbitmq.client.impl.ChannelN.asyncShutdown(ChannelN.java:484)
at com.rabbitmq.client.impl.ChannelN.processAsync(ChannelN.java:321)
at com.rabbitmq.client.impl.AMQChannel.handleCompleteInboundCommand(AMQChannel.java:144)
at com.rabbitmq.client.impl.AMQChannel.handleFrame(AMQChannel.java:91)
at com.rabbitmq.client.impl.AMQConnection$MainLoop.run(AMQConnection.java:560)
... 1 more



 事先定义了queue的consumer配置文件：

xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:rabbit="http://www.springframework.org/schema/rabbit"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
     http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
     http://www.springframework.org/schema/beans
     http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
     http://www.springframework.org/schema/rabbit
     http://www.springframework.org/schema/rabbit/spring-rabbit-1.6.xsd">



    <rabbit:admin connection-factory="connectionFactory"/>

    <rabbit:queue id="agentpayqueryQueue2" name="agentpayqueryQueue2" durable="true" auto-delete="true">rabbit:queue>

    <bean id="agentpayQueryConsumer" class="demo.TestMQConsumer" />



    <rabbit:listener-container connection-factory="connectionFactory" acknowledge="auto"
                               max-concurrency="20"
                               concurrency="5"
                               prefetch="10">
        <rabbit:listener ref="agentpayQueryConsumer" queues="agentpayqueryQueue2" />
    rabbit:listener-container>
beans>



2.4 mq的创建与修改

1）上面定义的exchange和queue是在服务启动的时候创建的。

2）我在测试时，上面缓冲队列agentpayqueryQueue1，起初配置没有的，那么后来我要加上这个配置，当这个queue已经存在时，重启服务后这个配置是不会生成的，这个queue的配置并没有被改动。这时，需要先删掉agentpayqueryQueue1然后再启动服务来重新创建agentpayqueryQueue1。**因为删掉队列会同时删掉队列里的消息（如果有），所以此功能要慎用，必要情况下需要中止生产端的消息入队操作，待重建后再恢复使用。当然通常情况下，队列一旦创建，我们也不会对其做什么改动了。



 3. 结束
