八皇后和N皇后以及ios实现界面动态寻找解

一、用枚举法实现
思路:枚举所有的可能来,可以看成一个树形结构,到了叶子节点再去判断是不是可行解

二、用回溯法实现
思路:在枚举法的基础上先进行判断是不是可以放的点,再去进行递归

三、实现用了2种方法,一个是一维数组,一个是二维数组。一维数组中数组下标为皇后坐标的行,数组中对应的值为皇后坐标的列

四、以下是代码部分,并且实现了动态寻找解(ios界面)
代码在最下面,可供参考

#include"iostream"
using namespace std;
int cnt=0;
int n;

//*********************蛮力法
int judge(int a[])
{
    for(int i=0;in-1){
            break;
        }
        if(chess[row-i][col+i]==1){
            return false;
        }

    }

    for(int i=0;in-1||col-i<0){
            break;
        }
        if(chess[row+i][col-i]==1){
            return false;
        }
    }


    for(int i=0;in-1||col+i>n-1){
            break;
        }
        if(chess[row+i][col+i]==1){
            return false;
        }
    }

    return true;
}

//回溯法递归
void EightQueen(int row,int col,int **chess)
{
    //temp 2Darray
    int **chess2=new int*[n];
    for(int i=0;i>n;

    //********************蛮力法
//    int *a=new int[n];
////    int a[8]={4,2,7,3,6,8,5,1};
//    double start=clock();
//    queen(a, 0);
//    double end=clock();
//    printf("%f",end-start);
//    cout<
八皇后和N皇后以及ios实现界面动态寻找解_第1张图片

[图片上传中...(八皇后.gif-9e5819-1509702099883-0)]

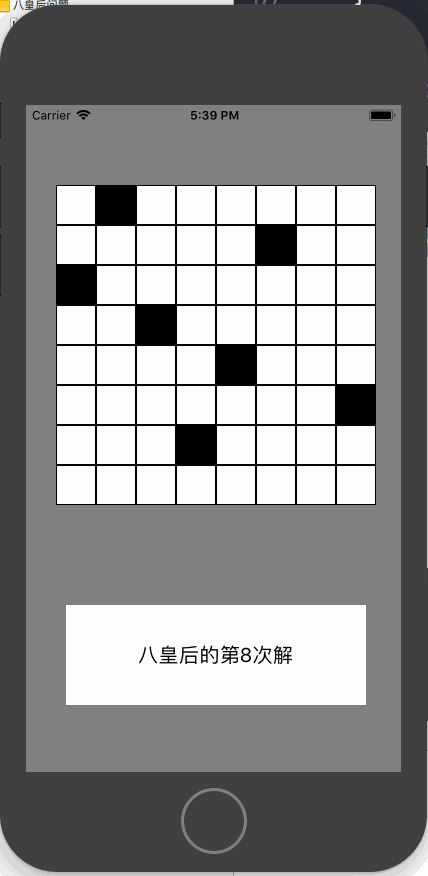

五、下面是枚举法实现ios动态寻找解的界面
实现的语言:oc和c++

//
//  ViewController.m
//  八皇后问题
//
//  Created by tao on 2017/10/27.
//  Copyright © 2017年 LiuTao. All rights reserved.
//

#import "ViewController.h"
#include
using namespace std;
@interface ViewController ()

@property(nonatomic,strong)NSMutableArray *array;

@property(nonatomic,assign)int g_count;

@property(nonatomic,assign)int n;

@property(nonatomic,strong)UILabel *l;

@property(nonatomic,strong)UILabel *text;

@end

@implementation ViewController

-(NSMutableArray *)array
{
    if(_array==nil)
    {
        _array=[NSMutableArray array];
    }
    return _array;

}

- (void)viewDidLoad {
    [super viewDidLoad];

    [self start];

    cout<<_g_count<

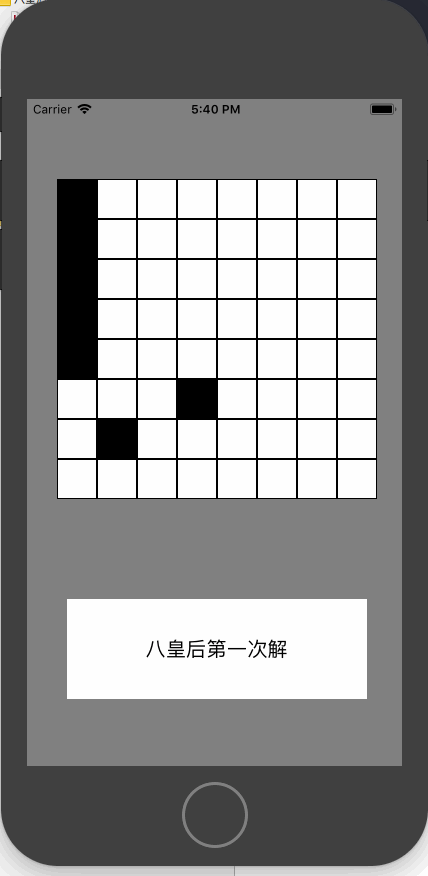

六、下面是回溯法实现ios动态寻找解的界面
实现的语言:oc和c++


八皇后和N皇后以及ios实现界面动态寻找解_第2张图片
//
//  ViewController.m
//  八皇后问题![八皇后.gif](http://upload-images.jianshu.io/upload_images/5196732-f9996aaa1b320560.gif?imageMogr2/auto-orient/strip%7CimageView2/2/w/1240)

//
//  Created by tao on 2017/10/27.
//  Copyright © 2017年 LiuTao. All rights reserved.
//

#import "ViewController.h"
#include
using namespace std;
@interface ViewController ()

@property(nonatomic,strong)NSMutableArray *array;

@property(nonatomic,assign)int g_count;

@property(nonatomic,assign)int n;

@property(nonatomic,strong)UILabel *l;

@property(nonatomic,strong)UILabel *text;

@end

@implementation ViewController

-(NSMutableArray *)array
{
    if(_array==nil)
    {
        _array=[NSMutableArray array];
    }
    return _array;

}

- (void)viewDidLoad {
    [super viewDidLoad];

    [self start];

}



-(void)start
{
     _g_count=1;
    _n=8;
    _l=[[UILabel alloc]init];
    self.view.backgroundColor=[UIColor grayColor];
    int i,j;
    for(i=0;i<_n;i++)
    {
        for(j=0;j<_n;j++)
        {

            UILabel *label=[[UILabel alloc]initWithFrame:CGRectMake(30+j*40, 80+i*40, 40, 40)];
            label.layer.borderColor=[[UIColor blackColor]CGColor];
            label.layer.borderWidth=1;
            label.backgroundColor=[UIColor whiteColor];
            label.layer.masksToBounds=YES;
            label.tag=i*_n+j+1;
            label.userInteractionEnabled=YES;
            [self.array addObject:label];
            [self.view addSubview:label];

        }
    }
    [self begin];
}

-(void)begin
{
    _text=[[UILabel alloc]initWithFrame:CGRectMake(40, 500, 300, 100)];
    _text.backgroundColor=[UIColor whiteColor];
    _text.text=@"八皇后第一次解";
    _text.textAlignment=NSTextAlignmentCenter;
    _text.font=[UIFont systemFontOfSize:20];
    _text.textColor=[UIColor blackColor];
    [self.view addSubview:_text];
    dispatch_async(dispatch_get_global_queue(0, 0), ^{
        int **chess=new int*[_n];
        for(int i=0;i<_n;i++)
            chess[i]=new int[_n];

        for(int i=0;i<_n;i++)
            for(int j=0;j<_n;j++)
                chess[i][j]=0;

        [self EightQueen:0 and1:0 and2:chess];
    });
}

-(bool) CanPlace:(int)row and1:(int)col and2:(int **)chess
{
    for(int i=0;i<_n;i++){
        if(chess[i][col]==1){//check col
            return false;
        }
        if(chess[row][i]==1){//check row
            return false;
        }
    }


    for(int i=0;i<_n;i++){//check left-front
        if(row-i<0||col-i<0){
            break;
        }
        if(chess[row-i][col-i]==1){
            return false;
        }
    }


    for(int i=0;i<_n;i++){//check right-front
        if(row-i<0||col+i>_n-1){
            break;
        }
        if(chess[row-i][col+i]==1){
            return false;
        }

    }

    for(int i=0;i<_n;i++){//check left-below
        if(row+i>_n-1||col-i<0){
            break;
        }
        if(chess[row+i][col-i]==1){
            return false;
        }
    }


    for(int i=0;i<_n;i++){//check right-below
        if(row+i>_n-1||col+i>_n-1){
            break;
        }
        if(chess[row+i][col+i]==1){
            return false;
        }
    }

    return true;
}

-(void) EightQueen:(int)row and1:(int)col and2:(int **)chess
{
    //temp 2Darray
    int **chess2=new int*[_n];
    for(int i=0;i<_n;i++)
        chess2[i]=new int[_n];

    //put last scene to temp 2Darray
    for(int i=0;i<_n;i++)
    {
        for(int j=0;j<_n;j++)
        {
            chess2[i][j]=chess[i][j];
        }
    }
    if(row==_n)
    {
        _g_count++;
        dispatch_async(dispatch_get_main_queue(), ^{

            NSString *str=[NSString stringWithFormat:@"八皇后的第%d次解",_g_count];
            _text.text=str;
            [NSThread sleepForTimeInterval:2];

        });

        cout<<_g_count<
