开发中经常遇到使用Activity ，网上关于讲解其原理的也很多，但是都是零零散散，今天想做个总结，并且也提高一下自己对源码的认识
Acitivity 启动过程
先看入口
最常用的Activity 启动过程是
@Override
public void startActivity(Intent intent) {
startActivity(intent, null);
}
@Override
public void startActivity(Intent intent, Bundle options) {
if (options != null) {
startActivityForResult(intent, -1, options);
} else {
// Note we want to go through this call for compatibility with
// applications that may have overridden the method.
startActivityForResult(intent, -1);
}
}
public void startActivityForResult(Intent intent, int requestCode) {
startActivityForResult(intent, requestCode, null);
}
其实我们也可以通过 context.startActivity(next); 来启动Activity ，由于Context是抽象类，Activity是Context子类，所以最后都会走到上一个方法。
显然，从上往下，最终都是由startActivityForResult来实现的
public void startActivityForResult(Intent intent, int requestCode, Bundle options) {
if (mParent == null) {
//这里会启动新的Activity，核心功能都在mMainThread.getApplicationThread()中完成
Instrumentation.ActivityResult ar =
mInstrumentation.execStartActivity(
this, mMainThread.getApplicationThread(), mToken, this,
intent, requestCode, options);
if (ar != null) {
//发送结果，即onActivityResult会被调用
mMainThread.sendActivityResult(
mToken, mEmbeddedID, requestCode, ar.getResultCode(),
ar.getResultData());
}
if (requestCode >= 0) {
// If this start is requesting a result, we can avoid making
// the activity visible until the result is received. Setting
// this code during onCreate(Bundle savedInstanceState) or onResume() will keep the
// activity hidden during this time, to avoid flickering.
// This can only be done when a result is requested because
// that guarantees we will get information back when the
// activity is finished, no matter what happens to it.
mStartedActivity = true;
}
final View decor = mWindow != null ? mWindow.peekDecorView() : null;
if (decor != null) {
decor.cancelPendingInputEvents();
}
// TODO Consider clearing/flushing other event sources and events for child windows.
} else {
if (options != null) {
mParent.startActivityFromChild(this, intent, requestCode, options);
} else {
// Note we want to go through this method for compatibility with
// existing applications that may have overridden it.
mParent.startActivityFromChild(this, intent, requestCode);
}
}
}
我们一行一行看，该方法三个参数都是正常使用时用到的，我们直接看内部，先去判断 mParent 是否为空，这个mParent是什么呢，它其实是一个Activity
在Android 4.1以上，可以指定
android:parentActivityName="MainActivity"点击打开其他Activity后，可以看到标题栏多了一个返回导航，再点击标题栏的返回时，回到MainActivity，而不是回到之前的Task。只在4.1的机器上有效，在2.x的机器上和以前没有任何区别。
...
一般的Activity其mParent为null，mParent常用在ActivityGroup中，ActivityGroup已废弃，而在ActivityGroup内部的Activity调用startActivity的时候也会走到上面，内部处理逻辑和上面是类似的
也就是说 启动新的Activity是在
mInstrumentation.execStartActivity(this,mMainThread.getApplicationThread(), mToken, this, intent, requestCode, options);
这个方法中，先不考虑mInstrumentation是做什么的，我们看内部实现
public ActivityResult execStartActivity(
Context who, IBinder contextThread, IBinder token, Activity target,
Intent intent, int requestCode, Bundle options) {
//核心功能在这个whoThread中完成，其内部scheduleLaunchActivity方法用于完成activity的打开
IApplicationThread whoThread = (IApplicationThread) contextThread;
if (mActivityMonitors != null) {
synchronized (mSync) {
final int N = mActivityMonitors.size();
for (int i=0; i= 0 ? am.getResult() : null;
}
break;
}
}
}
}
try {
intent.migrateExtraStreamToClipData();
intent.prepareToLeaveProcess();
int result = ActivityManagerNative.getDefault()
.startActivity(whoThread, who.getBasePackageName(), intent,
intent.resolveTypeIfNeeded(who.getContentResolver()),
token, target != null ? target.mEmbeddedID : null,
requestCode, 0, null, null, options);
//
checkStartActivityResult(result, intent);
} catch (RemoteException e) {
}
return null;
}
往里面看 contextThread 就是之前传入的mMainThread.getApplicationThread() 这个mMainThread 其实是一个Binder对象

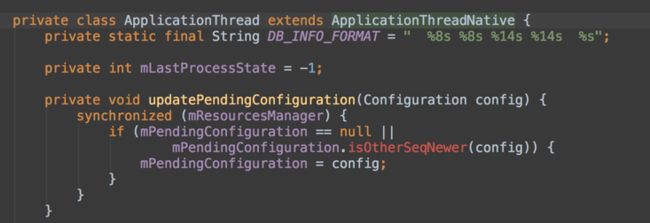

ApplicationThread
ApplicationThreadNative
对于Binder的原理请看 Android进程间通信（IPC）机制Binder简要介绍
再回到刚才的源码，往下看，先在mActivityMonitors中查找一遍看是否存在这个activity，如果找到了就跳出循环，并且如果可以运行就返回监控器的结果。

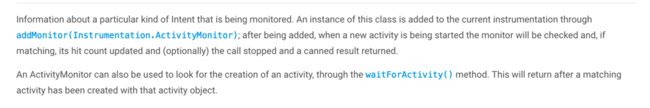

对于ActivityMonitor，其实是是google为了自动测试所添加的一个类，可以说是一个工具类，此处我们不深研究，若想了解请看 ActivityMonitor 类的功能
ActivityMonitor
接下来在try...catch 里就是真正打开activity的地方，核心功能在whoThread中完成
另外提一下
checkStartActivityResult(result, intent);这个方法就是专门抛异常的，它会对结果进行检查，如果无法打开activity，则抛出诸如ActivityNotFoundException类似的各种异常
如在xml中没有注册目标activity，Unable to find explicit activity class等
public static void checkStartActivityResult(int res, Object intent) {
if (res >= ActivityManager.START_SUCCESS) {
return;
}
switch (res) {
case ActivityManager.START_INTENT_NOT_RESOLVED:
case ActivityManager.START_CLASS_NOT_FOUND:
if (intent instanceof Intent && ((Intent)intent).getComponent() != null)
throw new ActivityNotFoundException(
"Unable to find explicit activity class "
+ ((Intent)intent).getComponent().toShortString()
+ "; have you declared this activity in your AndroidManifest.xml?");
throw new ActivityNotFoundException(
"No Activity found to handle " + intent);
case ActivityManager.START_PERMISSION_DENIED:
throw new SecurityException("Not allowed to start activity "
+ intent);
case ActivityManager.START_FORWARD_AND_REQUEST_CONFLICT:
throw new AndroidRuntimeException(
"FORWARD_RESULT_FLAG used while also requesting a result");
case ActivityManager.START_NOT_ACTIVITY:
throw new IllegalArgumentException(
"PendingIntent is not an activity");
default:
throw new AndroidRuntimeException("Unknown error code "
+ res + " when starting " + intent);
}
}
接着上文看，在try...catch 中首先是要对传递的数据做准备
intent.migrateExtraStreamToClipData();
intent.prepareToLeaveProcess();```
第一个是将intent里的bundle数据进行处理以便给底层处理，
第二句准备离开应用程序进程，进入ActivityManagerService进程（意味着bundle的数据要在进程间传递）
*关于Intent 的机制请看 [源码角度轻松学习Intent机制](http://www.jianshu.com/p/40ff93eff1a0)*
再接下来就是我们要关注的重点了，也是真正打开activity的地方，核心功能在whoThread中完成。
int result = ActivityManagerNative.getDefault()
.startActivity(whoThread, who.getBasePackageName(), intent,
intent.resolveTypeIfNeeded(who.getContentResolver()),
token, target != null ? target.mEmbeddedID : null,
requestCode, 0, null, null, options);
//这个方法是专门抛异常的，它会对结果进行检查，如果无法打开activity，
//则抛出诸如ActivityNotFoundException类似的各种异常
checkStartActivityResult(result, intent);
这里 ActivityManagerNative.getDefault() 返回的是一个IActivityManager接口的代理类，
private static final Singleton
protected IActivityManager create() {
IBinder b = ServiceManager.getService("activity");
if (false) {
Log.v("ActivityManager", "default service binder = " + b);
}
IActivityManager am = asInterface(b);
if (false) {
Log.v("ActivityManager", "default service = " + am);
}
return am;
}
};
/**
* Cast a Binder object into an activity manager interface, generating
* a proxy if needed.
*/
static public IActivityManager asInterface(IBinder obj) {
if (obj == null) {
return null;
}
IActivityManager in =
(IActivityManager)obj.queryLocalInterface(descriptor);
if (in != null) {
return in;
}
return new ActivityManagerProxy(obj);
}
这里我把方法提取了一下，也就是说返回的是一个ActivityManagerProxy对象的引用，其中```ServiceManager.getService("activity");``` 获取了一个系统级的service，而这个Service 实质上就是ActivityManagerService，这里就完成了一个对ActivityManagerService的代理对象ActivityManagerProxy的实例.
>总的来说这里使用的是设计模式中的[代理模式](https://github.com/simple-android-framework-exchange/android_design_patterns_analysis/tree/master/proxy/singwhatiwanna), ActivityManagerProxy和ActivityManagerNative 都实现了IActivityManager，ActivityManagerProxy 就是代理部分，而ActivityManagerNative 就是真实部分，但ActivityManagerNative 是个抽象类，其并不处理过多的具体逻辑，大部分具体逻辑的实现由子类ActivityManagerService 承担，ActivityManagerService 是系统级的Service 并且运行于独立的进程中，而ActivityManagerProxy 也运行于自己的进程中，因此它们两个之间的通信必定是通过跨进程来进行的，也就是基于Android的Binder机制，Binder机制过于复杂。
若想了解Binder机制请参考[[Binder架构解析](http://wangkuiwu.github.io/2014/09/01/Binder-Introduce/#anchor1)](http://wangkuiwu.github.io/2014/09/01/Binder-Introduce/)
关于ActivityManger 请参考[ActivityManger架构解析](http://blog.csdn.net/caowenbin/article/details/6036726)
也就是说最终是通过Binder IPC到ActivityManagerService所在进程调用ActivityManagerService的startActivity方法
@Override
public final int startActivity(IApplicationThread caller, String callingPackage,
Intent intent, String resolvedType, IBinder resultTo, String resultWho, int requestCode,
int startFlags, ProfilerInfo profilerInfo, Bundle options) {
return startActivityAsUser(caller, callingPackage, intent, resolvedType, resultTo,
resultWho, requestCode, startFlags, profilerInfo, options,
UserHandle.getCallingUserId());
}
@Override
public final int startActivityAsUser(IApplicationThread caller, String callingPackage,
Intent intent, String resolvedType, IBinder resultTo, String resultWho, int requestCode,
int startFlags, ProfilerInfo profilerInfo, Bundle options, int userId) {
enforceNotIsolatedCaller("startActivity");
userId = handleIncomingUser(Binder.getCallingPid(), Binder.getCallingUid(), userId,
false, ALLOW_FULL_ONLY, "startActivity", null);
// TODO: Switch to user app stacks here.
return mStackSupervisor.startActivityMayWait(caller, -1, callingPackage, intent,
resolvedType, null, null, resultTo, resultWho, requestCode, startFlags,
profilerInfo, null, null, options, userId, null, null);
}
>这个ActivityStackSupervisor类到底是个啥？如果仔细查阅，低版本的Android源码上是没有这个类的；后来AMS的代码进行了部分重构，关于Activity栈管理的部分单独提取出来成为了ActivityStackSupervisor类
继续往里面看，其内部又调用了[startActivityLocked](http://androidxref.com/5.1.1_r6/xref/frameworks/base/services/core/java/com/android/server/am/ActivityStackSupervisor.java#startActivityLocked)方法，这个方法的作用是在startActivity 前做一系列的检查，如没有在Manifestfest中注册抛出的异常
if (err == ActivityManager.START_SUCCESS && aInfo == null) {
// We couldn't find the specific class specified in the Intent.
// Also the end of the line.
err = ActivityManager.START_CLASS_NOT_FOUND;
}
if (err != ActivityManager.START_SUCCESS) {
if (resultRecord != null) {
resultStack.sendActivityResultLocked(-1,
resultRecord, resultWho, requestCode,
Activity.RESULT_CANCELED, null);
}
ActivityOptions.abort(options);
return err;
}
如果启动不成功就返回这个err，记得在之前mInstrumentation里有个checkStartActivityResult方法么，由它来处理这个信息，并抛出异常。
>activity 在 AMS 中的形式是 ActivityRecord,task 在 AMS 中的形式为TaskRecord,进程在 AMS 中的管理形式为 ProcessRecord
这里还有会处理Activity 的LaunchMode 启动判断，请查看
[Activity LaunchMode源码分析](http://www.jianshu.com/p/09365022adac)
总结可以看下图
从上图看出，最后走到了ActivityStackSupervisor中的realStartActivityLocked 方法,这个方法中有如下的代码
app.thread.scheduleLaunchActivity(new Intent(r.intent), r.appToken,
System.identityHashCode(r), r.info, new Configuration(mService.mConfiguration),
r.compat, r.task.voiceInteractor, app.repProcState, r.icicle, r.persistentState,
results, newIntents, !andResume, mService.isNextTransitionForward(),
profilerInfo);
其中，app.thread的类型为IApplicationThread，
IApplicationThread 是个接口，这个接口继承了IInterFace接口，所以它是一个Binder类型的接口，看到这个接口里的方法我们可以猜测这个接口的实现类完成了启动activity和service的相关功能，而我们要看其中的实现方法就要看它的实现类，还记得上面我们的ApplicationThreadNative么？它继承了IApplicationThread接口，其实他就是这个接口的实现类，进入这个类中我们看一下
总的来说饶了一圈，Activity的启动最终回到了ApplicationThread中，ApplicationThread是通过scheduleLaunchActivity 方法来启动Activity
@Override
public final void scheduleLaunchActivity(Intent intent, IBinder token, int ident,
ActivityInfo info, Configuration curConfig, Configuration overrideConfig,
CompatibilityInfo compatInfo, String referrer, IVoiceInteractor voiceInteractor,
int procState, Bundle state, PersistableBundle persistentState,
List pendingResults, List pendingNewIntents,
boolean notResumed, boolean isForward, ProfilerInfo profilerInfo) {
updateProcessState(procState, false);
ActivityClientRecord r = new ActivityClientRecord();
r.token = token;
r.ident = ident;
r.intent = intent;
r.referrer = referrer;
r.voiceInteractor = voiceInteractor;
r.activityInfo = info;
r.compatInfo = compatInfo;
r.state = state;
r.persistentState = persistentState;
r.pendingResults = pendingResults;
r.pendingIntents = pendingNewIntents;
r.startsNotResumed = notResumed;
r.isForward = isForward;
r.profilerInfo = profilerInfo;
r.overrideConfig = overrideConfig;
updatePendingConfiguration(curConfig);
sendMessage(H.LAUNCH_ACTIVITY, r);
}
这里发送了一个启动Activity的消息交由Handler处理，这个Handler就是H，从sendMessage方法看出，它的作用就是发送一个消息给H处理，看一下H对消息的处理方法
public void handleMessage(Message msg) {
if (DEBUG_MESSAGES) Slog.v(TAG, ">>> handling: " + codeToString(msg.what));
switch (msg.what) {
case LAUNCH_ACTIVITY: {
Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "activityStart");
final ActivityClientRecord r = (ActivityClientRecord) msg.obj;
r.packageInfo = getPackageInfoNoCheck(
r.activityInfo.applicationInfo, r.compatInfo);
handleLaunchActivity(r, null);
Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
} break;
case RELAUNCH_ACTIVITY: {
Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "activityRestart");
ActivityClientRecord r = (ActivityClientRecord)msg.obj;
handleRelaunchActivity(r);
Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
} break;
case PAUSE_ACTIVITY:
Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "activityPause");
handlePauseActivity((IBinder)msg.obj, false, (msg.arg1&1) != 0, msg.arg2,
(msg.arg1&2) != 0);
maybeSnapshot(); Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
break;
case PAUSE_ACTIVITY_FINISHING:
Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "activityPause");
handlePauseActivity((IBinder)msg.obj, true, (msg.arg1&1) != 0, msg.arg2,
(msg.arg1&1) != 0);
Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
break;
Handler H 对“LAUNCH_ACTIVITY” 这个消息处理看出，Activity启动是在handleLaunchActivity(r, null); 方法中实现的
private void handleLaunchActivity(ActivityClientRecord r, Intent customIntent) {
// If we are getting ready to gc after going to the background, well
// we are back active so skip it.
unscheduleGcIdler();
mSomeActivitiesChanged = true;
if (r.profilerInfo != null) {
mProfiler.setProfiler(r.profilerInfo);
mProfiler.startProfiling();
}
// Make sure we are running with the most recent config.
handleConfigurationChanged(null, null);
if (localLOGV) Slog.v(
TAG, "Handling launch of " + r);
// Initialize before creating the activity
WindowManagerGlobal.initialize();
Activity a = performLaunchActivity(r, customIntent);
if (a != null) {
r.createdConfig = new Configuration(mConfiguration);
Bundle oldState = r.state;
handleResumeActivity(r.token, false, r.isForward,
!r.activity.mFinished && !r.startsNotResumed);
if (!r.activity.mFinished && r.startsNotResumed) {
// The activity manager actually wants this one to start out
// paused, because it needs to be visible but isn't in the
// foreground. We accomplish this by going through the
// normal startup (because activities expect to go through
// onResume() the first time they run, before their window
// is displayed), and then pausing it. However, in this case
// we do -not- need to do the full pause cycle (of freezing
// and such) because the activity manager assumes it can just
// retain the current state it has.
try {
r.activity.mCalled = false;
mInstrumentation.callActivityOnPause(r.activity);
// We need to keep around the original state, in case
// we need to be created again. But we only do this
// for pre-Honeycomb apps, which always save their state
// when pausing, so we can not have them save their state
// when restarting from a paused state. For HC and later,
// we want to (and can) let the state be saved as the normal
// part of stopping the activity.
if (r.isPreHoneycomb()) {
r.state = oldState;
}
if (!r.activity.mCalled) {
throw new SuperNotCalledException(
"Activity " + r.intent.getComponent().toShortString() +
" did not call through to super.onPause()");
}
} catch (SuperNotCalledException e) {
throw e;
} catch (Exception e) {
if (!mInstrumentation.onException(r.activity, e)) {
throw new RuntimeException(
"Unable to pause activity "
+ r.intent.getComponent().toShortString()
+ ": " + e.toString(), e);
}
}
r.paused = true;
}
} else {
// If there was an error, for any reason, tell the activity
// manager to stop us.
try {
ActivityManagerNative.getDefault()
.finishActivity(r.token, Activity.RESULT_CANCELED, null, false);
} catch (RemoteException ex) {
// Ignore
}
}
}
里面的performLaunchActivity 是真正实现activity的方法
private Activity performLaunchActivity(ActivityClientRecord r, Intent customIntent) {
// System.out.println("##### [" + System.currentTimeMillis() + "] ActivityThread.performLaunchActivity(" + r + ")");
ActivityInfo aInfo = r.activityInfo;
if (r.packageInfo == null) {
r.packageInfo = getPackageInfo(aInfo.applicationInfo, r.compatInfo,
Context.CONTEXT_INCLUDE_CODE);
}
//首先从intent中解析出目标activity的启动参数
ComponentName component = r.intent.getComponent();
if (component == null) {
component = r.intent.resolveActivity(
mInitialApplication.getPackageManager());
r.intent.setComponent(component);
}
if (r.activityInfo.targetActivity != null) {
component = new ComponentName(r.activityInfo.packageName,
r.activityInfo.targetActivity);
}
Activity activity = null;
try {
java.lang.ClassLoader cl = r.packageInfo.getClassLoader();
//用ClassLoader（类加载器）将目标activity的类通过类名加载进来并调用newInstance来实例化一个对象
//其实就是通过Activity的无参构造方法来new一个对象，对象就是在这里new出来的。
activity = mInstrumentation.newActivity(
cl, component.getClassName(), r.intent);
StrictMode.incrementExpectedActivityCount(activity.getClass());
r.intent.setExtrasClassLoader(cl);
if (r.state != null) {
r.state.setClassLoader(cl);
}
} catch (Exception e) {
if (!mInstrumentation.onException(activity, e)) {
throw new RuntimeException(
"Unable to instantiate activity " + component
+ ": " + e.toString(), e);
}
}
try {
Application app = r.packageInfo.makeApplication(false, mInstrumentation);
if (localLOGV) Slog.v(TAG, "Performing launch of " + r);
if (localLOGV) Slog.v(
TAG, r + ": app=" + app
+ ", appName=" + app.getPackageName()
+ ", pkg=" + r.packageInfo.getPackageName()
+ ", comp=" + r.intent.getComponent().toShortString()
+ ", dir=" + r.packageInfo.getAppDir());
if (activity != null) {
Context appContext = createBaseContextForActivity(r, activity);
CharSequence title = r.activityInfo.loadLabel(appContext.getPackageManager());
Configuration config = new Configuration(mCompatConfiguration);
if (DEBUG_CONFIGURATION) Slog.v(TAG, "Launching activity "
+ r.activityInfo.name + " with config " + config);
activity.attach(appContext, this, getInstrumentation(), r.token,
r.ident, app, r.intent, r.activityInfo, title, r.parent,
r.embeddedID, r.lastNonConfigurationInstances, config);
if (customIntent != null) {
activity.mIntent = customIntent;
}
r.lastNonConfigurationInstances = null;
activity.mStartedActivity = false;
int theme = r.activityInfo.getThemeResource()
if (theme != 0) {
activity.setTheme(theme);
}
activity.mCalled = false;
//目标activity的onCreate被调用了，到此为止，Activity被启动了，接下来的流程就是Activity的生命周期了，
//本文之前已经提到，其生命周期的各种状态的切换由ApplicationThread内部来完成
mInstrumentation.callActivityOnCreate(activity, r.state);
if (!activity.mCalled) {
throw new SuperNotCalledException(
"Activity " + r.intent.getComponent().toShortString() +
" did not call through to super.onCreate()");
}
r.activity = activity;
r.stopped = true;
if (!r.activity.mFinished) {
activity.performStart();
r.stopped = false;
}
if (!r.activity.mFinished) {
if (r.state != null) {
mInstrumentation.callActivityOnRestoreInstanceState(activity, r.state);
}
}
if (!r.activity.mFinished) {
activity.mCalled = false;
mInstrumentation.callActivityOnPostCreate(activity, r.state);
if (!activity.mCalled) {
throw new SuperNotCalledException(
"Activity " + r.intent.getComponent().toShortString() +
" did not call through to super.onPostCreate()");
}
}
}
r.paused = true;
mActivities.put(r.token, r);
} catch (SuperNotCalledException e) {
throw e;
} catch (Exception e) {
if (!mInstrumentation.onException(activity, e)) {
throw new RuntimeException(
"Unable to start activity " + component
+ ": " + e.toString(), e);
}
}
return activity;
}
这里面看到
Activity activity = null;
try {
java.lang.ClassLoader cl = r.packageInfo.getClassLoader();
activity = mInstrumentation.newActivity(
cl, component.getClassName(), r.intent);
StrictMode.incrementExpectedActivityCount(activity.getClass());
r.intent.setExtrasClassLoader(cl);
r.intent.prepareToEnterProcess();
if (r.state != null) {
r.state.setClassLoader(cl);
}
} catch (Exception e) {
if (!mInstrumentation.onException(activity, e)) {
throw new RuntimeException(
"Unable to instantiate activity " + component
+ ": " + e.toString(), e);
}
}
这个方法就是通过mInstrumentation.newActivity 方法，用classLoader创建activity的实例，这样就创建了Activity，再往下看就是创建Application，以及activity attach的回调方法。
