即时查询工具| Druid

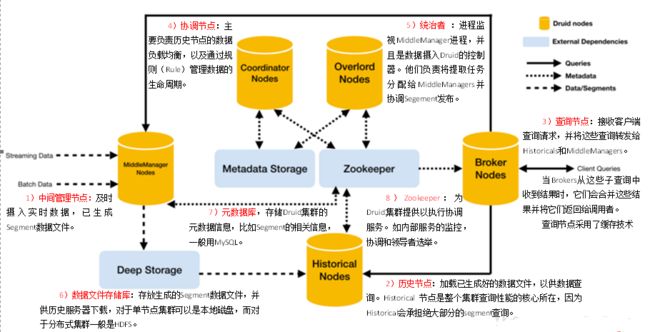

 Druid是一个快速的列式分布式的支持实时分析的数据存储系统，在处理PB级别数据、毫秒级查询、数据实时处理方面，比传统的OLAP系统有了显著的性能改进。

















 Druid数据结构

与Druid架构相辅相成的是其基于DataSource与Segment的数据结构，它们共同成就了Druid的高性能优势。











 Druid安装（单机版）

从https://imply.io/get-started 下载最新版本安装包

 安装部署

imply集成了Druid，提供了Druid从部署到配置到各种可视化工具的完整的解决方案，imply有点类似于我们之前学过的Cloudera Manager

1.解压
  tar -zxvf imply-2.7.10.tar.gz -C /opt/module
   目录说明如下：
    - bin/ - run scripts for included software.
　　 - conf/ - template configurations for a clustered setup.
　　 - conf-quickstart/* - configurations for the single-machine quickstart.
　　 - dist/ - all included software.
　　 - quickstart/ - files related to the single-machine quickstart.
2.修改配置文件
  1）修改Druid的ZK配置
　　[kris@hadoop101 _common]$ vim /opt/module/imply/conf/druid/_common/common.runtime.properties
　　  druid.zk.service.host=hadoop101:2181,hadoop102:2181,hadoop103:2181
  2）修改启动命令参数，使其不校验不启动内置ZK
　　[kris@hadoop101 supervise]$ vim /opt/module/imply/conf/supervise/quickstart.conf
　　 :verify bin/verify-java
　　 #:verify bin/verify-default-ports
　　 #:verify bin/verify-version-check
　　 :kill-timeout 10

　　 #!p10 zk bin/run-zk conf-quickstart

3.启动
　　1）启动zookeeper
　　2）启动imply
　　  [kris@hadoop101 imply-2.7.10]$ bin/supervise  -c conf/supervise/quickstart.conf
　　　　[Fri Jan  3 13:37:51 2020] Running command[coordinator], logging to[/opt/module/imply-2.7.10/var/sv/coordinator.log]: bin/run-druid coordinator conf-quickstart
　　　　[Fri Jan  3 13:37:51 2020] Running command[broker], logging to[/opt/module/imply-2.7.10/var/sv/broker.log]: bin/run-druid broker conf-quickstart
　　　　[Fri Jan  3 13:37:51 2020] Running command[historical], logging to[/opt/module/imply-2.7.10/var/sv/historical.log]: bin/run-druid historical conf-quickstart
　　　　[Fri Jan  3 13:37:51 2020] Running command[overlord], logging to[/opt/module/imply-2.7.10/var/sv/overlord.log]: bin/run-druid overlord conf-quickstart
　　　　[Fri Jan  3 13:37:51 2020] Running command[middleManager], logging to[/opt/module/imply-2.7.10/var/sv/middleManager.log]: bin/run-druid middleManager conf-quickstart
　　　　[Fri Jan  3 13:37:51 2020] Running command[imply-ui], logging to[/opt/module/imply-2.7.10/var/sv/imply-ui.log]: bin/run-imply-ui-quickstart conf-quickstart

说明：每启动一个服务均会打印出一条日志。可以通过/opt/module/imply-2.7.10/var/sv/查看服务启动时的日志信息

[kris@hadoop101 sv]$ ll
总用量 904
-rw-rw-r-- 1 kris kris  77528 1月   3 13:38 broker.log
-rw-rw-r-- 1 kris kris 588001 1月   3 14:07 coordinator.log
-rw-rw-r-- 1 kris kris  76857 1月   3 13:38 historical.log
-rw-rw-r-- 1 kris kris  11599 1月   3 14:06 imply-ui.log
-rw-rw-r-- 1 kris kris  70725 1月   3 13:38 middleManager.log
-rw-rw-r-- 1 kris kris  93658 1月   3 14:07 overlord.log
查看端口号9095的启动情况：

[kris@hadoop101 sv]$ netstat -anp | grep 9095
(Not all processes could be identified, non-owned process info
 will not be shown, you would have to be root to see it all.)
tcp        0      0 :::9095                     :::*                        LISTEN      6118/imply-ui-linux
tcp        0      0 ::ffff:192.168.1.101:9095   ::ffff:192.168.1.1:54884    TIME_WAIT   -
tcp        0      0 ::ffff:192.168.1.101:9095   ::ffff:192.168.1.1:54883    TIME_WAIT   -

登录hadoop101:9095查看





















停止服务

按Ctrl + c中断监督进程，如果想中断服务后进行干净的启动，请删除/opt/module/imply-2.7.10/var/目录。











从hadoop加载数据

加载数据

批量摄取维基百科样本数据，文件位于quickstart/wikipedia-2016-06-27-sampled.json。使用quickstart/wikipedia-index-hadoop.json 摄取任务文件。

   bin/post-index-task --file quickstart/wikipedia-index-hadoop.json

此命令将启动Druid Hadoop摄取任务。    摄取任务完成后，数据将由历史节点加载，并可在一两分钟内进行查询。

[kris@hadoop101 imply]$ bin/post-index-task --file quickstart/wikipedia-index-hadoop.json
Beginning indexing data for wikipedia
Task started: index_hadoop_wikipedia_2020-02-08T09:25:37.204Z
Task log:     http://localhost:8090/druid/indexer/v1/task/index_hadoop_wikipedia_2020-02-08T09:25:37.204Z/log
Task status:  http://localhost:8090/druid/indexer/v1/task/index_hadoop_wikipedia_2020-02-08T09:25:37.204Z/status
Task index_hadoop_wikipedia_2020-02-08T09:25:37.204Z still running...
Task index_hadoop_wikipedia_2020-02-08T09:25:37.204Z still running...
Task index_hadoop_wikipedia_2020-02-08T09:25:37.204Z still running...
Task index_hadoop_wikipedia_2020-02-08T09:25:37.204Z still running...
Task finished with status: SUCCESS
Completed indexing data for wikipedia. Now loading indexed data onto the cluster...
wikipedia loading complete! You may now query your data

SQL查询

select * from wikipedia















[kris@hadoop101 imply]$ curl -XPOST -H'Content-Type: application/json' -d  @quickstart/wikipedia-kafka-supervisor.json http://hadoop101:8090/druid/indexer/v1/supervisor
{"id":"wikipedia-kafka"}





加载实时数据：

[kris@hadoop101 imply]$ curl -O https://static.imply.io/quickstart/wikiticker-0.4.tar.gz
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100 30.0M  100 30.0M    0     0   535k      0  0:00:57  0:00:57 --:--:--  623k
