Springboot + Mybatis+Dubbo+Zookeeper+nginx+redis+HTML
综合学习SpringBoot+Dubbo+Zookeeper,结合平时用的框架，对常用的框架整合了一下，从框架到后台到前端，如有侵权，请联系删除！

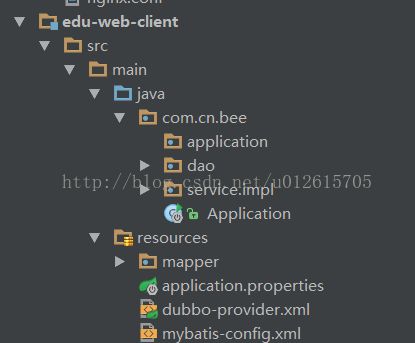

后台框架springboot+mybatis+dubbo+zookeeper+redis+nginx，其中redis做数据缓存，nginx做页面转发，数据库用mysql！首先springboot-mybatis-dubbo-zookeeper目录架构如下：
首先项目外层定义版本等的pom文件如下：
xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
@MapperScan("com.cn.bee.dao") @SpringBootApplication @ImportResource(locations={"dubbo-provider.xml"}) public class Application { /** * 1.启动app层的main方法之后,会自动加载bean， @ConfigurationProperties(prefix="spring.datasource")会自动去application.properties * 下面以spring.datasource开头的有关数据库连接的配置文件 * 2.通过注解@MapperScan("com.cn.bee.dao")自动扫描mybatis的mapper文件 */ private static volatile boolean running = true; private static Logger logger = Logger.getLogger(Application.class); //DataSource配置 @Bean @ConfigurationProperties(prefix="spring.datasource") public DataSource dataSource() { return new com.alibaba.druid.pool.DruidDataSource(); } //提供SqlSeesion @Bean public SqlSessionFactory sqlSessionFactoryBean() throws Exception { SqlSessionFactoryBean sqlSessionFactoryBean = new SqlSessionFactoryBean(); sqlSessionFactoryBean.setDataSource(dataSource()); PathMatchingResourcePatternResolver resolver = new PathMatchingResourcePatternResolver(); // 配置mapper的扫描，找到所有的mapper.xml映射文件 sqlSessionFactoryBean.setMapperLocations(resolver.getResources("classpath:/mapper/*.xml")); // 加载全局的配置文件 sqlSessionFactoryBean.setConfigLocation( new DefaultResourceLoader().getResource("classpath:mybatis-config.xml")); return sqlSessionFactoryBean.getObject(); } @Bean public PlatformTransactionManager transactionManager() { return new DataSourceTransactionManager(dataSource()); } /** * Main 方法启动项 */ public static void main(String[] args) { SpringApplication.run(Application.class, args); System.out.println("============= APP Start ON SpringBoot Success ============="); synchronized (Application.class) { while (running) { try { Application.class.wait(); } catch (Throwable e) { } } } } }启动edu-web-client的main方法之后,会自动加载bean， @ConfigurationProperties(prefix="spring.datasource")会自动去application.properties下面以spring.datasource开头的有关数据库连接的配置文件，application.properties如下：
spring.datasource.url=jdbc:mysql://localhost:3306/springbootdb?useUnicode=true&characterEncoding=utf8 spring.datasource.username=root spring.datasource.password=123456 spring.datasource.driver-class-name=com.mysql.jdbc.Driver dubbo.registry.center=127.0.0.1:2181 dubbo.protocol.port=20885
服务提供者的dubbo-provider.xml，代码如下：
xml version="1.0" encoding="UTF-8"?>
xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:aop="http://www.springframework.org/schema/aop"
xmlns:context="http://www.springframework.org/schema/context" xmlns:p="http://www.springframework.org/schema/p"
xmlns:task="http://www.springframework.org/schema/task" xmlns:util="http://www.springframework.org/schema/util"
xmlns:dubbo="http://code.alibabatech.com/schema/dubbo"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.1.xsd
http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-3.1.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.1.xsd
http://www.springframework.org/schema/task http://www.springframework.org/schema/task/spring-task.xsd
http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-3.1.xsd
http://code.alibabatech.com/schema/dubbo
http://code.alibabatech.com/schema/dubbo/dubbo.xsd">
<context:component-scan base-package="com.cn.bee.service.*">
<context:exclude-filter type="annotation"
expression="org.springframework.stereotype.Controller" />
context:component-scan>
<dubbo:application name="springBoot-service-provider-app" />
<dubbo:registry protocol="zookeeper" address="${dubbo.registry.center}" />
<dubbo:protocol name="dubbo" port="${dubbo.protocol.port}" threadpool="cached" threads="1000" accepts="2000" serialization="java"/>
<dubbo:service interface="com.cn.bee.service.UserService" ref="userService" timeout="3000" >dubbo:service>
<dubbo:service interface="com.cn.bee.service.DictService" ref="dictService" timeout="3000" >dubbo:service>
<dubbo:service interface="com.cn.bee.service.AreaService" ref="areaService" timeout="3000" >dubbo:service>
edu-web-client中其他层次的代码就省略了，有需要可以联系我了解！同时
自己本地可以下载一个单机版的zookeeper

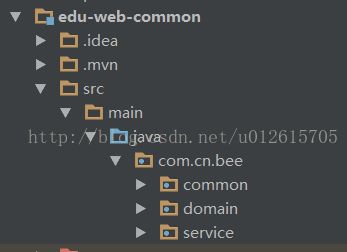

edu-web-common：主要放实体、接口、也可以放一些公用的工具类等待。

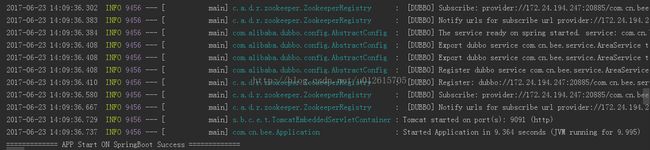

到了这里，我们的服务已经可以完成了，运行application.Java的main方法，我们可以看到控制台如下，就代表成功了！

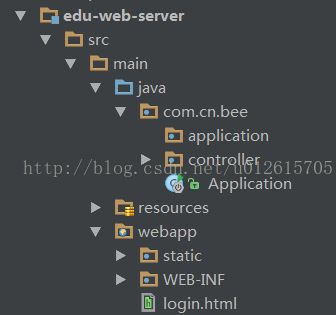

然后我们到edu-web-server，主要做服务端
application.properties如下：
platform_context_path=/bee dubbo.registry.center=127.0.0.1:2181 server.port=9090 #redis服务器 redis_core_database=127.0.0.1_6379 #配置启动项目时，定时任务隔多长时间运行一次 redis_time=60然后服务消费者代码如下：
xml version="1.0" encoding="UTF-8"?>
xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:aop="http://www.springframework.org/schema/aop"
xmlns:context="http://www.springframework.org/schema/context" xmlns:p="http://www.springframework.org/schema/p"
xmlns:dubbo="http://code.alibabatech.com/schema/dubbo"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.1.xsd
http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-3.1.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.1.xsd
http://code.alibabatech.com/schema/dubbo http://code.alibabatech.com/schema/dubbo/dubbo.xsd">
<context:annotation-config />
<dubbo:application name="springboot-service-consumer-app" />
<dubbo:registry id="springboot-reg" protocol="zookeeper" address="${dubbo.registry.center}" />
<dubbo:annotation />
<context:component-scan base-package="com.cn.bee.*">
<context:include-filter type="annotation"
expression="com.alibaba.dubbo.config.annotation.Reference" />
context:component-scan>
Controller的代码就省略了！
最后就是到edu-web-server的启动项，你只需要运行这个main方法，项目就可以访问了，Application.java代码如下：
@SpringBootApplication(scanBasePackages="com.cn.bee.controller") @EnableAutoConfiguration(exclude={DataSourceAutoConfiguration.class}) @ImportResource(locations = {"dubbo-consumer.xml"}) public class Application{ private static Logger logger = Logger.getLogger(Application.class); public static void main(String[] args) throws Exception { SpringApplication.run(Application.class, args); System.out.println("============= SpringBoot web Start Success ============="); } }
@SpringBootApplication(scanBasePackages="com.cn.bee.controller") 括号里面的内容，如果Controller和启动main同一个包下面是不需要指向的，如果要放在不同包下面不加scanBasePackages="com.cn.bee.controller"会报错！

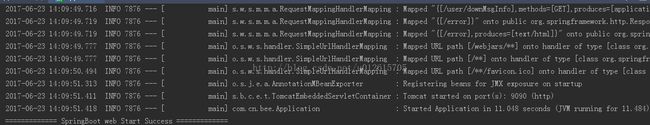

然后我们现在启动Application，如果成功，我们会看到控制台如下：
这时候我们就可以访问试一下，看到返还的如下JSON数据，就证明我们项目跑起来了：

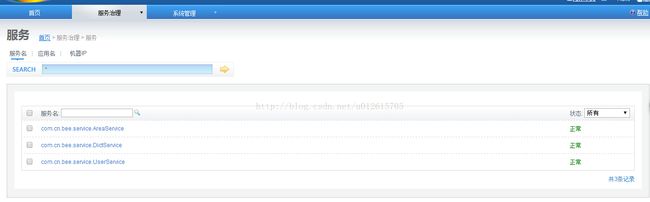

其中Dubbo注册中心的页面如下：
