FFMPEG 最简滤镜filter使用实例（实现视频缩放，裁剪，水印等）

 FFMPEG官网给出了FFMPEG 滤镜使用的实例，它是将视频中的像素点替换成字符，然后从终端输出。我在该实例的基础上稍微的做了修改，使它能够保存滤镜处理过后的文件。在上代码之前先明白几个概念：

    Filter:代表单个filter
    FilterPad:代表一个filter的输入或输出端口，每个filter都可以有多个输入和多个输出，只有输出pad的filter称为source,只有输入pad的filter称为sink
    FilterLink：若一个filter的输出pad和另一个filter的输入pad名字相同，即认为两个filter之间建立了link
    FilterChain:代表一串相互连接的filters，除了source和sink外，要求每个filter的输入输出pad都有对应的输出和输入pad

经典示例：

    图中的一系列操作共使用了四个filter，分别是
    splite：将输入的流进行分裂复制，分两路输出。
    crop：根据给定的参数，对视频进行裁剪
    vflip：根据给定参数，对视频进行翻转等操作
    overlay：将一路输入覆盖到另一路之上，合并输出为一路视频

下面上代码：



/*=============================================================================
#     FileName: filter_video.c
#         Desc: an example of ffmpeg fileter
#       Author: licaibiao
#   LastChange: 2017-03-16
=============================================================================*/
#define _XOPEN_SOURCE 600 /* for usleep */
#include

#include "avcodec.h"
#include "avformat.h"
#include "avfiltergraph.h"
#include "avcodec.h"
#include "buffersink.h"
#include "buffersrc.h"
#include "opt.h"

#define SAVE_FILE

const charchar *filter_descr = "scale=iw*2:ih*2";
static AVFormatContext *fmt_ctx;
static AVCodecContext *dec_ctx;
AVFilterContext *buffersink_ctx;
AVFilterContext *buffersrc_ctx;
AVFilterGraph *filter_graph;
static int video_stream_index = -1;
static int64_t last_pts = AV_NOPTS_VALUE;

static int open_input_file(const charchar *filename)
{
    int ret;
    AVCodec *dec;

    if ((ret = avformat_open_input(&fmt_ctx, filename, NULL, NULL)) < 0) {
        av_log(NULL, AV_LOG_ERROR, "Cannot open input file\n");
        return ret;
    }

    if ((ret = avformat_find_stream_info(fmt_ctx, NULL)) < 0) {
        av_log(NULL, AV_LOG_ERROR, "Cannot find stream information\n");
        return ret;
    }

    /* select the video stream  判断流是否正常 */
    ret = av_find_best_stream(fmt_ctx, AVMEDIA_TYPE_VIDEO, -1, -1, &dec, 0);
    if (ret < 0) {
        av_log(NULL, AV_LOG_ERROR, "Cannot find a video stream in the input file\n");
        return ret;
    }
    video_stream_index = ret;
    dec_ctx = fmt_ctx->streams[video_stream_index]->codec;
    av_opt_set_int(dec_ctx, "refcounted_frames", 1, 0); /* refcounted_frames 帧引用计数 */

    /* init the video decoder */
    if ((ret = avcodec_open2(dec_ctx, dec, NULL)) < 0) {
        av_log(NULL, AV_LOG_ERROR, "Cannot open video decoder\n");
        return ret;
    }

    return 0;
}

static int init_filters(const charchar *filters_descr)
{
    char args[512];
    int ret = 0;
    AVFilter *buffersrc  = avfilter_get_by_name("buffer");     /* 输入buffer filter */
    AVFilter *buffersink = avfilter_get_by_name("buffersink"); /* 输出buffer filter */
    AVFilterInOut *outputs = avfilter_inout_alloc();
    AVFilterInOut *inputs  = avfilter_inout_alloc();
    AVRational time_base = fmt_ctx->streams[video_stream_index]->time_base;   /* 时间基数 */

#ifndef SAVE_FILE
    enum AVPixelFormat pix_fmts[] = { AV_PIX_FMT_GRAY8, AV_PIX_FMT_NONE };
#else
    enum AVPixelFormat pix_fmts[] = { AV_PIX_FMT_YUV420P, AV_PIX_FMT_NONE };
#endif

    filter_graph = avfilter_graph_alloc();                     /* 创建graph  */
    if (!outputs || !inputs || !filter_graph) {
        ret = AVERROR(ENOMEM);
        goto end;
    }

    /* buffer video source: the decoded frames from the decoder will be inserted here. */
    snprintf(args, sizeof(args),
            "video_size=%dx%d:pix_fmt=%d:time_base=%d/%d:pixel_aspect=%d/%d",
            dec_ctx->width, dec_ctx->height, dec_ctx->pix_fmt,
            time_base.num, time_base.den,
            dec_ctx->sample_aspect_ratio.num, dec_ctx->sample_aspect_ratio.den);

    /* 创建并向FilterGraph中添加一个Filter */
    ret = avfilter_graph_create_filter(&buffersrc_ctx, buffersrc, "in",
                                       args, NULL, filter_graph);
    if (ret < 0) {
        av_log(NULL, AV_LOG_ERROR, "Cannot create buffer source\n");
        goto end;
    }

    /* buffer video sink: to terminate the filter chain. */
    ret = avfilter_graph_create_filter(&buffersink_ctx, buffersink, "out",
                                       NULL, NULL, filter_graph);
    if (ret < 0) {
        av_log(NULL, AV_LOG_ERROR, "Cannot create buffer sink\n");
        goto end;
    }

     /* Set a binary option to an integer list. */
    ret = av_opt_set_int_list(buffersink_ctx, "pix_fmts", pix_fmts,
                              AV_PIX_FMT_NONE, AV_OPT_SEARCH_CHILDREN);
    if (ret < 0) {
        av_log(NULL, AV_LOG_ERROR, "Cannot set output pixel format\n");
        goto end;
    }

    /*
     * Set the endpoints for the filter graph. The filter_graph will
     * be linked to the graph described by filters_descr.
     */

    /*
     * The buffer source output must be connected to the input pad of
     * the first filter described by filters_descr; since the first
     * filter input label is not specified, it is set to "in" by
     * default.
     */
    outputs->name       = av_strdup("in");
    outputs->filter_ctx = buffersrc_ctx;
    outputs->pad_idx    = 0;
    outputs->next       = NULL;

    /*
     * The buffer sink input must be connected to the output pad of
     * the last filter described by filters_descr; since the last
     * filter output label is not specified, it is set to "out" by
     * default.
     */
    inputs->name       = av_strdup("out");
    inputs->filter_ctx = buffersink_ctx;
    inputs->pad_idx    = 0;
    inputs->next       = NULL;

    /* Add a graph described by a string to a graph */
    if ((ret = avfilter_graph_parse_ptr(filter_graph, filters_descr,
                                    &inputs, &outputs, NULL)) < 0)
        goto end;

    /* Check validity and configure all the links and formats in the graph */
    if ((ret = avfilter_graph_config(filter_graph, NULL)) < 0)
        goto end;

end:
    avfilter_inout_free(&inputs);
    avfilter_inout_free(&outputs);

    return ret;
}

#ifndef SAVE_FILE
static void display_frame(const AVFrame *frame, AVRational time_base)
{
    int x, y;
    uint8_t *p0, *p;
    int64_t delay;

    if (frame->pts != AV_NOPTS_VALUE) {
        if (last_pts != AV_NOPTS_VALUE) {
            /* sleep roughly the right amount of time;
             * usleep is in microseconds, just like AV_TIME_BASE. */
             /* 计算 pts 是用来把时间戳从一个时基调整到另外一个时基时候用的函数 */
            delay = av_rescale_q(frame->pts - last_pts,
                                 time_base, AV_TIME_BASE_Q);
            if (delay > 0 && delay < 1000000)
                usleep(delay);
        }
        last_pts = frame->pts;
    }

    /* Trivial ASCII grayscale display. */
    p0 = frame->data[0];
    puts("\033c");
    for (y = 0; y < frame->height; y++) {
        p = p0;
        for (x = 0; x < frame->width; x++)
            putchar(" .-+#"[*(p++) / 52]);
        putchar('\n');
        p0 += frame->linesize[0];
    }
    fflush(stdout);
}
#else
FILEFILE * file_fd;
static void write_frame(const AVFrame *frame)
{
    static int printf_flag = 0;
    if(!printf_flag){
        printf_flag = 1;
        printf("frame widht=%d,frame height=%d\n",frame->width,frame->height);

        if(frame->format==AV_PIX_FMT_YUV420P){
            printf("format is yuv420p\n");
        }
        else{
            printf("formet is = %d \n",frame->format);
        }

    }

    fwrite(frame->data[0],1,frame->width*frame->height,file_fd);
    fwrite(frame->data[1],1,frame->width/2*frame->height/2,file_fd);
    fwrite(frame->data[2],1,frame->width/2*frame->height/2,file_fd);
}

#endif

int main(int argc, charchar **argv)
{
    int ret;
    AVPacket packet;
    AVFrame *frame = av_frame_alloc();
    AVFrame *filt_frame = av_frame_alloc();
    int got_frame;

#ifdef SAVE_FILE
    file_fd = fopen("test.yuv","wb+");
#endif

    if (!frame || !filt_frame) {
        perror("Could not allocate frame");
        exit(1);
    }
    if (argc != 2) {
        fprintf(stderr, "Usage: %s file\n", argv[0]);
        exit(1);
    }

    av_register_all();
    avfilter_register_all();

    if ((ret = open_input_file(argv[1])) < 0)
        goto end;
    if ((ret = init_filters(filter_descr)) < 0)
        goto end;

    /* read all packets */
    while (1) {
        if ((ret = av_read_frame(fmt_ctx, &packet)) < 0)
            break;

        if (packet.stream_index == video_stream_index) {
            got_frame = 0;
            ret = avcodec_decode_video2(dec_ctx, frame, &got_frame, &packet);
            if (ret < 0) {
                av_log(NULL, AV_LOG_ERROR, "Error decoding video\n");
                break;
            }

            if (got_frame) {
                frame->pts = av_frame_get_best_effort_timestamp(frame);    /* pts: Presentation Time Stamp */

                /* push the decoded frame into the filtergraph */
                if (av_buffersrc_add_frame_flags(buffersrc_ctx, frame, AV_BUFFERSRC_FLAG_KEEP_REF) < 0) {
                    av_log(NULL, AV_LOG_ERROR, "Error while feeding the filtergraph\n");
                    break;
                }

                /* pull filtered frames from the filtergraph */
                while (1) {
                    ret = av_buffersink_get_frame(buffersink_ctx, filt_frame);
                    if (ret == AVERROR(EAGAIN) || ret == AVERROR_EOF)
                        break;
                    if (ret < 0)
                        goto end;
#ifndef SAVE_FILE
                    display_frame(filt_frame, buffersink_ctx->inputs[0]->time_base);
#else
                    write_frame(filt_frame);
#endif
                    av_frame_unref(filt_frame);
                }
                /* Unreference all the buffers referenced by frame and reset the frame fields. */
                av_frame_unref(frame);
            }
        }
        av_packet_unref(&packet);
    }
end:
    avfilter_graph_free(&filter_graph);
    avcodec_close(dec_ctx);
    avformat_close_input(&fmt_ctx);
    av_frame_free(&frame);
    av_frame_free(&filt_frame);

    if (ret < 0 && ret != AVERROR_EOF) {
        fprintf(stderr, "Error occurred: %s\n", av_err2str(ret));
        exit(1);
    }
#ifdef SAVE_FILE
    fclose(file_fd);
#endif
    exit(0);
}



该工程中，我的Makefile文件如下：



OUT_APP      = test
INCLUDE_PATH = /usr/local/include/
INCLUDE = -I$(INCLUDE_PATH)libavutil/ -I$(INCLUDE_PATH)libavdevice/ \
            -I$(INCLUDE_PATH)libavcodec/ -I$(INCLUDE_PATH)libswresample \
            -I$(INCLUDE_PATH)libavfilter/ -I$(INCLUDE_PATH)libavformat \
            -I$(INCLUDE_PATH)libswscale/

FFMPEG_LIBS = -lavformat -lavutil -lavdevice -lavcodec -lswresample -lavfilter -lswscale
SDL_LIBS    =
LIBS        = $(FFMPEG_LIBS)$(SDL_LIBS)

COMPILE_OPTS = $(INCLUDE)
C            = c
OBJ          = o
C_COMPILER   = cc
C_FLAGS      = $(COMPILE_OPTS) $(CPPFLAGS) $(CFLAGS)

LINK         = cc -o
LINK_OPTS    = -lz -lm  -lpthread
LINK_OBJ     = test.o

.$(C).$(OBJ):
    $(C_COMPILER) -c $(C_FLAGS) $<


$(OUT_APP): $(LINK_OBJ)
    $(LINK)$@  $(LINK_OBJ)  $(LIBS) $(LINK_OPTS)

clean:
        -rm -rf *.$(OBJ) $(OUT_APP) core *.core *~ *yuv



运行结果如下：



licaibiao@ubuntu:~/test/FFMPEG/filter$ ls
Makefile  school.flv  test  test.c  test.o
licaibiao@ubuntu:~/test/FFMPEG/filter$ ./test school.flv
[flv @ 0x12c16c0] video stream discovered after head already parsed
[flv @ 0x12c16c0] audio stream discovered after head already parsed
frame widht=1024,frame height=576
format is yuv420p
licaibiao@ubuntu:~/test/FFMPEG/filter$ ls
Makefile  school.flv  test  test.c  test.o  test.yuv



    在这里，我打印出来了输出视频的格式和图片的长和宽，该实例生成的是一个YUV420 格式的视频，使用YUV播放器播放视频的时候，需要设置正确的视频长度和宽度。在代码中通过设置enum AVPixelFormat pix_fmts[] = { AV_PIX_FMT_YUV420P, AV_PIX_FMT_NONE };来设置输出格式。

    过滤器的参数设置是通过const char *filter_descr = "scale=iw*2:ih*2"; 来设置。它表示将视频的长和框都拉伸到原来的两倍。具体的filter参数可以通过命令：ffmpeg -filters 来查询。结果如下：



Filters:
  T.. = Timeline support
  .S. = Slice threading
  ..C = Command support
  A = Audio input/output
  V = Video input/output
  N = Dynamic number and/or type of input/output
  | = Source or sink filter
 ... abench            A->A       Benchmark part of a filtergraph.
 ... acompressor       A->A       Audio compressor.
 ... acrossfade        AA->A      Cross fade two input audio streams.
 ... acrusher          A->A       Reduce audio bit resolution.
.............................................................................

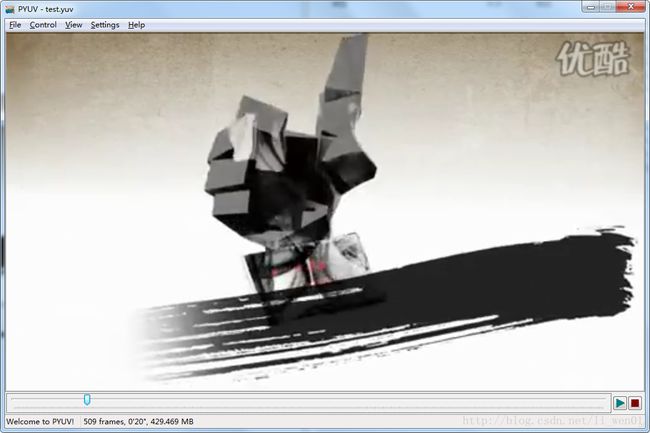

    在上面的代码中，我们设置的是将图片拉升到原来图像的两倍，其显示效果如下，可能是截图的问题，这里看好像没有拉伸到两倍。

原图





拉伸后





在上面的代码中，我们设置的是：

    const char *filter_descr = "scale=iw*2:ih*2";   iw 表示输入视频的宽，ih表示输入视频的高。可以任意比例的缩放视频。这里*2 表示放大两倍,如果是/2表示缩小两倍。

视频缩放还可以直接设置：

     const char *filter_descr = "scale=320:240"; 设置视频输出宽为320，高位240，当然也是可以随意的设置其他的参数。



视频的裁剪可以设置为：

    const char *filter_descr = "crop=320:240:0:0";   具体含义是 crop=width:height:x:y，其中 width 和 height 表示裁剪后的尺寸，x:y 表示裁剪区域的左上角坐标。

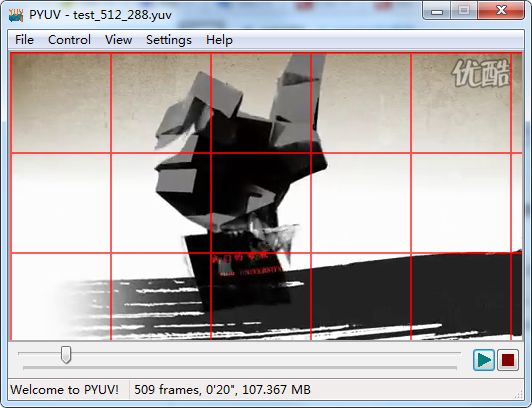

视频添加一个网格水印可以设置为：

    const char *filter_descr = "drawgrid=width=100:height=100:thickness=2:[email protected]";    具体含义是 width 和 height 表示添加网格的宽和高，thickness表示网格的线宽，color表示颜色 。其效果如下：

    更多filter参数的使用，可以直接参考ffmpeg 的官方文档：http://www.ffmpeg.org/ffmpeg-filters.html
