Android实现抽奖转盘动画

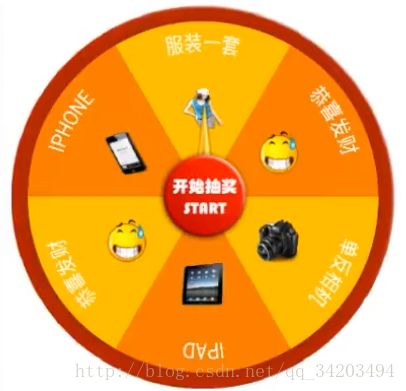

效果图

使用自定义SurfaceView
SurfaceView extends View
其实View是在UI线程中进行绘制
SurfaceView 是在一个子线程中队自己进行绘制，优势：避免造成UI线程阻塞。
其实，我们SurfaceView中包含一个专门用于绘制的Surfaace，Surface中包含一个Canvas

getHolder–>SurfaceHolder
holder–>Canvas +管理SurfaceView的生命周期

surfaceCreated
surfaceChanged
surfaceDestoryed

public class LuckyPan extends SurfaceView implements Callback, Runnable {

    private SurfaceHolder mHolder;

    private Canvas mCanvas;

    /**
     * 用于绘制的线程
     */
    private Thread t;

    /**
     * 线程的绘制开光
     */
    private boolean isRuning;

    /**
     * 盘块的奖项
     */
    private String[] mStrs = new String[] { "单反相机", "Ipad", "恭喜发财", "Iphone",
            "服装一套", "恭喜发财" };

    /***
     * 奖项的图片
     */
    private int[] mImgs = new int[] { R.drawable.danfan, R.drawable.ipad,
            R.drawable.xialian, R.drawable.iphone, R.drawable.meizi,
            R.drawable.xialian };

    /**
     * 与图片相对的Bitmap
     */
    private Bitmap[] mImgsBitmap;

    /***
     * 盘块的颜色
     */
    private int[] mColors = new int[] { 0xffffc300, 0xfff17e01, 0xffffc300,
            0xfff17e01, 0xffffc300, 0xfff17e01 };

    private int mItemCount = 6;

    /**
     * 整个盘块的范围
     */
    private RectF mRange = new RectF();

    /**
     * 整个盘块的直径
     */
    private int mRadius;

    /**
     * 绘制盘块的画笔
     */
    private Paint mArcPaint;

    /***
     * 绘制文本的画笔
     */
    private Paint mTextPanit;

    /**
     * 滚动的速度
     */
    private double mSpeed = 0;

    /**
    *保证线程间同步
    */
    private volatile float mStartAngle = 0;

    /**
     * 判断是否点击了停止按钮
     */
    private boolean isShouldEnd;

    /**
     * 转盘的中心位置
     */
    private int mCenter;

    /**
     * 这里我们的padding直接以paddingLeft为准
     */
    private int mPadding;

    private Bitmap mBgBitmap = BitmapFactory.decodeResource(getResources(),
            R.drawable.bg2);

    private float mTextSize = TypedValue.applyDimension(
            TypedValue.COMPLEX_UNIT_SP, 20, getResources()
                    .getDisplayMetrics());

    public LuckyPan(Context context) {
        this(context, null);
    }

    public LuckyPan(Context context, AttributeSet attrs) {
        super(context, attrs);

        mHolder = getHolder();

        mHolder.addCallback(this);

        // 可获得焦点
        setFocusable(true);
        setFocusableInTouchMode(true);

        // 设置常亮
        setKeepScreenOn(true);
    }

    @Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
        super.onMeasure(widthMeasureSpec, heightMeasureSpec);

        int width = Math.min(getMeasuredWidth(), getMeasuredHeight());

        mPadding = getPaddingLeft();
        // 直径
        mRadius = width - mPadding * 2;
        // 中心点
        mCenter = width / 2;

        setMeasuredDimension(width, width);
    }

    @Override
    public void surfaceCreated(SurfaceHolder holder) {

        // 初始化绘制盘块的画笔
        mArcPaint = new Paint();
        mArcPaint.setAntiAlias(true);
        mArcPaint.setDither(true);

        // 初始化绘制盘块的文本画笔
        mTextPanit = new Paint();
        mTextPanit.setColor(0xffffffff);
        mTextPanit.setTextSize(mTextSize);

        // 初始化盘块的绘制范围
        mRange = new RectF(mPadding, mPadding, mPadding+mRadius, mPadding+mRadius);

        //初始化图片
        mImgsBitmap = new Bitmap[mItemCount];

        for (int i = 0; i < mItemCount; i++) {
            mImgsBitmap[i] = BitmapFactory.decodeResource(getResources(), mImgs[i]);
        }



        isRuning = true;

        t = new Thread(this);
        t.start();
    }

    @Override
    public void surfaceChanged(SurfaceHolder holder, int format, int width,
            int height) {

    }

    @Override
    public void surfaceDestroyed(SurfaceHolder holder) {

        isRuning = false;

    }

    @Override
    public void run() {
        // 不断进行绘制
        //50ms绘制一次
        while (isRuning) {
            long start = System.currentTimeMillis();
            draw();
            long end = System.currentTimeMillis();

            if(end-start<50){
                try {
                    Thread.sleep(50-(end-start));
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
            }
        }
    }

    private void draw() {
        try {
            mCanvas = mHolder.lockCanvas();

            if (mCanvas != null) {
                //绘制背景
                drawBg();

                //绘制盘块
                float tmpAngle = mStartAngle;
                float sweepAngle = 360/mItemCount;

                for (int i = 0; i < mItemCount; i++) {
                    mArcPaint.setColor(mColors[i]);
                    //绘制盘块
                    mCanvas.drawArc(mRange, tmpAngle, sweepAngle, true, mArcPaint);

                    //绘制文本
                    drawText(tmpAngle,sweepAngle,mStrs[i]);

                    //绘制icon
                    drawIcon(tmpAngle,mImgsBitmap[i]);

                    tmpAngle += sweepAngle;
                }

                mStartAngle += mSpeed;

                //如果点击了停止按钮
                if(isShouldEnd){
                    mSpeed -=1;
                }

                if(mSpeed<=0){
                    mSpeed = 0;
                    isShouldEnd = false;
                }
            }
        } catch (Exception e) {
            e.printStackTrace();
        } finally {
            if (mCanvas != null) {
                mHolder.unlockCanvasAndPost(mCanvas);
            }
        }

    }

    /**
     * 点击启动旋转
     */
    public void luckyStart(int index){
        //计算每一项的角度
        float angle = 360/mItemCount;

        //计算每一项中奖范围（当前index）
        //1-->150~210
        //0-->210~270
        float from = 270-(index
                +1)*angle;
        float end = from+angle;

        //设置停下来需要旋转的距离
        float targetFrom = 4*360 + from;
        float targetEnd = 4*360 + end;

        float v1= (float) ((-1+Math.sqrt(1+8*targetFrom))/2);
        float v2= (float) ((-1+Math.sqrt(1+8*targetEnd))/2);

        mSpeed = v1+Math.random()*(v2-v1);
        isShouldEnd = false;
    }

    /**
     * 停止
     */
    public void luckyEnd(){
        mStartAngle = 0;
        isShouldEnd = true;
    }


    /**
     * 转盘是否在旋转
     * @return
     */
    public boolean isRuning(){
        return mSpeed != 0;
    }

    public boolean isShoundEnd(){
        return isShouldEnd;
    }

    /**
     * 绘制盘块图片
     * @param tmpAngle
     * @param bitmap
     */
    private void drawIcon(float tmpAngle, Bitmap bitmap) {
        //设置图片的宽度为直径的1/8
        int imgWidth = mRadius/8;

        float angle = (float) ((tmpAngle+360/mItemCount/2)*Math.PI/180);

        int x = (int) (mCenter+mRadius/2/2*Math.cos(angle));
        int y = (int) (mCenter+mRadius/2/2*Math.sin(angle));

        //确定那个图片的位置
        Rect rect = new Rect(x-imgWidth/2, y-imgWidth/2, x+imgWidth/2, y+imgWidth/2);

        mCanvas.drawBitmap(bitmap, null, rect,null);
    }

    /**
     * 绘制文本
     * @param tmpAngle
     * @param sweepAngle
     * @param string
     */
    private void drawText(float tmpAngle, float sweepAngle, String string) {
        Path path = new Path();
        path.addArc(mRange, tmpAngle, sweepAngle);

        // 利用水平偏移量让文字居中
        float textWidth =  mTextPanit.measureText(string);
        int hOffset = (int) (mRadius*Math.PI/mItemCount/2 - textWidth/2);

        //垂直偏移量
        int vOffset = mRadius/2/6;

        mCanvas.drawTextOnPath(string, path, hOffset, vOffset, mTextPanit);
    }
    /**
    *绘制背景
    */
    private void drawBg() {
        mCanvas.drawColor(0xffffffff);
        mCanvas.drawBitmap(mBgBitmap, null, new Rect(mPadding/2, mPadding/2, getMeasuredWidth()- mPadding/2 , getMeasuredHeight()- mPadding/2) , null);
    }

}
