mybatis级联查询树形结构（如菜单）



1、查询指定ID下所有的子节点（从顶层到底层--多层结构）

id为0 查询所有节点

import java.util.List;

/**

 */
public class TreeVO {

	private Integer id;
	private String name;
	private Integer pid;
	private List list;

	public Integer getId() {
		return id;
	}

	public void setId(Integer id) {
		this.id = id;
	}

	public String getName() {
		return name;
	}

	public void setName(String name) {
		this.name = name;
	}

	public Integer getPid() {
		return pid;
	}

	public void setPid(Integer pid) {
		this.pid = pid;
	}

	public List getList() {
		return list;
	}

	public void setList(List list) {
		this.list = list;
	}

}

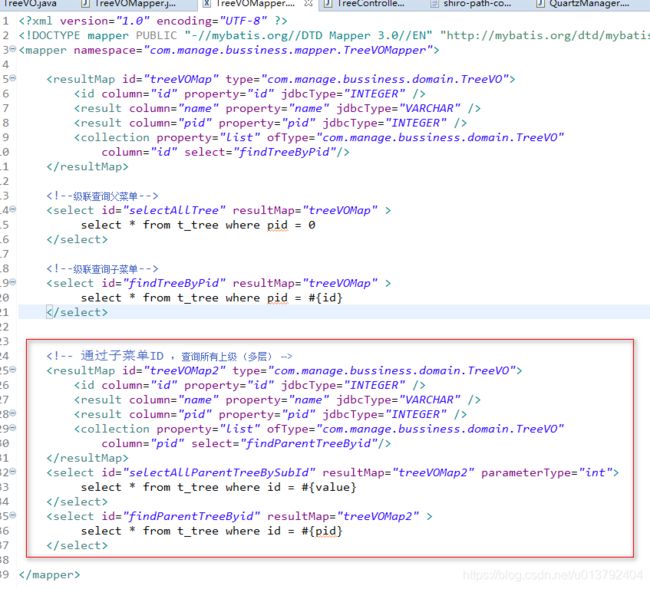

         select * from t_tree where pid = 0




         select * from t_tree where pid = #{id}

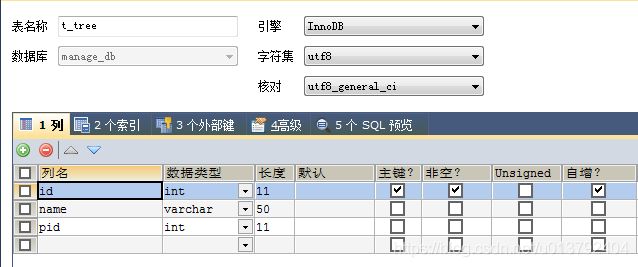

数据库数据结构如下：

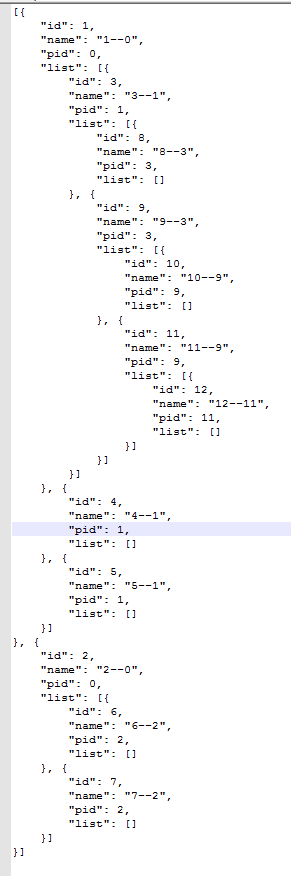

查询出来后，json格式化：





2、根据指定ID 查询其所有父级（从底层到顶层--多层结构）

import java.util.List;

/**

 */
public class TreeVO {

	private Integer id;
	private String name;
	private Integer pid;
	private List list;

	public Integer getId() {
		return id;
	}

	public void setId(Integer id) {
		this.id = id;
	}

	public String getName() {
		return name;
	}

	public void setName(String name) {
		this.name = name;
	}

	public Integer getPid() {
		return pid;
	}

	public void setPid(Integer pid) {
		this.pid = pid;
	}

	public List getList() {
		return list;
	}

	public void setList(List list) {
		this.list = list;
	}

}





@Mapper
public interface TreeVOMapper {


	List selectAllTree() ;

	List selectAllParentTreeBySubId(Integer id) ;

}

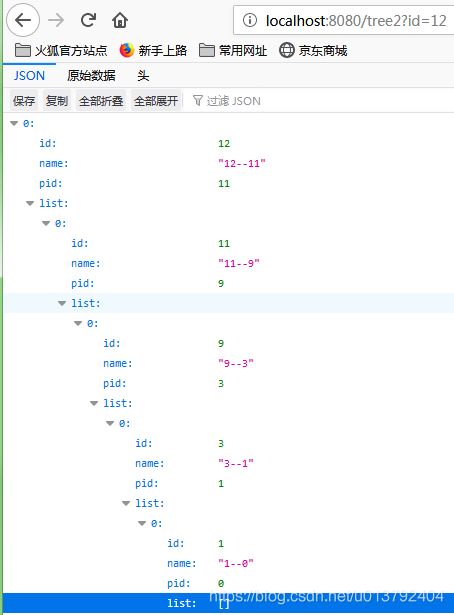

http://localhost:8080/tree2?id=12
