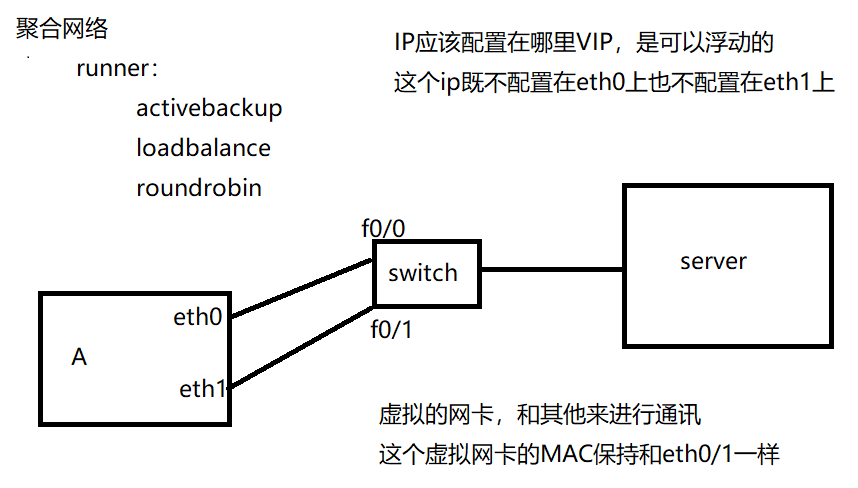

聚合网络

图形化界面配置

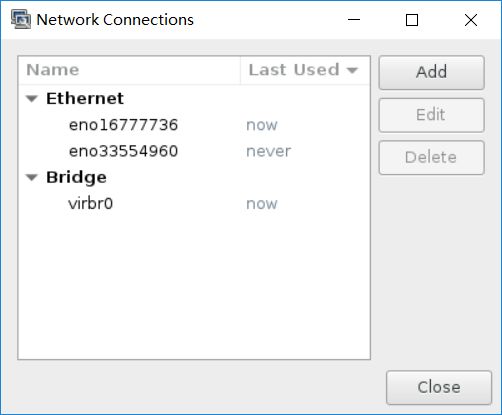

 # nm-connection-editor &

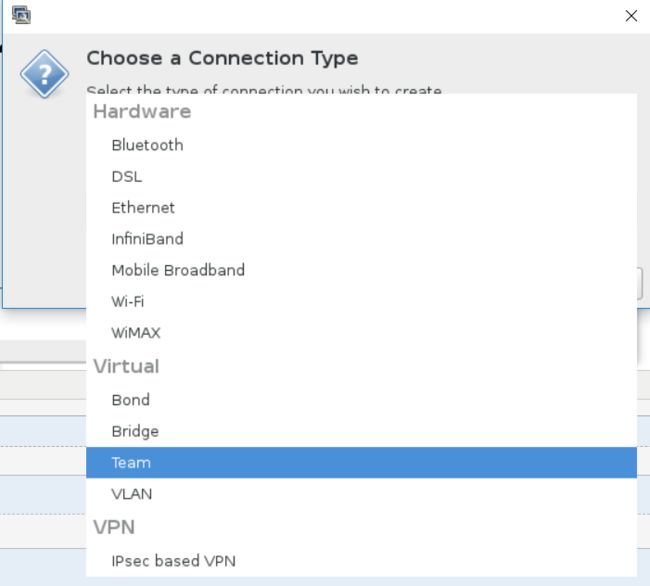

选择team

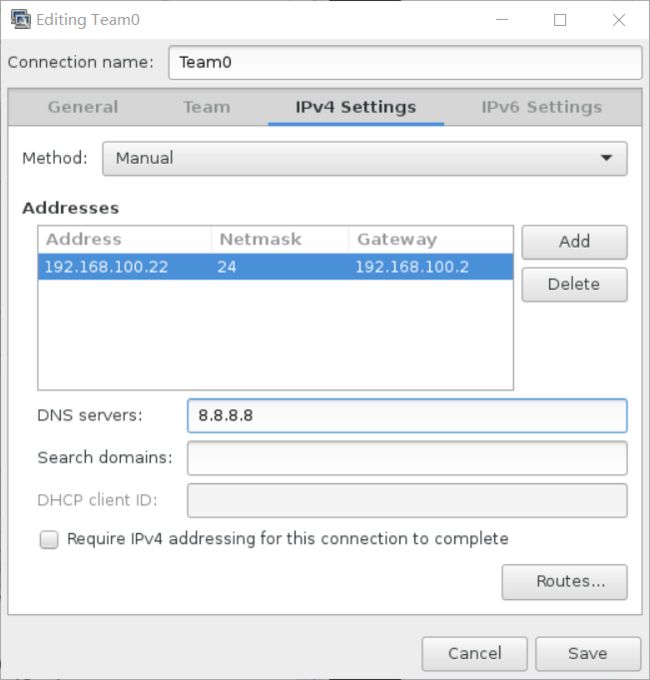

设置网络

点击添加

 选择以太网

 eth0对应team0_1

 eth1对应team0_2

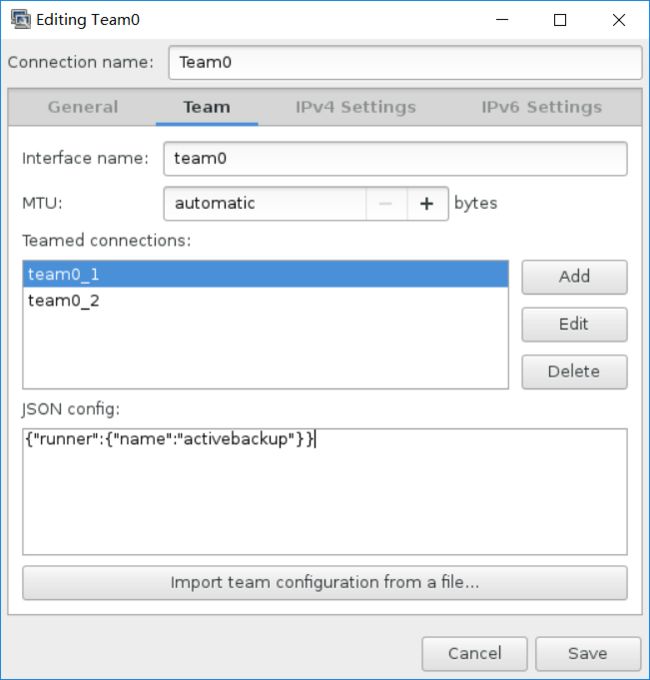

添加一下内容：

{"runner":{"name":"activebackup"}}

保存

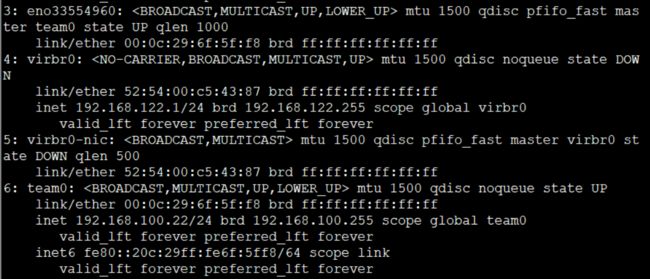

此时的Mac地址都变成一样的了

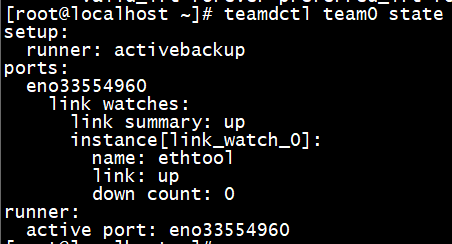

# teamdctl team0 state

# nmcli connection

 删除所有配置

#nmcli connection delete team0_1

#nmcli connection delete team0_2

#nmcli connection delete team0

 命令行配置runner

1、先创建一个team0

# nmcli connection add type team con-name team0 ifname team0 \

config '{"runner":{"name":"activebackup"}}'

2、为这个team0配置必要的网络信息

# nmcli connection modify team0 ipv4.addresses "192.168.100.26/24"

# nmcli connection modify team0 ipv4.gateway "192.168.100.2"

# nmcli connection modify team0 ipv4.dns "8.8.8.8"

# nmcli connection modify team0 ipv4.method manual

3、得指定team0上面具体工作的网卡是谁

# nmcli connection add type team-slave con-name team0_1 ifname eno16777736 master team0

# nmcli connection add type team-slave con-name team0_2 ifname eno33554960 master team0

查看配置文件信息

# cd /etc/sysconfig/network-scripts/

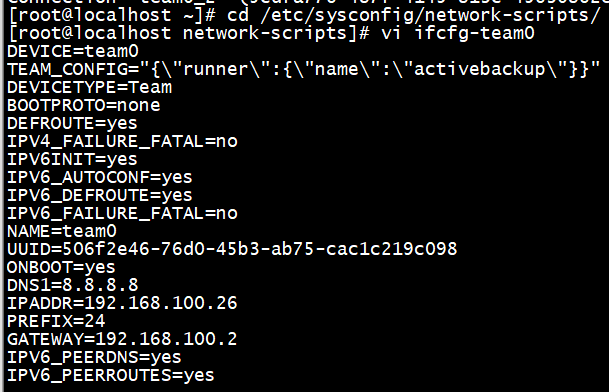

# vi ifcfg-team0

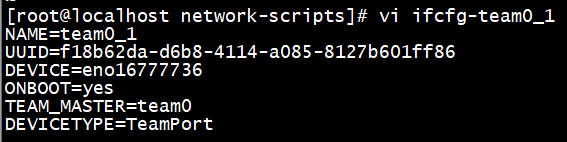

# vi ifcfg-team0_1

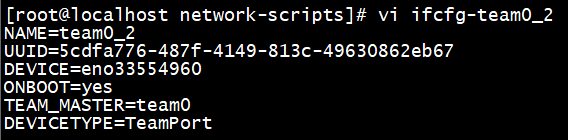

# vi ifcfg-team0_2

# nmcli connection

# ip a

# teamdctl team0 state

 删除所有连接

# nmcli connection delete team0

# nmcli connection delete team0_1

# nmcli connection delete team0_2

 修改配置文件

# cd /etc/sysconfig/network-scripts/

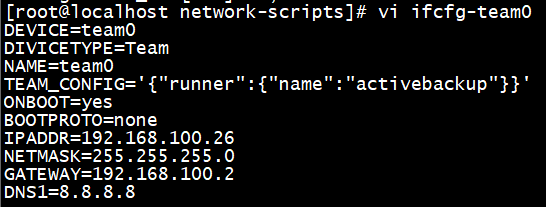

# vi ifcfg-team0

DEVICE=team0
DIVICETYPE=Team
NAME=team0
TEAM_CONFIG='{"runner":{"name":"activebackup"}}'
ONBOOT=yes
BOOTPROTO=none
IPADDR=192.168.100.26
NETMASK=255.255.255.0
GATEWAY=192.168.100.2
DNS1=8.8.8.8

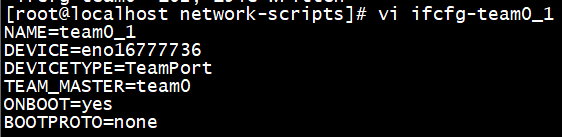

# vi ifcfg-team0_1

NAME=team0_1
DEVICE=eno16777736
DEVICETYPE=TeamPort
TEAM_MASTER=team0
ONBOOT=yes
BOOTPROTO=none

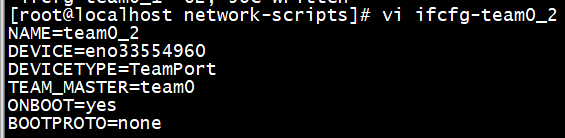

# vi ifcfg-team0_2

NAME=team0_2
DEVICE=eno33554960
DEVICETYPE=TeamPort
TEAM_MASTER=team0
ONBOOT=yes
BOOTPROTO=none
