寻找复杂背景下物体的轮廓（OpenCV / C++ - Filling holes）

一、问题提出

这是一个来自"answerOpenCV"（http://answers.opencv.org/question/200422/opencv-c-filling-holes/）整编如下：

title：OpenCV / C++ - Filling holes

content:

Hello there,

For a personnel projet, I'm trying to detect object and there shadow. These are the result I have for now: Original:

题，原始问题

Object:

Shadow:

The external contours of the object are quite good, but as you can see, my object is not full. Same for the shadow. I would like to get full contours, filled, for the object and its shadow, and I don't know how to get better than this (I juste use "dilate" for the moment). Does someone knows a way to obtain a better result please? Regards.

二、问题分析

从原始图片上来看，这张图片的拍摄的背景比较复杂，此外光照也存在偏光现象；而提问者虽然提出的是“将缝隙合并”的要求，实际上他还是想得到目标物体的准确轮廓。

三、问题解决

基于现有经验，和OpenCV，GOCVhelper等工具，能够很快得出以下结果

h通道：

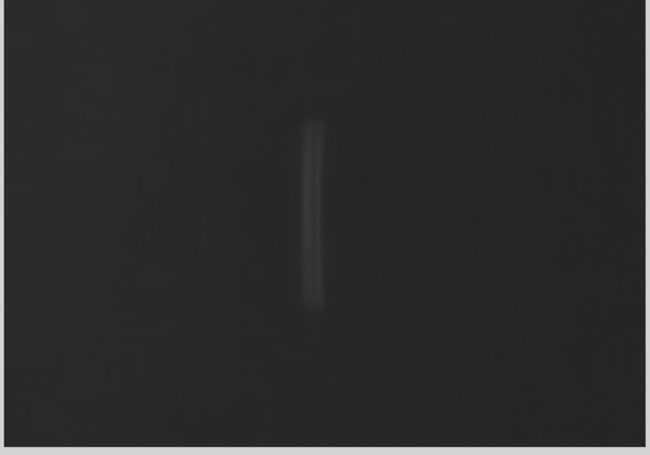

去光差：

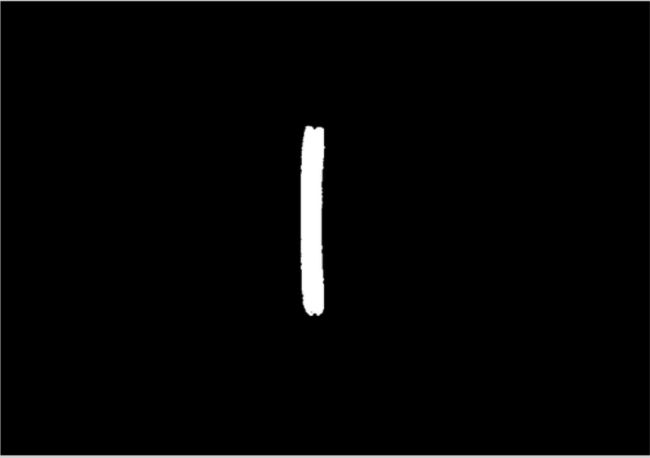

阈值：

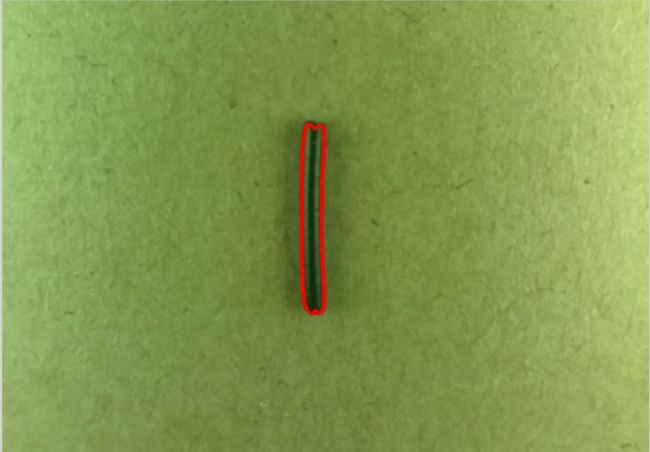

标注：



四、算法关键

这套算法首先解决了这个问题，而且我认为也是稳健鲁棒的。其中，算法中除了经典的“hsv分解->ostu阈值->最大轮廓标注”外，最为关键的算法为顶帽去光差。这个算法来自于冈萨雷斯《数字图像处理教程》形态学篇章，完全按照书本建议实现，体现良好作用。

#include "stdafx.h"
#include
#include


using namespace cv;
using namespace std;

//find the biggest contour
vector FindBigestContour(Mat src){
    int imax = 0;
    int imaxcontour = -1;
    std::vector >contours;
    findContours(src,contours,CV_RETR_LIST,CV_CHAIN_APPROX_SIMPLE);
    for (int i=0;i rgb_planes;
    split(src_hsv, rgb_planes );
    src_h = rgb_planes[0]; // h channel is useful

    src_h = moveLightDiff(src_h,40);
    threshold(src_h,bin,100,255,THRESH_OTSU);

    //find and draw the biggest contour
    vector bigestcontrour =  FindBigestContour(bin);
    vector > controus;
    controus.push_back(bigestcontrour);
    cv::drawContours(src,controus,0,Scalar(0,0,255),3);

    waitKey();
    return 0;
}
