Docker 搭建 LNMP + Wordpress

目录

一、项目模拟

1、项目环境

2、服务器环境

3、任务需求

二、Linux 系统基础镜像

三、Nginx

1、建立工作目录

2.、编写 Dockerfile 脚本

3、准备 nginx.conf 配置文件 、

4、生成镜像

5、创建自定义网络

6、启动镜像容器

7、验证 nginx

四、Mysql

1、 建立工作目录

2.、编写 Dockerfile 脚本

3、准备 my.cnf 文件

4、生成镜像

5、启动镜像容器

6、验证 mysql

五、Php

1、建立工作目录

2、 编写 Dockerfile 脚本

3、准备 php.ini、php-fpm.conf、www.conf 配置文件

3.1  php.ini

3.2    php-fpm.conf

3.3  www.conf

4、 生成镜像

 5、启动镜像容器

6、验证 php

六、启动 wordpress 服务

1、mysql 授权

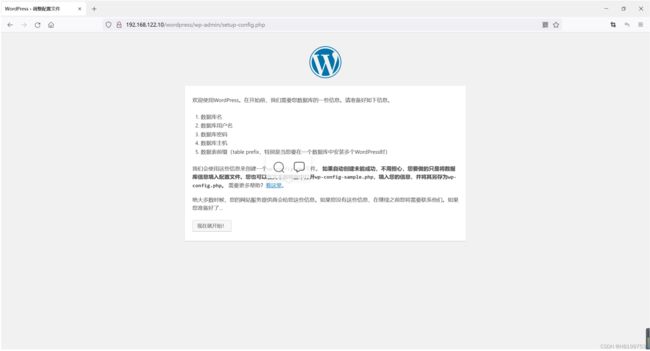

2、浏览器访问测试

3、备份镜像至本地

---



一、项目模拟

1、项目环境

  公司在实际的生产环境中，需要使用 Docker 技术在一台主机上创建 LNMP 服务并运行 Wordpress 网站平台。然后对此服务进行相关的性能调优和管理工作。
所有安装包下载：

wget http://101.34.22.188/lnmp_wordpress/mysql-boost-5.7.20.tar.gz
wget http://101.34.22.188/lnmp_wordpress/nginx-1.12.0.tar.gz
wget http://101.34.22.188/lnmp_wordpress/php-7.1.10.tar.bz2
wget http://101.34.22.188/lnmp_wordpress/wordpress-4.9.4-zh_CN.tar.gz
> 或者
wget -r -np http://101.34.22.188/lnmp_wordpress/

2、服务器环境

容器	操作系统	IP地址	主要软件
nginx	CentOS 7.9 x86_64	172.111.0.10	Docker-Nginx
mysql	CentOS 7.9 x86_64	172.111.0.20	Docker-Mysql
php	CentOS 7.9 x86_64	172.111.0.30	Docker-php

3、任务需求

（1）使用 Docker 构建 LNMP 环境并运行 Wordpress 网站平台。
（2）限制 Nginx 容器最多使用 500MB 的内存和 1G 的 Swap。
（3）限制 Mysql 容器写 /dev/sda 的速率为 10 MB/s。
（4）将所有容器进行快照，然后将 Docker 镜像打包成 tar 包备份到本地。

二、Linux 系统基础镜像

[root@docker ~]# systemctl disable --now firewalld
[root@docker ~]# setenforce 0
setenforce: SELinux is disabled
[root@docker ~]# docker pull centos:7
#从公有仓库中下载 centos7 作为系统基础镜像
[root@docker ~]# docker images
REPOSITORY   TAG       IMAGE ID       CREATED       SIZE
centos       7         eeb6ee3f44bd   4 weeks ago   204MB

三、Nginx

1、建立工作目录

[root@docker ~]# mkdir /opt/nginx
[root@docker ~]# cd /opt/nginx
[root@docker nginx]# rz -E
rz waiting to receive.
#上传 nginx 安装包 nginx-1.12.0.tar.gz
[root@docker nginx]# rz -E
rz waiting to receive.
#上传 wordpress 服务包 wordpress-4.9.4-zh_CN.tar.gz

2.、编写 Dockerfile 脚本

[root@docker nginx]# vim Dockerfile

FROM centos:7
MAINTAINER this is nginx image
RUN yum -y install pcre-devel zlib-devel gcc gcc-c++ make;useradd -M -s /sbin/nologin nginx
ADD nginx-1.12.0.tar.gz /usr/local/src/
WORKDIR /usr/local/src/nginx-1.12.0
RUN ./configure \
--prefix=/usr/local/nginx \
--user=nginx \
--group=nginx \
--with-http_stub_status_module;make -j 4 && make install
ENV PATH /usr/local/nginx/sbin:$PATH
ADD nginx.conf /usr/local/nginx/conf/
ADD wordpress-4.9.4-zh_CN.tar.gz /usr/local/nginx/html
RUN chmod 777 -R /usr/local/nginx/html/
EXPOSE 80
VOLUME [ "/usr/local/nginx/html/" ]
CMD [ "/usr/local/nginx/sbin/nginx","-g","daemon off;" ]

3、准备 nginx.conf 配置文件 、

[root@docker nginx]# ls
Dockerfile  nginx-1.12.0.tar.gz  nginx.conf  wordpress-4.9.4-zh_CN.tar.gz
[root@docker nginx]# egrep -v "^(.)*#(.)*$" nginx.conf | grep -v "^$"
worker_processes  1;
events {
    worker_connections  1024;
}
http {
    include       mime.types;
    default_type  application/octet-stream;
    sendfile        on;
    keepalive_timeout  65;
    server {
        listen       80;
        server_name  localhost;
        charset utf-8;
        location / {
            root   html;
            index  index.html index.php;
        }
        error_page   500 502 503 504  /50x.html;
        location = /50x.html {
            root   html;
        }
        location ~ \.php$ {
            root           html;
            fastcgi_pass   172.111.0.30:9000;
            fastcgi_index  index.php;
            fastcgi_param  SCRIPT_FILENAME  /usr/local/nginx/html$fastcgi_script_name;
            include        fastcgi_params;
        }
    }
}

4、生成镜像

[root@docker nginx]# docker build -t nginx:lnmp .
[root@docker nginx]# docker images
REPOSITORY   TAG       IMAGE ID       CREATED         SIZE
nginx        lnmp      35a6404fcfa1   5 seconds ago   522MB
centos       7         eeb6ee3f44bd   4 weeks ago     204MB

5、创建自定义网络

[root@docker nginx]# docker network create --subnet=172.111.0.0/16 --opt "com.docker.network.bridge.name"="docker1" mynetwork
0cbe1bd0bd782bf1c8e69916d99427970196de22deb312f970e01030406d9b45
[root@docker nginx]# docker network ls
NETWORK ID     NAME        DRIVER    SCOPE
dd7a55d01f86   bridge      bridge    local
63ddf1e359e9   host        host      local
0cbe1bd0bd78   mynetwork   bridge    local
a4b66a8a6cd2   none        null      local
[root@docker nginx]# ifconfig docker1
docker1: flags=4099  mtu 1500
        inet 172.111.0.1  netmask 255.255.0.0  broadcast 172.111.255.255
        ether 02:42:40:dc:e8:1d  txqueuelen 0  (Ethernet)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

6、启动镜像容器

[root@docker nginx]# docker run -d --name nginx -p 80:80 -m 500m --memory-swap 1g --net mynetwork --ip 172.111.0.10 nginx:lnmp
57616d4ea225c82a50b731472b003dabfd681e8dc6c6ef85a9bb2f665354334b
[root@docker nginx]# docker ps -a
CONTAINER ID   IMAGE        COMMAND                  CREATED          STATUS          PORTS                               NAMES
57616d4ea225   nginx:lnmp   "/usr/local/nginx/sb…"   13 seconds ago   Up 12 seconds   0.0.0.0:80->80/tcp, :::80->80/tcp   nginx
[root@docker nginx]# docker inspect nginx
······
                        "IPv4Address": "172.111.0.10"
······

7、验证 nginx

[root@docker nginx]# curl http://192.168.122.10:80







Welcome to nginx!
If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.

For online documentation and support please refer to
nginx.org.

Commercial support is available at
nginx.com.

Thank you for using nginx.

四、Mysql

1、 建立工作目录

[root@docker nginx]# mkdir /opt/mysql
[root@docker nginx]# cd /opt/mysql/
[root@docker mysql]# rz -E
rz waiting to receive.
#传入mysql安装包mysql-boost-5.7.20.tar.gz

2.、编写 Dockerfile 脚本

[root@docker mysql]# vim Dockerfile

FROM centos:7
MAINTAINER this is mysql image
RUN yum -y install ncurses ncurses-devel bison cmake pcre-devel zlib-devel gcc gcc-c++ make;useradd -M -s /sbin/nologin mysql
ADD mysql-boost-5.7.20.tar.gz /usr/local/src/
WORKDIR /usr/local/src/mysql-5.7.20/
RUN cmake \
-DCMAKE_INSTALL_PREFIX=/usr/local/mysql \
-DMYSQL_UNIX_ADDR=/usr/local/mysql/mysql.sock \
-DSYSCONFDIR=/etc \
-DSYSTEMD_PID_DIR=/usr/local/mysql \
-DDEFAULT_CHARSET=utf8  \
-DDEFAULT_COLLATION=utf8_general_ci \
-DWITH_EXTRA_CHARSETS=all \
-DWITH_INNOBASE_STORAGE_ENGINE=1 \
-DWITH_ARCHIVE_STORAGE_ENGINE=1 \
-DWITH_BLACKHOLE_STORAGE_ENGINE=1 \
-DWITH_PERFSCHEMA_STORAGE_ENGINE=1 \
-DMYSQL_DATADIR=/usr/local/mysql/data \
-DWITH_BOOST=boost \
-DWITH_SYSTEMD=1;make -j4;make install
ADD my.cnf /etc/my.cnf
EXPOSE 3306
RUN chown -R mysql:mysql /usr/local/mysql/;chown mysql:mysql /etc/my.cnf
WORKDIR /usr/local/mysql/bin/
RUN ./mysqld \
--initialize-insecure \
--user=mysql \
--basedir=/usr/local/mysql \
--datadir=/usr/local/mysql/data;cp /usr/local/mysql/usr/lib/systemd/system/mysqld.service /usr/lib/systemd/system/;systemctl enable mysqld
ENV PATH=/usr/local/mysql/bin:/usr/local/mysql/lib:$PATH
VOLUME [ "/usr/local/mysql" ]
CMD ["/usr/sbin/init"]

3、准备 my.cnf 文件

[root@docker mysql]# vim my.cnf

[client]
port = 3306
socket=/usr/local/mysql/mysql.sock

[mysqld]
user = mysql
basedir=/usr/local/mysql
datadir=/usr/local/mysql/data
port = 3306
character-set-server=utf8
pid-file = /usr/local/mysql/mysqld.pid
socket=/usr/local/mysql/mysql.sock
bind-address = 0.0.0.0
skip-name-resolve
max_connections=2048
default-storage-engine=INNODB
max_allowed_packet=16M
server-id = 1

sql_mode=NO_ENGINE_SUBSTITUTION,STRICT_TRANS_TABLES,NO_AUTO_CREATE_USER,NO_AUTO_VALUE_ON_ZERO,NO_ZERO_IN_DATE,NO_ZERO_DATE,ERROR_FOR_DIVISION_BY_ZERO,PIPES_AS_CONCAT,ANSI_QUOTES

4、生成镜像

[root@docker mysql]# docker build -t mysql:lnmp .
[root@docker mysql]# docker images
REPOSITORY   TAG       IMAGE ID       CREATED          SIZE
mysql        lnmp      49da8f7299af   3 minutes ago    9.98GB
nginx        lnmp      35a6404fcfa1   17 minutes ago   522MB
centos       7         eeb6ee3f44bd   4 weeks ago      204MB

5、启动镜像容器

[root@docker mysql]# docker run --name=mysql -d --privileged --device-write-bps /dev/sda:10M -v /usr/local/mysql --net mynetwork --ip 172.111.0.20 mysql:lnmp
ebafbdc1c4dcfc49406a7db8ee5a2afc54f5b4203d11ad374dba885ec4ef5afd
[root@docker mysql]# docker ps -a
CONTAINER ID   IMAGE        COMMAND                  CREATED          STATUS          PORTS                               NAMES
ebafbdc1c4dc   mysql:lnmp   "/usr/sbin/init"         11 seconds ago   Up 10 seconds   3306/tcp                            mysql
57616d4ea225   nginx:lnmp   "/usr/local/nginx/sb…"   17 minutes ago   Up 17 minutes   0.0.0.0:80->80/tcp, :::80->80/tcp   nginx

6、验证 mysql

[root@docker mysql]# docker exec -it mysql bash
[root@ebafbdc1c4dc bin]# systemctl status mysqld
● mysqld.service - MySQL Server
   Loaded: loaded (/usr/lib/systemd/system/mysqld.service; enabled; vendor preset: disabled)
   Active: activating (start) since Sun 2021-10-17 05:54:59 UTC; 42s ago
······

五、Php

1、建立工作目录

[root@docker mysql]# mkdir ../php
[root@docker mysql]# cd ../php/
[root@docker php]# rz -E
rz waiting to receive.
#传入php安装包php-7.1.10.tar.bz2

2、 编写 Dockerfile 脚本

[root@docker php]# vim Dockerfile

FROM centos:7
MAINTAINER this is php image
RUN yum install -y gd \
libjpeg libjpeg-devel \
libpng libpng-devel \
freetype freetype-devel \
libxml2 libxml2-devel \
zlib zlib-devel \
curl curl-devel \
openssl openssl-devel \
gcc gcc-c++ make pcre-devel;useradd -M -s /sbin/nologin nginx
ADD php-7.1.10.tar.bz2 /usr/local/src/
WORKDIR /usr/local/src/php-7.1.10
RUN ./configure \
--prefix=/usr/local/php \
--with-mysql-sock=/usr/local/mysql/mysql.sock \
--with-mysqli \
--with-zlib \
--with-curl \
--with-gd \
--with-jpeg-dir \
--with-png-dir \
--with-freetype-dir \
--with-openssl \
--enable-fpm \
--enable-mbstring \
--enable-xml \
--enable-session \
--enable-ftp \
--enable-pdo \
--enable-tokenizer \
--enable-zip ; make -j 4 ; make install
ENV PATH /usr/local/php/bin:/usr/local/php/sbin:$PATH
ADD php.ini     /usr/local/php/lib/
ADD php-fpm.conf /usr/local/php/etc/
ADD www.conf /usr/local/php/etc/php-fpm.d/
EXPOSE 9000
CMD /usr/local/php/sbin/php-fpm -F

3、准备 php.ini、php-fpm.conf、www.conf 配置文件

从其他机器安装 php 后，scp 配置文件到容器宿主机并进行修改

3.1  php.ini

该配置文件模板位于安装目录的 php-7.1.10/php.ini-development 位置

[root@docker php]# vim php.ini

#939行,取消注释，修改
date.timezone = Asia/Shanghai
#1170行,修改
mysqli.default_socket = /usr/local/mysql/mysql.sock
[root@docker php]# egrep -v "^;" php.ini | egrep -v "^$"
[PHP]
engine = On
short_open_tag = Off
precision = 14
output_buffering = 4096
zlib.output_compression = Off
implicit_flush = Off
unserialize_callback_func =
serialize_precision = -1
disable_functions =
disable_classes =
zend.enable_gc = On
expose_php = On
max_execution_time = 30
max_input_time = 60
memory_limit = 128M
error_reporting = E_ALL
display_errors = On
display_startup_errors = On
log_errors = On
log_errors_max_len = 1024
ignore_repeated_errors = Off
ignore_repeated_source = Off
report_memleaks = On
track_errors = On
html_errors = On
variables_order = "GPCS"
request_order = "GP"
register_argc_argv = Off
auto_globals_jit = On
post_max_size = 8M
auto_prepend_file =
auto_append_file =
default_mimetype = "text/html"
default_charset = "UTF-8"
doc_root =
user_dir =
enable_dl = Off
file_uploads = On
upload_max_filesize = 2M
max_file_uploads = 20
allow_url_fopen = On
allow_url_include = Off
default_socket_timeout = 60
[CLI Server]
cli_server.color = On
[Date]
date.timezone = Asia/Shanghai
[filter]
[iconv]
[intl]
[sqlite3]
[Pcre]
[Pdo]
[Pdo_mysql]
pdo_mysql.cache_size = 2000
pdo_mysql.default_socket=
[Phar]
[mail function]
SMTP = localhost
smtp_port = 25
mail.add_x_header = On
[SQL]
sql.safe_mode = Off
[ODBC]
odbc.allow_persistent = On
odbc.check_persistent = On
odbc.max_persistent = -1
odbc.max_links = -1
odbc.defaultlrl = 4096
odbc.defaultbinmode = 1
[Interbase]
ibase.allow_persistent = 1
ibase.max_persistent = -1
ibase.max_links = -1
ibase.timestampformat = "%Y-%m-%d %H:%M:%S"
ibase.dateformat = "%Y-%m-%d"
ibase.timeformat = "%H:%M:%S"
[MySQLi]
mysqli.max_persistent = -1
mysqli.allow_persistent = On
mysqli.max_links = -1
mysqli.cache_size = 2000
mysqli.default_port = 3306
mysqli.default_socket = /usr/local/mysql/mysql.sock
mysqli.default_host =
mysqli.default_user =
mysqli.default_pw =
mysqli.reconnect = Off
[mysqlnd]
mysqlnd.collect_statistics = On
mysqlnd.collect_memory_statistics = On
[OCI8]
[PostgreSQL]
pgsql.allow_persistent = On
pgsql.auto_reset_persistent = Off
pgsql.max_persistent = -1
pgsql.max_links = -1
pgsql.ignore_notice = 0
pgsql.log_notice = 0
[bcmath]
bcmath.scale = 0
[browscap]
[Session]
session.save_handler = files
session.use_strict_mode = 0
session.use_cookies = 1
session.use_only_cookies = 1
session.name = PHPSESSID
session.auto_start = 0
session.cookie_lifetime = 0
session.cookie_path = /
session.cookie_domain =
session.cookie_httponly =
session.serialize_handler = php
session.gc_probability = 1
session.gc_divisor = 1000
session.gc_maxlifetime = 1440
session.referer_check =
session.cache_limiter = nocache
session.cache_expire = 180
session.use_trans_sid = 0
session.sid_length = 26
session.trans_sid_tags = "a=href,area=href,frame=src,form="
session.sid_bits_per_character = 5
[Assertion]
zend.assertions = 1
[COM]
[mbstring]
[gd]
[exif]
[Tidy]
tidy.clean_output = Off
[soap]
soap.wsdl_cache_enabled=1
soap.wsdl_cache_dir="/tmp"
soap.wsdl_cache_ttl=86400
soap.wsdl_cache_limit = 5
[sysvshm]
[ldap]
ldap.max_links = -1
[mcrypt]
[dba]
[opcache]
[curl]
[openssl]

3.2    php-fpm.conf

该配置文件位于 /usr/local/php/etc/php-fpm.conf.default

[root@docker php]# vim php-fpm.conf

#17行，删除注释符号“;”
pid = run/php-fpm.pid
[root@docker php]# egrep -v "^;" php-fpm.conf | egrep -v "^$"
[global]
pid = run/php-fpm.pid
include=/usr/local/php/etc/php-fpm.d/*.conf

3.3  www.conf

该配置文件位于 usr/local/php/etc/php-fpm.d/www.conf.default

[root@docker php]# vim www.conf

#23、24行，修改用户和组
user = nginx
group = nginx
#36行，修改监听IP和端口为容器IP:9000端口
listen = 172.111.0.30:9000
[root@docker php]# egrep -v "^;" www.conf | egrep -v "^$"
[www]
user = nginx
group = nginx
listen = 172.111.0.30:9000
pm = dynamic
pm.max_children = 5
pm.start_servers = 2
pm.min_spare_servers = 1
pm.max_spare_servers = 3

4、 生成镜像

[root@docker php]# docker build -t php:lnmp .
[root@docker php]# docker images
REPOSITORY   TAG       IMAGE ID       CREATED              SIZE
php          lnmp      985842f961f1   About a minute ago   1.2GB
mysql        lnmp      49da8f7299af   12 minutes ago       9.98GB
nginx        lnmp      35a6404fcfa1   26 minutes ago       522MB
centos       7         eeb6ee3f44bd   4 weeks ago          204MB

 5、启动镜像容器

[root@docker php]# docker run -itd --name php --net mynetwork --ip 172.111.0.30 -p 9000:9000 --volumes-from nginx --volumes-from mysql php:lnmp
954d8ecdd6c7d47270fe15ce4ad6db9c4a5396f42f9d111315ecee69358a9566
[root@docker php]# docker ps -a
CONTAINER ID   IMAGE        COMMAND                  CREATED          STATUS          PORTS                                       NAMES
954d8ecdd6c7   php:lnmp     "/bin/sh -c '/usr/lo…"   15 seconds ago   Up 14 seconds   0.0.0.0:9000->9000/tcp, :::9000->9000/tcp   php
ebafbdc1c4dc   mysql:lnmp   "/usr/sbin/init"         8 minutes ago    Up 8 minutes    3306/tcp                                    mysql
57616d4ea225   nginx:lnmp   "/usr/local/nginx/sb…"   26 minutes ago   Up 26 minutes   0.0.0.0:80->80/tcp, :::80->80/tcp           nginx

6、验证 php

[root@docker php]# docker exec -it php bash
[root@954d8ecdd6c7 php-7.1.10]# ps -aux
USER        PID %CPU %MEM    VSZ   RSS TTY      STAT START   TIME COMMAND
root          1  0.0  0.0 113028  9536 pts/0    Ss+  06:00   0:00 php-fpm: master process (/usr/local/php/etc/php-fpm.conf)
nginx         7  0.0  0.0 113028  5780 pts/0    S+   06:00   0:00 php-fpm: pool www
nginx         8  0.0  0.0 113028  5784 pts/0    S+   06:00   0:00 php-fpm: pool www
root          9  0.2  0.0  11828  1888 pts/1    Ss   06:01   0:00 bash
root         23  0.0  0.0  51732  1728 pts/1    R+   06:01   0:00 ps -aux

六、启动 wordpress 服务

1、mysql 授权

[root@ebafbdc1c4dc bin]# mysql -u root -p
Enter password:
#初始密码为空
mysql> create database wordpress;
Query OK, 1 row affected (0.00 sec)

mysql> grant all privileges on wordpress.* to 'wordpress'@'%' identified by '123456';
Query OK, 0 rows affected, 1 warning (0.00 sec)

mysql> grant all privileges on *.* to 'root'@'%' identified by '123456';
Query OK, 0 rows affected, 1 warning (0.00 sec)

mysql> flush privileges;
Query OK, 0 rows affected (0.00 sec)

2、浏览器访问测试

访问 http://192.168.122.10/wordpress/index.php

3、备份镜像至本地

[root@docker php]# mkdir /opt/lnmp_images
[root@docker php]# cd /opt/lnmp_images/
[root@docker lnmp_images]# docker save -o nginx.tar nginx:lnmp
[root@docker lnmp_images]# docker save -o mysql.tar mysql:lnmp
[root@docker lnmp_images]# docker save -o php.tar php:lnmp
