CFArrayRef可变数组源码解析

1.我们先来看看CFArrayRef的数据结构

//保存数组元素的指针
struct __CFArrayBucket {
    const void *_item;
};
//mutableArray的deque
struct __CFArrayDeque {
    uintptr_t _leftIdx;//数组在deque中开头的位置
    uintptr_t _capacity;//数组容量
    /* struct __CFArrayBucket buckets follow here */
};
//CFArrayRef的结构体
struct __CFArray {
    CFRuntimeBase _base;//runtime基本结构体，每个CF数据都包含
    CFIndex _count;     //数组元素个数
    CFIndex _mutations; //变化次数调用_CFArrayReplaceValues时 +1
    int32_t _mutInProgress;
    __strong void *_store;           /* can be NULL when MutableDeque */
};

avatar

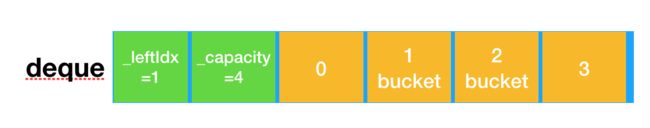

这个deque就是可变数组元素的存储方式。

2.下面我们来看看数组是怎么插入元素的：

//这里我们简化一下
void CFArrayInsertValueAtIndex(CFMutableArrayRef array, CFIndex
    //调用replace来插入
    _CFArrayReplaceValues(array, CFRangeMake(idx, 0), &value, 1);
}
//我们再来看看replace
void _CFArrayReplaceValues(CFMutableArrayRef array, CFRange range, const void **newValues, CFIndex newCount) {
    const CFArrayCallBacks *cb;//release/retain/equil/copyDescription函数指针结构体
    CFIndex idx, cnt, futureCnt;
    const void **newv, *buffer[256];
    cnt = __CFArrayGetCount(array);//cnt 获取数组当前元素个数
    futureCnt = cnt - range.length + newCount; //替换后新的元素个数

    cb = __CFArrayGetCallBacks(array);//获取数组回调
    CFAllocatorRef allocator = __CFGetAllocator(array);

    //如果retain方法存在
    if (NULL != cb->retain && !hasBeenFinalized(array)) {
        //替换的个数小于等于256则用栈上的buffer，否则在堆上重新分配
        newv = (newCount <= 256) ? (const void **)buffer : (const void **)CFAllocatorAllocate(kCFAllocatorSystemDefault, newCount * sizeof(void *), 0); // GC OK
        //把新加入数组的对象retain一下
        for (idx = 0; idx < newCount; idx++) {
            newv[idx] = (void *)INVOKE_CALLBACK2(cb->retain, allocator, (void *)newValues[idx]);
        }
    } else {
        newv = newValues;
    }
    array->_mutations++;//变化次数加1

    //现在有A、B、C三个区域 A+C是原来的数组从Range.location分割的2部分 B是插入中间的区域
    //先把要替换的释放掉
    if (0 < range.length) {
        __CFArrayReleaseValues(array, range, false);
    }
    //如果array->_store不存在 则申请一个内存
    if (NULL == array->_store) {
        //如果_store不存在
        if (0 <= futureCnt) {
            struct __CFArrayDeque *deque;
            //获取替换或插入后新的数组容量
            CFIndex capacity = __CFArrayDequeRoundUpCapacity(futureCnt);
            //deque的大小，__CFArrayDeque结构体+数组长度
            CFIndex size = sizeof(struct __CFArrayDeque) + capacity * sizeof(struct __CFArrayBucket);
            //申请一个新的deque
            deque = (struct __CFArrayDeque *)CFAllocatorAllocate((allocator), size, isStrongMemory(array) ? __kCFAllocatorGCScannedMemory : 0);
            if (__CFOASafe) __CFSetLastAllocationEventName(deque, "CFArray (store-deque)");
            //数组连续放在deque的中间，_leftIdx表示数组的左边界
            deque->_leftIdx = (capacity - newCount) / 2;
            //保存数组的容量
            deque->_capacity = capacity;
            //array->_store = deque
            __CFAssignWithWriteBarrier((void **)&array->_store, (void *)deque);
            if (CF_IS_COLLECTABLE_ALLOCATOR(allocator)) auto_zone_release(objc_collectableZone(), deque); // GC: now safe to unroot the array body.
        }
    } else {        // 如果Deque存在
                //如果要被替换的元素个数不等于替换的元素个数
        if (range.length != newCount) {
            //memmove+memset，改变array老元素位置
            __CFArrayRepositionDequeRegions(array, range, newCount);
        }
    }
    // copy in new region B elements
    if (0 < newCount) {
            //获取array中的deque
            struct __CFArrayDeque *deque = (struct __CFArrayDeque *)array->_store;
            //获取保存元素开始的位置
            struct __CFArrayBucket *raw_buckets = (struct __CFArrayBucket *)((uint8_t *)deque + sizeof(struct __CFArrayDeque));
            //把新的数据copy到空出来的位置
            objc_memmove_collectable(raw_buckets + deque->_leftIdx + range.location, newv, newCount * sizeof(struct __CFArrayBucket));
    }
    //设置array大小为当前元素个数
    __CFArraySetCount(array, futureCnt);
}
//那么我们再来看看插入元素的空位怎么移出来的
static void __CFArrayRepositionDequeRegions(CFMutableArrayRef array, CFRange range, CFIndex newCount) {
    // newCount elements are going to replace the range, and the result will fit in the deque
    struct __CFArrayDeque *deque = (struct __CFArrayDeque *)array->_store;
    struct __CFArrayBucket *buckets;
    CFIndex cnt, futureCnt, numNewElems;
    CFIndex L, A, B, C, R;

    //从数组获取deque开始的位置，也就是数组头
    buckets = (struct __CFArrayBucket *)((uint8_t *)deque + sizeof(struct __CFArrayDeque));
    //获取数组容量
    cnt = __CFArrayGetCount(array);
    //新的数组容量
    futureCnt = cnt - range.length + newCount;

    //数组头离deque头的距离
    L = deque->_leftIdx;        // length of region to left of deque
    //替换左边的长度
    A = range.location;         // length of region in deque to left of replaced range
    //替换的长度
    B = range.length;           // length of replaced range
    //替换右边的长度
    C = cnt - B - A;            // length of region in deque to right of replaced range
    //deque右边剩余长度
    R = deque->_capacity - cnt - L; // length of region to right of deque
    //需要新增加的长度
    numNewElems = newCount - B;

    CFIndex wiggle = deque->_capacity >> 17;
    if (wiggle < 4) wiggle = 4;
    //数组增大，需要重新申请内存
    if (deque->_capacity < (uint32_t)futureCnt || (cnt < futureCnt && L + R < wiggle)) {
        // must be inserting or space is tight, reallocate and re-center everything
        //得到新的数组容量大小 capacity = 1<<(futureCnt + wiggle) 如果小于4就直接等于4
        CFIndex capacity = __CFArrayDequeRoundUpCapacity(futureCnt + wiggle);
        //新的容量占用的字节数
        CFIndex size = sizeof(struct __CFArrayDeque) + capacity * sizeof(struct __CFArrayBucket);
        CFAllocatorRef allocator = __CFGetAllocator(array);
            Boolean collectableMemory = CF_IS_COLLECTABLE_ALLOCATOR(allocator);
        //如果空间不够 重新分配deque
        struct __CFArrayDeque *newDeque = (struct __CFArrayDeque *)CFAllocatorAllocate(allocator, size, isStrongMemory(array) ? __kCFAllocatorGCScannedMemory : 0);
        //获取重新分配后的开始存储的位置
        struct __CFArrayBucket *newBuckets = (struct __CFArrayBucket *)((uint8_t *)newDeque + sizeof(struct __CFArrayDeque));
        CFIndex oldL = L;
        CFIndex newL = (capacity - futureCnt) / 2;
        CFIndex oldC0 = oldL + A + B;
        CFIndex newC0 = newL + A + newCount;
        newDeque->_leftIdx = newL;
        newDeque->_capacity = capacity;
        //把替换位置2边的元素移动到对应位置
        if (0 < A) objc_memmove_collectable(newBuckets + newL, buckets + oldL, A * sizeof(struct __CFArrayBucket));
        if (0 < C) objc_memmove_collectable(newBuckets + newC0, buckets + oldC0, C * sizeof(struct __CFArrayBucket));
        //把重新分配的deque array->_store = newDeque
        __CFAssignWithWriteBarrier((void **)&array->_store, (void *)newDeque);
        //释放原来的deque
            if (!collectableMemory && deque) CFAllocatorDeallocate(allocator, deque);
            if (CF_IS_COLLECTABLE_ALLOCATOR(allocator)) auto_zone_release(objc_collectableZone(), newDeque);
        return;
    }

    //在空余长度足够的情况下 移动分割出的短的部分
    //AB是原来的数组被range.location分割的，C是被替换的部分
    if ((numNewElems < 0 && C < A) || (numNewElems <= R && C < A)) {    // move C
        // deleting: C is smaller
        // inserting: C is smaller and R has room
        //从deque的开头到被替换末尾的位置
        CFIndex oldC0 = L + A + B;
        //从deque的开头到替换末尾的位置
        CFIndex newC0 = L + A + newCount;
        //如果替换右边的长度 > 0
        if (0 < C) objc_memmove_collectable(buckets + newC0, buckets + oldC0, C * sizeof(struct __CFArrayBucket));
        // GrP GC: zero-out newly exposed space on the right, if any
        if (oldC0 > newC0) memset(buckets + newC0 + C, 0, (oldC0 - newC0) * sizeof(struct __CFArrayBucket));
    } else if ((numNewElems < 0) || (numNewElems <= L && A <= C)) { // move A
        // deleting: A is smaller or equal (covers remaining delete cases)
        // inserting: A is smaller and L has room
        CFIndex oldL = L;
        CFIndex newL = L - numNewElems;
        deque->_leftIdx = newL;
        if (0 < A) objc_memmove_collectable(buckets + newL, buckets + oldL, A * sizeof(struct __CFArrayBucket));
        // GrP GC: zero-out newly exposed space on the left, if any
        if (newL > oldL) memset(buckets + oldL, 0, (newL - oldL) * sizeof(struct __CFArrayBucket));
    } else {
        //应该移动左边的但左边没有空间
        //或者应该移动右边的但右边没有空间
        // now, must be inserting, and either:
        //    A<=C, but L doesn't have room (R might have, but don't care)
        //    C_leftIdx = newL;
        if (newL < oldL) {
            if (0 < A) objc_memmove_collectable(buckets + newL, buckets + oldL, A * sizeof(struct __CFArrayBucket));
            if (0 < C) objc_memmove_collectable(buckets + newC0, buckets + oldC0, C * sizeof(struct __CFArrayBucket));
            // GrP GC: zero-out newly exposed space on the right, if any
            if (oldC0 > newC0) memset(buckets + newC0 + C, 0, (oldC0 - newC0) * sizeof(struct __CFArrayBucket));
        } else {
            if (0 < C) objc_memmove_collectable(buckets + newC0, buckets + oldC0, C * sizeof(struct __CFArrayBucket));
            if (0 < A) objc_memmove_collectable(buckets + newL, buckets + oldL, A * sizeof(struct __CFArrayBucket));
            // GrP GC: zero-out newly exposed space on the left, if any
            if (newL > oldL) memset(buckets + oldL, 0, (newL - oldL) * sizeof(struct __CFArrayBucket));
        }
    }
}

总结:

1.可变数组存放在deque中

2.deque的前面2个数据保存数组开始位置在deque中的偏移和deque的容量大小

3.创建新的deque时把数组放在deque的中间，为了方便后面插入删除数据

4.插入数据时，插入的位置把数组分割成左右2部分(A/C)，插入的部分为B

5.插入时如果需要增大空间，重新申请deque；如果A<=C并且左边空间足够，则A部分左移；如果A>C并且右边空间足够，则C部分右移；如果前面2种情况都不符合，则A、C都移动并且A+B+C合起来移动到deque的中间

3.数组判断是否包含某个元素

//判断包含某个元素
Boolean CFArrayContainsValue(CFArrayRef array, CFRange range, const void *value) {
    CFIndex idx;
    const CFArrayCallBacks *cb = CF_IS_OBJC(CFArrayGetTypeID(), array) ? &kCFTypeArrayCallBacks : __CFArrayGetCallBacks(array);
    //循环遍历数组判断
    for (idx = 0; idx < range.length; idx++) {
        const void *item = CFArrayGetValueAtIndex(array, range.location + idx);
        //如果地址相等bicb->equal函数返回相等([NSObject isEquil])
        if (value == item || (cb->equal && INVOKE_CALLBACK2(cb->equal, value, item))) {
            return true;
        }
    }
    return false;
}
