前后端分离项目—ssm+vue—员工&部门管理

创建数据库/表：

创建数据库：

create database 0927_ssm_vue_db #创建数据库
default character set utf8mb4 #设置字符集
default collate utf8mb4_general_ci #设置排序规则

创建数据表：

#创建部门
CREATE TABLE tb_dept
(
	dept_id int PRIMARY KEY auto_increment,
	dept_name VARCHAR(20)
)

select * from tb_dept

INSERT INTO tb_dept
(dept_name)
select '人事部' UNION
select '财务部' UNION
select 'IT部'

CREATE TABLE tb_emp
(
	emp_id INT PRIMARY KEY auto_increment,
	emp_name varchar(20),
	sex char(1),
	birthday date,
	phone varchar(11),
	dept_d int #所属部门
)

select * from tb_emp

insert into tb_emp
VALUES
(null,'张三','男','2000-01-10','13112345678',1),
(null,'李四','女','2002-11-12','13112345679',2)

ssm框架—后台搭建：

项目整体框架：

pom.xml:

  4.0.0

  org.example
  0927_ssm_vue_KTLX
  1.0-SNAPSHOT
  war

  0927_ssm_vue_KTLX Maven Webapp

  http://www.example.com


    8
    8
    4.0.1
    2.2
    1.2
    5.3.14
    1.4
    3.4.6
    1.3.3
    8.0.11
    1.2.78




      javax.servlet
      javax.servlet-api
      ${servlet.version}

      provided


      javax.servlet.jsp
      jsp-api
      ${jsp.version}

      provided


      jstl
      jstl
      ${jstl.version}



      org.springframework
      spring-webmvc
      ${spring.version}


      org.springframework
      spring-jdbc
      ${spring.version}



      commons-dbcp
      commons-dbcp
      ${commons-dbcp.version}



      org.mybatis
      mybatis
      ${mybatis.version}



      org.mybatis
      mybatis-spring
      ${mybatis-spring.version}



      com.github.pagehelper
      pagehelper
      5.1.0


      com.github.abel533
      mapper
      3.0.1



      mysql
      mysql-connector-java
      ${mysql-connector-java.version}



      com.alibaba
      fastjson
      ${fastjson.version}



      org.projectlombok
      lombok
      1.18.24


      com.fasterxml.jackson.core
      jackson-databind
      2.13.2.2



      org.logback-extensions
      logback-ext-spring
      0.1.4



      javax.validation
      validation-api
      2.0.1.Final


      org.hibernate
      hibernate-validator
      6.1.0.Final





      org.apache.poi
      poi
      3.17



      org.apache.poi
      poi-ooxml
      3.17



      org.apache.poi
      poi-ooxml-schemas
      3.17



      com.sun.mail
      jakarta.mail
      1.6.7



web.xml:



    contextConfigLocation
    classpath:spring-mybatis.xml



    org.springframework.web.context.ContextLoaderListener



    logbackConfigLocation

    classpath:logback.xml


    ch.qos.logback.ext.spring.web.LogbackConfigListener





    SimpleCORSFilter
    com.aaa.demo.filter.SimpleCORSFilter

      IsCross
      true



    SimpleCORSFilter
    /*




    characterEncodingFilter
    org.springframework.web.filter.CharacterEncodingFilter

      encoding
      UTF-8



    characterEncodingFilter
    /*





    springMVC
    org.springframework.web.servlet.DispatcherServlet


      contextConfigLocation
      classpath:spring-mvc.xml

    1


    springMVC


    /


db.properties:

jdbc.driver=com.mysql.cj.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/0927_ssm_vue_db?useSSL=false&serverTimezone=UTC&characterEncoding=utf8&allowPublicKeyRetrieval=true
jdbc.username=root
jdbc.password=123456

logback.xml:







            %d{HH:mm:ss.SSS} [%thread] > %green(%-5level) %cyan(%logger{35}) - %m%n







			/aaalogs/%d{yyyy-MM-dd}.aaa.log.zip

            365


            %d{yyyy-MM-dd HH:mm:ss.SSS} > %-5level %X{X-B3-TraceId:-} ${springAppName:-} %logger{35} %m%n








mybatis-config.xml:

spring-mvc.xml:

spring-mybatis.xml:

Dept:

package com.aaa.demo.entity;

import lombok.Data;

@Data
public class Dept {
    private Integer deptId;
    private String deptName;
}

DeptMapper :

package com.aaa.demo.mapper;

import com.aaa.demo.entity.Dept;
import org.apache.ibatis.annotations.Insert;
import org.apache.ibatis.annotations.Select;

import java.util.List;

public interface DeptMapper {
    @Select("select dept_id,dept_name from tb_dept")
    List listAll();

    @Insert("insert into tb_dept values (null,#{deptName})")
    int insert(Dept dept);
}

DeptMapper.xml:

DeptServiceImpl :

package com.aaa.demo.service.impl;

import com.aaa.demo.entity.Dept;
import com.aaa.demo.mapper.DeptMapper;
import com.aaa.demo.service.IDeptService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

@Service
public class DeptServiceImpl implements IDeptService {
    @Autowired
    private DeptMapper deptMapper;

    @Override
    public List listAll() {
        return deptMapper.listAll();
    }

    @Override
    public int add(Dept dept) {
        return deptMapper.insert(dept);
    }
}

IDeptService :

package com.aaa.demo.service;

import com.aaa.demo.entity.Dept;

import java.util.List;

public interface IDeptService {
    List listAll();
    int add(Dept dept);
}

DeptController :

package com.aaa.demo.controller;

import com.aaa.demo.entity.Dept;
import com.aaa.demo.service.IDeptService;
import com.aaa.demo.util.CommonResult;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.bind.annotation.RestController;

import java.util.List;

@RestController
@RequestMapping("/api/dept")
public class DeptController {
    @Autowired
    private IDeptService deptService;

    @RequestMapping("/list")
    public CommonResult listAll(){
        List deptList=deptService.listAll();
        return CommonResult.success(deptList);
    }

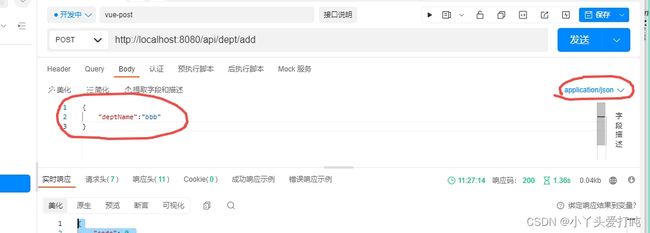

    @RequestMapping("/add")
    public CommonResult add(@RequestBody Dept dept){
        //@RequestBody:用于接收json字符串格式的对象参数
        int count=deptService.add(dept);
        return CommonResult.success(count);
    }

}

CommonResult:

package com.aaa.demo.util;

import lombok.Data;

@Data
public class CommonResult {
    //状态编码:0成功,1失败
    private Integer code;
    //提示信息
    private String msg;
    //记录数
    private long count;
    //数据结果
    private T data;

    public CommonResult() {
    }

    public CommonResult(Integer code, String msg, long count, T data) {
        this.code = code;
        this.msg = msg;
        this.count = count;
        this.data = data;
    }

    //返回成功结果:增删改，或其他不返回记录数的操作
    public static  CommonResult success(T data){
        return new CommonResult(0,"success",0,data);
    }

    //返回成功结果:针对分页查询
    public static  CommonResult success(long count,T data){
        return new CommonResult(0,"success",count,data);
    }

    //返回失败
    public static  CommonResult fail(T data){
        return new CommonResult(1,"fail",0,data);
    }
}

SimpleCORSFilter :

package com.aaa.demo.filter;

import javax.servlet.*;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;

public class SimpleCORSFilter implements Filter {
    private boolean isCross = false;
    @Override
    public void destroy() {
        isCross = false;
    }
    @Override
    public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain)
            throws IOException, ServletException {
        if (isCross) {
            HttpServletRequest httpServletRequest = (HttpServletRequest) request;
            HttpServletResponse httpServletResponse = (HttpServletResponse) response;
            //使用通配符 * 允许所有域名发起的跨域请求
            httpServletResponse.setHeader("Access-Control-Allow-Origin", "*");
            //允许访问的方式
            httpServletResponse.setHeader("Access-Control-Allow-Methods", "POST, GET, OPTIONS, DELETE, PUT");
            //表示每次异步请求都发起预检请求，也就是说，发送两次请求。 resp.addHeader("Access-Control-Max-Age", "1800")，表示隔30分钟才发起预检请求。也就是说，发送两次请求
            httpServletResponse.setHeader("Access-Control-Max-Age", "0");
            //允许携带的头
            httpServletResponse.setHeader("Access-Control-Allow-Headers",
                    "Origin, No-Cache, X-Requested-With, If-Modified-Since, Pragma, Last-Modified, Cache-Control, Expires, Content-Type, X-E4M-With,userId,token");
            //是否允许后续请求携带认证信息（cookies）,该值只能是true,否则不返回。这个是服务端下发到客户端的 response 中头部字段，意义是允许客户端携带验证信息，例如 cookie 之类的。
            httpServletResponse.setHeader("Access-Control-Allow-Credentials", "true");
            //代表javascript和Ajax的跨域请求
            httpServletResponse.setHeader("XDomainRequestAllowed", "1");
        }
        chain.doFilter(request, response);
    }
    @Override
    public void init(FilterConfig filterConfig) throws ServletException {
        String isCrossStr = filterConfig.getInitParameter("IsCross");
        isCross = isCrossStr.equals("true") ? true : false;
        System.out.println(isCrossStr);
    }

}

配置tomcat 并运行项目：

vue—前台搭建：

新建空项目文件：

在项目文件目录地址栏—cmd:

在cmd窗口执行命令：

Microsoft Windows [版本 10.0.22000.978]
(c) Microsoft Corporation。保留所有权利。

D:\java-Vue-space\0927_ssm_vue_KTLX>vue create web_front_0927


Vue CLI v4.1.1
┌─────────────────────────────────────────┐
│                                         │
│   New version available 4.1.1 → 5.0.8   │
│    Run npm i -g @vue/cli to update!     │
│                                         │
└─────────────────────────────────────────┘

? Please pick a preset: Manually select features
? Check the features needed for your project: Babel, Router, Vuex
? Use history mode for router? (Requires proper server setup for index fallback in production) No
? Where do you prefer placing config for Babel, ESLint, etc.? In package.json
? Save this as a preset for future projects? No


Vue CLI v4.1.1
✨  Creating project in D:\java-Vue-space\0927_ssm_vue_KTLX\web_front_0927.
  Initializing git repository...
⚙  Installing CLI plugins. This might take a while...


> [email protected] postinstall D:\java-Vue-space\0927_ssm_vue_KTLX\web_front_0927\node_modules\core-js
> node -e "try{require('./postinstall')}catch(e){}"


> [email protected] postinstall D:\java-Vue-space\0927_ssm_vue_KTLX\web_front_0927\node_modules\ejs
> node ./postinstall.js

added 1259 packages from 631 contributors in 239.437s

94 packages are looking for funding
  run `npm fund` for details

  Invoking generators...
  Installing additional dependencies...

added 11 packages from 40 contributors in 16.939s

95 packages are looking for funding
  run `npm fund` for details

⚓  Running completion hooks...

  Generating README.md...

  Successfully created project web_front_0927.
  Get started with the following commands:

 $ cd web_front_0927
 $ npm run serve


D:\java-Vue-space\0927_ssm_vue_KTLX> cd web_front_0927

D:\java-Vue-space\0927_ssm_vue_KTLX\web_front_0927> npm run serve

> [email protected] serve D:\java-Vue-space\0927_ssm_vue_KTLX\web_front_0927
> vue-cli-service serve

 INFO  Starting development server...
98% after emitting CopyPlugin

 DONE  Compiled successfully in 5123ms                                                                          19:30:23


  App running at:
  - Local:   http://localhost:8080/
  - Network: http://192.168.31.110:8080/

  Note that the development build is not optimized.
  To create a production build, run npm run build.

命令执行完成并生成网址访问链接：

复制链接到浏览器+回车：

在vue脚手架项目上修改成需要的功能页面:

代码整体布局:

在vscode中打开《生成的》项目文件：

修改编辑项目文件：

App.vue :

views—Login.vue :

router—index.js（部分）

import Vue from 'vue'
import VueRouter from 'vue-router'
import Login from '../views/Login.vue'

//在vue实例中使用路由组件
Vue.use(VueRouter)

const routes = [
  {
    path: '/',
    redirect:"/login" //路径重定向
  },
  {
    path: '/login',  //地址路径
    name: 'Login',    //地址命名
    component:Login
  }
]

//创建路由对象
const router = new VueRouter({
  routes
})

//导出路由对象
export default router

views—AdminWelcome.xue:

保存修改，登录页面：

根据项目布局结构/联系，整理代码：

router—index.js:

import Vue from 'vue'
import VueRouter from 'vue-router'
import Login from '../views/Login.vue'

//在vue实例中使用路由组件
Vue.use(VueRouter)

const routes = [
  {
    path: '/',
    redirect:"/login" //路径重定向
  },
  {
    path: '/login',  //地址路径
    name: 'Login',    //地址命名
    component:Login
  },
  {
    path: '/elui',
    name: 'ELUi',
    component:()=>import("../views/ELUiTest")
  },
  {
    path:"adminhome",
    name:"AdminHome",
    component:()=>import("../views/AdminHome"),
    children:[ //配置子级视图的页面
      {
        path:"",
        name:"AdminWelcome",
        component:()=>import("../views/AdminWelcome")
      },
      {
        path:"deptMgr",
        name:"DeptMgr",
        component:()=>import("../views/DeptMgr")
      }
    ]
  }
]

//创建路由对象
const router = new VueRouter({
  routes
})

//导出路由对象
export default router

util—AxiosUtil.js:

//导入axios模块
import axios from 'axios'
//配置axios模块
let axiosUtil=axios.create({
    baseURL:"http://localhost:8080/0927_ssm_vue_KTLX_war_exploded/api/" //配置axios组件请求的固定前缀
})

//到处具有特定配置的axios对象
export default axiosUtil;

service—DeptService.js:

//导入axios模块
import axiosUtil from "../util/AxiosUtil";
//定义业务方法，实现后台接口请求
//查询
function list(){
    //返回请求指定Controller的一个promise对象(ajax异步请求对象)
    return axiosUtil.get("dept/list");
}
//添加
function add(dept){
    return axiosUtil.post("dept/add",dept);
}

//当前是一个js module(模块),如果想要当前模块的内容，被其他模块使用，需要进行导出
export default{
    list,add
}

views—DeptMgr.vue:

components—SideBar.vue:

views—AdminHome.vue:

Error①Failed to compile:

Error②端口被占用：

运行结果如下：

参考：

axios中文文档|axios中文网
http://www.axios-js.com/zh-cn/docs/
