Flink学习笔记 -- Flink写入Redis

引入依赖

 <dependencies>
        <dependency>
            <groupId>org.apache.flinkgroupId>
            <artifactId>flink-streaming-scala_2.11artifactId>
            <version>1.10.2version>
        dependency>
        <dependency>
            <groupId>org.apache.flinkgroupId>
            <artifactId>flink-scala_2.11artifactId>
            <version>1.10.2version>
        dependency>

        <dependency>
            <groupId>org.apache.bahirgroupId>
            <artifactId>flink-connector-redis_2.11artifactId>
            <version>1.0version>
        dependency>
    dependencies>

编写redis配置

val conf: FlinkJedisPoolConfig = new FlinkJedisPoolConfig.Builder()
      .setHost("localhost")
      .setPort(6379)
      .build()

自定义RedisMapper

这里面的方法根据方法名应该都能看出来是什么意思

class MyRedisMapper extends RedisMapper[SensorReading]{
  // 写入redis的命令
  override def getCommandDescription: RedisCommandDescription = {
    new RedisCommandDescription(RedisCommand.HSET, "sensor_temp")
  }

  override def getKeyFromData(t: SensorReading): String = {
    t.id
  }

  override def getValueFromData(t: SensorReading): String = {
    t.temperature.toString
  }
}

对应着redis的添加命令

完整代码

package com.lzr.sinktest

import com.lzr.apiTest.SensorReading
import org.apache.flink.streaming.api.scala._
import org.apache.flink.streaming.connectors.redis.RedisSink
import org.apache.flink.streaming.connectors.redis.common.config.{FlinkJedisConfigBase, FlinkJedisPoolConfig}
import org.apache.flink.streaming.connectors.redis.common.mapper.{RedisCommand, RedisCommandDescription, RedisMapper}

case class SensorReading(id: String, timestamp: Long, temperature: Double)

object RedisSinkTest {
  def main(args: Array[String]): Unit = {
    val env: StreamExecutionEnvironment = StreamExecutionEnvironment.getExecutionEnvironment
    env.setParallelism(1)
    val inputStream: DataStream[String] = env.readTextFile("data/sensor.txt")
    // 简单转换
    val dataStream: DataStream[SensorReading] = inputStream
      .map(data => {
        val fields: Array[String] = data.split(",")
        SensorReading(fields(0), fields(1).toLong, fields(2).toDouble)
      })

    val conf: FlinkJedisPoolConfig = new FlinkJedisPoolConfig.Builder()
      .setHost("localhost")
      .setPort(6379)
      .build()



    dataStream.addSink(new RedisSink[SensorReading](conf, new MyRedisMapper))

    env.execute("redis sink")
  }
}

class MyRedisMapper extends RedisMapper[SensorReading]{
  // 写入redis的命令
  override def getCommandDescription: RedisCommandDescription = {

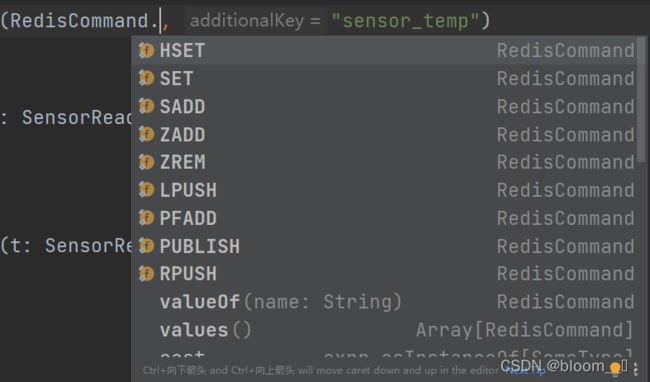

    new RedisCommandDescription(RedisCommand., "sensor_temp")
  }

  override def getKeyFromData(t: SensorReading): String = {
    t.id
  }

  override def getValueFromData(t: SensorReading): String = {
    t.temperature.toString
  }
}
