docker-compose安装redis高可用哨兵集群（一主二从三哨兵）

以redis 7.0为例子

直接上代码

docker-compose.yaml

version: '3.3'
services:
  master:
    image: redis:7.0
    container_name: redis-master
    #restart: always
    command: redis-server --port 6379 --requirepass root  --appendonly yes --masterauth root --replica-announce-ip 192.168.2.168 --replica-announce-port 6379
    volumes:
      - ./data/master:/data
    ports:
      - 6379:6379
  slave1:
    image: redis:7.0
    container_name: redis-slave-1
    #restart: always
    command: redis-server --slaveof 192.168.2.168 6379 --port 6379  --requirepass root --masterauth root  --appendonly yes --replica-announce-ip 192.168.2.168 --replica-announce-port 6380
    volumes:
      - ./data/slave1:/data
    ports:
      - 6380:6379

  slave2:
    image: redis:7.0
    container_name: redis-slave-2
    #restart: always
    command: redis-server --slaveof 192.168.2.168 6379 --port 6379  --requirepass root --masterauth root  --appendonly yes --replica-announce-ip 192.168.2.168 --replica-announce-port 6381
    volumes:
      - ./data/slave1:/data
    ports:
      - 6381:6379

  sentinel1:
    image: redis:7.0
    container_name: redis-sentinel-1
    command: redis-sentinel /usr/local/etc/redis/sentinel.conf
    #restart: always
    ports:
      - 26379:26379
    volumes:
      - ./config/sentinel1.conf:/usr/local/etc/redis/sentinel.conf

  sentinel2:
    image: redis:7.0
    container_name: redis-sentinel-2
    command: redis-sentinel /usr/local/etc/redis/sentinel.conf
    #restart: always
    ports:
      - 26380:26379
    volumes:
      - ./config/sentinel2.conf:/usr/local/etc/redis/sentinel.conf

  sentinel3:
    image: redis:7.0
    container_name: redis-sentinel-3
    command: redis-sentinel /usr/local/etc/redis/sentinel.conf
    #restart: always
    ports:
      - 26381:26379
    volumes:
      - ./config/sentinel3.conf:/usr/local/etc/redis/sentinel.conf

ip	端口号	说明
192.168.2.168	6379	主
192.168.2.168	6380	从1
192.168.2.168	6381	从2
192.168.2.168	26379	哨兵1
192.168.2.168	26380	哨兵2
192.168.2.168	26381	哨兵3

sentinel1.conf

#sentinel1.conf
port 26379
dir /tmp
sentinel monitor mymaster 192.168.2.168 6379 2
sentinel down-after-milliseconds mymaster 30000
sentinel parallel-syncs mymaster 1
sentinel auth-pass mymaster root
sentinel failover-timeout mymaster 180000
sentinel deny-scripts-reconfig yes
sentinel announce-ip 192.168.2.168
sentinel announce-port 26379

sentinel2.conf

#sentinel2.conf
port 26380
dir /tmp
sentinel monitor mymaster 192.168.2.168 6379 2
sentinel down-after-milliseconds mymaster 30000
sentinel parallel-syncs mymaster 1
sentinel auth-pass mymaster root
sentinel failover-timeout mymaster 180000
sentinel deny-scripts-reconfig yes
sentinel announce-ip 192.168.2.168
sentinel announce-port 26380

sentinel3.conf

#sentinel3.conf
port 26381
dir /tmp
sentinel monitor mymaster 192.168.2.168 6379 2
sentinel down-after-milliseconds mymaster 30000
sentinel parallel-syncs mymaster 1
sentinel auth-pass mymaster root
sentinel failover-timeout mymaster 180000
sentinel deny-scripts-reconfig yes
sentinel announce-ip 192.168.2.168
sentinel announce-port 26381

启动docker

docker-compose up -d

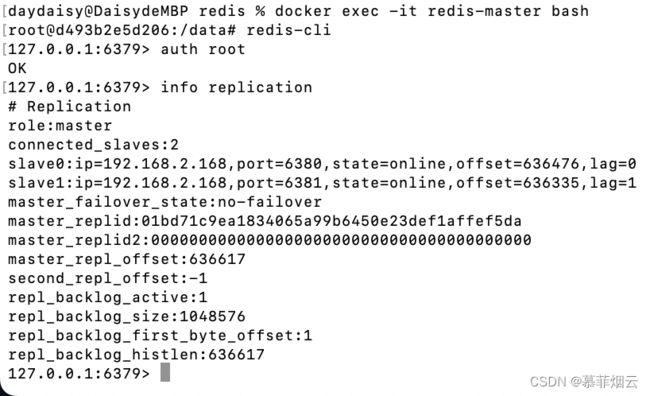

校验集群
