Spring Cloud 学习（二）：Rest学习环境搭建：服务提供者、消费者

一、Rest学习环境搭建：服务提供者

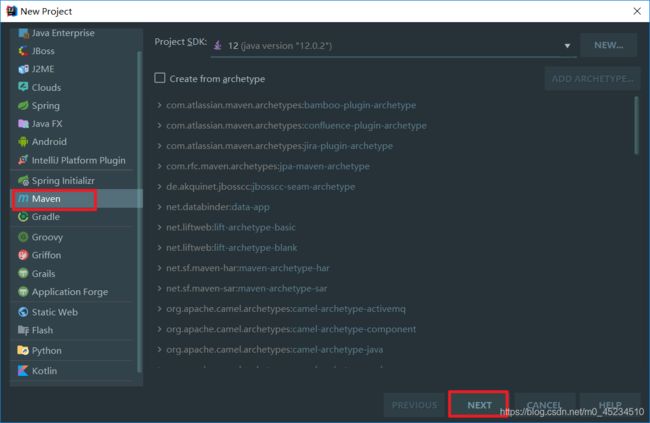

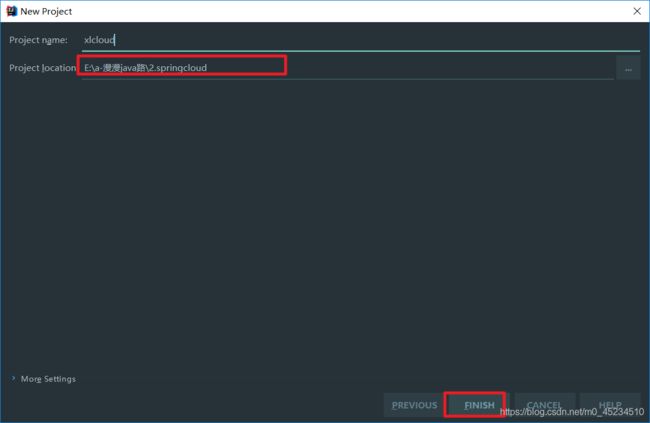

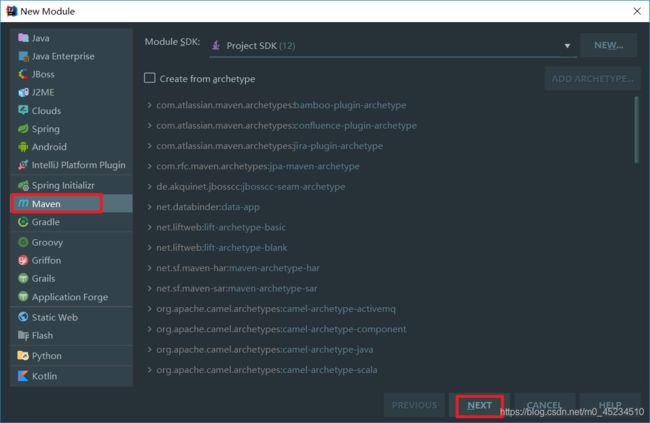

1、创建父工程

构建完成后删除src目录

2、父工程导入依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.xiaol</groupId>
    <artifactId>xlcloud</artifactId>
    <version>1.0-SNAPSHOT</version>
    <modules>
        <module>springcloud-api</module>
    </modules>

    <!-- 打包方式 -->
    <packaging>pom</packaging>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>
        <junit.version>4.12</junit.version>
        <log4j.version>1.2.17</log4j.version>
        <lombok.version>1.16.10</lombok.version>
    </properties>

    <dependencyManagement>
        <dependencies>
            <!-- cloud -->
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
               <version>Hoxton.SR1</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!-- boot -->
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>2.2.5.RELEASE</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!-- mysql -->
            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <version>5.1.47</version>
            </dependency>
            <!-- druid -->
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>druid</artifactId>
                <version>1.1.10</version>
            </dependency>
            <!-- mybatis -->
            <dependency>
                <groupId>org.mybatis.spring.boot</groupId>
                <artifactId>mybatis-spring-boot-starter</artifactId>
                <version>1.3.2</version>
            </dependency>
            <!-- 日志测试 -->
            <dependency>
                <groupId>ch.qos.logback</groupId>
                <artifactId>logback-core</artifactId>
                <version>1.2.3</version>
            </dependency>
            <!-- junit -->
            <dependency>
                <groupId>junit</groupId>
                <artifactId>junit</artifactId>
                <version>${junit.version}</version>
            </dependency>
            <!-- lombok -->
            <dependency>
                <groupId>org.projectlombok</groupId>
                <artifactId>lombok</artifactId>
                <version>${lombok.version}</version>
            </dependency>
            <!-- log4j -->
            <dependency>
                <groupId>log4j</groupId>
                <artifactId>log4j</artifactId>
                <version>${log4j.version}</version>
            </dependency>
        </dependencies>
    </dependencyManagement>

</project>

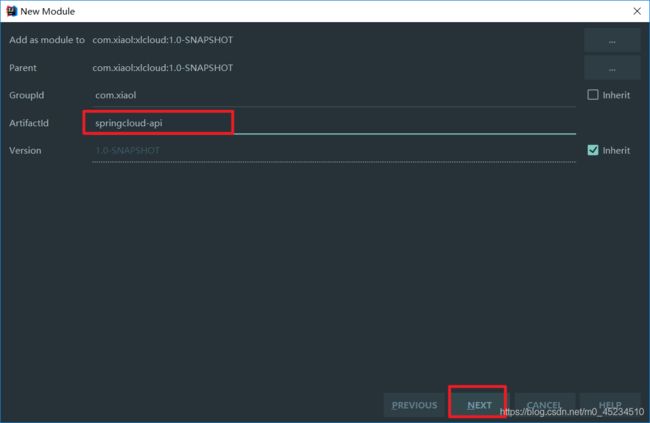

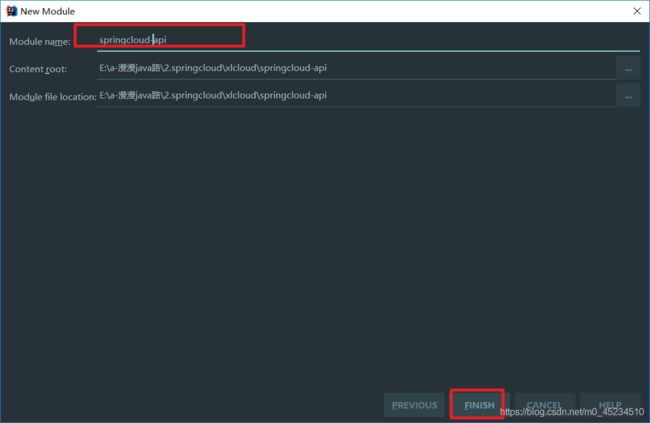

3、创建子模块（springcloud-api）

导入父工程的lombok

    <dependencies>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>
    </dependencies>

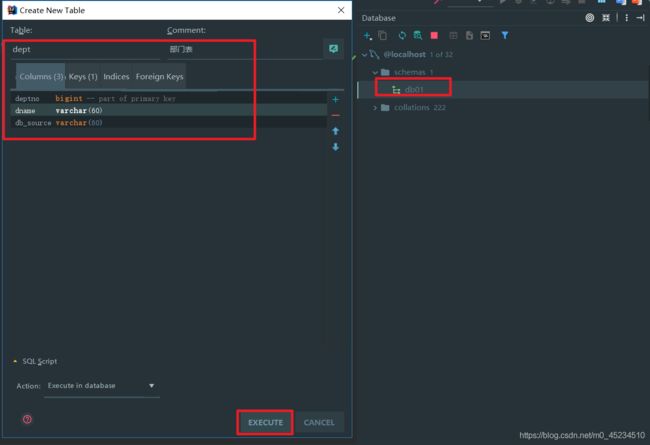

4、创建数据库

插入数据

insert into dept (dname, db_source) values ('开发部',DATABASE());
insert into dept (dname, db_source) values ('人事部',DATABASE());
insert into dept (dname, db_source) values ('市场部',DATABASE());
insert into dept (dname, db_source) values ('运维部',DATABASE());
insert into dept (dname, db_source) values ('财务部',DATABASE());

5、实体类（api）

import lombok.Data;
import lombok.NoArgsConstructor;
import lombok.experimental.Accessors;

import java.io.Serializable;

@Data
@NoArgsConstructor
@Accessors(chain = true) //链式写法
public class Dept implements Serializable {

    private Long deptno;
    private String dname;
    //这个数据存在哪个数据库的字段 微服务，一个服务对应一个数据库，同一个信息可能存在不同的数据库
    private String db_source;

    public Dept(String dname){
        this.dname = dname;
    }
}

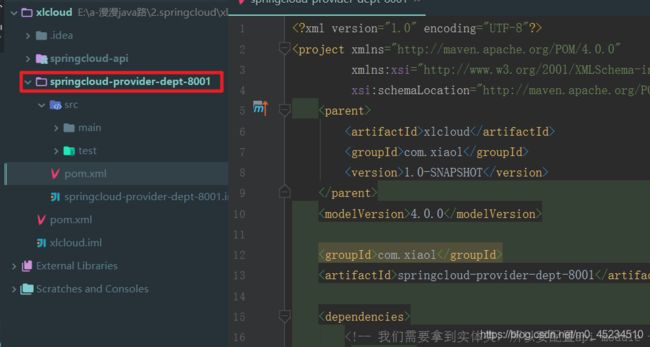

6、创建子模块（springcloud-provider-dept-8001）

7、导入依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>xlcloud</artifactId>
        <groupId>com.xiaol</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.xiaol</groupId>
    <artifactId>springcloud-provider-dept-8001</artifactId>

    <dependencies>
        <!-- 我们需要拿到实体类，所以要配置api module -->
        <dependency>
            <groupId>com.xiaol</groupId>
            <artifactId>springcloud-api</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>

        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>

        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
        </dependency>

        <dependency>
            <groupId>ch.qos.logback</groupId>
            <artifactId>logback-core</artifactId>
        </dependency>

        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-test</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jetty</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
        </dependency>
    </dependencies>


</project>

8、配置

server:
  port: 8001

# mybatis 配置
mybatis:
  type-aliases-package: com.xiaol.springcloud.pojo
  config-location: classpath:mybatis/mybatis-config.xml
  mapper-locations: classpath:mybatis/mapper/*.xml

# spring 配置
spring:
  application:
    name: springcloud-provider-dept
  datasource:
    type: com.alibaba.druid.pool.DruidDataSource
    driver-class-name: org.gjt.mm.mysql.Driver
    url: jdbc:mysql://localhost:3306/db01?userUnicode=true&characterEncoding=utf-8
    username: root
    password: 123456

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-config.dtd">

<configuration>
    <settings>
        <setting name="cacheEnabled" value=""/>
    </settings>
</configuration>

9、Dao

import com.xiaol.springcloud.pojo.Dept;
import org.apache.ibatis.annotations.Mapper;
import org.springframework.stereotype.Repository;

import java.util.List;

@Mapper
@Repository
public interface DeptDao {
    public boolean addDept(Dept dept);
    public Dept queryById(Long id);
    public List<Dept> queryAl1();
}

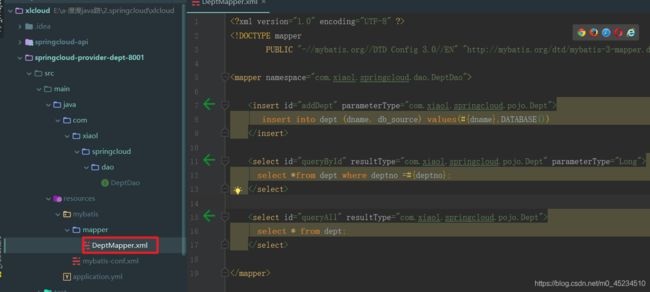

10、mapper

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="com.xiaol.springcloud.dao.DeptDao">

    <insert id="addDept" parameterType="com.xiaol.springcloud.pojo.Dept">
       insert into dept (dname, db_source) values(#{dname},DATABASE())
    </insert>

    <select id="queryById" resultType="com.xiaol.springcloud.pojo.Dept" parameterType="Long">
      select *from dept where deptno =#{deptno};
    </select>

    <select id="queryAl1" resultType="com.xiaol.springcloud.pojo.Dept">
      select * from dept;
    </select>

</mapper>

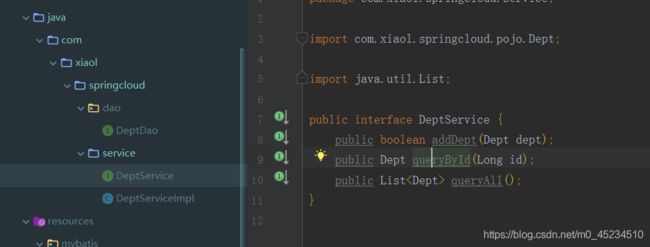

11、DeptService

import com.xiaol.springcloud.pojo.Dept;

import java.util.List;

public interface DeptService {
    public boolean addDept(Dept dept);
    public Dept queryById(Long id);
    public List<Dept> queryAl1();
}

12、DeptServiceImpl

import com.xiaol.springcloud.dao.DeptDao;
import com.xiaol.springcloud.pojo.Dept;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

@Service
public class DeptServiceImpl implements DeptService{

    @Autowired
    DeptDao deptDao;

    @Override
    public boolean addDept(Dept dept) {
        return deptDao.addDept(dept);
    }

    @Override
    public Dept queryById(Long id) {
        return deptDao.queryById(id);
    }

    @Override
    public List<Dept> queryAl1() {
        return deptDao.queryAl1();
    }
}

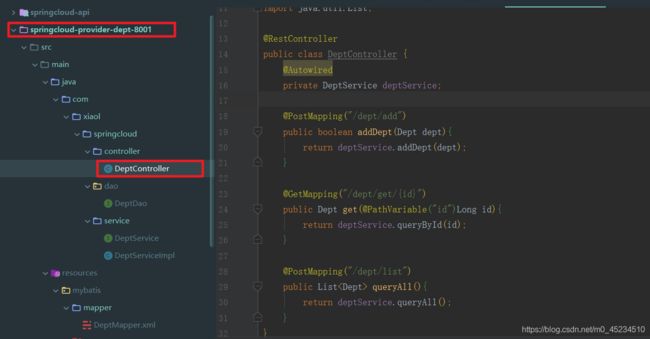

13、DeptController

import com.xiaol.springcloud.pojo.Dept;
import com.xiaol.springcloud.service.DeptService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.List;

@RestController
public class DeptController {
    @Autowired
    private DeptService deptService;

    @PostMapping("/dept/add")
    public boolean addDept(Dept dept){
        return deptService.addDept(dept);
    }

    @GetMapping("/dept/get/{id}")
    public Dept get(@PathVariable("id")Long id){
        return deptService.queryById(id);
    }

    @PostMapping("/dept/list")
    public List<Dept> queryAl1(){
        return deptService.queryAl1();
    }
}

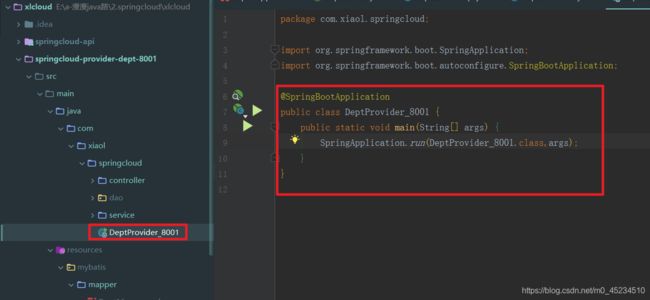

14、启动类

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class DeptProvider_8001 {
    public static void main(String[] args) {
        SpringApplication.run(DeptProvider_8001.class,args);
    }
}

15、测试

访问：http://localhost:8001/dept/list

二、Rest学习环境搭建：服务消费者

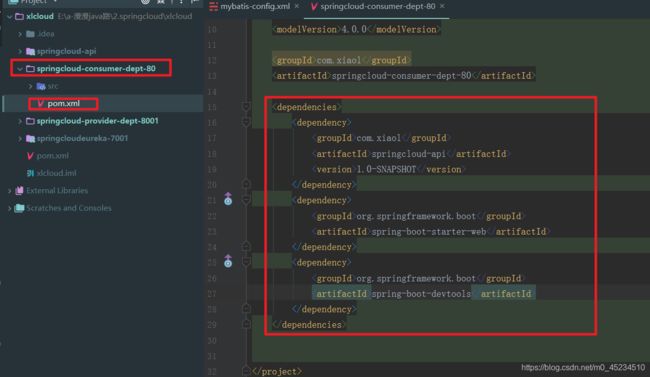

1、创建子模块 springcloud-consumer-dept-80

导入依赖：

    <dependencies>
        <dependency>
            <groupId>com.xiaol</groupId>
            <artifactId>springcloud-api</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
        </dependency>
    </dependencies>

2、配置

server:
  port: 8083

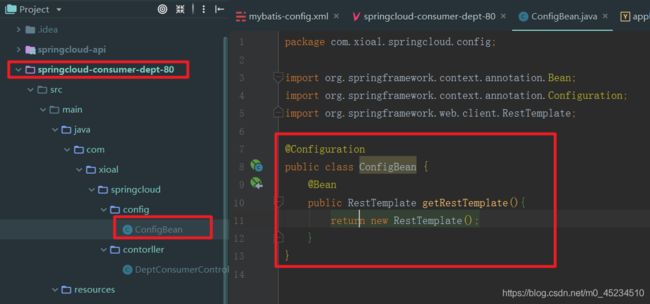

3、ConfigBean

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.client.RestTemplate;

@Configuration
public class ConfigBean {
    @Bean
    public RestTemplate getRestTemplate(){
        return new RestTemplate();
    }
}

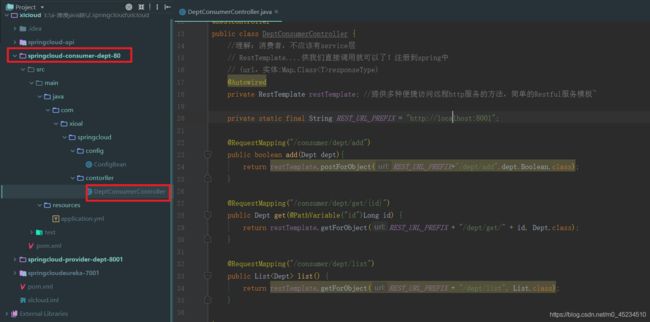

4、DeptConsumerController

import com.xiaol.springcloud.pojo.Dept;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.client.RestTemplate;

import java.util.List;

@RestController
public class DeptConsumerController {
    //理解：消费者，不应该有service层
    // RestTemplate....供我们直接调用就可以了！注册到spring中
    // (url，实体:Map,ClassresponseType)
    @Autowired
    private RestTemplate restTemplate; //提供多种便捷访问远程http服务的方法，简单的Restful服务模板~

    private static final String REST_URL_PREFIX = "http://localhost:8001";

    @RequestMapping("/consumer/dept/add")
    public boolean add(Dept dept){
        return restTemplate.postForObject(REST_URL_PREFIX+"/dept/add",dept,Boolean.class);
    }

    @RequestMapping("/consumer/dept/get/{id}")
    public Dept get(@PathVariable("id")Long id) {
        return restTemplate.getForObject(REST_URL_PREFIX + "/dept/get/" + id, Dept.class);
    }

    @RequestMapping("/consumer/dept/list")
    public List<Dept> list() {
        return restTemplate.getForObject(REST_URL_PREFIX + "/dept/list", List.class);
    }

}

5、启动类

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class DeptConsumer_80 {
    public static void main(String[] args) {
        SpringApplication.run(DeptConsumer_80.class,args);
    }
}

6、测试

1）启动提供者 DeptProvider_8001
访问：http://localhost:8001/dept/list

2）启动消费者
访问：http://localhost:8083/consumer/dept/list

---

点我前往《SpringCloud专栏》

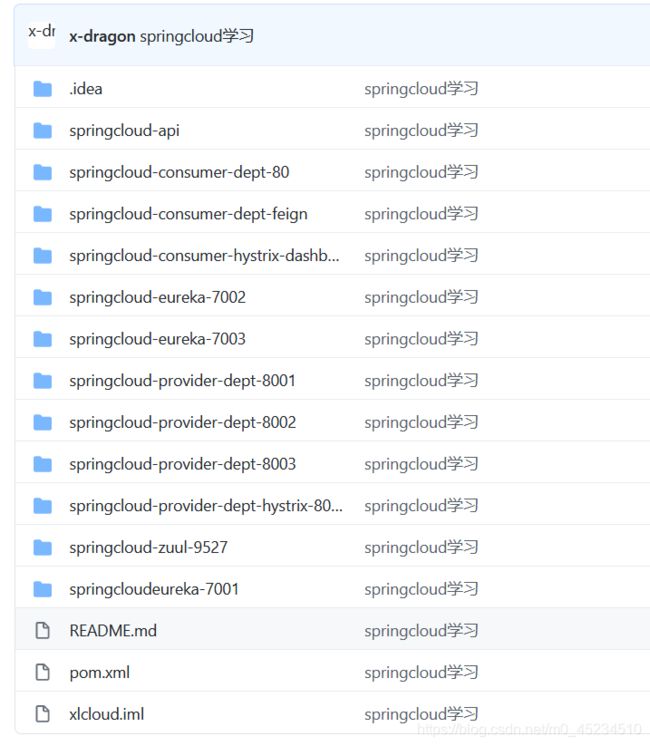

项目地址：关注公众号【小L星光】，回复【springcloud示例】即可获取。
