springboot中Excel文件导出
一、添加依赖
org.apache.poi
poi-ooxml
${poi.version}
二、导出数据实体类字段加注解
package com.ruoyi.system.domain;
import java.util.Date;
import com.fasterxml.jackson.annotation.JsonFormat;
import org.apache.commons.lang3.builder.ToStringBuilder;
import org.apache.commons.lang3.builder.ToStringStyle;
import com.ruoyi.common.annotation.Excel;
import com.ruoyi.common.core.domain.BaseEntity;
/**
* 对象 sys_product
*
* @date 2021-12-29
*/
public class SysProduct extends BaseEntity
{
private static final long serialVersionUID = 1L;
/** $column.columnComment */
private String id;
/** 名称 */
@Excel(name = "名称")
private String productname;
/** 规格 */
@Excel(name = "规格")
private String specifications;
/** 原价 */
@Excel(name = "原价")
private Long originalprice;
/** 现价 */
@Excel(name = "现价")
private Long price;
/** 库存 */
@Excel(name = "库存")
private String stock;
/** 创建日期 */
@JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss")
@Excel(name = "创建日期", width = 30, dateFormat = "yyyy-MM-dd HH:mm:ss")
private Date createtime;
/** 更新日期 */
@JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss")
@Excel(name = "更新日期", width = 30, dateFormat = "yyyy-MM-dd HH:mm:ss")
private Date updatetime;
/** 生产日期 */
@JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss")
@Excel(name = "生产日期", width = 30, dateFormat = "yyyy-MM-dd HH:mm:ss")
private Date dateofmanufacture;
/** 保质期 */
@Excel(name = "保质期")
private String qualityguaranteeperiod;
/** 图片路径 */
@Excel(name = "图片路径")
private String imageurl;
public Date getCreatetime() {
return createtime;
}
public void setCreatetime(Date createtime) {
this.createtime = createtime;
}
public Date getUpdatetime() {
return updatetime;
}
public void setUpdatetime(Date updatetime) {
this.updatetime = updatetime;
}
public void setId(String id)
{
this.id = id;
}
public String getId()
{
return id;
}
public void setProductname(String productname)
{
this.productname = productname;
}
public String getProductname()
{
return productname;
}
public void setSpecifications(String specifications)
{
this.specifications = specifications;
}
public String getSpecifications()
{
return specifications;
}
public void setOriginalprice(Long originalprice)
{
this.originalprice = originalprice;
}
public Long getOriginalprice()
{
return originalprice;
}
public void setPrice(Long price)
{
this.price = price;
}
public Long getPrice()
{
return price;
}
public void setStock(String stock)
{
this.stock = stock;
}
public String getStock()
{
return stock;
}
public void setDateofmanufacture(Date dateofmanufacture)
{
this.dateofmanufacture = dateofmanufacture;
}
public Date getDateofmanufacture()
{
return dateofmanufacture;
}
public void setQualityguaranteeperiod(String qualityguaranteeperiod)
{
this.qualityguaranteeperiod = qualityguaranteeperiod;
}
public String getQualityguaranteeperiod()
{
return qualityguaranteeperiod;
}
public void setImageurl(String imageurl)
{
this.imageurl = imageurl;
}
public String getImageurl()
{
return imageurl;
}
@Override
public String toString() {
return new ToStringBuilder(this,ToStringStyle.MULTI_LINE_STYLE)
.append("id", getId())
.append("productname", getProductname())
.append("specifications", getSpecifications())
.append("originalprice", getOriginalprice())
.append("price", getPrice())
.append("stock", getStock())
.append("dateofmanufacture", getDateofmanufacture())
.append("qualityguaranteeperiod", getQualityguaranteeperiod())
.append("imageurl", getImageurl())
.append("createtime", getCreatetime())
.append("updatetime", getUpdatetime())
.toString();
}
}
三、添加工具类 ExcelUtil.java
package com.ruoyi.common.utils.poi;
import java.io.File;
import java.io.FileOutputStream;
import java.io.IOException;
import java.io.InputStream;
import java.io.OutputStream;
import java.lang.reflect.Field;
import java.lang.reflect.Method;
import java.math.BigDecimal;
import java.text.DecimalFormat;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.Comparator;
import java.util.Date;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
import java.util.Set;
import java.util.UUID;
import java.util.stream.Collectors;
import javax.servlet.http.HttpServletResponse;
import org.apache.poi.hssf.usermodel.HSSFClientAnchor;
import org.apache.poi.hssf.usermodel.HSSFPicture;
import org.apache.poi.hssf.usermodel.HSSFPictureData;
import org.apache.poi.hssf.usermodel.HSSFShape;
import org.apache.poi.hssf.usermodel.HSSFSheet;
import org.apache.poi.hssf.usermodel.HSSFWorkbook;
import org.apache.poi.ooxml.POIXMLDocumentPart;
import org.apache.poi.ss.usermodel.BorderStyle;
import org.apache.poi.ss.usermodel.Cell;
import org.apache.poi.ss.usermodel.CellStyle;
import org.apache.poi.ss.usermodel.CellType;
import org.apache.poi.ss.usermodel.ClientAnchor;
import org.apache.poi.ss.usermodel.DataValidation;
import org.apache.poi.ss.usermodel.DataValidationConstraint;
import org.apache.poi.ss.usermodel.DataValidationHelper;
import org.apache.poi.ss.usermodel.DateUtil;
import org.apache.poi.ss.usermodel.Drawing;
import org.apache.poi.ss.usermodel.FillPatternType;
import org.apache.poi.ss.usermodel.Font;
import org.apache.poi.ss.usermodel.HorizontalAlignment;
import org.apache.poi.ss.usermodel.IndexedColors;
import org.apache.poi.ss.usermodel.PictureData;
import org.apache.poi.ss.usermodel.Row;
import org.apache.poi.ss.usermodel.Sheet;
import org.apache.poi.ss.usermodel.VerticalAlignment;
import org.apache.poi.ss.usermodel.Workbook;
import org.apache.poi.ss.usermodel.WorkbookFactory;
import org.apache.poi.ss.util.CellRangeAddress;
import org.apache.poi.ss.util.CellRangeAddressList;
import org.apache.poi.util.IOUtils;
import org.apache.poi.xssf.streaming.SXSSFWorkbook;
import org.apache.poi.xssf.usermodel.XSSFClientAnchor;
import org.apache.poi.xssf.usermodel.XSSFDataValidation;
import org.apache.poi.xssf.usermodel.XSSFDrawing;
import org.apache.poi.xssf.usermodel.XSSFPicture;
import org.apache.poi.xssf.usermodel.XSSFShape;
import org.apache.poi.xssf.usermodel.XSSFSheet;
import org.apache.poi.xssf.usermodel.XSSFWorkbook;
import org.openxmlformats.schemas.drawingml.x2006.spreadsheetDrawing.CTMarker;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import com.ruoyi.common.annotation.Excel;
import com.ruoyi.common.annotation.Excel.ColumnType;
import com.ruoyi.common.annotation.Excel.Type;
import com.ruoyi.common.annotation.Excels;
import com.ruoyi.common.config.RuoYiConfig;
import com.ruoyi.common.core.domain.AjaxResult;
import com.ruoyi.common.core.text.Convert;
import com.ruoyi.common.exception.UtilException;
import com.ruoyi.common.utils.DateUtils;
import com.ruoyi.common.utils.DictUtils;
import com.ruoyi.common.utils.StringUtils;
import com.ruoyi.common.utils.file.FileTypeUtils;
import com.ruoyi.common.utils.file.FileUtils;
import com.ruoyi.common.utils.file.ImageUtils;
import com.ruoyi.common.utils.reflect.ReflectUtils;
/**
* Excel相关处理
*
*/
public class ExcelUtil
{
private static final Logger log = LoggerFactory.getLogger(ExcelUtil.class);
/**
* Excel sheet最大行数，默认65536
*/
public static final int sheetSize = 65536;
/**
* 工作表名称
*/
private String sheetName;
/**
* 导出类型（EXPORT:导出数据；IMPORT：导入模板）
*/
private Type type;
/**
* 工作薄对象
*/
private Workbook wb;
/**
* 工作表对象
*/
private Sheet sheet;
/**
* 样式列表
*/
private Map styles;
/**
* 导入导出数据列表
*/
private List list;
/**
* 注解列表
*/
private List fields;
/**
* 当前行号
*/
private int rownum;
/**
* 标题
*/
private String title;
/**
* 最大高度
*/
private short maxHeight;
/**
* 统计列表
*/
private Map statistics = new HashMap();
/**
* 数字格式
*/
private static final DecimalFormat DOUBLE_FORMAT = new DecimalFormat("######0.00");
/**
* 实体对象
*/
public Class clazz;
public ExcelUtil(Class clazz)
{
this.clazz = clazz;
}
public void init(List list, String sheetName, String title, Type type)
{
if (list == null)
{
list = new ArrayList();
}
this.list = list;
this.sheetName = sheetName;
this.type = type;
this.title = title;
createExcelField();
createWorkbook();
createTitle();
}
/**
* 创建excel第一行标题
*/
public void createTitle()
{
if (StringUtils.isNotEmpty(title))
{
Row titleRow = sheet.createRow(rownum == 0 ? rownum++ : 0);
titleRow.setHeightInPoints(30);
Cell titleCell = titleRow.createCell(0);
titleCell.setCellStyle(styles.get("title"));
titleCell.setCellValue(title);
sheet.addMergedRegion(new CellRangeAddress(titleRow.getRowNum(), titleRow.getRowNum(), titleRow.getRowNum(),
this.fields.size() - 1));
}
}
/**
* 对excel表单默认第一个索引名转换成list
*
* @param is 输入流
* @return 转换后集合
*/
public List importExcel(InputStream is) throws Exception
{
return importExcel(is, 0);
}
/**
* 对excel表单默认第一个索引名转换成list
*
* @param is 输入流
* @param titleNum 标题占用行数
* @return 转换后集合
*/
public List importExcel(InputStream is, int titleNum) throws Exception
{
return importExcel(StringUtils.EMPTY, is, titleNum);
}
/**
* 对excel表单指定表格索引名转换成list
*
* @param sheetName 表格索引名
* @param titleNum 标题占用行数
* @param is 输入流
* @return 转换后集合
*/
public List importExcel(String sheetName, InputStream is, int titleNum) throws Exception
{
this.type = Type.IMPORT;
this.wb = WorkbookFactory.create(is);
List list = new ArrayList();
// 如果指定sheet名,则取指定sheet中的内容 否则默认指向第1个sheet
Sheet sheet = StringUtils.isNotEmpty(sheetName) ? wb.getSheet(sheetName) : wb.getSheetAt(0);
if (sheet == null)
{
throw new IOException("文件sheet不存在");
}
boolean isXSSFWorkbook = !(wb instanceof HSSFWorkbook);
Map pictures;
if (isXSSFWorkbook)
{
pictures = getSheetPictures07((XSSFSheet) sheet, (XSSFWorkbook) wb);
}
else
{
pictures = getSheetPictures03((HSSFSheet) sheet, (HSSFWorkbook) wb);
}
// 获取最后一个非空行的行下标，比如总行数为n，则返回的为n-1
int rows = sheet.getLastRowNum();
if (rows > 0)
{
// 定义一个map用于存放excel列的序号和field.
Map cellMap = new HashMap();
// 获取表头
Row heard = sheet.getRow(titleNum);
for (int i = 0; i < heard.getPhysicalNumberOfCells(); i++)
{
Cell cell = heard.getCell(i);
if (StringUtils.isNotNull(cell))
{
String value = this.getCellValue(heard, i).toString();
cellMap.put(value, i);
}
else
{
cellMap.put(null, i);
}
}
// 有数据时才处理 得到类的所有field.
List fields = this.getFields();
Map fieldsMap = new HashMap();
for (Object[] objects : fields)
{
Excel attr = (Excel) objects[1];
Integer column = cellMap.get(attr.name());
if (column != null)
{
fieldsMap.put(column, objects);
}
}
for (int i = titleNum + 1; i <= rows; i++)
{
// 从第2行开始取数据,默认第一行是表头.
Row row = sheet.getRow(i);
// 判断当前行是否是空行
if (isRowEmpty(row))
{
continue;
}
T entity = null;
for (Map.Entry entry : fieldsMap.entrySet())
{
Object val = this.getCellValue(row, entry.getKey());
// 如果不存在实例则新建.
entity = (entity == null ? clazz.newInstance() : entity);
// 从map中得到对应列的field.
Field field = (Field) entry.getValue()[0];
Excel attr = (Excel) entry.getValue()[1];
// 取得类型,并根据对象类型设置值.
Class fieldType = field.getType();
if (String.class == fieldType)
{
String s = Convert.toStr(val);
if (StringUtils.endsWith(s, ".0"))
{
val = StringUtils.substringBefore(s, ".0");
}
else
{
String dateFormat = field.getAnnotation(Excel.class).dateFormat();
if (StringUtils.isNotEmpty(dateFormat))
{
val = DateUtils.parseDateToStr(dateFormat, (Date) val);
}
else
{
val = Convert.toStr(val);
}
}
}
else if ((Integer.TYPE == fieldType || Integer.class == fieldType) && StringUtils.isNumeric(Convert.toStr(val)))
{
val = Convert.toInt(val);
}
else if (Long.TYPE == fieldType || Long.class == fieldType)
{
val = Convert.toLong(val);
}
else if (Double.TYPE == fieldType || Double.class == fieldType)
{
val = Convert.toDouble(val);
}
else if (Float.TYPE == fieldType || Float.class == fieldType)
{
val = Convert.toFloat(val);
}
else if (BigDecimal.class == fieldType)
{
val = Convert.toBigDecimal(val);
}
else if (Date.class == fieldType)
{
if (val instanceof String)
{
val = DateUtils.parseDate(val);
}
else if (val instanceof Double)
{
val = DateUtil.getJavaDate((Double) val);
}
}
else if (Boolean.TYPE == fieldType || Boolean.class == fieldType)
{
val = Convert.toBool(val, false);
}
if (StringUtils.isNotNull(fieldType))
{
String propertyName = field.getName();
if (StringUtils.isNotEmpty(attr.targetAttr()))
{
propertyName = field.getName() + "." + attr.targetAttr();
}
else if (StringUtils.isNotEmpty(attr.readConverterExp()))
{
val = reverseByExp(Convert.toStr(val), attr.readConverterExp(), attr.separator());
}
else if (StringUtils.isNotEmpty(attr.dictType()))
{
val = reverseDictByExp(Convert.toStr(val), attr.dictType(), attr.separator());
}
else if (!attr.handler().equals(ExcelHandlerAdapter.class))
{
val = dataFormatHandlerAdapter(val, attr);
}
else if (ColumnType.IMAGE == attr.cellType() && StringUtils.isNotEmpty(pictures))
{
PictureData image = pictures.get(row.getRowNum() + "_" + entry.getKey());
if (image == null)
{
val = "";
}
else
{
byte[] data = image.getData();
val = FileUtils.writeImportBytes(data);
}
}
ReflectUtils.invokeSetter(entity, propertyName, val);
}
}
list.add(entity);
}
}
return list;
}
/**
* 对list数据源将其里面的数据导入到excel表单
*
* @param list 导出数据集合
* @param sheetName 工作表的名称
* @return 结果
*/
public AjaxResult exportExcel(List list, String sheetName)
{
return exportExcel(list, sheetName, StringUtils.EMPTY);
}
/**
* 对list数据源将其里面的数据导入到excel表单
*
* @param list 导出数据集合
* @param sheetName 工作表的名称
* @param title 标题
* @return 结果
*/
public AjaxResult exportExcel(List list, String sheetName, String title)
{
this.init(list, sheetName, title, Type.EXPORT);
return exportExcel();
}
/**
* 对list数据源将其里面的数据导入到excel表单
*
* @param response 返回数据
* @param list 导出数据集合
* @param sheetName 工作表的名称
* @return 结果
*/
public void exportExcel(HttpServletResponse response, List list, String sheetName)
{
exportExcel(response, list, sheetName, StringUtils.EMPTY);
}
/**
* 对list数据源将其里面的数据导入到excel表单
*
* @param response 返回数据
* @param list 导出数据集合
* @param sheetName 工作表的名称
* @param title 标题
* @return 结果
*/
public void exportExcel(HttpServletResponse response, List list, String sheetName, String title)
{
response.setContentType("application/vnd.openxmlformats-officedocument.spreadsheetml.sheet");
response.setCharacterEncoding("utf-8");
this.init(list, sheetName, title, Type.EXPORT);
exportExcel(response);
}
/**
* 对list数据源将其里面的数据导入到excel表单
*
* @param sheetName 工作表的名称
* @return 结果
*/
public AjaxResult importTemplateExcel(String sheetName)
{
return importTemplateExcel(sheetName, StringUtils.EMPTY);
}
/**
* 对list数据源将其里面的数据导入到excel表单
*
* @param sheetName 工作表的名称
* @param title 标题
* @return 结果
*/
public AjaxResult importTemplateExcel(String sheetName, String title)
{
this.init(null, sheetName, title, Type.IMPORT);
return exportExcel();
}
/**
* 对list数据源将其里面的数据导入到excel表单
*
* @param sheetName 工作表的名称
* @return 结果
*/
public void importTemplateExcel(HttpServletResponse response, String sheetName)
{
importTemplateExcel(response, sheetName, StringUtils.EMPTY);
}
/**
* 对list数据源将其里面的数据导入到excel表单
*
* @param sheetName 工作表的名称
* @param title 标题
* @return 结果
*/
public void importTemplateExcel(HttpServletResponse response, String sheetName, String title)
{
response.setContentType("application/vnd.openxmlformats-officedocument.spreadsheetml.sheet");
response.setCharacterEncoding("utf-8");
this.init(null, sheetName, title, Type.IMPORT);
exportExcel(response);
}
/**
* 对list数据源将其里面的数据导入到excel表单
*
* @return 结果
*/
public void exportExcel(HttpServletResponse response)
{
try
{
writeSheet();
wb.write(response.getOutputStream());
}
catch (Exception e)
{
log.error("导出Excel异常{}", e.getMessage());
}
finally
{
IOUtils.closeQuietly(wb);
}
}
/**
* 对list数据源将其里面的数据导入到excel表单
*
* @return 结果
*/
public AjaxResult exportExcel()
{
OutputStream out = null;
try
{
writeSheet();
String filename = encodingFilename(sheetName);
out = new FileOutputStream(getAbsoluteFile(filename));
wb.write(out);
return AjaxResult.success(filename);
}
catch (Exception e)
{
log.error("导出Excel异常{}", e.getMessage());
throw new UtilException("导出Excel失败，请联系网站管理员！");
}
finally
{
IOUtils.closeQuietly(wb);
IOUtils.closeQuietly(out);
}
}
/**
* 创建写入数据到Sheet
*/
public void writeSheet()
{
// 取出一共有多少个sheet.
int sheetNo = Math.max(1, (int) Math.ceil(list.size() * 1.0 / sheetSize));
for (int index = 0; index < sheetNo; index++)
{
createSheet(sheetNo, index);
// 产生一行
Row row = sheet.createRow(rownum);
int column = 0;
// 写入各个字段的列头名称
for (Object[] os : fields)
{
Excel excel = (Excel) os[1];
this.createCell(excel, row, column++);
}
if (Type.EXPORT.equals(type))
{
fillExcelData(index, row);
addStatisticsRow();
}
}
}
/**
* 填充excel数据
*
* @param index 序号
* @param row 单元格行
*/
public void fillExcelData(int index, Row row)
{
int startNo = index * sheetSize;
int endNo = Math.min(startNo + sheetSize, list.size());
for (int i = startNo; i < endNo; i++)
{
row = sheet.createRow(i + 1 + rownum - startNo);
// 得到导出对象.
T vo = (T) list.get(i);
int column = 0;
for (Object[] os : fields)
{
Field field = (Field) os[0];
Excel excel = (Excel) os[1];
this.addCell(excel, row, vo, field, column++);
}
}
}
/**
* 创建表格样式
*
* @param wb 工作薄对象
* @return 样式列表
*/
private Map createStyles(Workbook wb)
{
// 写入各条记录,每条记录对应excel表中的一行
Map styles = new HashMap();
CellStyle style = wb.createCellStyle();
style.setAlignment(HorizontalAlignment.CENTER);
style.setVerticalAlignment(VerticalAlignment.CENTER);
Font titleFont = wb.createFont();
titleFont.setFontName("Arial");
titleFont.setFontHeightInPoints((short) 16);
titleFont.setBold(true);
style.setFont(titleFont);
styles.put("title", style);
style = wb.createCellStyle();
style.setAlignment(HorizontalAlignment.CENTER);
style.setVerticalAlignment(VerticalAlignment.CENTER);
style.setBorderRight(BorderStyle.THIN);
style.setRightBorderColor(IndexedColors.GREY_50_PERCENT.getIndex());
style.setBorderLeft(BorderStyle.THIN);
style.setLeftBorderColor(IndexedColors.GREY_50_PERCENT.getIndex());
style.setBorderTop(BorderStyle.THIN);
style.setTopBorderColor(IndexedColors.GREY_50_PERCENT.getIndex());
style.setBorderBottom(BorderStyle.THIN);
style.setBottomBorderColor(IndexedColors.GREY_50_PERCENT.getIndex());
Font dataFont = wb.createFont();
dataFont.setFontName("Arial");
dataFont.setFontHeightInPoints((short) 10);
style.setFont(dataFont);
styles.put("data", style);
style = wb.createCellStyle();
style.cloneStyleFrom(styles.get("data"));
style.setAlignment(HorizontalAlignment.CENTER);
style.setVerticalAlignment(VerticalAlignment.CENTER);
style.setFillForegroundColor(IndexedColors.GREY_50_PERCENT.getIndex());
style.setFillPattern(FillPatternType.SOLID_FOREGROUND);
Font headerFont = wb.createFont();
headerFont.setFontName("Arial");
headerFont.setFontHeightInPoints((short) 10);
headerFont.setBold(true);
headerFont.setColor(IndexedColors.WHITE.getIndex());
style.setFont(headerFont);
styles.put("header", style);
style = wb.createCellStyle();
style.setAlignment(HorizontalAlignment.CENTER);
style.setVerticalAlignment(VerticalAlignment.CENTER);
Font totalFont = wb.createFont();
totalFont.setFontName("Arial");
totalFont.setFontHeightInPoints((short) 10);
style.setFont(totalFont);
styles.put("total", style);
style = wb.createCellStyle();
style.cloneStyleFrom(styles.get("data"));
style.setAlignment(HorizontalAlignment.LEFT);
styles.put("data1", style);
style = wb.createCellStyle();
style.cloneStyleFrom(styles.get("data"));
style.setAlignment(HorizontalAlignment.CENTER);
styles.put("data2", style);
style = wb.createCellStyle();
style.cloneStyleFrom(styles.get("data"));
style.setAlignment(HorizontalAlignment.RIGHT);
styles.put("data3", style);
return styles;
}
/**
* 创建单元格
*/
public Cell createCell(Excel attr, Row row, int column)
{
// 创建列
Cell cell = row.createCell(column);
// 写入列信息
cell.setCellValue(attr.name());
setDataValidation(attr, row, column);
cell.setCellStyle(styles.get("header"));
return cell;
}
/**
* 设置单元格信息
*
* @param value 单元格值
* @param attr 注解相关
* @param cell 单元格信息
*/
public void setCellVo(Object value, Excel attr, Cell cell)
{
if (ColumnType.STRING == attr.cellType())
{
cell.setCellValue(StringUtils.isNull(value) ? attr.defaultValue() : value + attr.suffix());
}
else if (ColumnType.NUMERIC == attr.cellType())
{
if (StringUtils.isNotNull(value))
{
cell.setCellValue(StringUtils.contains(Convert.toStr(value), ".") ? Convert.toDouble(value) : Convert.toInt(value));
}
}
else if (ColumnType.IMAGE == attr.cellType())
{
ClientAnchor anchor = new XSSFClientAnchor(0, 0, 0, 0, (short) cell.getColumnIndex(), cell.getRow().getRowNum(), (short) (cell.getColumnIndex() + 1), cell.getRow().getRowNum() + 1);
String imagePath = Convert.toStr(value);
if (StringUtils.isNotEmpty(imagePath))
{
byte[] data = ImageUtils.getImage(imagePath);
getDrawingPatriarch(cell.getSheet()).createPicture(anchor,
cell.getSheet().getWorkbook().addPicture(data, getImageType(data)));
}
}
}
/**
* 获取画布
*/
public static Drawing getDrawingPatriarch(Sheet sheet)
{
if (sheet.getDrawingPatriarch() == null)
{
sheet.createDrawingPatriarch();
}
return sheet.getDrawingPatriarch();
}
/**
* 获取图片类型,设置图片插入类型
*/
public int getImageType(byte[] value)
{
String type = FileTypeUtils.getFileExtendName(value);
if ("JPG".equalsIgnoreCase(type))
{
return Workbook.PICTURE_TYPE_JPEG;
}
else if ("PNG".equalsIgnoreCase(type))
{
return Workbook.PICTURE_TYPE_PNG;
}
return Workbook.PICTURE_TYPE_JPEG;
}
/**
* 创建表格样式
*/
public void setDataValidation(Excel attr, Row row, int column)
{
if (attr.name().indexOf("注：") >= 0)
{
sheet.setColumnWidth(column, 6000);
}
else
{
// 设置列宽
sheet.setColumnWidth(column, (int) ((attr.width() + 0.72) * 256));
}
// 如果设置了提示信息则鼠标放上去提示.
if (StringUtils.isNotEmpty(attr.prompt()))
{
// 这里默认设了2-101列提示.
setXSSFPrompt(sheet, "", attr.prompt(), 1, 100, column, column);
}
// 如果设置了combo属性则本列只能选择不能输入
if (attr.combo().length > 0)
{
// 这里默认设了2-101列只能选择不能输入.
setXSSFValidation(sheet, attr.combo(), 1, 100, column, column);
}
}
/**
* 添加单元格
*/
public Cell addCell(Excel attr, Row row, T vo, Field field, int column)
{
Cell cell = null;
try
{
// 设置行高
row.setHeight(maxHeight);
// 根据Excel中设置情况决定是否导出,有些情况需要保持为空,希望用户填写这一列.
if (attr.isExport())
{
// 创建cell
cell = row.createCell(column);
int align = attr.align().value();
cell.setCellStyle(styles.get("data" + (align >= 1 && align <= 3 ? align : "")));
// 用于读取对象中的属性
Object value = getTargetValue(vo, field, attr);
String dateFormat = attr.dateFormat();
String readConverterExp = attr.readConverterExp();
String separator = attr.separator();
String dictType = attr.dictType();
if (StringUtils.isNotEmpty(dateFormat) && StringUtils.isNotNull(value))
{
cell.setCellValue(DateUtils.parseDateToStr(dateFormat, (Date) value));
}
else if (StringUtils.isNotEmpty(readConverterExp) && StringUtils.isNotNull(value))
{
cell.setCellValue(convertByExp(Convert.toStr(value), readConverterExp, separator));
}
else if (StringUtils.isNotEmpty(dictType) && StringUtils.isNotNull(value))
{
cell.setCellValue(convertDictByExp(Convert.toStr(value), dictType, separator));
}
else if (value instanceof BigDecimal && -1 != attr.scale())
{
cell.setCellValue((((BigDecimal) value).setScale(attr.scale(), attr.roundingMode())).toString());
}
else if (!attr.handler().equals(ExcelHandlerAdapter.class))
{
cell.setCellValue(dataFormatHandlerAdapter(value, attr));
}
else
{
// 设置列类型
setCellVo(value, attr, cell);
}
addStatisticsData(column, Convert.toStr(value), attr);
}
}
catch (Exception e)
{
log.error("导出Excel失败{}", e);
}
return cell;
}
/**
* 设置 POI XSSFSheet 单元格提示
*
* @param sheet 表单
* @param promptTitle 提示标题
* @param promptContent 提示内容
* @param firstRow 开始行
* @param endRow 结束行
* @param firstCol 开始列
* @param endCol 结束列
*/
public void setXSSFPrompt(Sheet sheet, String promptTitle, String promptContent, int firstRow, int endRow,
int firstCol, int endCol)
{
DataValidationHelper helper = sheet.getDataValidationHelper();
DataValidationConstraint constraint = helper.createCustomConstraint("DD1");
CellRangeAddressList regions = new CellRangeAddressList(firstRow, endRow, firstCol, endCol);
DataValidation dataValidation = helper.createValidation(constraint, regions);
dataValidation.createPromptBox(promptTitle, promptContent);
dataValidation.setShowPromptBox(true);
sheet.addValidationData(dataValidation);
}
/**
* 设置某些列的值只能输入预制的数据,显示下拉框.
*
* @param sheet 要设置的sheet.
* @param textlist 下拉框显示的内容
* @param firstRow 开始行
* @param endRow 结束行
* @param firstCol 开始列
* @param endCol 结束列
* @return 设置好的sheet.
*/
public void setXSSFValidation(Sheet sheet, String[] textlist, int firstRow, int endRow, int firstCol, int endCol)
{
DataValidationHelper helper = sheet.getDataValidationHelper();
// 加载下拉列表内容
DataValidationConstraint constraint = helper.createExplicitListConstraint(textlist);
// 设置数据有效性加载在哪个单元格上,四个参数分别是：起始行、终止行、起始列、终止列
CellRangeAddressList regions = new CellRangeAddressList(firstRow, endRow, firstCol, endCol);
// 数据有效性对象
DataValidation dataValidation = helper.createValidation(constraint, regions);
// 处理Excel兼容性问题
if (dataValidation instanceof XSSFDataValidation)
{
dataValidation.setSuppressDropDownArrow(true);
dataValidation.setShowErrorBox(true);
}
else
{
dataValidation.setSuppressDropDownArrow(false);
}
sheet.addValidationData(dataValidation);
}
/**
* 解析导出值 0=男,1=女,2=未知
*
* @param propertyValue 参数值
* @param converterExp 翻译注解
* @param separator 分隔符
* @return 解析后值
*/
public static String convertByExp(String propertyValue, String converterExp, String separator)
{
StringBuilder propertyString = new StringBuilder();
String[] convertSource = converterExp.split(",");
for (String item : convertSource)
{
String[] itemArray = item.split("=");
if (StringUtils.containsAny(separator, propertyValue))
{
for (String value : propertyValue.split(separator))
{
if (itemArray[0].equals(value))
{
propertyString.append(itemArray[1] + separator);
break;
}
}
}
else
{
if (itemArray[0].equals(propertyValue))
{
return itemArray[1];
}
}
}
return StringUtils.stripEnd(propertyString.toString(), separator);
}
/**
* 反向解析值 男=0,女=1,未知=2
*
* @param propertyValue 参数值
* @param converterExp 翻译注解
* @param separator 分隔符
* @return 解析后值
*/
public static String reverseByExp(String propertyValue, String converterExp, String separator)
{
StringBuilder propertyString = new StringBuilder();
String[] convertSource = converterExp.split(",");
for (String item : convertSource)
{
String[] itemArray = item.split("=");
if (StringUtils.containsAny(separator, propertyValue))
{
for (String value : propertyValue.split(separator))
{
if (itemArray[1].equals(value))
{
propertyString.append(itemArray[0] + separator);
break;
}
}
}
else
{
if (itemArray[1].equals(propertyValue))
{
return itemArray[0];
}
}
}
return StringUtils.stripEnd(propertyString.toString(), separator);
}
/**
* 解析字典值
*
* @param dictValue 字典值
* @param dictType 字典类型
* @param separator 分隔符
* @return 字典标签
*/
public static String convertDictByExp(String dictValue, String dictType, String separator)
{
return DictUtils.getDictLabel(dictType, dictValue, separator);
}
/**
* 反向解析值字典值
*
* @param dictLabel 字典标签
* @param dictType 字典类型
* @param separator 分隔符
* @return 字典值
*/
public static String reverseDictByExp(String dictLabel, String dictType, String separator)
{
return DictUtils.getDictValue(dictType, dictLabel, separator);
}
/**
* 数据处理器
*
* @param value 数据值
* @param excel 数据注解
* @return
*/
public String dataFormatHandlerAdapter(Object value, Excel excel)
{
try
{
Object instance = excel.handler().newInstance();
Method formatMethod = excel.handler().getMethod("format", new Class[] { Object.class, String[].class });
value = formatMethod.invoke(instance, value, excel.args());
}
catch (Exception e)
{
log.error("不能格式化数据 " + excel.handler(), e.getMessage());
}
return Convert.toStr(value);
}
/**
* 合计统计信息
*/
private void addStatisticsData(Integer index, String text, Excel entity)
{
if (entity != null && entity.isStatistics())
{
Double temp = 0D;
if (!statistics.containsKey(index))
{
statistics.put(index, temp);
}
try
{
temp = Double.valueOf(text);
}
catch (NumberFormatException e)
{
}
statistics.put(index, statistics.get(index) + temp);
}
}
/**
* 创建统计行
*/
public void addStatisticsRow()
{
if (statistics.size() > 0)
{
Row row = sheet.createRow(sheet.getLastRowNum() + 1);
Set keys = statistics.keySet();
Cell cell = row.createCell(0);
cell.setCellStyle(styles.get("total"));
cell.setCellValue("合计");
for (Integer key : keys)
{
cell = row.createCell(key);
cell.setCellStyle(styles.get("total"));
cell.setCellValue(DOUBLE_FORMAT.format(statistics.get(key)));
}
statistics.clear();
}
}
/**
* 编码文件名
*/
public String encodingFilename(String filename)
{
filename = UUID.randomUUID().toString() + "_" + filename + ".xlsx";
return filename;
}
/**
* 获取下载路径
*
* @param filename 文件名称
*/
public String getAbsoluteFile(String filename)
{
String downloadPath = RuoYiConfig.getDownloadPath() + filename;
File desc = new File(downloadPath);
if (!desc.getParentFile().exists())
{
desc.getParentFile().mkdirs();
}
return downloadPath;
}
/**
* 获取bean中的属性值
*
* @param vo 实体对象
* @param field 字段
* @param excel 注解
* @return 最终的属性值
* @throws Exception
*/
private Object getTargetValue(T vo, Field field, Excel excel) throws Exception
{
Object o = field.get(vo);
if (StringUtils.isNotEmpty(excel.targetAttr()))
{
String target = excel.targetAttr();
if (target.indexOf(".") > -1)
{
String[] targets = target.split("[.]");
for (String name : targets)
{
o = getValue(o, name);
}
}
else
{
o = getValue(o, target);
}
}
return o;
}
/**
* 以类的属性的get方法方法形式获取值
*
* @param o
* @param name
* @return value
* @throws Exception
*/
private Object getValue(Object o, String name) throws Exception
{
if (StringUtils.isNotNull(o) && StringUtils.isNotEmpty(name))
{
Class clazz = o.getClass();
Field field = clazz.getDeclaredField(name);
field.setAccessible(true);
o = field.get(o);
}
return o;
}
/**
* 得到所有定义字段
*/
private void createExcelField()
{
this.fields = getFields();
this.fields = this.fields.stream().sorted(Comparator.comparing(objects -> ((Excel) objects[1]).sort())).collect(Collectors.toList());
this.maxHeight = getRowHeight();
}
/**
* 获取字段注解信息
*/
public List getFields()
{
List fields = new ArrayList();
List tempFields = new ArrayList<>();
tempFields.addAll(Arrays.asList(clazz.getSuperclass().getDeclaredFields()));
tempFields.addAll(Arrays.asList(clazz.getDeclaredFields()));
for (Field field : tempFields)
{
// 单注解
if (field.isAnnotationPresent(Excel.class))
{
Excel attr = field.getAnnotation(Excel.class);
if (attr != null && (attr.type() == Type.ALL || attr.type() == type))
{
field.setAccessible(true);
fields.add(new Object[] { field, attr });
}
}
// 多注解
if (field.isAnnotationPresent(Excels.class))
{
Excels attrs = field.getAnnotation(Excels.class);
Excel[] excels = attrs.value();
for (Excel attr : excels)
{
if (attr != null && (attr.type() == Type.ALL || attr.type() == type))
{
field.setAccessible(true);
fields.add(new Object[] { field, attr });
}
}
}
}
return fields;
}
/**
* 根据注解获取最大行高
*/
public short getRowHeight()
{
double maxHeight = 0;
for (Object[] os : this.fields)
{
Excel excel = (Excel) os[1];
maxHeight = maxHeight > excel.height() ? maxHeight : excel.height();
}
return (short) (maxHeight * 20);
}
/**
* 创建一个工作簿
*/
public void createWorkbook()
{
this.wb = new SXSSFWorkbook(500);
this.sheet = wb.createSheet();
wb.setSheetName(0, sheetName);
this.styles = createStyles(wb);
}
/**
* 创建工作表
*
* @param sheetNo sheet数量
* @param index 序号
*/
public void createSheet(int sheetNo, int index)
{
// 设置工作表的名称.
if (sheetNo > 1 && index > 0)
{
this.sheet = wb.createSheet();
this.createTitle();
wb.setSheetName(index, sheetName + index);
}
}
/**
* 获取单元格值
*
* @param row 获取的行
* @param column 获取单元格列号
* @return 单元格值
*/
public Object getCellValue(Row row, int column)
{
if (row == null)
{
return row;
}
Object val = "";
try
{
Cell cell = row.getCell(column);
if (StringUtils.isNotNull(cell))
{
if (cell.getCellType() == CellType.NUMERIC || cell.getCellType() == CellType.FORMULA)
{
val = cell.getNumericCellValue();
if (DateUtil.isCellDateFormatted(cell))
{
val = DateUtil.getJavaDate((Double) val); // POI Excel 日期格式转换
}
else
{
if ((Double) val % 1 != 0)
{
val = new BigDecimal(val.toString());
}
else
{
val = new DecimalFormat("0").format(val);
}
}
}
else if (cell.getCellType() == CellType.STRING)
{
val = cell.getStringCellValue();
}
else if (cell.getCellType() == CellType.BOOLEAN)
{
val = cell.getBooleanCellValue();
}
else if (cell.getCellType() == CellType.ERROR)
{
val = cell.getErrorCellValue();
}
}
}
catch (Exception e)
{
return val;
}
return val;
}
/**
* 判断是否是空行
*
* @param row 判断的行
* @return
*/
private boolean isRowEmpty(Row row)
{
if (row == null)
{
return true;
}
for (int i = row.getFirstCellNum(); i < row.getLastCellNum(); i++)
{
Cell cell = row.getCell(i);
if (cell != null && cell.getCellType() != CellType.BLANK)
{
return false;
}
}
return true;
}
/**
* 获取Excel2003图片
*
* @param sheet 当前sheet对象
* @param workbook 工作簿对象
* @return Map key:图片单元格索引（1_1）String，value:图片流PictureData
*/
public static Map getSheetPictures03(HSSFSheet sheet, HSSFWorkbook workbook)
{
Map sheetIndexPicMap = new HashMap();
List pictures = workbook.getAllPictures();
if (!pictures.isEmpty())
{
for (HSSFShape shape : sheet.getDrawingPatriarch().getChildren())
{
HSSFClientAnchor anchor = (HSSFClientAnchor) shape.getAnchor();
if (shape instanceof HSSFPicture)
{
HSSFPicture pic = (HSSFPicture) shape;
int pictureIndex = pic.getPictureIndex() - 1;
HSSFPictureData picData = pictures.get(pictureIndex);
String picIndex = String.valueOf(anchor.getRow1()) + "_" + String.valueOf(anchor.getCol1());
sheetIndexPicMap.put(picIndex, picData);
}
}
return sheetIndexPicMap;
}
else
{
return sheetIndexPicMap;
}
}
/**
* 获取Excel2007图片
*
* @param sheet 当前sheet对象
* @param workbook 工作簿对象
* @return Map key:图片单元格索引（1_1）String，value:图片流PictureData
*/
public static Map getSheetPictures07(XSSFSheet sheet, XSSFWorkbook workbook)
{
Map sheetIndexPicMap = new HashMap();
for (POIXMLDocumentPart dr : sheet.getRelations())
{
if (dr instanceof XSSFDrawing)
{
XSSFDrawing drawing = (XSSFDrawing) dr;
List shapes = drawing.getShapes();
for (XSSFShape shape : shapes)
{
if (shape instanceof XSSFPicture)
{
XSSFPicture pic = (XSSFPicture) shape;
XSSFClientAnchor anchor = pic.getPreferredSize();
CTMarker ctMarker = anchor.getFrom();
String picIndex = ctMarker.getRow() + "_" + ctMarker.getCol();
sheetIndexPicMap.put(picIndex, pic.getPictureData());
}
}
}
}
return sheetIndexPicMap;
}
}
四、撸代码
1、controller层
/**
* 导出商品列表
*/
@RequiresPermissions("system:product:export")
@Log(title = "列表导出", businessType = BusinessType.EXPORT)
@PostMapping("/export")
@ResponseBody
public AjaxResult export(SysProduct sysProduct)
{
List list = sysProductService.selectSysProductList(sysProduct);
ExcelUtil util = new ExcelUtil(SysProduct.class);
return util.exportExcel(list, "商品列表数据");
} 2、service层
@Override
public List selectSysProductList(SysProduct sysProduct)
{
return sysProductMapper.selectSysProductList(sysProduct);
} 3、Mapper层
public List selectSysProductList(SysProduct sysProduct); 4、SQL
select id, productname, specifications, originalprice, price, stock, dateofmanufacture, qualityguaranteeperiod, imageurl, createtime, updatetime from sys_product

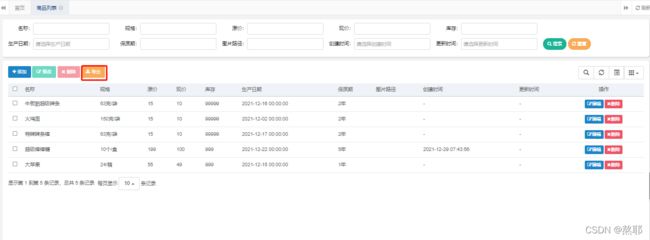

五，页面处理
六，看效果
学习来自于:RuoYi: 基于SpringBoot的权限管理系统 易读易懂、界面简洁美观。 核心技术采用Spring、MyBatis、Shiro没有任何其它重度依赖。直接运行即可用
