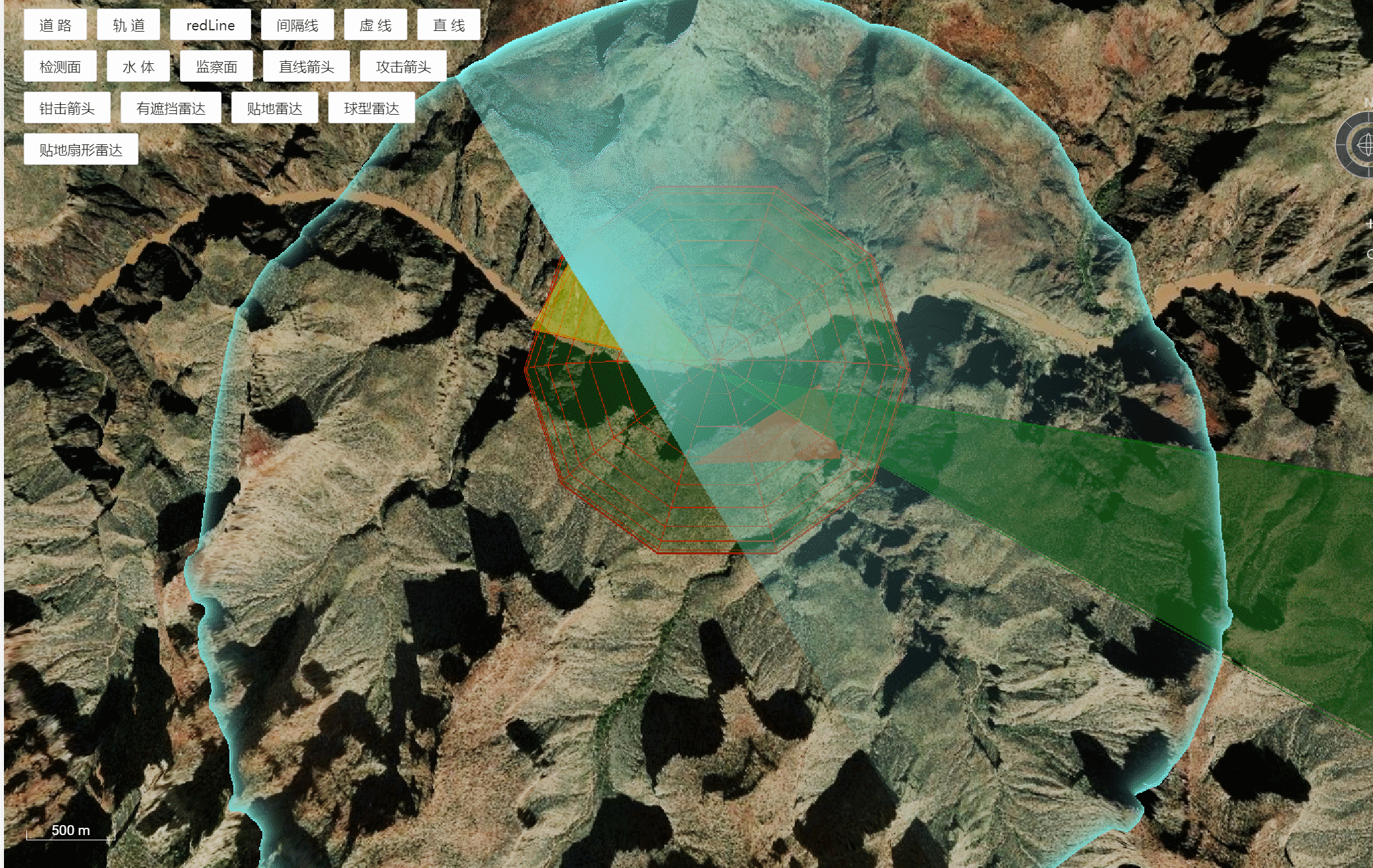

Cesium 四种雷达扫描效果
Cesium 雷达效果：
1、无遮挡雷达
利用entity球体实现
重要：利用球体的旋转功能 和Cesium的CallbackProperty函数 不断的旋转
let num = 0
const randar = this.viewer.entities.add({
position: position, //Cesium.Cartesian3
orientation: new Cesium.CallbackProperty(() => {
num += 0.3;
if (num >= maxAngle) num1 = 0;
return Cesium.Transforms.headingPitchRollQuaternion(
position,
new Cesium.HeadingPitchRoll((num * Math.PI) / 180, 0, 0)
);
}, false),
ellipsoid: {
radii: radii || new Cesium.Cartesian3(5000.0, 5000.0, 2000.0), // 扇形半径
innerRadii: innerRadii || new Cesium.Cartesian3(1.0, 1.0, 1.0), // 内半径
minimumClock: Cesium.Math.toRadians(-10),
maximumClock: Cesium.Math.toRadians(10),
minimumCone: Cesium.Math.toRadians(90), // 上下偏角 可以都设置为90
maximumCone: Cesium.Math.toRadians(90),
material: Cesium.Color.GREEN.withAlpha(0.5),
outline: true,
outlineColor: Cesium.Color.GREEN.withAlpha(.8),
heightReference: Cesium.HeightReference.CLAMP_TO_GROUND, //RELATIVE_TO_GROUND CLAMP_TO_GROUND
},
});
2、贴地原面扫射
利用着色器完成
//geographySpace: new Cesium.Cartographic(Cesium.Math.toRadians(lng), Cesium.Math.toRadians(lat), alt);//位置
//radarRadius:角度
// color:颜色
// time:间隔时间
this.addRadarScanPostStage(geographySpace, radarRadius, color, time);
function addRadarScanPostStage(cartographicCenter: Cesium.Cartographic, radius: number, scanColor: Cesium.Color, duration: number) {
var ScanSegmentShader =
"uniform sampler2D colorTexture;\n" +
"uniform sampler2D depthTexture;\n" +
"varying vec2 v_textureCoordinates;\n" +
"uniform vec4 u_scanCenterEC;\n" +
"uniform vec3 u_scanPlaneNormalEC;\n" +
"uniform vec3 u_scanLineNormalEC;\n" +
"uniform float u_radius;\n" +
"uniform vec4 u_scanColor;\n" +
"vec4 toEye(in vec2 uv, in float depth)\n" +
" {\n" +
" vec2 xy = vec2((uv.x * 2.0 - 1.0),(uv.y * 2.0 - 1.0));\n" +
" vec4 posInCamera =czm_inverseProjection * vec4(xy, depth, 1.0);\n" +
" posInCamera =posInCamera / posInCamera.w;\n" +
" return posInCamera;\n" +
" }\n" +
"bool isPointOnLineRight(in vec3 ptOnLine, in vec3 lineNormal, in vec3 testPt)\n" +
"{\n" +
"vec3 v01 = testPt - ptOnLine;\n" +
"normalize(v01);\n" +
"vec3 temp = cross(v01, lineNormal);\n" +
"float d = dot(temp, u_scanPlaneNormalEC);\n" +
"return d > 0.5;\n" +
"}\n" +
"vec3 pointProjectOnPlane(in vec3 planeNormal, in vec3 planeOrigin, in vec3 point)\n" +
"{\n" +
"vec3 v01 = point -planeOrigin;\n" +
"float d = dot(planeNormal, v01) ;\n" +
"return (point - planeNormal * d);\n" +
"}\n" +
"float distancePointToLine(in vec3 ptOnLine, in vec3 lineNormal, in vec3 testPt)\n" +
"{\n" +
"vec3 tempPt = pointProjectOnPlane(lineNormal, ptOnLine, testPt);\n" +
"return length(tempPt - ptOnLine);\n" +
"}\n" +
"float getDepth(in vec4 depth)\n" +
"{\n" +
"float z_window = czm_unpackDepth(depth);\n" +
"z_window = czm_reverseLogDepth(z_window);\n" +
"float n_range = czm_depthRange.near;\n" +
"float f_range = czm_depthRange.far;\n" +
"return (2.0 * z_window - n_range - f_range) / (f_range - n_range);\n" +
"}\n" +
"void main()\n" +
"{\n" +
"gl_FragColor = texture2D(colorTexture, v_textureCoordinates);\n" +
"float depth = getDepth( texture2D(depthTexture, v_textureCoordinates));\n" +
"vec4 viewPos = toEye(v_textureCoordinates, depth);\n" +
"vec3 prjOnPlane = pointProjectOnPlane(u_scanPlaneNormalEC.xyz, u_scanCenterEC.xyz, viewPos.xyz);\n" +
"float dis = length(prjOnPlane.xyz - u_scanCenterEC.xyz);\n" +
"float twou_radius = u_radius * 2.0;\n" +
"if(dis < u_radius)\n" +
"{\n" +
"float f0 = 1.0 -abs(u_radius - dis) / u_radius;\n" +
"f0 = pow(f0, 64.0);\n" +
// lineEndPt扫描线
"vec3 lineEndPt = vec3(u_scanCenterEC.xyz) + u_scanLineNormalEC * u_radius * 0.5;\n" +
"float f = 0.0;\n" +
"if(isPointOnLineRight(u_scanCenterEC.xyz, u_scanLineNormalEC.xyz, prjOnPlane.xyz))\n" +
"{\n" +
"float dis1= length(prjOnPlane.xyz - lineEndPt);\n" +
"f = abs(twou_radius -dis1) / twou_radius;\n" +
"f = pow(f, 3.0);\n" +
"}\n" +
//外边框 内边框颜色
"gl_FragColor = mix(gl_FragColor, u_scanColor, f + f0);\n" +
"}\n" +
"}\n";
var _Cartesian3Center = Cesium.Cartographic.toCartesian(cartographicCenter);
var _Cartesian4Center = new Cesium.Cartesian4(_Cartesian3Center.x, _Cartesian3Center.y, _Cartesian3Center.z, 1);
var _CartographicCenter1 = new Cesium.Cartographic(cartographicCenter.longitude, cartographicCenter.latitude, cartographicCenter.height + 500);
var _Cartesian3Center1 = Cesium.Cartographic.toCartesian(_CartographicCenter1);
var _Cartesian4Center1 = new Cesium.Cartesian4(_Cartesian3Center1.x, _Cartesian3Center1.y, _Cartesian3Center1.z, 1);
var _CartographicCenter2 = new Cesium.Cartographic(cartographicCenter.longitude + Cesium.Math.toRadians(0.001), cartographicCenter.latitude, cartographicCenter.height);
var _Cartesian3Center2 = Cesium.Cartographic.toCartesian(_CartographicCenter2);
var _Cartesian4Center2 = new Cesium.Cartesian4(_Cartesian3Center2.x, _Cartesian3Center2.y, _Cartesian3Center2.z, 1);
var _RotateQ = new Cesium.Quaternion();
var _RotateM = new Cesium.Matrix3();
var _time = (new Date()).getTime();
var _scratchCartesian4Center = new Cesium.Cartesian4();
var _scratchCartesian4Center1 = new Cesium.Cartesian4();
var _scratchCartesian4Center2 = new Cesium.Cartesian4();
var _scratchCartesian3Normal = new Cesium.Cartesian3();
var _scratchCartesian3Normal1 = new Cesium.Cartesian3();
var ScanPostStage = new Cesium.PostProcessStage({
fragmentShader: ScanSegmentShader,
uniforms: {
u_scanCenterEC: () => {
return Cesium.Matrix4.multiplyByVector(this.viewer.camera.viewMatrix, _Cartesian4Center, _scratchCartesian4Center);
},
u_scanPlaneNormalEC: () => {
var temp = Cesium.Matrix4.multiplyByVector(this.viewer.camera.viewMatrix, _Cartesian4Center, _scratchCartesian4Center);
var temp1 = Cesium.Matrix4.multiplyByVector(this.viewer.camera.viewMatrix, _Cartesian4Center1, _scratchCartesian4Center1);
_scratchCartesian3Normal.x = temp1.x - temp.x;
_scratchCartesian3Normal.y = temp1.y - temp.y;
_scratchCartesian3Normal.z = temp1.z - temp.z;
Cesium.Cartesian3.normalize(_scratchCartesian3Normal, _scratchCartesian3Normal);
return _scratchCartesian3Normal;
},
u_radius: radius,
u_scanLineNormalEC: () => {
var temp = Cesium.Matrix4.multiplyByVector(this.viewer.camera.viewMatrix, _Cartesian4Center, _scratchCartesian4Center);
var temp1 = Cesium.Matrix4.multiplyByVector(this.viewer.camera.viewMatrix, _Cartesian4Center1, _scratchCartesian4Center1);
var temp2 = Cesium.Matrix4.multiplyByVector(this.viewer.camera.viewMatrix, _Cartesian4Center2, _scratchCartesian4Center2);
_scratchCartesian3Normal.x = temp1.x - temp.x;
_scratchCartesian3Normal.y = temp1.y - temp.y;
_scratchCartesian3Normal.z = temp1.z - temp.z;
Cesium.Cartesian3.normalize(_scratchCartesian3Normal, _scratchCartesian3Normal);
_scratchCartesian3Normal1.x = temp2.x - temp.x;
_scratchCartesian3Normal1.y = temp2.y - temp.y;
_scratchCartesian3Normal1.z = temp2.z - temp.z;
var tempTime = (((new Date()).getTime() - _time) % duration) / duration;
// 第二个参数为 扫描幅度
Cesium.Quaternion.fromAxisAngle(_scratchCartesian3Normal, tempTime * Cesium.Math.PI * 2, _RotateQ);
Cesium.Matrix3.fromQuaternion(_RotateQ, _RotateM);
Cesium.Matrix3.multiplyByVector(_RotateM, _scratchCartesian3Normal1, _scratchCartesian3Normal1);
Cesium.Cartesian3.normalize(_scratchCartesian3Normal1, _scratchCartesian3Normal1);
return _scratchCartesian3Normal1;
},
u_scanColor: scanColor
}
});
return this.viewer.scene.postProcessStages.add(ScanPostStage);
}
3、贴地扇形
思路：一个点绕另一个点旋转得到扇形，如果这个扇形的每一个点都绕扇形原点旋转，得到旋转的扇形。
//计算扇形的点
const computer = (B: Cesium.Cartesian3, A: Cesium.Cartesian3, angle: number)=> {
// 计算B的地面法向量
let arr = [B]
var chicB = Cesium.Cartographic.fromCartesian(B);
chicB.height = 0;
var dB = Cesium.Cartographic.toCartesian(chicB);
for (let index = 0; index <angle; index++) {
var normaB = Cesium.Cartesian3.normalize(Cesium.Cartesian3.subtract(dB, B, new Cesium.Cartesian3()), new Cesium.Cartesian3());
// 构造基于B的法向量旋转90度的矩阵
var Q = Cesium.Quaternion.fromAxisAngle(normaB, Cesium.Math.toRadians(index));
var m3 = Cesium.Matrix3.fromQuaternion(Q);
var m4 = Cesium.Matrix4.fromRotationTranslation(m3);
// 计算A点相对B点的坐标A1
var A1 = Cesium.Cartesian3.subtract(A, B, new Cesium.Cartesian3());
//对A1应用旋转矩阵
var p = Cesium.Matrix4.multiplyByPoint(m4, A1, new Cesium.Cartesian3());
// 新的A的坐标
var p2 = Cesium.Cartesian3.add(p, B, new Cesium.Cartesian3());
arr.push(p2)
}
return arr
}
4、有遮挡雷达
import * as Cesium from 'cesium'
export type ShelterRadarTypeProps = {
viewer: Cesium.Viewer
}
export type CreateRadarType = {
position: Cesium.Cartesian3,
num?: number,
maxAngle?: number,
radii?: Cesium.Cartesian3,
innerRadii?: Cesium.Cartesian3
}
export class ShelterRadar {
private viewer: Cesium.Viewer
private randarArr: Cesium.Entity[] = []
constructor(props: ShelterRadarTypeProps) {
this.viewer = props.viewer
}
createRadar(params: CreateRadarType) {
const { position, num, maxAngle = 120, radii, innerRadii } = params
let num1 = num || 0
const randar = this.viewer.entities.add({
position: position,
orientation: new Cesium.CallbackProperty(() => {
num1 += 0.3;
if (num1 >= maxAngle) num1 = 0;
return Cesium.Transforms.headingPitchRollQuaternion(
position,
new Cesium.HeadingPitchRoll((num1 * Math.PI) / 180, 0, 0)
);
}, false),
ellipsoid: {
radii: radii || new Cesium.Cartesian3(5000.0, 5000.0, 2000.0), // 扇形半径
innerRadii: innerRadii || new Cesium.Cartesian3(1.0, 1.0, 1.0), // 内半径
minimumClock: Cesium.Math.toRadians(-10),
maximumClock: Cesium.Math.toRadians(10),
minimumCone: Cesium.Math.toRadians(90), // 上下偏角 可以都设置为90
maximumCone: Cesium.Math.toRadians(90),
material: Cesium.Color.GREEN.withAlpha(0.5),
outline: true,
outlineColor: Cesium.Color.GREEN.withAlpha(.8),
heightReference: Cesium.HeightReference.CLAMP_TO_GROUND, //RELATIVE_TO_GROUND CLAMP_TO_GROUND
},
});
this.randarArr.push(randar)
return randar;
}
clear() {
for (let i = 0; i < this.randarArr.length; i++) {
this.viewer.entities.remove(this.randarArr[i])
}
this.randarArr = []
}
clearOne(entity: Cesium.Entity) {
this.viewer.entities.remove(entity)
this.randarArr = this.randarArr.filter(x => x.id !== entity.id)
}
}
export type createRadarType = {
lat: number;
lng: number;
alt?: number;
scanColor?: Cesium.Color;
duration?: number;
radius?: number;
}
export class StickRadar {
private viewer: Cesium.Viewer
private randarArr: any = []
constructor(props: ShelterRadarTypeProps) {
this.viewer = props.viewer
}
createRadar(params: createRadarType) {
const { lat, lng, alt = 0, scanColor, duration, radius } = params
const geographySpace = new Cesium.Cartographic(Cesium.Math.toRadians(lng), Cesium.Math.toRadians(lat), alt);
// 扫描颜色
const color = scanColor || new Cesium.Color(119 / 255, 214 / 255, 209 / 255, 0.6)
// 持续时间 毫秒
var time = duration || 4000;
// 绘制平面雷达扫描线
var radarRadius = radius || 3000
const radar = this.addRadarScanPostStage(geographySpace, radarRadius, color, time);
this.randarArr.push(radar)
}
/*
添加雷达扫描线 地形遮挡开启
cartographicCenter 扫描中心【new Cesium.Cartographic(Cesium.Math.toRadians(lon), Cesium.Math.toRadians(lat), 0);】
radius 半径 米【1500】
scanColor 扫描颜色【new Cesium.Color(1.0, 0.0, 0.0, 1)】
duration 持续时间 毫秒【4000】
*/
addRadarScanPostStage(cartographicCenter: Cesium.Cartographic, radius: number, scanColor: Cesium.Color, duration: number) {
/* // 彩色纹理
uniform sampler2D colorTexture;
// 深度纹理
uniform sampler2D depthTexture;
// 纹理坐标
varying vec2 v_textureCoordinates;
// 扫描中心
uniform vec4 u_scanCenterEC;
// 扫描平面法线EC
uniform vec3 u_scanPlaneNormalEC;
// 扫描线法线EC
uniform vec3 u_scanLineNormalEC;
// 半径
uniform float u_radius;
// 扫描的颜色
uniform vec4 u_scanColor;
vec4 toEye( in vec2 uv, infloat depth) {
vec2 xy = vec2((uv.x * 2.0 - 1.0), (uv.y * 2.0 - 1.0));
vec4 posInCamera = czm_inverseProjection * vec4(xy, depth, 1.0);
posInCamera = posInCamera / posInCamera.w;
return posInCamera;
}
bool isPointOnLineRight( in vec3 ptOnLine, invec3 lineNormal, invec3 testPt) {
vec3 v01 = testPt - ptOnLine;
normalize(v01);
vec3 temp = cross(v01, lineNormal);
float d = dot(temp, u_scanPlaneNormalEC);
return d > 0.5;
}
vec3 pointProjectOnPlane( in vec3 planeNormal, invec3 planeOrigin, invec3 point) {
vec3 v01 = point - planeOrigin;
float d = dot(planeNormal, v01);
return (point - planeNormal * d);
}
float distancePointToLine( in vec3 ptOnLine, invec3 lineNormal, invec3 testPt) {
vec3 tempPt = pointProjectOnPlane(lineNormal, ptOnLine, testPt);
return length(tempPt - ptOnLine);
}
float getDepth( in vec4 depth) {
float z_window = czm_unpackDepth(depth);
z_window = czm_reverseLogDepth(z_window);
float n_range = czm_depthRange.near;
float f_range = czm_depthRange.far;
return (2.0 * z_window - n_range - f_range) / (f_range - n_range);
}
void main() {
// 得到釉色 = 结构二维(彩色纹理,纹理坐标)
gl_FragColor = texture2D(colorTexture, v_textureCoordinates);
// 深度 = (釉色 = 结构二维(深度纹理,纹理坐标))
float depth = getDepth(texture2D(depthTexture, v_textureCoordinates));
// 视角 = (纹理坐标,深度)
vec4 viewPos = toEye(v_textureCoordinates, depth);
// 平面点投影 = (扫描平面法线,扫描中心,视角)
vec3 prjOnPlane = pointProjectOnPlane(u_scanPlaneNormalEC.xyz, u_scanCenterEC.xyz, viewPos.xyz);
// 差值
float dis = length(prjOnPlane.xyz - u_scanCenterEC.xyz);
// 直径 = 两个半径
float twou_radius = u_radius * 2.0;
if (dis < u_radius) {
float f0 = 1.0 - abs(u_radius - dis) / u_radius;
f0 = pow(f0, 64.0);
vec3 lineEndPt = vec3(u_scanCenterEC.xyz) + u_scanLineNormalEC * u_radius;
float f = 0.0;
if (isPointOnLineRight(u_scanCenterEC.xyz, u_scanLineNormalEC.xyz, prjOnPlane.xyz)) {
float dis1 = length(prjOnPlane.xyz - lineEndPt);
f = abs(twou_radius - dis1) / twou_radius;
f = pow(f, 3.0);
}
gl_FragColor = mix(gl_FragColor, u_scanColor, f + f0);
}
} */
var ScanSegmentShader =
"uniform sampler2D colorTexture;\n" +
"uniform sampler2D depthTexture;\n" +
"varying vec2 v_textureCoordinates;\n" +
"uniform vec4 u_scanCenterEC;\n" +
"uniform vec3 u_scanPlaneNormalEC;\n" +
"uniform vec3 u_scanLineNormalEC;\n" +
"uniform float u_radius;\n" +
"uniform vec4 u_scanColor;\n" +
"vec4 toEye(in vec2 uv, in float depth)\n" +
" {\n" +
" vec2 xy = vec2((uv.x * 2.0 - 1.0),(uv.y * 2.0 - 1.0));\n" +
" vec4 posInCamera =czm_inverseProjection * vec4(xy, depth, 1.0);\n" +
" posInCamera =posInCamera / posInCamera.w;\n" +
" return posInCamera;\n" +
" }\n" +
"bool isPointOnLineRight(in vec3 ptOnLine, in vec3 lineNormal, in vec3 testPt)\n" +
"{\n" +
"vec3 v01 = testPt - ptOnLine;\n" +
"normalize(v01);\n" +
"vec3 temp = cross(v01, lineNormal);\n" +
"float d = dot(temp, u_scanPlaneNormalEC);\n" +
"return d > 0.5;\n" +
"}\n" +
"vec3 pointProjectOnPlane(in vec3 planeNormal, in vec3 planeOrigin, in vec3 point)\n" +
"{\n" +
"vec3 v01 = point -planeOrigin;\n" +
"float d = dot(planeNormal, v01) ;\n" +
"return (point - planeNormal * d);\n" +
"}\n" +
"float distancePointToLine(in vec3 ptOnLine, in vec3 lineNormal, in vec3 testPt)\n" +
"{\n" +
"vec3 tempPt = pointProjectOnPlane(lineNormal, ptOnLine, testPt);\n" +
"return length(tempPt - ptOnLine);\n" +
"}\n" +
"float getDepth(in vec4 depth)\n" +
"{\n" +
"float z_window = czm_unpackDepth(depth);\n" +
"z_window = czm_reverseLogDepth(z_window);\n" +
"float n_range = czm_depthRange.near;\n" +
"float f_range = czm_depthRange.far;\n" +
"return (2.0 * z_window - n_range - f_range) / (f_range - n_range);\n" +
"}\n" +
"void main()\n" +
"{\n" +
"gl_FragColor = texture2D(colorTexture, v_textureCoordinates);\n" +
"float depth = getDepth( texture2D(depthTexture, v_textureCoordinates));\n" +
"vec4 viewPos = toEye(v_textureCoordinates, depth);\n" +
"vec3 prjOnPlane = pointProjectOnPlane(u_scanPlaneNormalEC.xyz, u_scanCenterEC.xyz, viewPos.xyz);\n" +
"float dis = length(prjOnPlane.xyz - u_scanCenterEC.xyz);\n" +
"float twou_radius = u_radius * 2.0;\n" +
"if(dis < u_radius)\n" +
"{\n" +
"float f0 = 1.0 -abs(u_radius - dis) / u_radius;\n" +
"f0 = pow(f0, 64.0);\n" +
// lineEndPt扫描线
"vec3 lineEndPt = vec3(u_scanCenterEC.xyz) + u_scanLineNormalEC * u_radius * 0.5;\n" +
"float f = 0.0;\n" +
"if(isPointOnLineRight(u_scanCenterEC.xyz, u_scanLineNormalEC.xyz, prjOnPlane.xyz))\n" +
"{\n" +
"float dis1= length(prjOnPlane.xyz - lineEndPt);\n" +
"f = abs(twou_radius -dis1) / twou_radius;\n" +
"f = pow(f, 3.0);\n" +
"}\n" +
//外边框 内边框颜色
"gl_FragColor = mix(gl_FragColor, u_scanColor, f + f0);\n" +
"}\n" +
"}\n";
var _Cartesian3Center = Cesium.Cartographic.toCartesian(cartographicCenter);
var _Cartesian4Center = new Cesium.Cartesian4(_Cartesian3Center.x, _Cartesian3Center.y, _Cartesian3Center.z, 1);
var _CartographicCenter1 = new Cesium.Cartographic(cartographicCenter.longitude, cartographicCenter.latitude, cartographicCenter.height + 500);
var _Cartesian3Center1 = Cesium.Cartographic.toCartesian(_CartographicCenter1);
var _Cartesian4Center1 = new Cesium.Cartesian4(_Cartesian3Center1.x, _Cartesian3Center1.y, _Cartesian3Center1.z, 1);
var _CartographicCenter2 = new Cesium.Cartographic(cartographicCenter.longitude + Cesium.Math.toRadians(0.001), cartographicCenter.latitude, cartographicCenter.height);
var _Cartesian3Center2 = Cesium.Cartographic.toCartesian(_CartographicCenter2);
var _Cartesian4Center2 = new Cesium.Cartesian4(_Cartesian3Center2.x, _Cartesian3Center2.y, _Cartesian3Center2.z, 1);
var _RotateQ = new Cesium.Quaternion();
var _RotateM = new Cesium.Matrix3();
var _time = (new Date()).getTime();
var _scratchCartesian4Center = new Cesium.Cartesian4();
var _scratchCartesian4Center1 = new Cesium.Cartesian4();
var _scratchCartesian4Center2 = new Cesium.Cartesian4();
var _scratchCartesian3Normal = new Cesium.Cartesian3();
var _scratchCartesian3Normal1 = new Cesium.Cartesian3();
var ScanPostStage = new Cesium.PostProcessStage({
fragmentShader: ScanSegmentShader,
uniforms: {
u_scanCenterEC: () => {
return Cesium.Matrix4.multiplyByVector(this.viewer.camera.viewMatrix, _Cartesian4Center, _scratchCartesian4Center);
},
u_scanPlaneNormalEC: () => {
var temp = Cesium.Matrix4.multiplyByVector(this.viewer.camera.viewMatrix, _Cartesian4Center, _scratchCartesian4Center);
var temp1 = Cesium.Matrix4.multiplyByVector(this.viewer.camera.viewMatrix, _Cartesian4Center1, _scratchCartesian4Center1);
_scratchCartesian3Normal.x = temp1.x - temp.x;
_scratchCartesian3Normal.y = temp1.y - temp.y;
_scratchCartesian3Normal.z = temp1.z - temp.z;
Cesium.Cartesian3.normalize(_scratchCartesian3Normal, _scratchCartesian3Normal);
return _scratchCartesian3Normal;
},
u_radius: radius,
u_scanLineNormalEC: () => {
var temp = Cesium.Matrix4.multiplyByVector(this.viewer.camera.viewMatrix, _Cartesian4Center, _scratchCartesian4Center);
var temp1 = Cesium.Matrix4.multiplyByVector(this.viewer.camera.viewMatrix, _Cartesian4Center1, _scratchCartesian4Center1);
var temp2 = Cesium.Matrix4.multiplyByVector(this.viewer.camera.viewMatrix, _Cartesian4Center2, _scratchCartesian4Center2);
_scratchCartesian3Normal.x = temp1.x - temp.x;
_scratchCartesian3Normal.y = temp1.y - temp.y;
_scratchCartesian3Normal.z = temp1.z - temp.z;
Cesium.Cartesian3.normalize(_scratchCartesian3Normal, _scratchCartesian3Normal);
_scratchCartesian3Normal1.x = temp2.x - temp.x;
_scratchCartesian3Normal1.y = temp2.y - temp.y;
_scratchCartesian3Normal1.z = temp2.z - temp.z;
var tempTime = (((new Date()).getTime() - _time) % duration) / duration;
// 第二个参数为 扫描幅度
Cesium.Quaternion.fromAxisAngle(_scratchCartesian3Normal, tempTime * Cesium.Math.PI * 2, _RotateQ);
Cesium.Matrix3.fromQuaternion(_RotateQ, _RotateM);
Cesium.Matrix3.multiplyByVector(_RotateM, _scratchCartesian3Normal1, _scratchCartesian3Normal1);
Cesium.Cartesian3.normalize(_scratchCartesian3Normal1, _scratchCartesian3Normal1);
return _scratchCartesian3Normal1;
},
u_scanColor: scanColor
}
});
return this.viewer.scene.postProcessStages.add(ScanPostStage);
}
clear() {
for (let i = 0; i < this.randarArr.length; i++) {
this.viewer.scene.postProcessStages.remove(this.randarArr[i])
}
this.randarArr = []
}
}
调用
const radar = new StickRadar({ viewer: Viewer }); radar.createRadar({ lat: 36.089227, lng: -112.121947 });
