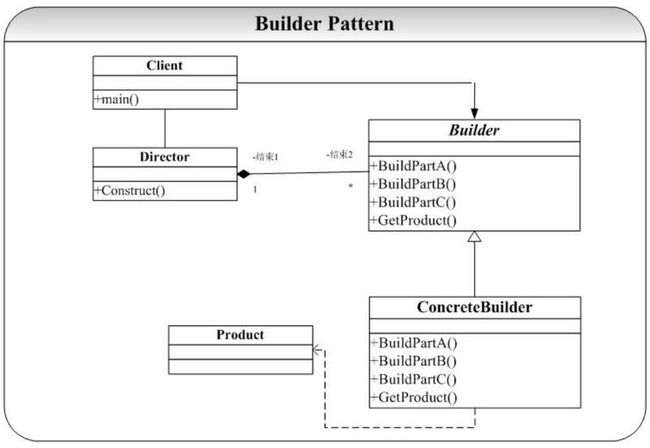

Builder 模式

Builder 模式和 AbstractFactory 模式在功能上很相似，因为都是用来创建大的复杂的对象，它们的区别是：Builder 模式强调的是一步步创建对象，并通过相同的创建过程可以获得不同的结果对象，一般来说 Builder 模式中对象不是直接返回的。而在 AbstractFactory 模式中对象是直接返回的，AbstractFactory模式强调的是为创建多个相互依赖的对象提供一个同一的接口。

 1 ////////////Product.h//////////////////////
 2 #ifndef _PRODUCT_H_
 3 #define _PRODUCT_H_
 4 #include <vector>
 5 #include <string>
 6 class Product
 7 {
 8 public:
 9
10     Product();
11     ~Product();
12     void Add( std::string part);
13     void Show();
14
15 protected:
16 private:
17     std::vector<std::string> svec;
18 };
19
20 #endif

 1 ////////////Product.cpp//////////////////////
 2 #include "Product.h"
 3 #include <iostream>
 4 using namespace std;
 5
 6 void Product::Add( string part)
 7 {
 8     svec.push_back(part);
 9 }
10
11 void Product::Show()
12 {
13     vector<string>::iterator it = svec.begin();
14     while (it != svec.end())
15     {
16         cout<<*it<<" ";
17         it++;
18     }
19     cout<<endl;
20 }
21
22 Product::Product(){}
23 Product::~Product(){}

 1 ////////////Builder.h//////////////////////
 2 #ifndef _BUILDER_H
 3 #define _BUILDER_H
 4 #include <string>
 5 using namespace std;
 6
 7 class Product ;
 8 class Builder
 9 {
10 public:
11     virtual ~Builder();
12     virtual void BuildPartA() = 0 ;
13     virtual void BuildPartB() = 0 ;
14     virtual void BuildPartC() = 0 ;
15     virtual Product* GetProduct() = 0 ;
16 protected:
17     Builder();
18 private:
19
20 };
21
22 class ConcreteBuilder : public Builder
23 {
24 public:
25     ~ConcreteBuilder();
26      ConcreteBuilder();
27
28      void BuildPartA();
29      void BuildPartB();
30      void BuildPartC();
31      Product* GetProduct();
32 protected:
33 private:
34     Product* product;
35 };
36
37
38 class ConcreteBuilder2 : public Builder
39 {
40 public:
41     ~ConcreteBuilder2();
42     ConcreteBuilder2();
43
44     void BuildPartA();
45     void BuildPartB();
46     void BuildPartC();
47     Product* GetProduct();
48 protected:
49 private:
50     Product* product;
51 };
52
53
54 #endif

 1 /////////Builder.cpp//////////////////
 2 #include "Builder.h"
 3 #include "Product.h"
 4 #include <iostream>
 5 using namespace std;
 6
 7 Builder::Builder(){}
 8 Builder::~Builder(){}
 9
10 ConcreteBuilder::ConcreteBuilder()
11 {
12     product = NULL;
13 }
14 ConcreteBuilder::~ConcreteBuilder()
15 {
16
17 }
18 void ConcreteBuilder::BuildPartA()
19 {
20     product = new Product();
21     product->Add("A");
22     cout<<"加入A"<<endl;
23 }
24
25 void ConcreteBuilder::BuildPartB()
26 {
27     product->Add("B");
28     cout<<"加入B"<<endl;
29 }
30
31 void ConcreteBuilder::BuildPartC()
32 {
33     product->Add("C");
34     cout<<"加入C"<<endl;
35 }
36
37 Product* ConcreteBuilder::GetProduct()
38 {
39     return product ;
40 }
41
42
43
44 ConcreteBuilder2::ConcreteBuilder2()
45 {
46     product = NULL;
47 }
48 ConcreteBuilder2::~ConcreteBuilder2()
49 {
50
51 }
52 void ConcreteBuilder2::BuildPartA()
53 {
54     product = new Product();
55     product->Add("x");
56     cout<<"加入x"<<endl;
57 }
58
59 void ConcreteBuilder2::BuildPartB()
60 {
61     product->Add("y");
62     cout<<"加入y"<<endl;
63 }
64
65 void ConcreteBuilder2::BuildPartC()
66 {
67     product->Add("z");
68     cout<<"加入z"<<endl;
69 }
70
71 Product* ConcreteBuilder2::GetProduct()
72 {
73     return product ;
74 }

 1 ////////////////////////////Director.h//////////////////////////////////////////////
 2 #ifndef _DIRECTOR_H
 3 #define _DIRECTOR_H
 4
 5 class Builder;
 6 class Director
 7 {
 8 public:
 9     Director( Builder* bld);
10
11     ~Director();
12
13     void  Construct();
14 protected:
15 private:
16     Builder* _bld ;
17 };
18
19 #endif

 1 //////////////////////////////Director.cpp////////////////////////////////////////////
 2 #include "Director.h"
 3 #include "Builder.h"
 4 using namespace std ;
 5
 6 Director::Director(Builder* bld)
 7 {
 8     _bld = bld ;
 9 }
10 Director::~Director()
11 {
12 }
13 void Director::Construct()
14 {
15     _bld->BuildPartA();
16     _bld->BuildPartB();
17     _bld->BuildPartC();
18 }

 1 /////////////////////////////main.cpp/////////////////////////////////////////////
 2 #include "Builder.h"
 3 #include "Director.h"
 4 #include "Product.h"
 5 using namespace std;
 6
 7 int main()
 8 {
 9     Builder* b1 = new ConcreteBuilder();
10     Director* d1 = new Director(b1);
11     d1->Construct();
12     Product* p1 = b1->GetProduct();
13     p1->Show();
14
15     Builder* b2 = new ConcreteBuilder2();
16     Director* d2 = new Director(b2);
17     d2->Construct();
18     Product* p2 = b2->GetProduct();
19     p2->Show();
20
21     system("pause");
22     return 0;
23 }

以上代码都是经过测试可以正常运行的哦···········
