K8S中Pod控制器之Horizontal Pod Autoscaler(HPA)控制器
Horizontal Pod Autoscaler(HPA)控制器
-
Horizontal Pod Autoscaler（HPA）是Kubernetes中用于自动根据当前的负载情况，自动调整Pod数量的一种控制器。HPA能够根据CPU使用率、内存使用量或其他选择的度量指标来自动扩展Pod的数量，以确保应用的性能。
-

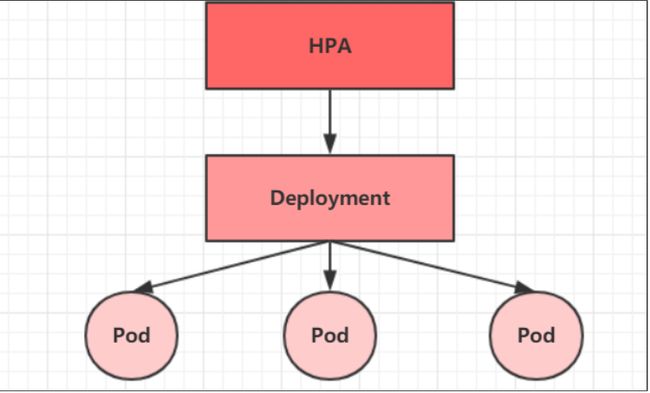

HPA可以获取每个Pod利用率，然后和HPA中定义的指标进行对比，同时计算出需要伸缩的具体值，最后实现Pod的数量的调整。其实HPA与之前Deployment一样，也属于一种Kubernetes资源对象，它通过追踪分析RC控制的所有目标Pod的负载变化情况，来确定是否需要针对性地调整目标Pod的副本数，这是HPA的实现原理。
-
HPA的工作原理如下：
-
指标收集：Kubernetes会收集Pod的度量指标，如CPU和内存的使用情况。
-
比较阈值：HPA会将这些指标与预设的阈值进行比较，这些阈值可以在HPA的配置中定义。
-
自动扩缩容：如果当前的负载超出了预设的阈值，HPA会增加Pod的数量以分散负载；如果负载低于阈值，HPA会减少Pod的数量以节省资源。
-
持续监控：HPA会持续监控Pod的负载，并根据需要调整Pod的数量。
-
安装Metrics Server
-
Metrics Server 是 Kubernetes 集群中的一个关键组件，用于收集和报告集群中资源的使用情况，如 CPU 和内存的使用率。这对于使用 HPA（Horizontal Pod Autoscaler）等自动化工具来管理资源至关重要。
-
选择 Metrics Server 版本：您需要选择一个与您的 Kubernetes 版本兼容的 Metrics Server 版本。以下是一些版本的兼容性信息43：
Metrics Server 版本 Metrics API group/version 支持的 Kubernetes 版本 0.6.x metrics.k8s.io/v1beta1 1.19+ 0.5.x metrics.k8s.io/v1beta1 *1.8+ 0.4.x metrics.k8s.io/v1beta1 *1.8+ 0.3.x metrics.k8s.io/v1beta1 1.8-1.21
[root@k8s-master ~]# cat components.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
labels:
k8s-app: metrics-server
name: metrics-server
namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
labels:
k8s-app: metrics-server
rbac.authorization.k8s.io/aggregate-to-admin: "true"
rbac.authorization.k8s.io/aggregate-to-edit: "true"
rbac.authorization.k8s.io/aggregate-to-view: "true"
name: system:aggregated-metrics-reader
rules:
- apiGroups:
- metrics.k8s.io
resources:
- pods
- nodes
verbs:
- get
- list
- watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
labels:
k8s-app: metrics-server
name: system:metrics-server
rules:
- apiGroups:
- ""
resources:
- nodes/metrics
verbs:
- get
- apiGroups:
- ""
resources:
- pods
- nodes
verbs:
- get
- list
- watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
labels:
k8s-app: metrics-server
name: metrics-server-auth-reader
namespace: kube-system
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: extension-apiserver-authentication-reader
subjects:
- kind: ServiceAccount
name: metrics-server
namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
labels:
k8s-app: metrics-server
name: metrics-server:system:auth-delegator
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: system:auth-delegator
subjects:
- kind: ServiceAccount
name: metrics-server
namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
labels:
k8s-app: metrics-server
name: system:metrics-server
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: system:metrics-server
subjects:
- kind: ServiceAccount
name: metrics-server
namespace: kube-system
---
apiVersion: v1
kind: Service
metadata:
labels:
k8s-app: metrics-server
name: metrics-server
namespace: kube-system
spec:
ports:
- name: https
port: 443
protocol: TCP
targetPort: https
selector:
k8s-app: metrics-server
---
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
k8s-app: metrics-server
name: metrics-server
namespace: kube-system
spec:
selector:
matchLabels:
k8s-app: metrics-server
strategy:
rollingUpdate:
maxUnavailable: 0
template:
metadata:
labels:
k8s-app: metrics-server
spec:
containers:
- args:
- --cert-dir=/tmp
- --secure-port=10250
- --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname
- --kubelet-use-node-status-port
- --metric-resolution=15s
- --kubelet-insecure-tls
image: registry.cn-hangzhou.aliyuncs.com/google_containers/metrics-server:v0.7.1
imagePullPolicy: IfNotPresent
livenessProbe:
failureThreshold: 3
httpGet:
path: /livez
port: https
scheme: HTTPS
periodSeconds: 10
name: metrics-server
ports:
- containerPort: 10250
name: https
protocol: TCP
readinessProbe:
failureThreshold: 3
httpGet:
path: /readyz
port: https
scheme: HTTPS
initialDelaySeconds: 20
periodSeconds: 10
resources:
requests:
cpu: 100m
memory: 200Mi
securityContext:
allowPrivilegeEscalation: false
capabilities:
drop:
- ALL
readOnlyRootFilesystem: true
runAsNonRoot: true
runAsUser: 1000
seccompProfile:
type: RuntimeDefault
volumeMounts:
- mountPath: /tmp
name: tmp-dir
nodeSelector:
kubernetes.io/os: linux
priorityClassName: system-cluster-critical
serviceAccountName: metrics-server
volumes:
- emptyDir: {}
name: tmp-dir
---
apiVersion: apiregistration.k8s.io/v1
kind: APIService
metadata:
labels:
k8s-app: metrics-server
name: v1beta1.metrics.k8s.io
spec:
group: metrics.k8s.io
groupPriorityMinimum: 100
insecureSkipTLSVerify: true
service:
name: metrics-server
namespace: kube-system
version: v1beta1
versionPriority: 100
[root@k8s-master ~]# kubectl apply -f components.yaml
serviceaccount/metrics-server created
clusterrole.rbac.authorization.k8s.io/system:aggregated-metrics-reader created
clusterrole.rbac.authorization.k8s.io/system:metrics-server created
rolebinding.rbac.authorization.k8s.io/metrics-server-auth-reader created
clusterrolebinding.rbac.authorization.k8s.io/metrics-server:system:auth-delegator created
clusterrolebinding.rbac.authorization.k8s.io/system:metrics-server created
service/metrics-server created
deployment.apps/metrics-server created
apiservice.apiregistration.k8s.io/v1beta1.metrics.k8s.io created
[root@k8s-master ~]# kubectl top node
W0119 04:05:38.819138 80109 top_node.go:119] Using json format to get metrics. Next release will switch to protocol-buffers, switch early by passing --use-protocol-buffers flag
Error from server (ServiceUnavailable): the server is currently unable to handle the request (get nodes.metrics.k8s.io)
执行kubectl apply 之后需要等待一段时间等待pod启动
- 查看node的CPU使用率，内存
[root@k8s-master ~]# kubectl top node
W0119 04:08:07.973065 81776 top_node.go:119] Using json format to get metrics. Next release will switch to protocol-buffers, switch early by passing --use-protocol-buffers flag
NAME CPU(cores) CPU% MEMORY(bytes) MEMORY%
k8s-master 351m 17% 1907Mi 51%
k8s-node1 231m 11% 1350Mi 36%
k8s-node2 208m 10% 826Mi 48% -
查看Pod资源占用情况
[root@k8s-master ~]# kubectl get pods -n kube-system
NAME READY STATUS RESTARTS AGE
calico-kube-controllers-697d846cf4-79hpj 1/1 Running 1 24d
calico-node-58ss2 1/1 Running 1 24d
calico-node-gc547 1/1 Running 1 24d
calico-node-hdhxf 1/1 Running 1 24d
coredns-6f6b8cc4f6-5nbb6 1/1 Running 1 24d
coredns-6f6b8cc4f6-q9rhc 1/1 Running 1 24d
etcd-k8s-master 1/1 Running 1 24d
kube-apiserver-k8s-master 1/1 Running 1 24d
kube-controller-manager-k8s-master 1/1 Running 1 24d
kube-proxy-7hp6l 1/1 Running 1 24d
kube-proxy-ddhnb 1/1 Running 1 24d
kube-proxy-dwcgd 1/1 Running 1 24d
kube-scheduler-k8s-master 1/1 Running 1 24d
metrics-server-84d7958dc4-p7gwp 1/1 Running 0 15m
准备deployment和servie
[root@k8s-master ~]# cat k8s-hpa-deploy-svc.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: nginx-deploy
namespace: dev
spec:
selector:
matchLabels:
app: nginx
template:
metadata:
labels:
app: nginx
spec:
containers:
- name: nginx
image: nginx:1.17.1
ports:
- containerPort: 80
resources: # 资源限制
requests:
cpu: "100m" # 100m 表示100 milli cpu，即 0.1 个CPU
---
apiVersion: v1
kind: Service
metadata:
name: nginx-svc
spec:
selector:
app: nginx
type: NodePort
ports:
- port: 80 # svc 的访问端口
name: nginx
targetPort: 80 # Pod 的访问端口
protocol: TCP
nodePort: 30010 # 在机器上开端口，浏览器访问
[root@k8s-master ~]# kubectl get svc,deploy,pod -n dev -o wide
NAME READY UP-TO-DATE AVAILABLE AGE CONTAINERS IMAGES SELECTOR
deployment.apps/nginx-deploy 1/1 1 1 6s nginx nginx:1.17.1 app=nginx
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
pod/nginx 1/1 Running 0 12m 10.244.36.73 k8s-node1
pod/nginx-deploy-65794dcb96-phscq 1/1 Running 0 6s 10.244.36.75 k8s-node1
[root@k8s-master ~]# kubectl get svc,deployment,pod -n dev -o wide
NAME READY UP-TO-DATE AVAILABLE AGE CONTAINERS IMAGES SELECTOR
deployment.apps/nginx-deploy 1/1 1 1 47s nginx nginx:1.17.1 app=nginx
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
pod/nginx 1/1 Running 0 12m 10.244.36.73 k8s-node1
pod/nginx-deploy-65794dcb96-phscq 1/1 Running 0 47s 10.244.36.75 k8s-node1
-
创建service
[root@k8s-master ~]# kubectl expose deployment nginx-deploy --type=NodePort --port=80 -n dev
service/nginx-deploy exposed
[root@k8s-master ~]# kubectl get svc,deployment,pod -n dev -o wide
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE SELECTOR
service/nginx-deploy NodePort 10.96.115.240 80:31580/TCP 4s app=nginx
NAME READY UP-TO-DATE AVAILABLE AGE CONTAINERS IMAGES SELECTOR
deployment.apps/nginx-deploy 1/1 1 1 2m10s nginx nginx:1.17.1 app=nginx
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
pod/nginx 1/1 Running 0 14m 10.244.36.73 k8s-node1
pod/nginx-deploy-65794dcb96-phscq 1/1 Running 0 2m10s 10.244.36.75 k8s-node1
[root@k8s-master ~]# kubectl get svc,deployment,pod -n dev -o wide
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE SELECTOR
service/nginx-deploy NodePort 10.96.115.240 80:31580/TCP 15s app=nginx
NAME READY UP-TO-DATE AVAILABLE AGE CONTAINERS IMAGES SELECTOR
deployment.apps/nginx-deploy 1/1 1 1 2m21s nginx nginx:1.17.1 app=nginx
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
pod/nginx 1/1 Running 0 14m 10.244.36.73 k8s-node1
pod/nginx-deploy-65794dcb96-phscq 1/1 Running 0 2m21s 10.244.36.75 k8s-node1
[root@k8s-master ~]# curl 10.96.115.240:80
Welcome to nginx!
Welcome to nginx!
If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.
For online documentation and support please refer to
nginx.org.
Commercial support is available at
nginx.com.
Thank you for using nginx.

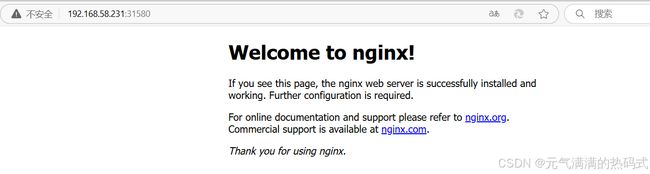

提供虚拟机ip加31580访问nginx页面
- 创建 HPA ：
[root@k8s-master ~]# cat k8s-hpa.yaml
apiVersion: autoscaling/v1
kind: HorizontalPodAutoscaler
metadata:
name: k8s-hpa
spec:
minReplicas: 1 # 最小 Pod 数量
maxReplicas: 10 # 最大 Pod 数量
targetCPUUtilizationPercentage: 3 # CPU 使用率指标，即 CPU 超过 3%（Pod 的 limit 的 cpu ） 就进行扩容
scaleTargetRef: # 指定要控制的Nginx的信息
apiVersion: apps/v1
kind: Deployment
name: nginx-deploy
测试：
kubectl run -i --tty load-generator --rm --image=busybox --restart=Never -- /bin/sh -c "while sleep 0.01; do wget -q -O- http://192.168.65.100:30010; done"通过 kubectl 创建了一个名为 load-generator 的 Pod，它会持续执行 wget 请求，目标地址是 http://192.168.65.100:30010，并且每次请求之间等待 0.01 秒。
- kubectl get deploy -w
[root@k8s-master ~]# kubectl get deploy -w
NAME READY UP-TO-DATE AVAILABLE AGE
nginx-deploy 1/1 1 1 149m
nginx-deploy 1/4 1 1 151m
nginx-deploy 1/4 1 1 151m
nginx-deploy 1/4 1 1 151m
nginx-deploy 1/4 4 1 151m
nginx-deploy 2/4 4 2 151m
nginx-deploy 3/4 4 3 151m
nginx-deploy 4/4 4 4 151m
nginx-deploy 4/8 4 4 151m
nginx-deploy 4/8 4 4 151m
nginx-deploy 4/8 4 4 151m
nginx-deploy 4/8 8 4 151m
nginx-deploy 5/8 8 5 151m
nginx-deploy 6/8 8 6 152m
nginx-deploy 7/8 8 7 152m
nginx-deploy 8/8 8 8 152m
nginx-deploy 8/10 8 8 152m
nginx-deploy 8/10 8 8 152m
nginx-deploy 8/10 8 8 152m
nginx-deploy 8/10 10 8 152m
nginx-deploy 9/10 10 9 152m
nginx-deploy 10/10 10 10 152m
- kubectl get pods -w
[root@k8s-master ~]# kubectl get pods -w
NAME READY STATUS RESTARTS AGE
nginx-deploy-65794dcb96-8c9r8 1/1 Running 0 149m
load-generator 0/1 Pending 0 0s
load-generator 0/1 Pending 0 0s
load-generator 0/1 ContainerCreating 0 0s
load-generator 0/1 ContainerCreating 0 2s
load-generator 0/1 ErrImagePull 0 33s
load-generator 0/1 ImagePullBackOff 0 46s
load-generator 1/1 Running 0 55s
nginx-deploy-65794dcb96-9dp9v 0/1 Pending 0 0s
nginx-deploy-65794dcb96-9dp9v 0/1 Pending 0 0s
nginx-deploy-65794dcb96-drgxc 0/1 Pending 0 0s
nginx-deploy-65794dcb96-6s8ng 0/1 Pending 0 0s
nginx-deploy-65794dcb96-6s8ng 0/1 Pending 0 0s
nginx-deploy-65794dcb96-drgxc 0/1 Pending 0 0s
nginx-deploy-65794dcb96-9dp9v 0/1 ContainerCreating 0 0s
nginx-deploy-65794dcb96-drgxc 0/1 ContainerCreating 0 0s
nginx-deploy-65794dcb96-6s8ng 0/1 ContainerCreating 0 0s
nginx-deploy-65794dcb96-drgxc 0/1 ContainerCreating 0 1s
nginx-deploy-65794dcb96-drgxc 1/1 Running 0 3s
nginx-deploy-65794dcb96-9dp9v 0/1 ContainerCreating 0 4s
nginx-deploy-65794dcb96-6s8ng 0/1 ContainerCreating 0 4s
nginx-deploy-65794dcb96-9dp9v 1/1 Running 0 5s
nginx-deploy-65794dcb96-6s8ng 1/1 Running 0 6s
nginx-deploy-65794dcb96-ctl4k 0/1 Pending 0 0s
nginx-deploy-65794dcb96-ctl4k 0/1 Pending 0 0s
nginx-deploy-65794dcb96-mklzt 0/1 Pending 0 0s
nginx-deploy-65794dcb96-7vj6q 0/1 Pending 0 0s
nginx-deploy-65794dcb96-ctl4k 0/1 ContainerCreating 0 0s
nginx-deploy-65794dcb96-bf2v5 0/1 Pending 0 0s
nginx-deploy-65794dcb96-7vj6q 0/1 Pending 0 0s
nginx-deploy-65794dcb96-mklzt 0/1 Pending 0 0s
nginx-deploy-65794dcb96-bf2v5 0/1 Pending 0 0s
nginx-deploy-65794dcb96-7vj6q 0/1 ContainerCreating 0 0s
nginx-deploy-65794dcb96-mklzt 0/1 ContainerCreating 0 0s
nginx-deploy-65794dcb96-bf2v5 0/1 ContainerCreating 0 0s
nginx-deploy-65794dcb96-ctl4k 0/1 ContainerCreating 0 2s
nginx-deploy-65794dcb96-mklzt 0/1 ContainerCreating 0 3s
nginx-deploy-65794dcb96-7vj6q 0/1 ContainerCreating 0 3s
nginx-deploy-65794dcb96-bf2v5 0/1 ContainerCreating 0 3s
nginx-deploy-65794dcb96-mklzt 1/1 Running 0 3s
nginx-deploy-65794dcb96-ctl4k 1/1 Running 0 4s
nginx-deploy-65794dcb96-7vj6q 1/1 Running 0 4s
nginx-deploy-65794dcb96-bf2v5 1/1 Running 0 5s
nginx-deploy-65794dcb96-drvg4 0/1 Pending 0 0s
nginx-deploy-65794dcb96-drvg4 0/1 Pending 0 0s
nginx-deploy-65794dcb96-6c8lr 0/1 Pending 0 0s
nginx-deploy-65794dcb96-6c8lr 0/1 Pending 0 0s
nginx-deploy-65794dcb96-drvg4 0/1 ContainerCreating 0 0s
nginx-deploy-65794dcb96-6c8lr 0/1 ContainerCreating 0 0s
nginx-deploy-65794dcb96-drvg4 0/1 ContainerCreating 0 3s
nginx-deploy-65794dcb96-6c8lr 0/1 ContainerCreating 0 4s
nginx-deploy-65794dcb96-drvg4 1/1 Running 0 4s
nginx-deploy-65794dcb96-6c8lr 1/1 Running 0 5s
- kubectl get hpa -w
[root@k8s-master ~]# kubectl get hpa -w
NAME REFERENCE TARGETS MINPODS MAXPODS REPLICAS AGE
k8s-hpa Deployment/nginx-deploy /3% 1 10 1 2m40s
k8s-hpa Deployment/nginx-deploy 28%/3% 1 10 1 4m32s
k8s-hpa Deployment/nginx-deploy 29%/3% 1 10 4 4m47s
k8s-hpa Deployment/nginx-deploy 9%/3% 1 10 8 5m2s
k8s-hpa Deployment/nginx-deploy 5%/3% 1 10 10 5m17s
k8s-hpa Deployment/nginx-deploy 3%/3% 1 10 10 5m32s
k8s-hpa Deployment/nginx-deploy 2%/3% 1 10 10 6m47s
k8s-hpa Deployment/nginx-deploy 3%/3% 1 10 10 7m2s
k8s-hpa Deployment/nginx-deploy 2%/3% 1 10 10 7m17s
k8s-hpa Deployment/nginx-deploy 3%/3% 1 10 10 7m33s
k8s-hpa Deployment/nginx-deploy 4%/3% 1 10 10 15m
k8s-hpa Deployment/nginx-deploy 3%/3% 1 10 10 16m
k8s-hpa Deployment/nginx-deploy 2%/3% 1 10 10 16m
k8s-hpa Deployment/nginx-deploy 3%/3% 1 10 10 16m
解释：
- 初始时，
nginx-deploy的 HPA 目标 CPU 使用率为 3%。当nginx-deploy的 CPU 使用率达到 28% 时，HPA 会自动增加 Pod 副本数（从 1 增加到 4）。 - 随着负载的变化，Pod 副本数不断调整，最大可扩展到 10 个副本。
- 通过这种机制，Kubernetes 根据实际负载动态调整 Pod 数量，确保服务能够处理增加的流量，并且避免资源浪费。
