FFMpeg源码分析-io_open_default()

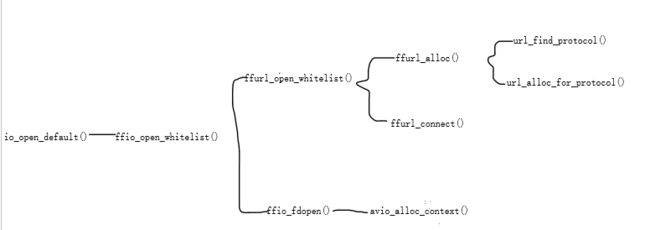

主要函数调用关系如下图所示

/*
*s : 传进去的AVFormatContext 结构体
pb：函数调用成功之后创建的AVIOContext结构体。
url：输入输出协议的地址（文件也是一种“广义”的协议，对于文件来说就是文件的路径）。
flags：打开地址的方式。可以选择只读，只写，或者读写。取值如下。
AVIO_FLAG_READ：只读。
AVIO_FLAG_WRITE：只写。
AVIO_FLAG_READ_WRITE：读写。
options：目前还没有用过。
*/
static int io_open_default(AVFormatContext *s, AVIOContext **pb,
                           const char *url, int flags, AVDictionary **options)

ffio_open_whitelist()

在函数内部主要是调用了ffio_open_whitelist()。

int ffio_open_whitelist(AVIOContext **s, const char *filename, int flags,
                         const AVIOInterruptCB *int_cb, AVDictionary **options,
                         const char *whitelist, const char *blacklist
                        )
{
    URLContext *h;
    int err;

    *s = NULL;

    err = ffurl_open_whitelist(&h, filename, flags, int_cb, options, whitelist, blacklist, NULL);/*用于初始化URLContext,AVIOContext则是在URLContext的读写函数外面加上了一层“包装”*/
    if (err < 0)
        return err;
    err = ffio_fdopen(s, h);/*用于根据URLContext初始化AVIOContext*/
    if (err < 0) {
        ffurl_close(h);
        return err;
    }
    return 0;
}

ffio_open_whitelist()主要是调用了ffurl_open_whitelist()和ffio_fdopen()。ffurl_open_whitelist()用来初始化URLContext，ffio_fdopen()根据URLContext初始化AVIOContext。URLContext中包含的URLProtocol完成了具体的协议读写等工作。AVIOContext则是在URLContext的读写函数外面加上了一层“包装”（通过retry_transfer_wrapper()函数）。

URLProtocol和URLContext

URLProtocol和URLContext的定义位于libavformat\url.h

typedef struct URLContext {
    const AVClass *av_class;    /**< information for av_log(). Set by url_open(). */
    const struct URLProtocol *prot;
    void *priv_data;
    char *filename;             /**< specified URL */
    int flags;
    int max_packet_size;        /**< if non zero, the stream is packetized with this max packet size */
    int is_streamed;            /**< true if streamed (no seek possible), default = false */
    int is_connected;
    AVIOInterruptCB interrupt_callback;
    int64_t rw_timeout;         /**< maximum time to wait for (network) read/write operation completion, in mcs */
    const char *protocol_whitelist;
    const char *protocol_blacklist;
    int min_packet_size;        /**< if non zero, the stream is packetized with this min packet size */
} URLContext;

typedef struct URLProtocol {
    const char *name;
    int     (*url_open)( URLContext *h, const char *url, int flags);
    /**
     * This callback is to be used by protocols which open further nested
     * protocols. options are then to be passed to ffurl_open_whitelist()
     * or ffurl_connect() for those nested protocols.
     */
    int     (*url_open2)(URLContext *h, const char *url, int flags, AVDictionary **options);
    int     (*url_accept)(URLContext *s, URLContext **c);
    int     (*url_handshake)(URLContext *c);

    /**
     * Read data from the protocol.
     * If data is immediately available (even less than size), EOF is
     * reached or an error occurs (including EINTR), return immediately.
     * Otherwise:
     * In non-blocking mode, return AVERROR(EAGAIN) immediately.
     * In blocking mode, wait for data/EOF/error with a short timeout (0.1s),
     * and return AVERROR(EAGAIN) on timeout.
     * Checking interrupt_callback, looping on EINTR and EAGAIN and until
     * enough data has been read is left to the calling function; see
     * retry_transfer_wrapper in avio.c.
     */
    int     (*url_read)( URLContext *h, unsigned char *buf, int size);
    int     (*url_write)(URLContext *h, const unsigned char *buf, int size);
    int64_t (*url_seek)( URLContext *h, int64_t pos, int whence);
    int     (*url_close)(URLContext *h);
    int (*url_read_pause)(URLContext *h, int pause);
    int64_t (*url_read_seek)(URLContext *h, int stream_index,
                             int64_t timestamp, int flags);
    int (*url_get_file_handle)(URLContext *h);
    int (*url_get_multi_file_handle)(URLContext *h, int **handles,
                                     int *numhandles);
    int (*url_get_short_seek)(URLContext *h);
    int (*url_shutdown)(URLContext *h, int flags);
    const AVClass *priv_data_class;
    int priv_data_size;
    int flags;
    int (*url_check)(URLContext *h, int mask);
    int (*url_open_dir)(URLContext *h);
    int (*url_read_dir)(URLContext *h, AVIODirEntry **next);
    int (*url_close_dir)(URLContext *h);
    int (*url_delete)(URLContext *h);
    int (*url_move)(URLContext *h_src, URLContext *h_dst);
    const char *default_whitelist;
} URLProtocol;

从URLProtol的定义可以看出，其中包含了很多函数指针。用于对协议的操作。每种具体的协议都包含了一个URLProtocol结构体。FILE协议（在FFmpeg中，file也被当作一种协议）位于libavformat\file.c。

const URLProtocol ff_file_protocol = {
    .name                = "file",
    .url_open            = file_open,
    .url_read            = file_read,
    .url_write           = file_write,
    .url_seek            = file_seek,
    .url_close           = file_close,
    .url_get_file_handle = file_get_handle,
    .url_check           = file_check,
    .url_delete          = file_delete,
    .url_move            = file_move,
    .priv_data_size      = sizeof(FileContext),
    .priv_data_class     = &file_class,
    .url_open_dir        = file_open_dir,
    .url_read_dir        = file_read_dir,
    .url_close_dir       = file_close_dir,
    .default_whitelist   = "file,crypto,data"
};

在使用FILE协议进行读写时，调用url_open()实际上就是调用file_open()函数，然后file_open()函数调用了open()函数。URLProtocol结构体是URLContext结构体的一个成员。

ffurl_open_whitelist()

int ffurl_open_whitelist(URLContext **puc, const char *filename, int flags,
                         const AVIOInterruptCB *int_cb, AVDictionary **options,
                         const char *whitelist, const char* blacklist,
                         URLContext *parent)
{
    AVDictionary *tmp_opts = NULL;
    AVDictionaryEntry *e;
    int ret = ffurl_alloc(puc, filename, flags, int_cb);/*用于查找合适的URLProtocol，并创建一个URLContext*/
    if (ret < 0)
        return ret;
    if (parent) {
        ret = av_opt_copy(*puc, parent);
        if (ret < 0)
            goto fail;
    }
    if (options &&
        (ret = av_opt_set_dict(*puc, options)) < 0)
        goto fail;
    if (options && (*puc)->prot->priv_data_class &&
        (ret = av_opt_set_dict((*puc)->priv_data, options)) < 0)
        goto fail;

    if (!options)
        options = &tmp_opts;

    av_assert0(!whitelist ||
               !(e=av_dict_get(*options, "protocol_whitelist", NULL, 0)) ||
               !strcmp(whitelist, e->value));
    av_assert0(!blacklist ||
               !(e=av_dict_get(*options, "protocol_blacklist", NULL, 0)) ||
               !strcmp(blacklist, e->value));

    if ((ret = av_dict_set(options, "protocol_whitelist", whitelist, 0)) < 0)
        goto fail;

    if ((ret = av_dict_set(options, "protocol_blacklist", blacklist, 0)) < 0)
        goto fail;

    if ((ret = av_opt_set_dict(*puc, options)) < 0)
        goto fail;

    ret = ffurl_connect(*puc, options);/*用于打开获得的URLProtocol。*/

    if (!ret)
        return 0;
fail:
    ffurl_closep(puc);
    return ret;
}

主要调用了ffurl_alloc()和ffurl_connect()，ffurl_alloc()用于查找合适的URLProtocol，并创建一个URLContext。ffurl_connect()用于打开获得的URLProtocol。

ffurl_alloc()

int ffurl_alloc(URLContext **puc, const char *filename, int flags,
                const AVIOInterruptCB *int_cb)
{
    const URLProtocol *p = NULL;

    p = url_find_protocol(filename);/*根据文件路径查找合适的URLProtocol*/
    if (p)
       return url_alloc_for_protocol(puc, p, filename, flags, int_cb);/*为查找到的URLProtocol创建URLContext*/

    *puc = NULL;
    return AVERROR_PROTOCOL_NOT_FOUND;
}

int ffurl_open_whitelist(URLContext **puc, const char *filename, int flags,
                         const AVIOInterruptCB *int_cb, AVDictionary **options,
                         const char *whitelist, const char* blacklist,
                         URLContext *parent)
{
    AVDictionary *tmp_opts = NULL;
    AVDictionaryEntry *e;
    int ret = ffurl_alloc(puc, filename, flags, int_cb);/*用于查找合适的URLProtocol，并创建一个URLContext*/
    if (ret < 0)
        return ret;
    if (parent) {
        ret = av_opt_copy(*puc, parent);
        if (ret < 0)
            goto fail;
    }
    if (options &&
        (ret = av_opt_set_dict(*puc, options)) < 0)
        goto fail;
    if (options && (*puc)->prot->priv_data_class &&
        (ret = av_opt_set_dict((*puc)->priv_data, options)) < 0)
        goto fail;

    if (!options)
        options = &tmp_opts;

    av_assert0(!whitelist ||
               !(e=av_dict_get(*options, "protocol_whitelist", NULL, 0)) ||
               !strcmp(whitelist, e->value));
    av_assert0(!blacklist ||
               !(e=av_dict_get(*options, "protocol_blacklist", NULL, 0)) ||
               !strcmp(blacklist, e->value));

    if ((ret = av_dict_set(options, "protocol_whitelist", whitelist, 0)) < 0)
        goto fail;

    if ((ret = av_dict_set(options, "protocol_blacklist", blacklist, 0)) < 0)
        goto fail;

    if ((ret = av_opt_set_dict(*puc, options)) < 0)
        goto fail;

    ret = ffurl_connect(*puc, options);/*用于打开获得的URLProtocol。*/

    if (!ret)
        return 0;
fail:
    ffurl_closep(puc);
    return ret;
}

主要调用了两个函数url_find_protocol()和url_alloc_for_protocol()；url_find_protocol()根据文件路径查找合适的URLProtocol，url_alloc_for_protocol()为查找到的URLProtocol创建URLContext。

url_find_protocol()

static const struct URLProtocol *url_find_protocol(const char *filename)
{
    const URLProtocol **protocols;
    char proto_str[128], proto_nested[128], *ptr;
    size_t proto_len = strspn(filename, URL_SCHEME_CHARS);/*根据strspn()函数查找字符串中第一个“非字母或数字”的字符的位置，并保存在proto_len中*/
    int i;

    if (filename[proto_len] != ':' &&
        (strncmp(filename, "subfile,", 8) || !strchr(filename + proto_len + 1, ':')) ||
        is_dos_path(filename))
        strcpy(proto_str, "file");/*接下来函数将filename的前proto_len个字节拷贝至proto_str字符串中。*/
    else
        av_strlcpy(proto_str, filename,
                   FFMIN(proto_len + 1, sizeof(proto_str)));

    av_strlcpy(proto_nested, proto_str, sizeof(proto_nested));
    if ((ptr = strchr(proto_nested, '+')))
        *ptr = '\0';

    protocols = ffurl_get_protocols(NULL, NULL);
    if (!protocols)
        return NULL;
    for (i = 0; protocols[i]; i++) {
            const URLProtocol *up = protocols[i];
        if (!strcmp(proto_str, up->name)) {
            av_freep(&protocols);
            return up;
        }
        if (up->flags & URL_PROTOCOL_FLAG_NESTED_SCHEME &&
            !strcmp(proto_nested, up->name)) {
            av_freep(&protocols);
            return up;
        }
    }
    av_freep(&protocols);
    if (av_strstart(filename, "https:", NULL) || av_strstart(filename, "tls:", NULL))
        av_log(NULL, AV_LOG_WARNING, "https protocol not found, recompile FFmpeg with "
                                     "openssl, gnutls or securetransport enabled.\n");

    return NULL;
}

url_alloc_for_protocol

static int url_alloc_for_protocol(URLContext **puc, const URLProtocol *up,
                                  const char *filename, int flags,
                                  const AVIOInterruptCB *int_cb)
{
    URLContext *uc;
    int err;

#if CONFIG_NETWORK
    if (up->flags & URL_PROTOCOL_FLAG_NETWORK && !ff_network_init())
        return AVERROR(EIO);
#endif
    if ((flags & AVIO_FLAG_READ) && !up->url_read) {/*检查输入的URLProtocol是否支持指定的flag*/
        av_log(NULL, AV_LOG_ERROR,
               "Impossible to open the '%s' protocol for reading\n", up->name);
        return AVERROR(EIO);
    }
    if ((flags & AVIO_FLAG_WRITE) && !up->url_write) {
        av_log(NULL, AV_LOG_ERROR,
               "Impossible to open the '%s' protocol for writing\n", up->name);
        return AVERROR(EIO);
    }
    uc = av_mallocz(sizeof(URLContext) + strlen(filename) + 1);/*在检查无误之后，接着就可以调用av_mallocz()为即将创建的URLContext分配内存了*/
    if (!uc) {
        err = AVERROR(ENOMEM);
        goto fail;
    }
    uc->av_class = &ffurl_context_class;
    uc->filename = (char *)&uc[1];
    strcpy(uc->filename, filename);
    uc->prot            = up;
    uc->flags           = flags;
    uc->is_streamed     = 0; /* default = not streamed */
    uc->max_packet_size = 0; /* default: stream file */
    if (up->priv_data_size) {
        uc->priv_data = av_mallocz(up->priv_data_size);
        if (!uc->priv_data) {
            err = AVERROR(ENOMEM);
            goto fail;
        }
        if (up->priv_data_class) {
            char *start;
            *(const AVClass **)uc->priv_data = up->priv_data_class;
            av_opt_set_defaults(uc->priv_data);
            if (av_strstart(uc->filename, up->name, (const char**)&start) && *start == ',') {
                int ret= 0;
                char *p= start;
                char sep= *++p;
                char *key, *val;
                p++;

                if (strcmp(up->name, "subfile"))
                    ret = AVERROR(EINVAL);

                while(ret >= 0 && (key= strchr(p, sep)) && ppriv_data, p, key+1, 0);
                    if (ret == AVERROR_OPTION_NOT_FOUND)
                        av_log(uc, AV_LOG_ERROR, "Key '%s' not found.\n", p);
                    *val= *key= sep;
                    p= val+1;
                }
                if(ret<0 || p!=key){
                    av_log(uc, AV_LOG_ERROR, "Error parsing options string %s\n", start);
                    err = AVERROR(EINVAL);
                    goto fail;
                }
                memmove(start, key+1, strlen(key));
            }
        }
    }
    if (int_cb)
        uc->interrupt_callback = *int_cb;

    *puc = uc;
    return 0;
fail:
    *puc = NULL;
    if (uc)
        av_freep(&uc->priv_data);
    av_freep(&uc);
#if CONFIG_NETWORK
    if (up->flags & URL_PROTOCOL_FLAG_NETWORK)
        ff_network_close();
#endif
    return err;
}

url_alloc_for_protocol()完成了以下步骤：首先，检查输入的URLProtocol是否支持指定的flag。比如flag中如果指定了AVIO_FLAG_READ，则URLProtocol中必须包含url_read()；如果指定了AVIO_FLAG_WRITE，则URLProtocol中必须包含url_write()。在检查无误之后，接着就可以调用av_mallocz()为即将创建的URLContext分配内存了。接下来基本上就是各种赋值工作，在这里不再详细记录。

ffurl_connect

int ffurl_connect(URLContext *uc, AVDictionary **options)
{
    int err;
    AVDictionary *tmp_opts = NULL;
    AVDictionaryEntry *e;

    if (!options)
        options = &tmp_opts;

    // Check that URLContext was initialized correctly and lists are matching if set
    av_assert0(!(e=av_dict_get(*options, "protocol_whitelist", NULL, 0)) ||
               (uc->protocol_whitelist && !strcmp(uc->protocol_whitelist, e->value)));
    av_assert0(!(e=av_dict_get(*options, "protocol_blacklist", NULL, 0)) ||
               (uc->protocol_blacklist && !strcmp(uc->protocol_blacklist, e->value)));

    if (uc->protocol_whitelist && av_match_list(uc->prot->name, uc->protocol_whitelist, ',') <= 0) {
        av_log(uc, AV_LOG_ERROR, "Protocol '%s' not on whitelist '%s'!\n", uc->prot->name, uc->protocol_whitelist);
        return AVERROR(EINVAL);
    }

    if (uc->protocol_blacklist && av_match_list(uc->prot->name, uc->protocol_blacklist, ',') > 0) {
        av_log(uc, AV_LOG_ERROR, "Protocol '%s' on blacklist '%s'!\n", uc->prot->name, uc->protocol_blacklist);
        return AVERROR(EINVAL);
    }

    if (!uc->protocol_whitelist && uc->prot->default_whitelist) {
        av_log(uc, AV_LOG_DEBUG, "Setting default whitelist '%s'\n", uc->prot->default_whitelist);
        uc->protocol_whitelist = av_strdup(uc->prot->default_whitelist);
        if (!uc->protocol_whitelist) {
            return AVERROR(ENOMEM);
        }
    } else if (!uc->protocol_whitelist)
        av_log(uc, AV_LOG_DEBUG, "No default whitelist set\n"); // This should be an error once all declare a default whitelist

    if ((err = av_dict_set(options, "protocol_whitelist", uc->protocol_whitelist, 0)) < 0)
        return err;
    if ((err = av_dict_set(options, "protocol_blacklist", uc->protocol_blacklist, 0)) < 0)
        return err;

    err =
        uc->prot->url_open2 ? uc->prot->url_open2(uc,
                                                  uc->filename,
                                                  uc->flags,
                                                  options) :
        uc->prot->url_open(uc, uc->filename, uc->flags);/*URLProtocol中是否包含url_open2()？如果包含的话，就调用url_open2()，否则就调用url_open()。*/

    av_dict_set(options, "protocol_whitelist", NULL, 0);
    av_dict_set(options, "protocol_blacklist", NULL, 0);

    if (err)
        return err;
    uc->is_connected = 1;
    /* We must be careful here as ffurl_seek() could be slow,
     * for example for http */
    if ((uc->flags & AVIO_FLAG_WRITE) || !strcmp(uc->prot->name, "file"))
        if (!uc->is_streamed && ffurl_seek(uc, 0, SEEK_SET) < 0)
            uc->is_streamed = 1;
    return 0;
}

该函数最重要的函数就是：URLProtocol中是否包含url_open2()？如果包含的话，就调用url_open2()，否则就调用url_open()。

url_open()本身是URLProtocol的一个函数指针，这个地方根据不同的协议调用的url_open()具体实现函数也是不一样的，例如file协议的url_open()对应的是file_open()，而file_open()最终调用了_wsopen()，_sopen()（Windows下）或者open()（Linux下，类似于fopen()）这样的系统中打开文件的API函数；而libRTMP的url_open()对应的是rtmp_open()，而rtmp_open()最终调用了libRTMP的API函数RTMP_Init()，RTMP_SetupURL()，RTMP_Connect() 以及RTMP_ConnectStream()。

ffio_fdopen()

int ffio_fdopen(AVIOContext **s, URLContext *h)
{
    uint8_t *buffer = NULL;
    int buffer_size, max_packet_size;

    max_packet_size = h->max_packet_size;/*如果URLContext中设置了max_packet_size，则将Buffer的大小设置为max_packet_size。如果没有设置的话（似乎大部分URLContext都没有设置该值），则会分配IO_BUFFER_SIZE个字节给Buffer。IO_BUFFER_SIZE取值为32768。*/
    if (max_packet_size) {
        buffer_size = max_packet_size; /* no need to bufferize more than one packet */
    } else {
        buffer_size = IO_BUFFER_SIZE;
    }
    if (!(h->flags & AVIO_FLAG_WRITE) && h->is_streamed) {
        if (buffer_size > INT_MAX/2)
            return AVERROR(EINVAL);
        buffer_size *= 2;
    }
    buffer = av_malloc(buffer_size);/*初始化AVIOContext中的Buffer*/
    if (!buffer)
        return AVERROR(ENOMEM);

    *s = avio_alloc_context(buffer, buffer_size, h->flags & AVIO_FLAG_WRITE, h,
                            ffurl_read2, ffurl_write2, ffurl_seek2);/*初始化一个AVIOContext*/
    if (!*s) {
        av_freep(&buffer);
        return AVERROR(ENOMEM);
    }
    (*s)->protocol_whitelist = av_strdup(h->protocol_whitelist);
    if (!(*s)->protocol_whitelist && h->protocol_whitelist) {
        avio_closep(s);
        return AVERROR(ENOMEM);
    }
    (*s)->protocol_blacklist = av_strdup(h->protocol_blacklist);
    if (!(*s)->protocol_blacklist && h->protocol_blacklist) {
        avio_closep(s);
        return AVERROR(ENOMEM);
    }
    (*s)->direct = h->flags & AVIO_FLAG_DIRECT;

    (*s)->seekable = h->is_streamed ? 0 : AVIO_SEEKABLE_NORMAL;
    (*s)->max_packet_size = max_packet_size;
    (*s)->min_packet_size = h->min_packet_size;
    if(h->prot) {
        (*s)->read_pause = (int (*)(void *, int))h->prot->url_read_pause;
        (*s)->read_seek  =
            (int64_t (*)(void *, int, int64_t, int))h->prot->url_read_seek;

        if (h->prot->url_read_seek)
            (*s)->seekable |= AVIO_SEEKABLE_TIME;
    }
    ((FFIOContext*)(*s))->short_seek_get = ffurl_get_short_seek;
    (*s)->av_class = &ff_avio_class;
    return 0;
}

使用已经获得的URLContext初始化AVIOContext。

ffio_fdopen()函数首先初始化AVIOContext中的Buffer。如果URLContext中设置了max_packet_size，则将Buffer的大小设置为max_packet_size。如果没有设置的话（似乎大部分URLContext都没有设置该值），则会分配IO_BUFFER_SIZE个字节给Buffer。IO_BUFFER_SIZE取值为32768。之后调用vio_alloc_context()初始化一个AVIOContext。

ffurl_read(),ffurl_write(),ffurl_seek()

现在我们再回到ffio_fdopen()，会发现它初始化AVIOContext的结构体的时候，首先将自己分配的Buffer设置为该AVIOContext的Buffer；然后将URLContext作为用户自定义数据internal->h，最后把internal赋值给AVIOContext的opaque变量，提供给该AVIOContext；最后分别将3个函数作为该AVIOContext的读，写，跳转函数：io_read_packet, io_write_packet, io_seek分别包含对应的ffurl_read()，ffurl_write()，ffurl_seek()。

int ffurl_read2(void *urlcontext, uint8_t *buf, int size)
{
    URLContext *h = urlcontext;

    if (!(h->flags & AVIO_FLAG_READ))
        return AVERROR(EIO);
    return retry_transfer_wrapper(h, buf, NULL, size, 1, 1);
}
int ffurl_write2(void *urlcontext, uint8_t *buf, int size)

int ffurl_write2(void *urlcontext, const uint8_t *buf, int size)
{
    URLContext *h = urlcontext;

    if (!(h->flags & AVIO_FLAG_WRITE))
        return AVERROR(EIO);
    /* avoid sending too big packets */
    if (h->max_packet_size && size > h->max_packet_size)
        return AVERROR(EIO);

    return retry_transfer_wrapper(h, NULL, buf, size, size, 0);
}
int64_t ffurl_seek2(void *urlcontext, int64_t pos, int whence)
{
    URLContext *h = urlcontext;
    int64_t ret;

    if (!h->prot->url_seek)
        return AVERROR(ENOSYS);
    ret = h->prot->url_seek(h, pos, whence & ~AVSEEK_FORCE);
    return ret;
}

函数先判断了一下输入的URLContext是否支持“读”或写操作，接着调用了一个函数：retry_transfer_wrapper()。
ffurl_write()的也调用了同样的一个函数retry_transfer_wrapper()。唯一的不同在于ffurl_read()调用retry_transfer_wrapper()的时候，最后一个参数是URLProtocol的url_read()，而ffurl_write()调用retry_transfer_wrapper()的时候，最后一个参数是URLProtocol的url_write()。

retry_transfer_wrapper()

static inline int retry_transfer_wrapper(URLContext *h, uint8_t *buf,
                                         const uint8_t *cbuf,
                                         int size, int size_min,
                                         int read)
{
    int ret, len;
    int fast_retries = 5;
    int64_t wait_since = 0;

    len = 0;
    while (len < size_min) {
        if (ff_check_interrupt(&h->interrupt_callback))
            return AVERROR_EXIT;
        ret = read ? h->prot->url_read (h, buf + len, size - len):
                     h->prot->url_write(h, cbuf + len, size - len);
        if (ret == AVERROR(EINTR))
            continue;
        if (h->flags & AVIO_FLAG_NONBLOCK)
            return ret;
        if (ret == AVERROR(EAGAIN)) {
            ret = 0;
            if (fast_retries) {
                fast_retries--;
            } else {
                if (h->rw_timeout) {
                    if (!wait_since)
                        wait_since = av_gettime_relative();
                    else if (av_gettime_relative() > wait_since + h->rw_timeout)
                        return AVERROR(EIO);
                }
                av_usleep(1000);
            }
        } else if (ret == AVERROR_EOF)
            return (len > 0) ? len : AVERROR_EOF;
        else if (ret < 0)
            return ret;
        if (ret) {
            fast_retries = FFMAX(fast_retries, 2);
            wait_since = 0;
        }
        len += ret;
    }
    return len;
}

从代码中可以看出，它的核心实际上是调用了一个名称为transfer_func()的函数。而该函数就是retry_transfer_wrapper()的第四个参数。该函数实际上是对URLProtocol的读写操作中的错误进行了一些“容错”处理，可以让数据的读写更加的稳定。

参考文献：ffmpeg源码分析4-io_open_default() - 简书 (jianshu.com)
