【HarmonyOS之旅】基于ArkTS开发(三) -> 兼容JS的类Web开发(四) -> 常见组件(二) -> tabs

目录

1 -> 创建Tabs

2 -> 设置Tabs方向

3 -> 设置样式

4 -> 显示页签索引

5 -> 场景示例


1 -> 创建Tabs

在pages/index目录下的hml文件中创建一个Tabs组件。


item1 item2
content1
content2
/* test.css */
.container {
  flex-direction: column;
  justify-content: center;
  align-items: center;
  background-color: #F1F3F5;
}
.tabContent{
  width: 100%;
  height: 100%;
}
.text{
  width: 100%;
  height: 100%;
  justify-content: center;
  align-items: center;
}

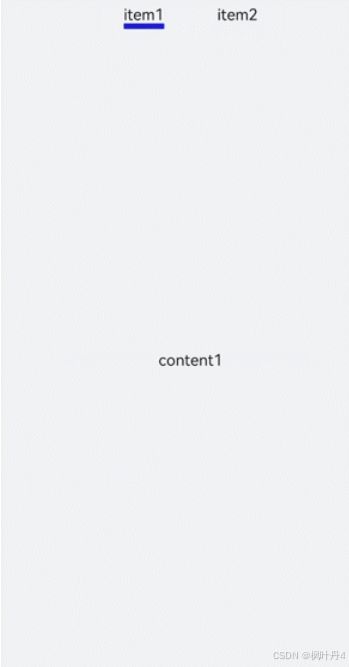

【HarmonyOS之旅】基于ArkTS开发(三) -> 兼容JS的类Web开发(四) -> 常见组件(二) -> tabs_第1张图片

2 -> 设置Tabs方向

Tabs默认展示索引为index的标签及内容。通过设置vertical属性使组件纵向展示。


item1 item2

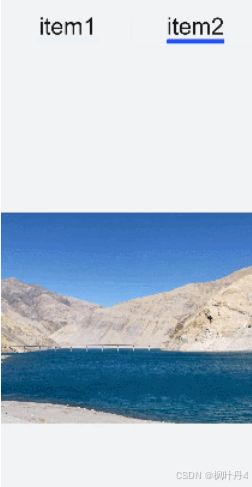

【HarmonyOS之旅】基于ArkTS开发(三) -> 兼容JS的类Web开发(四) -> 常见组件(二) -> tabs_第2张图片

设置mode属性使tab-bar的子组件均分,设置scrollable属性使tab-content不可进行左右滑动切换内容。


item1 item2

【HarmonyOS之旅】基于ArkTS开发(三) -> 兼容JS的类Web开发(四) -> 常见组件(二) -> tabs_第3张图片

3 -> 设置样式

设置Tabs背景色及边框和tab-content布局。


item1 item2
content1
content2
/* test.css */
.container {
  flex-direction: column;
  justify-content: flex-start;
  align-items: center;
 background-color:#F1F3F5;
}
.tabs{
  margin-top: 20px;
 border: 1px solid #2262ef;
  width: 99%;
  padding: 10px;
}
.tabBar{
  width: 100%;
  border: 1px solid #78abec;
}
.tabContent{
  width: 100%;
  margin-top: 10px;
  height: 300px;
  color: blue;
  justify-content: center;
  align-items: center;
}

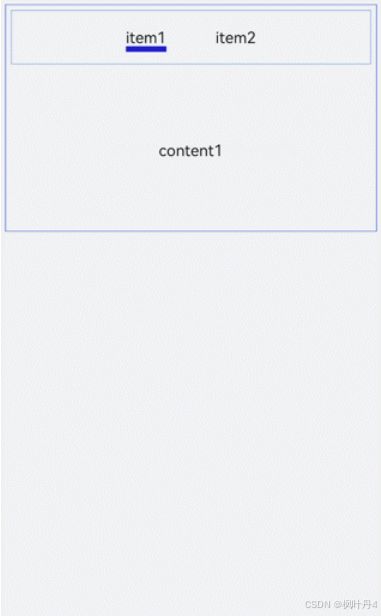

【HarmonyOS之旅】基于ArkTS开发(三) -> 兼容JS的类Web开发(四) -> 常见组件(二) -> tabs_第4张图片

4 -> 显示页签索引

可以为Tabs添加change事件,实现页签切换后显示当前页签索引的功能。


item1 item2
/* index.js */
import prompt from '@system.prompt';
export default {
  tabChange(e){
    prompt.showToast({
      message: "Tab index: " + e.index
    })
  }
}

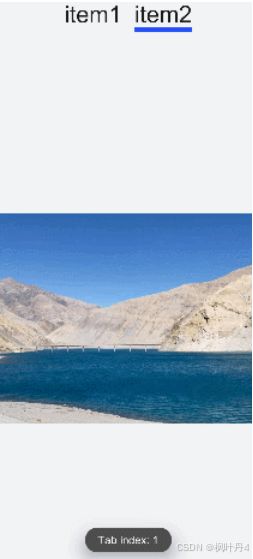

【HarmonyOS之旅】基于ArkTS开发(三) -> 兼容JS的类Web开发(四) -> 常见组件(二) -> tabs_第5张图片

说明

tabs子组件仅支持一个和一个

5 -> 场景示例

在本场景中,可以点击标签切换内容,选中后标签文字颜色变红,并显示下划线。

用tabs、tab-bar和tab-content实现点击切换功能,再定义数组,设置属性。使用change事件改变数组内的属性值实现变色及下划线的显示。


{{$item.title}}
/* test.css */
.container{
width: 100%;
height: 100%;
background-color:#F1F3F5;
}
.tab_bar {
  width: 100%;
  height: 150px;
}
.tab_item {
  height: 30%;
  flex-direction: column;
  align-items: center;
}
.tab_item text {
  font-size: 32px;
}
.item-container {
  justify-content: center;
  flex-direction: column;
}
.underline-show {
  height: 2px;
  width: 160px;
  background-color: #FF4500;
  margin-top: 7.5px;
}
.underline-hide {
  height: 2px;
  margin-top: 7.5px;
  width: 160px;
}
/* index.js */
import prompt from '@system.prompt';
export default {
  data() {
    return {
      datas: {
        color_normal: '#878787',
        color_active: '#ff4500',
        show: true,
        list: [{
          i: 0,
          color: '#ff4500',
          show: true,
          title: 'List1'
        }, {
          i: 1,
          color: '#878787',
          show: false,
          title: 'List2'
        }, {
           i: 2,
           color: '#878787',
           show: false,
           title: 'List3'
        }]
      }
    }
  },
  changeTabactive (e) {
    for (let i = 0; i < this.datas.list.length; i++) {
      let element = this.datas.list[i];
      element.show = false;
      element.color = this.datas.color_normal;
      if (i === e.index) {
        element.show = true;
        element.color = this.datas.color_active;
      }
    }
  }
}
