可视化动态表单动态表单界的天花板--Formily(阿里开源)

1、Formily表单介绍

Formily 是一个由阿里开源的动态表单解决方案，主要用于构建和管理复杂的表单界面。支持多种前端框架，包括但不限于 React 和 Vue，支持图形可视化界面设计表单，支持多种 UI 组件集成，Formily 的核心优势在于其灵活性和扩展性，允许开发者以声明式的方式定义表单结构和行为。

同类表单产品比较：

能力	Ant Design Form	Fusion Form	Formik	React Final Form	React Schema Form	React Hook Form	Formily1.x	Formily2.x
自定义组件接入成本	4.x接入成本低	高	低	低	高	高	低	低
性能	4.x性能较好	差	差	较好	差	好	非常好	非常好
是否支持动态渲染	否	否	否	否	是	否	是	是
是否开箱即用	是	是	否	否	是	否	是	是
是否支持跨端	否	否	否	否	否	否	是	是
开发效率	一般	一般	一般	一般	低	一般	高	高
学习成本	低	低	低	高	高	低	很高
视图代码可维护性	低	低	低	低	高	低	高	高
场景化封装能力	无	无	无	无	有	无	有	有
是否支持表单预览态	否	是	否	否	否	否	是	是

2、安装依赖

2.1、安装内核库

使用 Formily 必须要用到@formily/core，它负责管理表单的状态，表单校验，联动等等。

npm install --save @formily/core

2.2、 安装 UI 桥接库

单纯有了内核还不够，我们还需要一个 UI 库来接入内核数据，用来实现最终的表单交互效果，对于不同框架的用户，我们有不同的桥接库。

Vue 用户

npm install --save @formily/vue

2.3、Formily 支持多种 UI 组件生态：

包含 @formily/antd、@formily/antd-v5、@formily/antd-mobile、@formily/next、@formily/element、@formily/element-plus、@formily/antdv、@formily/vant 、@formily/semi、@formily/tdesign-react、aliyun teamix、antd-formily-boost。

3、表单设计器

Formily 表单设计器是基于designable而扩展出来的扩展包，它在继承了 designable 的基础能力上，提供了 Formily 基础表单的搭建和配置能力。

3.1、核心理念

Designable 的核心理念是将设计器搭建变成模块化组合，一切可替换，Designable 本身提供了一系列开箱即用的组件给用户使用，但是如果用户对组件不满意，是可以直接替换组件，从而实现最大化灵活定制，也就是 Designable 本身是不会提供任何插槽 Plugin 相关的 API

3.2、安装

Ant Design 用户

npm install --save @designable/formily-antd

Alibaba Fusion 用户

npm install --save @designable/formily-next

3.3、示例源码

import 'antd/dist/antd.less'
import React, { useMemo } from 'react'
import ReactDOM from 'react-dom'
import {
  Designer, //设计器根组件，主要用于下发上下文
  DesignerToolsWidget, //画板工具挂件
  ViewToolsWidget, //视图切换工具挂件
  Workspace, //工作区组件，核心组件，用于管理工作区内的拖拽行为，树节点数据等等...
  OutlineTreeWidget, //大纲树组件，它会自动识别当前工作区，展示出工作区内树节点
  ResourceWidget, //拖拽源挂件
  HistoryWidget, //历史记录挂件
  StudioPanel, //主布局面板
  CompositePanel, //左侧组合布局面板
  WorkspacePanel, //工作区布局面板
  ToolbarPanel, //工具栏布局面板
  ViewportPanel, //视口布局面板
  ViewPanel, //视图布局面板
  SettingsPanel, //右侧配置表单布局面板
  ComponentTreeWidget, //组件树渲染器
} from '@designable/react'
import { SettingsForm } from '@designable/react-settings-form'
import {
  createDesigner,
  GlobalRegistry,
  Shortcut,
  KeyCode,
} from '@designable/core'
import {
  LogoWidget,
  ActionsWidget,
  PreviewWidget,
  SchemaEditorWidget,
  MarkupSchemaWidget,
} from './widgets'
import { saveSchema } from './service'
import {
  Form,
  Field,
  Input,
  Select,
  TreeSelect,
  Cascader,
  Radio,
  Checkbox,
  Slider,
  Rate,
  NumberPicker,
  Transfer,
  Password,
  DatePicker,
  TimePicker,
  Upload,
  Switch,
  Text,
  Card,
  ArrayCards,
  ObjectContainer,
  ArrayTable,
  Space,
  FormTab,
  FormCollapse,
  FormLayout,
  FormGrid,
} from '../src'

GlobalRegistry.registerDesignerLocales({
  'zh-CN': {
    sources: {
      Inputs: '输入控件',
      Layouts: '布局组件',
      Arrays: '自增组件',
      Displays: '展示组件',
    },
  },
  'en-US': {
    sources: {
      Inputs: 'Inputs',
      Layouts: 'Layouts',
      Arrays: 'Arrays',
      Displays: 'Displays',
    },
  },
})

const App = () => {
  const engine = useMemo(
    () =>
      createDesigner({
        shortcuts: [
          new Shortcut({
            codes: [
              [KeyCode.Meta, KeyCode.S],
              [KeyCode.Control, KeyCode.S],
            ],
            handler(ctx) {
              saveSchema(ctx.engine)
            },
          }),
        ],
        rootComponentName: 'Form',
      }),
    []
  )
  return (
    <Designer engine={engine}>
      <StudioPanel logo={<LogoWidget />} actions={<ActionsWidget />}>
        <CompositePanel>
          <CompositePanel.Item title="panels.Component" icon="Component">
            <ResourceWidget
              title="sources.Inputs"
              sources={[
                Input,
                Password,
                NumberPicker,
                Rate,
                Slider,
                Select,
                TreeSelect,
                Cascader,
                Transfer,
                Checkbox,
                Radio,
                DatePicker,
                TimePicker,
                Upload,
                Switch,
                ObjectContainer,
              ]}
            />
            <ResourceWidget
              title="sources.Layouts"
              sources={[
                Card,
                FormGrid,
                FormTab,
                FormLayout,
                FormCollapse,
                Space,
              ]}
            />
            <ResourceWidget
              title="sources.Arrays"
              sources={[ArrayCards, ArrayTable]}
            />
            <ResourceWidget title="sources.Displays" sources={[Text]} />
          </CompositePanel.Item>
          <CompositePanel.Item title="panels.OutlinedTree" icon="Outline">
            <OutlineTreeWidget />
          </CompositePanel.Item>
          <CompositePanel.Item title="panels.History" icon="History">
            <HistoryWidget />
          </CompositePanel.Item>
        </CompositePanel>
        <Workspace id="form">
          <WorkspacePanel>
            <ToolbarPanel>
              <DesignerToolsWidget />
              <ViewToolsWidget
                use={['DESIGNABLE', 'JSONTREE', 'MARKUP', 'PREVIEW']}
              />
            </ToolbarPanel>
            <ViewportPanel>
              <ViewPanel type="DESIGNABLE">
                {() => (
                  <ComponentTreeWidget
                    components={{
                      Form,
                      Field,
                      Input,
                      Select,
                      TreeSelect,
                      Cascader,
                      Radio,
                      Checkbox,
                      Slider,
                      Rate,
                      NumberPicker,
                      Transfer,
                      Password,
                      DatePicker,
                      TimePicker,
                      Upload,
                      Switch,
                      Text,
                      Card,
                      ArrayCards,
                      ArrayTable,
                      Space,
                      FormTab,
                      FormCollapse,
                      FormGrid,
                      FormLayout,
                      ObjectContainer,
                    }}
                  />
                )}
              </ViewPanel>
              <ViewPanel type="JSONTREE" scrollable={false}>
                {(tree, onChange) => (
                  <SchemaEditorWidget tree={tree} onChange={onChange} />
                )}
              </ViewPanel>
              <ViewPanel type="MARKUP" scrollable={false}>
                {(tree) => <MarkupSchemaWidget tree={tree} />}
              </ViewPanel>
              <ViewPanel type="PREVIEW">
                {(tree) => <PreviewWidget tree={tree} />}
              </ViewPanel>
            </ViewportPanel>
          </WorkspacePanel>
        </Workspace>
        <SettingsPanel title="panels.PropertySettings">
          <SettingsForm uploadAction="https://www.mocky.io/v2/5cc8019d300000980a055e76" />
        </SettingsPanel>
      </StudioPanel>
    </Designer>
  )
}

ReactDOM.render(<App />, document.getElementById('root'))

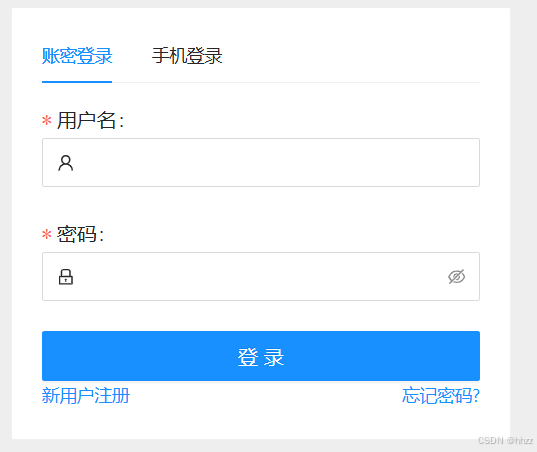

4、场景案例-登录注册

4.1、Markup Schema 案例

import React from 'react'
import { createForm } from '@formily/core'
import { createSchemaField } from '@formily/react'
import { Form, FormItem, Input, Password, Submit } from '@formily/antd'
import { Tabs, Card } from 'antd'
import * as ICONS from '@ant-design/icons'
import { VerifyCode } from './VerifyCode'

const normalForm = createForm({
  validateFirst: true,
})

const phoneForm = createForm({
  validateFirst: true,
})

const SchemaField = createSchemaField({
  components: {
    FormItem,
    Input,
    Password,
    VerifyCode,
  },
  scope: {
    icon(name) {
      return React.createElement(ICONS[name])
    },
  },
})

export default () => {
  return (
    <div
      style={{
        display: 'flex',
        justifyContent: 'center',
        background: '#eee',
        padding: '40px 0',
      }}
    >
      <Card style={{ width: 400 }}>
        <Tabs style={{ overflow: 'visible', marginTop: -10 }}>
          <Tabs.TabPane key="1" tab="账密登录">
            <Form
              form={normalForm}
              layout="vertical"
              size="large"
              onAutoSubmit={console.log}
            >
              <SchemaField>
                <SchemaField.String
                  name="username"
                  title="用户名"
                  required
                  x-decorator="FormItem"
                  x-component="Input"
                  x-validator={{
                    required: true,
                  }}
                  x-component-props={{
                    prefix: "{{icon('UserOutlined')}}",
                  }}
                />
                <SchemaField.String
                  name="password"
                  title="密码"
                  required
                  x-decorator="FormItem"
                  x-component="Password"
                  x-component-props={{
                    prefix: "{{icon('LockOutlined')}}",
                  }}
                />
              </SchemaField>
              <Submit block size="large">
                登录
              </Submit>
            </Form>
          </Tabs.TabPane>
          <Tabs.TabPane key="2" tab="手机登录">
            <Form
              form={phoneForm}
              layout="vertical"
              size="large"
              onAutoSubmit={console.log}
            >
              <SchemaField>
                <SchemaField.String
                  name="phone"
                  title="手机号"
                  required
                  x-validator="phone"
                  x-decorator="FormItem"
                  x-component="Input"
                  x-component-props={{
                    prefix: "{{icon('PhoneOutlined')}}",
                  }}
                />
                <SchemaField.String
                  name="verifyCode"
                  title="验证码"
                  required
                  x-decorator="FormItem"
                  x-component="VerifyCode"
                  x-component-props={{
                    prefix: "{{icon('LockOutlined')}}",
                  }}
                  x-reactions={[
                    {
                      dependencies: ['.phone#value', '.phone#valid'],
                      fulfill: {
                        state: {
                          'component[1].readyPost': '{{$deps[0] && $deps[1]}}',
                          'component[1].phoneNumber': '{{$deps[0]}}',
                        },
                      },
                    },
                  ]}
                />
              </SchemaField>
              <Submit block size="large">
                登录
              </Submit>
            </Form>
          </Tabs.TabPane>
        </Tabs>
        <div
          style={{
            display: 'flex',
            justifyContent: 'space-between',
          }}
        >
          <a href="#新用户注册">新用户注册</a>
          <a href="#忘记密码">忘记密码?</a>
        </div>
      </Card>
    </div>
  )
}

4.2、JSON Schema 案例

import React from 'react'
import { createForm } from '@formily/core'
import { createSchemaField } from '@formily/react'
import { Form, FormItem, Input, Password, Submit } from '@formily/antd'
import { Tabs, Card } from 'antd'
import * as ICONS from '@ant-design/icons'
import { VerifyCode } from './VerifyCode'

const normalForm = createForm({
  validateFirst: true,
})

const phoneForm = createForm({
  validateFirst: true,
})

const SchemaField = createSchemaField({
  components: {
    FormItem,
    Input,
    Password,
    VerifyCode,
  },
  scope: {
    icon(name) {
      return React.createElement(ICONS[name])
    },
  },
})

const normalSchema = {
  type: 'object',
  properties: {
    username: {
      type: 'string',
      title: '用户名',
      required: true,
      'x-decorator': 'FormItem',
      'x-component': 'Input',
      'x-component-props': {
        prefix: "{{icon('UserOutlined')}}",
      },
    },
    password: {
      type: 'string',
      title: '密码',
      required: true,
      'x-decorator': 'FormItem',
      'x-component': 'Password',
      'x-component-props': {
        prefix: "{{icon('LockOutlined')}}",
      },
    },
  },
}

const phoneSchema = {
  type: 'object',
  properties: {
    phone: {
      type: 'string',
      title: '手机号',
      required: true,
      'x-validator': 'phone',
      'x-decorator': 'FormItem',
      'x-component': 'Input',
      'x-component-props': {
        prefix: "{{icon('PhoneOutlined')}}",
      },
    },
    verifyCode: {
      type: 'string',
      title: '验证码',
      required: true,
      'x-decorator': 'FormItem',
      'x-component': 'VerifyCode',
      'x-component-props': {
        prefix: "{{icon('LockOutlined')}}",
      },
      'x-reactions': [
        {
          dependencies: ['.phone#value', '.phone#valid'],
          fulfill: {
            state: {
              'component[1].readyPost': '{{$deps[0] && $deps[1]}}',
              'component[1].phoneNumber': '{{$deps[0]}}',
            },
          },
        },
      ],
    },
  },
}

export default () => {
  return (
    <div
      style={{
        display: 'flex',
        justifyContent: 'center',
        background: '#eee',
        padding: '40px 0',
      }}
    >
      <Card style={{ width: 400 }}>
        <Tabs style={{ overflow: 'visible', marginTop: -10 }}>
          <Tabs.TabPane key="1" tab="账密登录">
            <Form
              form={normalForm}
              layout="vertical"
              size="large"
              onAutoSubmit={console.log}
            >
              <SchemaField schema={normalSchema} />
              <Submit block size="large">
                登录
              </Submit>
            </Form>
          </Tabs.TabPane>
          <Tabs.TabPane key="2" tab="手机登录">
            <Form
              form={phoneForm}
              layout="vertical"
              size="large"
              onAutoSubmit={console.log}
            >
              <SchemaField schema={phoneSchema} />
              <Submit block size="large">
                登录
              </Submit>
            </Form>
          </Tabs.TabPane>
        </Tabs>
        <div
          style={{
            display: 'flex',
            justifyContent: 'space-between',
          }}
        >
          <a href="#新用户注册">新用户注册</a>
          <a href="#忘记密码">忘记密码?</a>
        </div>
      </Card>
    </div>
  )
}

4.3、纯 JSX 案例

import React from 'react'
import { createForm } from '@formily/core'
import { Field } from '@formily/react'
import { Form, FormItem, Input, Password, Submit } from '@formily/antd'
import { Tabs, Card } from 'antd'
import { UserOutlined, LockOutlined, PhoneOutlined } from '@ant-design/icons'
import { VerifyCode } from './VerifyCode'

const normalForm = createForm({
  validateFirst: true,
})

const phoneForm = createForm({
  validateFirst: true,
})

export default () => {
  return (
    <div
      style={{
        display: 'flex',
        justifyContent: 'center',
        background: '#eee',
        padding: '40px 0',
      }}
    >
      <Card style={{ width: 400 }}>
        <Tabs style={{ overflow: 'visible', marginTop: -10 }}>
          <Tabs.TabPane key="1" tab="账密登录">
            <Form
              form={normalForm}
              layout="vertical"
              size="large"
              onAutoSubmit={console.log}
            >
              <Field
                name="username"
                title="用户名"
                required
                decorator={[FormItem]}
                component={[
                  Input,
                  {
                    prefix: <UserOutlined />,
                  },
                ]}
              />
              <Field
                name="password"
                title="密码"
                required
                decorator={[FormItem]}
                component={[
                  Password,
                  {
                    prefix: <LockOutlined />,
                  },
                ]}
              />
              <Submit block size="large">
                登录
              </Submit>
            </Form>
          </Tabs.TabPane>
          <Tabs.TabPane key="2" tab="手机登录">
            <Form
              form={phoneForm}
              layout="vertical"
              size="large"
              onAutoSubmit={console.log}
            >
              <Field
                name="phone"
                title="手机号"
                required
                validator="phone"
                decorator={[FormItem]}
                component={[
                  Input,
                  {
                    prefix: <PhoneOutlined />,
                  },
                ]}
              />
              <Field
                name="verifyCode"
                title="验证码"
                required
                reactions={(field) => {
                  const phone = field.query('.phone')
                  field.setComponentProps({
                    readyPost: phone.get('valid') && phone.get('value'),
                    phoneNumber: phone.get('value'),
                  })
                }}
                decorator={[FormItem]}
                component={[
                  VerifyCode,
                  {
                    prefix: <LockOutlined />,
                  },
                ]}
              />
              <Submit block size="large">
                登录
              </Submit>
            </Form>
          </Tabs.TabPane>
        </Tabs>
        <div
          style={{
            display: 'flex',
            justifyContent: 'space-between',
          }}
        >
          <a href="#新用户注册">新用户注册</a>
          <a href="#忘记密码">忘记密码?</a>
        </div>
      </Card>
    </div>
  )
}

---

没有谁能击垮你,除非你自甘堕落。

---
