Orange 单体架构 - 快速启动

1 后端服务

1.1 基础设施

组件 说明 版本
MySQL MySQL数据库服务 5.7/8+
Java Java 17
redis-stack Redis向量数据库 最新版本
Node 安装Node 22.11.0+

1.2 orange-dependencies-parent

项目Maven依赖版本管理

1.2.1 项目克隆

  • GitHub
    git clone https://github.com/hengzq/orange-dependencies-parent.git
  • Gitee
    git clone https://gitee.com/hengzq/orange-dependencies-parent.git

1.2.2 项目编译

  • 方式一

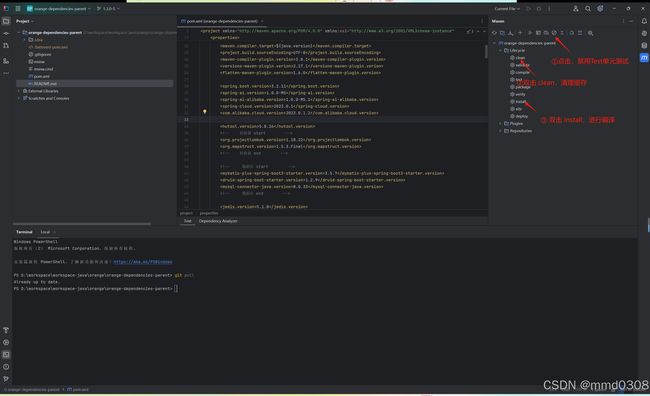

    使用IDEA自带的Maven插件,进行编译。如下图所示:

Orange 单体架构 - 快速启动_第1张图片

  • 方式二

使用 Maven 命令编译

    mvn clean install package '-Dmaven.test.skip=true'

1.3 orange-starters

通用项目Starter管理

1.3.1 项目克隆

  • GitHub
    git clone https://github.com/hengzq/orange-starters.git
  • Gitee
    git clone https://gitee.com/hengzq/orange-starters.git

1.3.2 项目编译

参考:orange-dependencies-parent 项目编译

1.4 orange-system

系统模块涵盖了部门管理、用户管理、菜单配置、角色分配、字典维护以及日志记录等功能。

1.4.1 项目克隆

  • GitHub
    git clone https://github.com/hengzq/orange-system.git
  • Gitee
    git clone https://gitee.com/hengzq/orange-system.git

1.4.2 项目编译

参考:orange-dependencies-parent 项目编译

1.4.3 初始化 MySQL

执行项目中的SQL脚本进行MySQL初始化 orange-system MySQL脚本

1.5 orange-ai

Orange-AI 提供了简便的工具,能够快速集成并高效测试来自阿里、智谱、OpenAI等领先供应商的大规模模型。

1.5.1 项目克隆

  • GitHub
    git clone https://github.com/hengzq/orange-ai.git
  • Gitee
    git clone https://gitee.com/hengzq/orange-ai.git

1.5.2 项目编译

参考:orange-dependencies-parent 项目编译

1.5.3 初始化 MySQL

执行项目中的SQL脚本进行MySQL初始化 orange-ai MySQL脚本

1.6 orange-monomer

依托Orange System及Orange AI插件,构建一体化的单体架构服务

1.6.1 项目克隆

  • GitHub
    git clone https://github.com/hengzq/orange-monomer.git
  • Gitee
    git clone https://github.com/hengzq/orange-monomer.git

1.6.2 项目启动

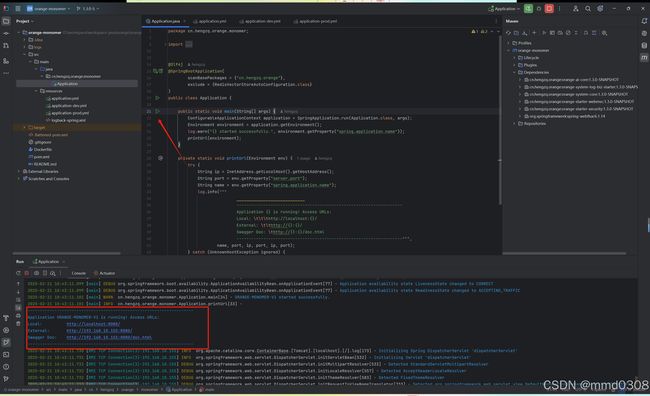

执行 Application 类,进行启动。

Orange 单体架构 - 快速启动_第2张图片

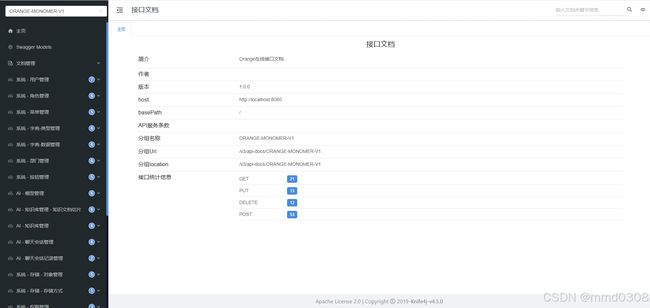

启动完成后,使用浏览器访问http://localhost:8080/doc.html地址,查看Swagger文档。如下图所示:

Orange 单体架构 - 快速启动_第3张图片

2 前端服务

2.1 orange-tiny-vue3-ui

前端服务使用 Vue3 和 TinyPro 技术栈构建了一个高效且功能丰富的管理后台。

2.1.1 项目克隆

  • GitHub
    git clone https://github.com/hengzq/orange-tiny-vue3-ui.git
  • Gitee
    git clone https://gitee.com/hengzq/orange-tiny-vue3-ui.git

2.1.2 项目运行

  • 启动项目
    # 进入项目目录
    cd orange-tiny-vue3-ui

    # 安装依赖
    npm install

    # 指定 registry 来解决 npm 安装速度慢的问题。
    npm install --registry=https://registry.npmmirror.com

    # 项目启动
    npm run start
  • 预览

打开浏览器,输入:[http://localhost:3031/](http://localhost:3031/)

账号:admin 密码:hengzq.cn

3 项目体验

  • Orange 官网: http://hengzq.cn
  • 在线体验: http://tiny.hengzq.cn
  • 项目文档: http://hengzq.cn/orange-monomer/
  • 单体架构-后端源码下载【GitHub】: https://github.com/hengzq/orange-monomer
  • 单体架构-后端源码下载【Gitee】: https://gitee.com/hengzq/orange-monomer
  • 微服务版本-后端源码下载【GitHub】: https://github.com/hengzq/orange-cloud
  • 微服务版本-后端源码下载【Gitee】: https://gitee.com/hengzq/orange-cloud
  • 前端源码下载【GitHub】: https://github.com/hengzq/orange-cloud
  • 前端源码下载【Gitee】: https://gitee.com/hengzq/orange-cloud

注:前端项目设计灵活,能够同时兼容后端的单体架构和微服务架构
