【一看就会】Autoware.universe的静态绕障路线的相关参数修改

文章目录

  • 前言
  • 一、参数文件
  • 二、AvoidOutlines ShiftLineGenerator::generateAvoidOutline:生成绕障路线
  • 总结


前言

autoware中的静态绕障路线有点太长了,看到障碍物后提前很多开始绕障,并且绕完之后会很远才能回去。
对于这个绕障路线,有些参数可以修改,将其缩短,本文进行总结。
需要注意的是,这部分参数如果修改的太小,就无法生成一条可行的路径,需要注意。

关于绕障线路的计算和逻辑,在官方文档中讲的很清楚,本文主要是在代码中的修改进行补充。
绕障逻辑官方文档


一、参数文件

参数文件中有些参数可以修改。
主要涉及的参数文件有两个:分别是static_obstacle中的参数文件,还有start_planner中的参数文件

两个文件中,主要可修改的参数有:

      # avoidance is performed for the object type with true
      target_object:
      ...
          lateral_margin:
            soft_margin: 0.3                            # [m]
            hard_margin: 0.2                            # [m]
            hard_margin_for_parked_vehicle: 0.7         # [m]
      ...
      # For target object filtering
      target_filtering:
      ...
        # detection area generation parameters
        detection_area:
          static: false                                 # [-]
          min_forward_distance: 50.0                    # [m]
          max_forward_distance: 150.0                   # [m]
          backward_distance: 10.0                       # [m]

如果你只是想单纯的调整参数的话,就直接转到第二节。

简单说一下相关逻辑,这部分主要是参考官方文档进行说明。

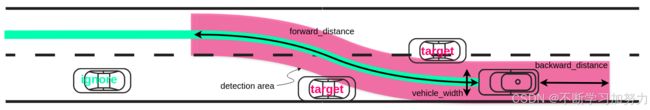

检测区域的宽度 #
获取所有类别(汽车、卡车、…)中横向边际最大值。边际值为 soft_margin和 hard_margin_for_parked_vehicle.
检测区域宽度是自我车辆宽度和最大横向边距的总和。

而纵向距离:
纵向距离取决于最大横向移位长度、横向抖动力约束和当前自我的速度。此外,它还必须考虑准备阶段使用的距离。

...
    const auto max_shift_length = std::max(
      std::abs(parameters_->max_right_shift_length), std::abs(parameters_->max_left_shift_length));
    const auto dynamic_distance =
      PathShifter::calcLongitudinalDistFromJerk(max_shift_length, getLateralMinJerkLimit(), speed);

    return std::clamp(
      1.5 * dynamic_distance + getNominalPrepareDistance(),
      parameters_->object_check_min_forward_distance,
      parameters_->object_check_max_forward_distance);

【一看就会】Autoware.universe的静态绕障路线的相关参数修改_第1张图片

# 参考 avoidance_module_data.hpp 中的 AvoidanceParameters 描述。
/**:
  ros__parameters:
    avoidance: # 避障相关参数
      resample_interval_for_planning: 0.3 # [m] 规划时的重采样间隔(开发者用)
      resample_interval_for_output: 4.0 # [m] 输出时的重采样间隔(开发者用)

      # 可行驶车道设置。该模块不仅可使用当前车道,还可使用右侧/左侧车道(如果当前车道与右侧/左侧车道在 HDMap 中共享边界)。
      # "current_lane"           : 仅使用当前车道。该模块不使用相邻车道避障。
      # "same_direction_lane"    : 如果需要,该模块使用同方向车道避障。
      # "opposite_direction_lane": 该模块使用同方向和反方向车道。
      use_lane_type: "opposite_direction_lane"
      # 可行驶区域设置
      use_intersection_areas: true # 是否使用交叉路口区域
      use_hatched_road_markings: true # 是否使用虚线区域
      use_freespace_areas: true # 是否使用自由空间区域

      # 针对设置为 true 的目标类型执行避障操作
      target_object:
        car: # 汽车
          th_moving_speed: 1.0 # [m/s] 判定为移动的最小速度
          th_moving_time: 2.0 # [s] 判定为移动的最小时间
          longitudinal_margin: 0.0 # [m] 纵向安全距离
          lateral_margin: # 横向安全距离
            soft_margin: 0.3 # [m] 软安全距离
            hard_margin: 0.2 # [m] 硬安全距离
            hard_margin_for_parked_vehicle: 0.7 # [m] 针对停车车辆的硬安全距离
          max_expand_ratio: 0.0 # [-] 最大扩展比例(开发者用)
          envelope_buffer_margin: 0.5 # [m] 包络缓冲距离(开发者用)
          th_error_eclipse_long_radius: 0.6 # [m] 椭圆误差的长轴半径
        truck: # 卡车
          th_moving_speed: 1.0
          th_moving_time: 2.0
          longitudinal_margin: 0.0
          lateral_margin:
            soft_margin: 0.3
            hard_margin: 0.2
            hard_margin_for_parked_vehicle: 0.7
          max_expand_ratio: 0.0
          envelope_buffer_margin: 0.5
          th_error_eclipse_long_radius: 0.6
        bus: # 公交车
          th_moving_speed: 1.0
          th_moving_time: 2.0
          longitudinal_margin: 0.0
          lateral_margin:
            soft_margin: 0.3
            hard_margin: 0.2
            hard_margin_for_parked_vehicle: 0.7
          max_expand_ratio: 0.0
          envelope_buffer_margin: 0.5
          th_error_eclipse_long_radius: 0.6
        trailer: # 挂车
          th_moving_speed: 1.0
          th_moving_time: 2.0
          longitudinal_margin: 0.0
          lateral_margin:
            soft_margin: 0.3
            hard_margin: 0.2
            hard_margin_for_parked_vehicle: 0.7
          max_expand_ratio: 0.0
          envelope_buffer_margin: 0.5
          th_error_eclipse_long_radius: 0.6
        unknown: # 未知类型
          th_moving_speed: 0.28
          th_moving_time: 1.0
          longitudinal_margin: 0.0
          lateral_margin:
            soft_margin: 0.7
            hard_margin: -0.2
            hard_margin_for_parked_vehicle: -0.2
          max_expand_ratio: 0.0
          envelope_buffer_margin: 0.1
          th_error_eclipse_long_radius: 0.6
        bicycle: # 自行车
          th_moving_speed: 0.28
          th_moving_time: 1.0
          longitudinal_margin: 1.0
          lateral_margin:
            soft_margin: 0.7
            hard_margin: 0.5
            hard_margin_for_parked_vehicle: 0.5
          max_expand_ratio: 0.0
          envelope_buffer_margin: 0.5
          th_error_eclipse_long_radius: 0.6
        motorcycle: # 摩托车
          th_moving_speed: 1.0
          th_moving_time: 1.0
          longitudinal_margin: 1.0
          lateral_margin:
            soft_margin: 0.7
            hard_margin: 0.3
            hard_margin_for_parked_vehicle: 0.3
          max_expand_ratio: 0.0
          envelope_buffer_margin: 0.5
          th_error_eclipse_long_radius: 0.6
        pedestrian: # 行人
          th_moving_speed: 0.28
          th_moving_time: 1.0
          longitudinal_margin: 1.0
          lateral_margin:
            soft_margin: 0.7
            hard_margin: 0.5
            hard_margin_for_parked_vehicle: 0.5
          max_expand_ratio: 0.0
          envelope_buffer_margin: 0.5
          th_error_eclipse_long_radius: 0.6
        lower_distance_for_polygon_expansion: 30.0 # [m] 多边形扩展的下限距离(开发者用)
        upper_distance_for_polygon_expansion: 100.0 # [m] 多边形扩展的上限距离(开发者用)

      # 目标对象过滤
      target_filtering:
        # 避障目标类型
        target_type:
          car: true # 是否将汽车作为目标
          truck: true
          bus: true
          trailer: true
          unknown: true
          bicycle: true
          motorcycle: true
          pedestrian: true
        # 检测范围
        object_check_goal_distance: 20.0 # [m] 目标检测距离
        object_check_return_pose_distance: 20.0 # [m] 返回姿态检测距离
        # 丢失目标补偿
        max_compensation_time: 2.0 # 最大补偿时间

        # 检测区域生成参数
        detection_area:
          static: false # 是否静态检测区域
          min_forward_distance: 50.0 # [m] 最小前向距离
          max_forward_distance: 150.0 # [m] 最大前向距离
          backward_distance: 10.0 # [m] 后向距离

        # 过滤停车对象
        parked_vehicle:
          th_offset_from_centerline: 1.0 # [m] 偏离中心线的阈值
          th_shiftable_ratio: 0.8 # 可移动比例阈值
          min_road_shoulder_width: 0.5 # [m] 最小道路边缘宽度(开发者用)

        # 合流/偏离车辆
        merging_vehicle:
          th_overhang_distance: 0.0 # [m] 悬挂距离阈值

        # 针对停车状态不明确的车辆的避障参数
        avoidance_for_ambiguous_vehicle:
          # 针对停车状态不明确的车辆的自车行为策略
          # "auto"   : 生成候选路径。如果 RTC 处于自动模式,则自车自动避障。
          # "manual" : 生成候选路径,即使 RTC 处于自动模式,也等待操作员批准。
          # "ignore" : 从不避障。
          policy: "auto"
          condition:
            th_stopped_time: 3.0 # [s] 停止时间阈值
            th_moving_distance: 1.0 # [m] 移动距离阈值
          ignore_area:
            traffic_light:
              front_distance: 100.0 # [m] 交通灯前方距离
            crosswalk:
              front_distance: 30.0 # [m] 斑马线前方距离
              behind_distance: 30.0 # [m] 斑马线后方距离
          wait_and_see:
            target_behaviors: ["MERGING", "DEVIATING"] # 目标行为
            th_closest_distance: 10.0 # [m] 最近距离阈值

        # 交叉路口内目标对象过滤
        intersection:
          yaw_deviation: 0.349 # [rad] 偏航偏差(默认 20.0 度)

        frees
/**
 * 这是自动驾驶车辆起始规划器(start_planner)的参数配置文件。
 * 包括到达目标点的条件、碰撞检测、路径生成、避障策略等参数。
 */

ros__parameters:
  start_planner: # 起始规划器相关参数

    # 到达目标点的条件
    th_arrived_distance: 1.0 # [m] 判定为到达目标点的距离阈值
    th_stopped_velocity: 0.01 # [m/s] 判定为停止的速度阈值
    th_stopped_time: 1.0 # [s] 判定为停止的时间阈值

    # 碰撞检测相关参数
    collision_check_margins: [2.0, 1.0, 0.5, 0.1] # 碰撞检测的安全距离(多个值,用于不同的场景)
    collision_check_margin_from_front_object: 5.0 # [m] 前方物体的碰撞检测安全距离
    extra_width_margin_for_rear_obstacle: 0.5 # [m] 后方障碍物的额外宽度安全距离
    th_moving_object_velocity: 1.0 # [m/s] 判定为移动物体的速度阈值

    # 需要检查的目标类型
    object_types_to_check_for_path_generation:
      check_car: true # 是否检查汽车
      check_truck: true # 是否检查卡车
      check_bus: true # 是否检查公交车
      check_trailer: true # 是否检查拖车
      check_bicycle: true # 是否检查自行车
      check_motorcycle: true # 是否检查摩托车
      check_pedestrian: true # 是否检查行人
      check_unknown: true # 是否检查未知类型物体

    th_distance_to_middle_of_the_road: 0.5 # [m] 判定为靠近道路中间的距离阈值
    center_line_path_interval: 1.0 # [m] 中心线路径的采样间隔

    # Shift 拉出(Shift Pull Out)相关参数
    enable_shift_pull_out: true # 是否启用 Shift 拉出功能
    check_shift_path_lane_departure: true # 是否检查 Shift 路径是否偏离车道
    allow_check_shift_path_lane_departure_override: false # 是否允许覆盖 Shift 路径偏离车道的检查
    shift_collision_check_distance_from_end: -10.0 # [m] Shift 碰撞检测距离终点的距离
    minimum_shift_pull_out_distance: 0.0 # [m] Shift 拉出的最小距离
    maximum_longitudinal_deviation: 1.0 # [m] 最大纵向偏差(注意:应与规划验证器中的 "longitudinal_distance_deviation" 相同或更小)
    lateral_jerk: 0.5 # [m/s^3] 横向加速度变化率
    lateral_acceleration_sampling_num: 3 # 横向加速度采样数量
    minimum_lateral_acc: 0.15 # [m/s^2] 最小横向加速度
    maximum_lateral_acc: 0.5 # [m/s^2] 最大横向加速度
    maximum_curvature: 0.07 # [1/m] 最大曲率
    end_pose_curvature_threshold: 0.01 # [1/m] 终点姿态的曲率阈值

    # 几何拉出(Geometric Pull Out)相关参数
    enable_geometric_pull_out: true # 是否启用几何拉出功能
    geometric_collision_check_distance_from_end: 0.0 # [m] 几何碰撞检测距离终点的距离
    arc_path_interval: 1.0 # [m] 弧路径的采样间隔
    divide_pull_out_path: true # 是否分割拉出路径
    geometric_pull_out_velocity: 1.0 # [m/s] 几何拉出的速度
    lane_departure_margin: 0.2 # [m] 车道偏离的容差
    lane_departure_check_expansion_margin: 0.0 # [m] 车道偏离检查的扩展容差
    backward_velocity: -1.0 # [m/s] 后退速度
    pull_out_max_steer_angle: 0.26 # [rad] 拉出时的最大转向角(15度)

    # 搜索起始姿态(向后搜索)
    enable_back: true # 是否启用向后搜索
    search_priority: "efficient_path" # 搜索优先级("efficient_path" 或 "short_back_distance")
    max_back_distance: 20.0 # [m] 向后搜索的最大距离
    backward_search_resolution: 2.0 # [m] 向后搜索的分辨率
    backward_path_update_duration: 3.0 # [s] 向后路径更新的持续时间
    ignore_distance_from_lane_end: 15.0 # [m] 忽略距离车道末端的距离

    # 转向灯相关参数
    prepare_time_before_start: 0.0 # [s] 启动前的准备时间

    # 自由空间规划器(FreeSpace Planner)相关参数
    freespace_planner:
      enable_freespace_planner: true # 是否启用自由空间规划器
      end_pose_search_start_distance: 20.0 # [m] 终点姿态搜索的起始距离
      end_pose_search_end_distance: 30.0 # [m] 终点姿态搜索的结束距离
      end_pose_search_interval: 2.0 # [m] 终点姿态搜索的间隔
      freespace_planner_algorithm: "astar" # 自由空间规划算法(选项:astar、rrtstar)
      velocity: 1.0 # [m/s] 规划速度
      vehicle_shape_margin: 1.0 # [m] 车辆形状的容差
      time_limit: 3000.0 # [ms] 时间限制
      max_turning_ratio: 0.7 # 最大转向比例
      turning_steps: 1 # 转向步骤
      # 搜索配置
      search_configs:
        theta_size: 144 # 角度搜索的大小
        angle_goal_range: 6.0 # [rad] 角度目标范围
        curve_weight: 1.2 # 曲线权重
        reverse_weight: 1.0 # 反向权重
        lateral_goal_range: 0.5 # [m] 横向目标范围
        longitudinal_goal_range: 2.0 # [m] 纵向目标范围
      # 成本图配置
      costmap_configs:
        obstacle_threshold: 30 # 障碍物阈值
      # A* 搜索配置
      astar:
        search_method: "forward" # 搜索方法(选项:forward、backward)
        only_behind_solutions: false # 是否仅考虑后方解决方案
        use_back: false # 是否使用向后搜索
        distance_heuristic_weight: 1.0 # 距离启发式权重
      # RRT* 搜索配置
      rrtstar:
        enable_update: true # 是否启用更新
        use_informed_sampling: true # 是否使用有信息的采样
        max_planning_time: 150.0 # [ms] 最大规划时间
        neighbor_radius: 8.0 # [m] 邻域半径
        margin: 1.0 # [m] 容差

    # 停止条件
    stop_condition:
      maximum_deceleration_for_stop: 1.0 # [m/s^2] 停止时的最大减速度
      maximum_jerk_for_stop: 1.0 # [m/s^3] 停止时的最大加速度变化率

    # 路径安全性检查
    path_safety_check:
      # 自车预测路径
      ego_predicted_path:
        min_velocity: 0.0 # [m/s] 最小速度
        min_acceleration: 1.0 # [m/s^2] 最小加速度
        time_horizon_for_front_object: 10.0 # [s] 前方物体的时间范围
        time_horizon_for_rear_object: 10.0 # [s] 后方物体的时间范围
        time_resolution: 0.5 # [s] 时间分辨率
        delay_until_departure: 1.0 # [s] 出发前的延迟时间
      # 目标对象过滤
      target_filtering:
        safety_check_time_horizon: 5.0 # [s] 安全检查的时间范围
        safety_check_time_resolution: 1.0 # [s] 安全检查的时间分辨率
        # 检测范围
        object_check_forward_distance: 10.

二、AvoidOutlines ShiftLineGenerator::generateAvoidOutline:生成绕障路线

这个函数在static_obstacle中的shift_lane文件,其中可以进行一些参数的调整,来对绕障路线的长度的进行调整。
就是下面这部分代码,按照我的注释进行修改即可。

   AvoidLine al_avoid;
    {
      const auto constant_distance = helper_->getFrontConstantDistance(o);
      const auto to_shift_end = o.longitudinal - constant_distance;
      const auto path_front_to_ego = data.arclength_from_ego.at(data.ego_closest_path_index);

      // start point (use previous linear shift length as start shift length.)这个是开始绕障的起点,包含了障碍物的纵向距离,前方常数距离,最小避障距离,和当前已有的偏移量
      // 有几种方法可以让开始绕障的起点离障碍物更近:
      // 减小nearest_avoid_distance的计算中的15.0这个常数值
      // 修改minimum_avoid_distance的计算方式
      // 直接在计算结果上应用一个缩放因子
      al_avoid.start_longitudinal = [&]() {
        const auto nearest_avoid_distance =
          // std::max(to_shift_end - feasible_shift_profile.value().second, 1e-3);
        std::max(to_shift_end - std::min(feasible_shift_profile.value().second, 15.0), 1e-3);

        if (data.to_start_point > to_shift_end) {
          return nearest_avoid_distance;
        }

        const auto minimum_avoid_distance = helper_->getMinAvoidanceDistance(
          feasible_shift_profile.value().first - current_ego_shift);
        const auto furthest_avoid_distance = std::max(to_shift_end - minimum_avoid_distance, 1e-3);

        return std::clamp(data.to_start_point, nearest_avoid_distance, furthest_avoid_distance);
      }();

      al_avoid.start_idx = utils::static_obstacle_avoidance::findPathIndexFromArclength(
        data.arclength_from_ego, al_avoid.start_longitudinal + path_front_to_ego);
      al_avoid.start = data.reference_path.points.at(al_avoid.start_idx).point.pose;
      al_avoid.start_shift_length = helper_->getLinearShift(al_avoid.start.position);

      // end point
      al_avoid.end_shift_length = feasible_shift_profile.value().first;
      al_avoid.end_longitudinal = to_shift_end;

      // misc
      al_avoid.id = generateUUID();
      al_avoid.object = o;
      al_avoid.object_on_right = utils::static_obstacle_avoidance::isOnRight(o);
    }

    AvoidLine al_return;
    {
      const auto constant_distance = helper_->getRearConstantDistance(o);
      const auto to_shift_start = o.longitudinal + constant_distance + 0.0;//回归路线的起点,包含了障碍物的纵向距离,前方常数距离,和额外的一个安全距离3m

      // start point
      al_return.start_shift_length = feasible_shift_profile.value().first;
      al_return.start_longitudinal = to_shift_start;

      // end point,结束绕障的终点,回归起点加上一个固定距离(代码中是20米)
      al_return.end_longitudinal = [&]() {
        return to_shift_start+15;// 注意这里有硬编码的20米
  // 下面的代码实际上不会执行,因为上面有return语句
        if (data.to_return_point > to_shift_start) {
          return std::clamp(
            data.to_return_point, to_shift_start, feasible_return_distance + to_shift_start);
        }

        return to_shift_start + feasible_return_distance;
      }();
      al_return.end_shift_length = 0.0;

      // misc
      al_return.id = generateUUID();
      al_return.object = o;
      al_return.object_on_right = utils::static_obstacle_avoidance::isOnRight(o);
    }

总结

这部分的参数修改能做到的程度还是有限,无法做到贴着障碍物绕行。

你可能感兴趣的:(算法,自动驾驶)
