C#基于Sunnyui框架和MVC模式实现用户登录管理

C#基于Sunnyui框架和MVC模式实现用户登录管理

  • 1 Controller
    • 1.1 UserManagementController.cs(控制器入口)
  • 2 Model
    • 2.1 UserRepository.cs(用户管理模型)
    • 2.2 User.cs(用户结构体)
    • 2.3 SQLiteHelper.cs(数据库工具类)
  • 3 View
    • 3.1 LoginView.cs(用户登录窗体)
    • 3.2 UserManagementForm(用户信息管理窗体)
      • 3.2.1 UserManagementForm.cs
      • 3.2.2 UserManagementForm.Designer.cs
    • 3.3 UserUpdataForm.cs(添加、修改用户对话框)
  • 4 扩展类

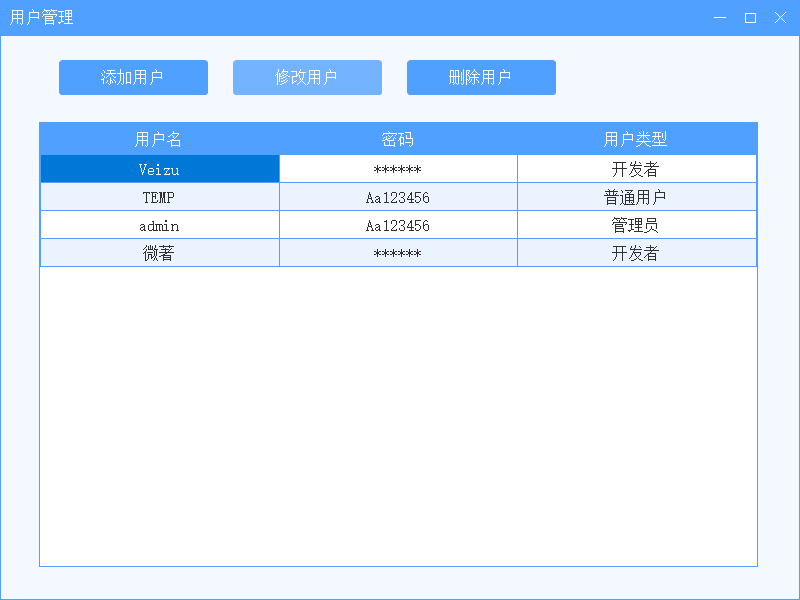

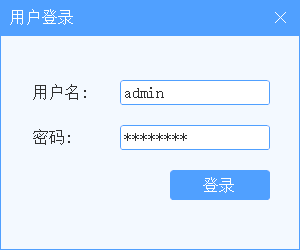

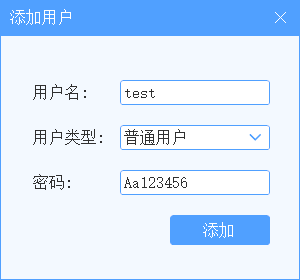

C#基于Sunnyui框架和MVC模式实现用户登录管理_第1张图片
C#基于Sunnyui框架和MVC模式实现用户登录管理_第2张图片
C#基于Sunnyui框架和MVC模式实现用户登录管理_第3张图片
C#基于Sunnyui框架和MVC模式实现用户登录管理_第4张图片
C#基于Sunnyui框架和MVC模式实现用户登录管理_第5张图片

说明

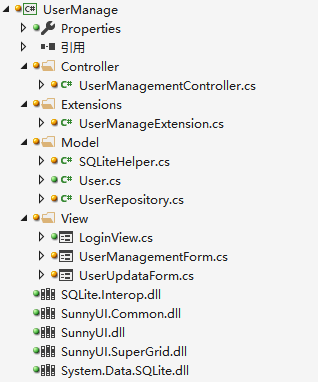

  • 类库结构如上图;
  • 外部调用通过控制器入口调用
  • 用户信息存储于数据库表中,路径:输出目录中userdata.db;
  • 初始化自动生成开发者账号信息;

1 Controller

1.1 UserManagementController.cs(控制器入口)

using System;
using System.Windows.Forms;
using UserManage.Extensions;
using UserManage.Model;
using UserManage.View;

namespace UserManage.Controller
{
    public class UserManagementController
    {
        private const string PermissionPrompt = "权限不足,请登录管理员账号";
        private readonly LoginView _loginForm;
        private readonly UserRepository _userRepository;
        private readonly UserManagementForm _userManagementForm;
        private User _currentUser;

        public UserType UserPermission => _currentUser?.UserType ?? UserType.Null;

        public UserManagementController()
        {
            _loginForm = new LoginView();
            _userRepository = new UserRepository();
            _userManagementForm = new UserManagementForm();

            _loginForm.LoginClicked += LoginForm_LoginClicked;
            _userManagementForm.AddUserClicked += UserManagementForm_AddUserClicked;
            _userManagementForm.ModifyUserClicked += UserManagementForm_ChangeUserPasswordClicked;
            _userManagementForm.DeleteUserClicked += UserManagementForm_DeleteUserClicked;
        }

        public UserManagementController(UserManagementForm userManagementForm)
        {
            this._userManagementForm = userManagementForm;
        }

        public void RunLoginForm()
        {
            _loginForm.ShowDialog();
        }

        public void RunUserManagementForm()
        {
            if (_currentUser == null)
            {
                UserManageExtension.ShowMsg(PermissionPrompt);
                return;
            }
            if (_currentUser.UserType != UserType.Developer && _currentUser.UserType != UserType.Admin)
            {
                UserManageExtension.ShowMsg(PermissionPrompt);
                return;
            }

            LoadUser();
            _userManagementForm.ShowDialog();
        }

        private void LoadUser()
        {
            var table = _userRepository.GetUserTable();
            table.Columns[0].ColumnName = "用户名";
            table.Columns[1].ColumnName = "密码";
            table.Columns[2].ColumnName = "用户类型";
            _currentUser = _userRepository.GetUser(_currentUser.Username, _currentUser.Password);
            if (_currentUser.UserType != UserType.Developer)
            {
                for (int i = 0; i < table.Rows.Count; i++)
                {
                    if (table.Rows[i][2].ToString().GetUserTypeByText() == UserType.Developer)
                    {
                        table.Rows[i][1] = "******";
                    }
                }
            }
            _userManagementForm.LoadUsers(table);
        }

        private void LoginForm_LoginClicked(object sender, EventArgs e)
        {
            string username = _loginForm.Username;
            string password = _loginForm.Password;
            _currentUser = _userRepository.AuthenticateUser(username, password);
            if (_currentUser != null)
            {
                _loginForm.Hide();
            }
            else
            {
                UserManageExtension.ShowMsg("用户名或密码错误!");
            }
        }

        private void UserManagementForm_AddUserClicked(object sender, EventArgs e)
        {
            UserUpdataForm addDialog = new UserUpdataForm();
            switch (UserPermission)
            {
                case UserType.Developer:
                    addDialog.RefreshAddUserInfo();
                    addDialog.AddUserType(UserType.Developer, UserType.Admin, UserType.NormalUser);
                    break;
                case UserType.Admin:
                    addDialog.RefreshAddUserInfo();
                    addDialog.AddUserType(UserType.NormalUser);
                    break;
                default:
                    UserManageExtension.ShowMsg(PermissionPrompt);
                    return;
            }

            addDialog.EnterClicked += (o, args) =>
            {
                try
                {
                    string username = addDialog.UserName;
                    string password = addDialog.Password;
                    UserType userType = addDialog.UserType;
                    if (addDialog.UserType == UserType.Null)
                    {
                        UserManageExtension.ShowMsg("请选择用户类型!");
                        return;
                    }

                    if (UserManageExtension.Confirm($"请确认添加用户信息" +
                                                    $"{Environment.NewLine}用户名:{username}" +
                                                    $"{Environment.NewLine}密码:{password}" +
                                                    $"{Environment.NewLine}用户类型:{userType.GetUserTypeText()}" +
                                                    $"{Environment.NewLine}确认添加?"))
                    {
                        _userRepository.AddUser(username, password, userType);
                        addDialog.DialogResult = DialogResult.OK;
                    }
                }
                catch (Exception ex)
                {
                    UserManageExtension.ShowMsg(ex.Message);
                }

            };
            addDialog.ShowDialog();
            LoadUser();
        }

        private void UserManagementForm_DeleteUserClicked(object sender, EventArgs e)
        {
            var selectUser = _userManagementForm.SelectUser;
            if (selectUser == null)
            {
                UserManageExtension.ShowMsg(PermissionPrompt);
                return;
            }

            if (selectUser.UserType == UserType.Developer)
            {
                UserManageExtension.ShowMsg("无法删除开发者账户", "警告");
                return;
            }

            if (!UserManageExtension.Confirm($"您正在删除用户[{selectUser.Username}],删除后将无法恢复,请确认是否继续?"))
                return;


            switch (UserPermission)
            {
                case UserType.Developer:
                case UserType.Admin:
                    _userRepository.DeleteUser(selectUser.Username);
                    break;
                default:
                    UserManageExtension.ShowMsg(PermissionPrompt);
                    return;
            }
            LoadUser();
        }

        private void UserManagementForm_ChangeUserPasswordClicked(object sender, EventArgs e)
        {
            var selectUser = _userManagementForm.SelectUser;
            if (selectUser == null)
            {
                UserManageExtension.ShowMsg("请选择需要修改的用户");
                return;
            }

            if (selectUser.UserType == UserType.Developer && _currentUser.UserType != UserType.Developer)
            {
                UserManageExtension.ShowMsg(PermissionPrompt);
                return;
            }

            UserUpdataForm updataDialog = new UserUpdataForm();
            switch (UserPermission)
            {
                case UserType.Developer:
                    updataDialog.RefreshUdpataUserInfo(selectUser);
                    updataDialog.AddUserType(UserType.Developer, UserType.Admin, UserType.NormalUser);
                    break;
                case UserType.Admin:
                    updataDialog.RefreshUdpataUserInfo(selectUser);
                    updataDialog.AddUserType(UserType.NormalUser);
                    break;
                default:
                    UserManageExtension.ShowMsg(PermissionPrompt);
                    return;
            }

            updataDialog.EnterClicked += (o, args) =>
            {
                try
                {
                    if (updataDialog.UserType == UserType.Null)
                    {
                        UserManageExtension.ShowMsg("请选择用户类型!");
                        return;
                    }
                    string username = updataDialog.UserName;
                    string password = updataDialog.Password;
                    UserType userType = updataDialog.UserType;
                    if (UserManageExtension.Confirm($"用户[{username}],密码修改为{Environment.NewLine}{password}{Environment.NewLine}是否确认修改?"))
                    {
                        _userRepository.ChangePassword(username, password, userType.GetUserTypeText());
                        updataDialog.DialogResult = DialogResult.OK;
                    }

                }
                catch (Exception ex)
                {
                    UserManageExtension.ShowMsg(ex.Message);
                }
            };
            updataDialog.ShowDialog();
            LoadUser();
        }

    }
}

2 Model

2.1 UserRepository.cs(用户管理模型)

using System;
using System.Collections.Generic;
using System.Data;
using System.Data.SQLite;
using System.Diagnostics.Eventing.Reader;
using System.IO;
using System.Text.RegularExpressions;
using System.Windows.Forms;
using UserManage.Extensions;

namespace UserManage.Model
{
    public class UserRepository
    {
        private const string TableName = "User";
        private string connectionString = "Data Source=users.db;Version=3;";
        private SQLiteHelper _sqLiteHelper;
        public const string DeveloperName = "Veizu";
        public const string DeveloperPassword = "Aa123456";
        public UserRepository()
        {
            CreateUserTable();
            EnsureDeveloperExists();
        }

        private void CreateUserTable()
        {
            string datasource = Path.Combine(Application.StartupPath, "userdata.db");
            string tableInfo = TableName + "( " + "Username CHAR(50) PRIMARY KEY," + "Password CHAR(50)," + "UserType CHAR(50)" + ")";
            if (File.Exists(datasource))
            {
                _sqLiteHelper = SQLiteHelper.OpenConnection(datasource);
                if (_sqLiteHelper.IsExistsTable(TableName))
                {
                    _sqLiteHelper.CreateTableSql(tableInfo);
                }
            }
            else
            {
                _sqLiteHelper = SQLiteHelper.OpenConnection(datasource, true, tableInfo);
            }
        }

        private void EnsureDeveloperExists()
        {
            try
            {
                AddUser(DeveloperName, DeveloperPassword, UserType.Developer);
            }
            catch (Exception ex)
            {

            }
        }

        public User AuthenticateUser(string username, string password)
        {
            return GetUser(username, password);
        }

        public void IsValidUsernamePassword(string username, string password)
        {
            string pattern = @"^[a-zA-Z\u4e00-\u9fa5][a-zA-Z0-9\u4e00-\u9fa5]*$";
            var ret = Regex.IsMatch(username, pattern);
            if (!ret)
            {
                throw new ArgumentException("用户名第一个字符必须是英文字母或中文开头,仅允许包含中文、英文和数字。");
            }

            pattern = @"^[a-zA-Z0-9]+$";
            ret = Regex.IsMatch(password, pattern);
            if (!ret)
            {
                throw new ArgumentException("用户密码仅允许字母和数字。");
            }

            const int passwordLength = 6;
            if (password.Length < passwordLength)
            {
                throw new ArgumentException($"用户密码不得少于{passwordLength}个字符。");
            }
        }


        public bool IsUserExists(string username, string password = null)
        {
            return GetUser(username, password) != null;
        }

        public DataTable GetUserTable()
        {
            var table = _sqLiteHelper.Select(TableName);
            return table.Copy();
        }


        public User GetUser(string username, string password = null)
        {
            User user = null;
            var table = GetUserTable();
            foreach (DataRow row in table.Rows)
            {
                if (row[nameof(User.Username)].ToString().Equals(username))
                {
                    if (!string.IsNullOrWhiteSpace(password))
                    {
                        if (row[nameof(User.Password)].ToString().Equals(password))
                        {
                            UserType userType = row[nameof(User.UserType)].ToString().GetUserTypeByText();
                            user = new User(username, password, userType);
                        }
                    }
                    else
                    {
                        user = new User(username);
                    }
                }
            }

            return user;
        }

        public void AddUser(string username, string password, UserType userType)
        {
            IsValidUsernamePassword(username, password);

            if (IsUserExists(username))
            {
                throw new ArgumentException("该用户名已存在,请选择其他用户名。");
            }

            var parameter1 = new SQLiteParameter { ParameterName = nameof(User.Username), Value = username };
            var parameter2 = new SQLiteParameter { ParameterName = nameof(User.Password), Value = password };
            var parameter3 = new SQLiteParameter { ParameterName = nameof(User.UserType), Value = userType.GetUserTypeText() };
            _sqLiteHelper.Insert(TableName, parameter1, parameter2, parameter3);
        }

        public void DeleteUser(string username)
        {
            _sqLiteHelper.Delete(TableName, nameof(User.Username), username);
        }

        public void ChangePassword(string username, string newPassword, string newUserType)
        {
            IsValidUsernamePassword(username, newPassword);

            string updateQuery = $"UPDATE {TableName} SET {nameof(User.Password)} = '{newPassword}',{nameof(User.UserType)} = '{newUserType}' WHERE {nameof(User.Username)} = '{username}';";

            _sqLiteHelper.ExecuteSql(updateQuery);

        }
    }
}

2.2 User.cs(用户结构体)

namespace UserManage.Model
{
    public enum UserType
    {
        Null = 1,
        Developer = 3,
        Admin = 5,
        NormalUser = 7,
    }


    public class User
    {
        public string Username { get; set; }
        public string Password { get; set; }
        public UserType UserType { get; set; }

        public User(string username, string password, UserType userType)
        {
            Username = username;
            Password = password;
            UserType = userType;
        }

        public User(string username)
        {
            Username = username;
        }

    }
}

2.3 SQLiteHelper.cs(数据库工具类)

using System;
using System.Collections.Generic;
using System.Data;
using System.Data.SQLite;
using System.IO;
using System.Linq;
using System.Reflection;

namespace UserManage.Model
{
    public class SQLiteHelper
    {
        public static SQLiteConnection _conn;
        private static SQLiteConnectionStringBuilder _connstr;


        public static SQLiteHelper OpenConnection<T>(string datasource) where T : class
        {
            if (!File.Exists(datasource)) SQLiteConnection.CreateFile(datasource);

            var sqLite = new SQLiteHelper();

            _conn = new SQLiteConnection();
            _connstr = new SQLiteConnectionStringBuilder { DataSource = datasource };
            _conn.ConnectionString = _connstr.ToString();
            _conn.Open();

            var tableName = Path.GetFileNameWithoutExtension(datasource);
            string query = $"SELECT name FROM sqlite_master WHERE type='table' AND name='{tableName}';";
            using (SQLiteCommand command = new SQLiteCommand(query, _conn))
            {
                // 执行查询并获取结果
                object result = command.ExecuteScalar();
                // 如果结果不为空,则表存在
                if (result == null)
                {
                    sqLite.CreateTable<T>();
                }
            }
            return sqLite;
        }

        ///
        /// 打开数据库
        ///
        /// 数据库路径
        /// 是否创建数据库文件
        /// 创建数据库文件时同时创建的表结构信息;例如:TableName(ListIndex INTEGER, ListTime CHAR(23), ListSpeed INTEGER, ListRemark CHAR(50))
        /// 返回SQLiteHelper实例
        public static SQLiteHelper OpenConnection(string datasource, bool isCreate, string tableInfo = null)
        {
            if (isCreate) SQLiteConnection.CreateFile(datasource);

            var sqLite = new SQLiteHelper();

            _conn = new SQLiteConnection();
            _connstr = new SQLiteConnectionStringBuilder { DataSource = datasource };
            _conn.ConnectionString = _connstr.ToString();
            _conn.Open();

            if (isCreate) sqLite.CreateTableSql(tableInfo);

            return sqLite;
        }


        ///
        /// 打开数据库
        ///
        /// 数据库路径
        /// 返回SQLiteHelper实例
        public static SQLiteHelper OpenConnection(string datasource) => OpenConnection(datasource, false);


        ///
        /// 关闭
        ///
        public void CloseConnection()
        {
            if (_conn.State == ConnectionState.Closed)
                return;

            _conn.Close();
            _conn.Dispose();
            _connstr.Clear();
        }

        ///
        /// 执行自定义SQL语句,
        ///
        /// 自定义SQL语句
        /// 返回影响行数
        public int ExecuteSql(string sql)
        {
            using (var cmd = _conn.CreateCommand())
            {
                cmd.CommandText = sql;

                return cmd.ExecuteNonQuery();
            }
        }

        public int CreateTable<T>() where T : class
        {
            string createTableQuery = GenerateCreateTableQuery(typeof(T));
            // 创建SQLite命令对象
            using (SQLiteCommand command = new SQLiteCommand(createTableQuery, _conn))
            {
                // 执行SQL命令
                command.ExecuteNonQuery();
            }

            return 0;
        }
        static string GenerateCreateTableQuery(Type type)
        {
            // 获取实体类名称
            string tableName = type.Name;
            // 初始化SQL语句字符串构建器
            System.Text.StringBuilder query = new System.Text.StringBuilder();
            query.Append($"CREATE TABLE IF NOT EXISTS {tableName} (");
            // 获取实体类的所有属性
            PropertyInfo[] properties = type.GetProperties();
            for (int i = 0; i < properties.Length; i++)
            {
                PropertyInfo property = properties[i];
                // 获取属性名称
                string columnName = property.Name;
                // 获取属性类型
                string columnType = GetSqliteType(property.PropertyType);
                query.Append($"{columnName} {columnType}");
                if (i < properties.Length - 1)
                {
                    query.Append(", ");
                }
            }
            query.Append(");");
            return query.ToString();
        }
        static string GetSqliteType(Type type)
        {
            // 根据C#类型映射到SQLite类型
            if (type == typeof(int) || type == typeof(long))
            {
                return "INTEGER";
            }
            else if (type == typeof(string))
            {
                return "TEXT";
            }
            else if (type == typeof(double) || type == typeof(float))
            {
                return "REAL";
            }
            else if (type == typeof(List<DateTime>) || type == typeof(List<double>))
            {
                return "BLOB";
            }
            else
            {
                return "TEXT";
            }
        }


        ///
        /// 执行自定义SQL语句,
        ///
        /// 表结构信息;例如:TableName(ListIndex INTEGER, ListTime CHAR(23), ListSpeed INTEGER, ListRemark CHAR(50))
        /// 返回影响行数
        public int CreateTableSql(string tableInfo) => ExecuteSql($"CREATE TABLE {tableInfo}");


        ///
        /// 执行插入操作
        ///
        /// 表名
        /// 字段名
        /// 参数数据
        /// int
        public int Insert(string tableName, string colName, string value)
        {
            using (var cmd = _conn.CreateCommand())
            {
                cmd.CommandText = $"INSERT INTO {tableName} VALUES(@{colName})";
                cmd.Parameters.Add(colName, DbType.String).Value = value;
                return cmd.ExecuteNonQuery();
            }
        }

        ///
        /// 执行插入操作
        ///
        /// 表名
        /// 键值对
        /// int
        public int Insert(string tableName, SQLiteParameter parameters)
        {
            using (var cmd = _conn.CreateCommand())
            {
                // 添加参数到命令对象
                cmd.Parameters.Add(parameters);

                // 构建完整的INSERT语句
                string query = $"INSERT INTO {tableName} ({parameters.ParameterName}) VALUES (@{parameters.ParameterName});";
                cmd.CommandText = query;

                // 执行命令并返回受影响的行数
                return cmd.ExecuteNonQuery();
            }
        }

        ///
        /// 从库中删除表
        ///
        ///
        public int DeleteTable(string tableName)
        {
            using (var cmd = _conn.CreateCommand())
            {
                cmd.CommandText = $"DROP TABLE IF EXISTS {tableName}";
                return cmd.ExecuteNonQuery();
            }
        }

        ///
        /// 执行删除操作
        ///
        /// 表名
        /// 字段名
        /// 参数数据
        /// int
        public int Delete(string tableName, string colName, object value)
        {
            using (var cmd = _conn.CreateCommand())
            {
                cmd.CommandText = $"DELETE FROM {tableName} WHERE {colName} = @value;";
                cmd.Parameters.Add("value", DbType.Object).Value = value;
                return cmd.ExecuteNonQuery();
            }
        }

        ///
        /// 执行查询操作
        ///
        /// 表名
        /// DataTable
        public DataTable Select(string tableName)
        {
            var dt = new DataTable();
            var cmd = _conn.CreateCommand();
            cmd.CommandText = $"select * from {tableName}";

            var dao = new SQLiteDataAdapter(cmd);
            dao.Fill(dt);

            cmd.ExecuteNonQuery();
            dao.Dispose();
            return dt.Copy();
        }

        public bool IsExistsTable(string tableName)
        {
            string cmdText = $"select count(*) from sqlite_master where name='{tableName}' and type='table';";
            int count = ExecuteSql(cmdText);
            return count > 0;
        }

        public bool IsExistsData(string tableName, Dictionary<string, object> parameter)
        {
            string query = $"SELECT COUNT(*) FROM {tableName} WHERE ";

            foreach (var key in parameter.Keys)
            {
                query += $"{key} = @{key}";
            }
            query += $";";
            SQLiteCommand command = new SQLiteCommand(query, _conn);

            foreach (var key in parameter.Keys)
            {
                command.Parameters.AddWithValue($"@{key}", parameter[key]);

            }
            int count = Convert.ToInt32(command.ExecuteScalar());
            return count > 0;
        }


        ///
        /// 执行插入操作
        ///
        /// 表名
        /// 键值对字典
        /// int
        public int Insert(string tableName, params SQLiteParameter[] parameters)
        {
            int count = -1;
            try
            {
                using (var cmd = _conn.CreateCommand())
                {
                    string query = $"INSERT INTO" +
                                   $" {tableName}" +
                                   $" ({string.Join(",", parameters.Select(p => p.ParameterName))})" +
                                   $" VALUES ({string.Join(",", parameters.Select(p => "@" + p.ParameterName))});";
                    cmd.Parameters.AddRange(parameters);
                    cmd.CommandText = query;
                    count = cmd.ExecuteNonQuery();
                }

                return count;
            }
            catch (Exception ex)
            {
                throw ex;
            }
        }

        ///
        /// 批量插入
        ///
        ///
        ///
        ///
        public void Insert(string tableName, string[] col, List<object[]> list)
        {
            var cmd = _conn.CreateCommand();
            SQLiteTransaction transaction = _conn.BeginTransaction();
            cmd.Transaction = transaction;
            try
            {

                object[] obj = list.First();
                var parameters = new List<SQLiteParameter>();
                for (int i = 0; i < col.Length; i++)
                {
                    parameters.Add(new SQLiteParameter(col[i], obj[i]));
                }

                string sql = $"INSERT INTO" +
                               $" {tableName}" +
                               $" ({string.Join(",", parameters.Select(p => p.ParameterName))})" +
                               $" VALUES ({string.Join(",", parameters.Select(p => "@" + p.ParameterName))});";

                foreach (var value in list)
                {
                    parameters = new List<SQLiteParameter>();
                    for (int i = 0; i < col.Length; i++)
                    {
                        parameters.Add(new SQLiteParameter(col[i], value[i]));
                    }
                    cmd.Parameters.AddRange(parameters.ToArray());
                    cmd.CommandText = sql;
                    cmd.ExecuteNonQuery();
                }
                transaction.Commit();
            }
            catch (Exception e)
            {
            }

        }

        ///
        /// 执行更新操作
        ///
        /// 表名
        /// 新数据
        /// 条件
        /// 条件数据
        /// int
        public int Update(string tableName, Dictionary<string, object> setValues, string whereClause, List<SQLiteParameter> parameters)
        {
            using (var cmd = _conn.CreateCommand())
            {
                List<string> setColumns = new List<string>();
                int index = 0;

                foreach (var kvp in setValues)
                {
                    setColumns.Add($"{kvp.Key} = @{kvp.Key}");
                    cmd.Parameters.Add(new SQLiteParameter($"@{kvp.Key}", kvp.Value));
                    index++;
                }

                string query = $"UPDATE {tableName} SET {string.Join(",", setColumns)} WHERE {whereClause}";
                cmd.CommandText = query;
                cmd.Parameters.AddRange(parameters.ToArray());

                return cmd.ExecuteNonQuery();
            }
        }

    }
}

3 View

3.1 LoginView.cs(用户登录窗体)

using System;
using System.Windows.Forms;
using Sunny.UI;
using UserManage.Model;

namespace UserManage.View
{
    public partial class LoginView : UIForm
    {
        private UILabel lblUsername;
        private UILabel lblPassword;
        private UITextBox txtUsername;
        private UITextBox txtPassword;
        private UIButton btnLogin;

        public event EventHandler LoginClicked;

        public string Username => txtUsername.Text;

        public string Password => txtPassword.Text;

        public LoginView()
        {
            InitializeComponent();
            InitializeUI();
        }
        private void LoginView_VisibleChanged(object sender, EventArgs e)
        {
            txtUsername.Text = string.Empty;
            txtPassword.Text = string.Empty;
            txtUsername.Text = "Veizu";
            txtPassword.Text = "Aa123456";
        }

        private void InitializeUI()
        {
            // 设置窗体样式
            this.Text = "用户登录";
            this.Size = new System.Drawing.Size(300, 250);
            this.StartPosition = FormStartPosition.CenterScreen;

            int locationY = 80;
            int yInterval = 20;

            // 用户名标签
            lblUsername = new UILabel();
            lblUsername.Location = new System.Drawing.Point(30, locationY);
            lblUsername.Size = new System.Drawing.Size(80, 25);
            lblUsername.Text = "用户名:";
            this.Controls.Add(lblUsername);

            // 用户名文本框
            txtUsername = new UITextBox();
            txtUsername.Location = new System.Drawing.Point(120, locationY);
            txtUsername.Size = new System.Drawing.Size(150, 25);
            this.Controls.Add(txtUsername);

            // 密码标签
            locationY += yInterval + txtUsername.Height;
            lblPassword = new UILabel();
            lblPassword.Location = new System.Drawing.Point(30, locationY);
            lblPassword.Size = new System.Drawing.Size(80, 25);
            lblPassword.Text = "密码:";
            this.Controls.Add(lblPassword);

            // 密码文本框
            txtPassword = new UITextBox();
            txtPassword.Location = new System.Drawing.Point(120, locationY);
            txtPassword.Size = new System.Drawing.Size(150, 25);
            txtPassword.PasswordChar = '*';
            this.Controls.Add(txtPassword);

            // 登录按钮
            locationY += yInterval + txtPassword.Height;
            btnLogin = new UIButton();
            btnLogin.Size = new System.Drawing.Size(100, 30);
            int btnLoginX = txtPassword.Location.X + txtPassword.Width - btnLogin.Width;
            btnLogin.Location = new System.Drawing.Point(btnLoginX, locationY);
            btnLogin.Text = "登录";
            btnLogin.Click += btnLogin_Click;
            this.Controls.Add(btnLogin);
        }

        private void btnLogin_Click(object sender, EventArgs e)
        {
            LoginClicked?.Invoke(this, EventArgs.Empty);
        }

    }
}

3.2 UserManagementForm(用户信息管理窗体)

3.2.1 UserManagementForm.cs

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using Sunny.UI;
using UserManage.Extensions;
using UserManage.Model;

namespace UserManage.View
{
    public partial class UserManagementForm : UIForm
    {

        public User SelectUser
        {
            get
            {
                if (dgv_User.CurrentCell != null)
                {
                    var row = dgv_User.Rows[dgv_User.CurrentCell.RowIndex];
                    string username = row.Cells[0].Value.ToString();
                    string password = row.Cells[1].Value.ToString();
                    UserType userType = row.Cells[2].Value.ToString().GetUserTypeByText();
                    return new User(username, password, userType);
                }
                else
                {
                    return null;
                }
            }
        }

        public event EventHandler AddUserClicked;
        public event EventHandler ModifyUserClicked;
        public event EventHandler DeleteUserClicked;

        public UserManagementForm()
        {
            InitializeComponent();
            InitializeUI();
        }

        private void InitializeUI()
        {
            // 设置窗体样式
            this.Size = new Size(800, 600);
            this.Text = "用户管理";
            this.StartPosition = FormStartPosition.CenterScreen;

        }

        ///
        /// 设置数据表样式
        ///
        private void SetDgvStyle(UIDataGridView table)
        {
            try
            {
                table.ClearSelection();
                //int index = dgvStandard.CurrentCell.RowIndex;//获取选中行
                table.MultiSelect = false; //不可多选
                table.AllowUserToAddRows = false; //设置不显示添加行
                table.AllowUserToDeleteRows = false; //设置不允许删除行
                table.AllowUserToResizeColumns = false; //设置列不可调整
                table.ColumnHeadersDefaultCellStyle.Alignment = DataGridViewContentAlignment.MiddleCenter; //列名居中
                table.AllowUserToResizeRows = false; //设置行不可调整
                table.RowHeadersVisible = false; //设置表头不显示行标题
                table.AutoSizeColumnsMode = DataGridViewAutoSizeColumnsMode.Fill; //列填充控件显示区域
                table.CausesValidation = false; //焦点
                table.ColumnHeadersBorderStyle = DataGridViewHeaderBorderStyle.Single; //边框样式
                table.ColumnHeadersHeightSizeMode = DataGridViewColumnHeadersHeightSizeMode.AutoSize; //列高调整

                table.RowsDefaultCellStyle.Alignment = DataGridViewContentAlignment.MiddleCenter; //单元格内容居中
                table.ReadOnly = true; //只读设置
                table.RowHeadersWidth = 4; //列宽设置(按照权重设置时需要先添加列)
                table.RowHeadersWidthSizeMode = DataGridViewRowHeadersWidthSizeMode.AutoSizeToAllHeaders; //设置列表头不可调整
                table.RowTemplate.Height = 28; //设置行高
                table.ScrollBars = ScrollBars.Vertical; //显示垂直滚动条
                table.TabStop = false; //设置无Tab焦点
                table.VirtualMode = true; //设置可进行数据管理
                //dgv.Rows[lastTableHeadRow].Frozen = true;//冻结指定行

                for (var i = 0; i < table.Columns.Count; i++)
                {
                    table.Columns[i].SortMode = DataGridViewColumnSortMode.NotSortable; //禁止点击列名排序
                    dgv_User.Columns[i].FillWeight = 1; //按权重分配列宽
                }
            }
            catch (Exception)
            {
                // ignored
            }
        }

        private void btnAddUser_Click(object sender, EventArgs e)
        {
            AddUserClicked?.Invoke(this, EventArgs.Empty);
        }

        private void btnModifyUser_Click(object sender, EventArgs e)
        {
            ModifyUserClicked?.Invoke(this, EventArgs.Empty);
        }

        private void btnDeleteUser_Click(object sender, EventArgs e)
        {
            DeleteUserClicked?.Invoke(this, EventArgs.Empty);
        }

        public void LoadUsers(DataTable table)
        {
            dgv_User.DataSource = null;
            dgv_User.DataSource = table;

            SetDgvStyle(dgv_User);
        }
    }
    }

3.2.2 UserManagementForm.Designer.cs

namespace UserManage.View
{
    partial class UserManagementForm
    {
        ///
        /// Required designer variable.
        ///
        private System.ComponentModel.IContainer components = null;

        ///
        /// Clean up any resources being used.
        ///
        /// true if managed resources should be disposed; otherwise, false.
        protected override void Dispose(bool disposing)
        {
            if (disposing && (components != null))
            {
                components.Dispose();
            }
            base.Dispose(disposing);
        }

        #region Windows Form Designer generated code

        ///
        /// Required method for Designer support - do not modify
        /// the contents of this method with the code editor.
        ///
        private void InitializeComponent()
        {
            System.Windows.Forms.DataGridViewCellStyle dataGridViewCellStyle1 = new System.Windows.Forms.DataGridViewCellStyle();
            System.Windows.Forms.DataGridViewCellStyle dataGridViewCellStyle2 = new System.Windows.Forms.DataGridViewCellStyle();
            System.Windows.Forms.DataGridViewCellStyle dataGridViewCellStyle3 = new System.Windows.Forms.DataGridViewCellStyle();
            System.Windows.Forms.DataGridViewCellStyle dataGridViewCellStyle4 = new System.Windows.Forms.DataGridViewCellStyle();
            System.Windows.Forms.DataGridViewCellStyle dataGridViewCellStyle5 = new System.Windows.Forms.DataGridViewCellStyle();
            this.btn_Add = new Sunny.UI.UIButton();
            this.btn_Updata = new Sunny.UI.UIButton();
            this.btn_Del = new Sunny.UI.UIButton();
            this.dgv_User = new Sunny.UI.UIDataGridView();
            ((System.ComponentModel.ISupportInitialize)(this.dgv_User)).BeginInit();
            this.SuspendLayout();
            //
            // btn_Add
            //
            this.btn_Add.Cursor = System.Windows.Forms.Cursors.Hand;
            this.btn_Add.Font = new System.Drawing.Font("宋体", 12F, System.Drawing.FontStyle.Regular, System.Drawing.GraphicsUnit.Point, ((byte)(134)));
            this.btn_Add.Location = new System.Drawing.Point(59, 60);
            this.btn_Add.MinimumSize = new System.Drawing.Size(1, 1);
            this.btn_Add.Name = "btn_Add";
            this.btn_Add.Size = new System.Drawing.Size(149, 35);
            this.btn_Add.TabIndex = 0;
            this.btn_Add.Text = "添加用户";
            this.btn_Add.TipsFont = new System.Drawing.Font("宋体", 9F, System.Drawing.FontStyle.Regular, System.Drawing.GraphicsUnit.Point, ((byte)(134)));
            this.btn_Add.Click += new System.EventHandler(this.btnAddUser_Click);
            //
            // btn_Updata
            //
            this.btn_Updata.Cursor = System.Windows.Forms.Cursors.Hand;
            this.btn_Updata.Font = new System.Drawing.Font("宋体", 12F, System.Drawing.FontStyle.Regular, System.Drawing.GraphicsUnit.Point, ((byte)(134)));
            this.btn_Updata.Location = new System.Drawing.Point(233, 60);
            this.btn_Updata.MinimumSize = new System.Drawing.Size(1, 1);
            this.btn_Updata.Name = "btn_Updata";
            this.btn_Updata.Size = new System.Drawing.Size(149, 35);
            this.btn_Updata.TabIndex = 0;
            this.btn_Updata.Text = "修改用户";
            this.btn_Updata.TipsFont = new System.Drawing.Font("宋体", 9F, System.Drawing.FontStyle.Regular, System.Drawing.GraphicsUnit.Point, ((byte)(134)));
            this.btn_Updata.Click += new System.EventHandler(this.btnModifyUser_Click);
            //
            // btn_Del
            //
            this.btn_Del.Cursor = System.Windows.Forms.Cursors.Hand;
            this.btn_Del.Font = new System.Drawing.Font("宋体", 12F, System.Drawing.FontStyle.Regular, System.Drawing.GraphicsUnit.Point, ((byte)(134)));
            this.btn_Del.Location = new System.Drawing.Point(407, 60);
            this.btn_Del.MinimumSize = new System.Drawing.Size(1, 1);
            this.btn_Del.Name = "btn_Del";
            this.btn_Del.Size = new System.Drawing.Size(149, 35);
            this.btn_Del.TabIndex = 0;
            this.btn_Del.Text = "删除用户";
            this.btn_Del.TipsFont = new System.Drawing.Font("宋体", 9F, System.Drawing.FontStyle.Regular, System.Drawing.GraphicsUnit.Point, ((byte)(134)));
            this.btn_Del.Click += new System.EventHandler(this.btnDeleteUser_Click);
            //
            // uiDataGridView1
            //
            dataGridViewCellStyle1.BackColor = System.Drawing.Color.FromArgb(((int)(((byte)(235)))), ((int)(((byte)(243)))), ((int)(((byte)(255)))));
            this.dgv_User.AlternatingRowsDefaultCellStyle = dataGridViewCellStyle1;
            this.dgv_User.Anchor = ((System.Windows.Forms.AnchorStyles)((((System.Windows.Forms.AnchorStyles.Top | System.Windows.Forms.AnchorStyles.Bottom)
            | System.Windows.Forms.AnchorStyles.Left)
            | System.Windows.Forms.AnchorStyles.Right)));
            this.dgv_User.BackgroundColor = System.Drawing.Color.White;
            this.dgv_User.ColumnHeadersBorderStyle = System.Windows.Forms.DataGridViewHeaderBorderStyle.Single;
            dataGridViewCellStyle2.Alignment = System.Windows.Forms.DataGridViewContentAlignment.MiddleCenter;
            dataGridViewCellStyle2.BackColor = System.Drawing.Color.FromArgb(((int)(((byte)(80)))), ((int)(((byte)(160)))), ((int)(((byte)(255)))));
            dataGridViewCellStyle2.Font = new System.Drawing.Font("宋体", 12F, System.Drawing.FontStyle.Regular, System.Drawing.GraphicsUnit.Point, ((byte)(134)));
            dataGridViewCellStyle2.ForeColor = System.Drawing.Color.White;
            dataGridViewCellStyle2.SelectionBackColor = System.Drawing.SystemColors.Highlight;
            dataGridViewCellStyle2.SelectionForeColor = System.Drawing.SystemColors.HighlightText;
            dataGridViewCellStyle2.WrapMode = System.Windows.Forms.DataGridViewTriState.True;
            this.dgv_User.ColumnHeadersDefaultCellStyle = dataGridViewCellStyle2;
            this.dgv_User.ColumnHeadersHeightSizeMode = System.Windows.Forms.DataGridViewColumnHeadersHeightSizeMode.AutoSize;
            dataGridViewCellStyle3.Alignment = System.Windows.Forms.DataGridViewContentAlignment.MiddleLeft;
            dataGridViewCellStyle3.BackColor = System.Drawing.SystemColors.Window;
            dataGridViewCellStyle3.Font = new System.Drawing.Font("宋体", 12F, System.Drawing.FontStyle.Regular, System.Drawing.GraphicsUnit.Point, ((byte)(134)));
            dataGridViewCellStyle3.ForeColor = System.Drawing.Color.FromArgb(((int)(((byte)(48)))), ((int)(((byte)(48)))), ((int)(((byte)(48)))));
            dataGridViewCellStyle3.SelectionBackColor = System.Drawing.SystemColors.Highlight;
            dataGridViewCellStyle3.SelectionForeColor = System.Drawing.SystemColors.HighlightText;
            dataGridViewCellStyle3.WrapMode = System.Windows.Forms.DataGridViewTriState.False;
            this.dgv_User.DefaultCellStyle = dataGridViewCellStyle3;
            this.dgv_User.EnableHeadersVisualStyles = false;
            this.dgv_User.Font = new System.Drawing.Font("宋体", 12F, System.Drawing.FontStyle.Regular, System.Drawing.GraphicsUnit.Point, ((byte)(134)));
            this.dgv_User.GridColor = System.Drawing.Color.FromArgb(((int)(((byte)(80)))), ((int)(((byte)(160)))), ((int)(((byte)(255)))));
            this.dgv_User.Location = new System.Drawing.Point(39, 122);
            this.dgv_User.Name = "dgv_User";
            dataGridViewCellStyle4.Alignment = System.Windows.Forms.DataGridViewContentAlignment.MiddleLeft;
            dataGridViewCellStyle4.BackColor = System.Drawing.Color.FromArgb(((int)(((byte)(235)))), ((int)(((byte)(243)))), ((int)(((byte)(255)))));
            dataGridViewCellStyle4.Font = new System.Drawing.Font("宋体", 12F, System.Drawing.FontStyle.Regular, System.Drawing.GraphicsUnit.Point, ((byte)(134)));
            dataGridViewCellStyle4.ForeColor = System.Drawing.Color.FromArgb(((int)(((byte)(48)))), ((int)(((byte)(48)))), ((int)(((byte)(48)))));
            dataGridViewCellStyle4.SelectionBackColor = System.Drawing.Color.FromArgb(((int)(((byte)(80)))), ((int)(((byte)(160)))), ((int)(((byte)(255)))));
            dataGridViewCellStyle4.SelectionForeColor = System.Drawing.Color.White;
            dataGridViewCellStyle4.WrapMode = System.Windows.Forms.DataGridViewTriState.True;
            this.dgv_User.RowHeadersDefaultCellStyle = dataGridViewCellStyle4;
            dataGridViewCellStyle5.BackColor = System.Drawing.Color.White;
            dataGridViewCellStyle5.Font = new System.Drawing.Font("宋体", 12F, System.Drawing.FontStyle.Regular, System.Drawing.GraphicsUnit.Point, ((byte)(134)));
            this.dgv_User.RowsDefaultCellStyle = dataGridViewCellStyle5;
            this.dgv_User.RowTemplate.Height = 23;
            this.dgv_User.SelectedIndex = -1;
            this.dgv_User.Size = new System.Drawing.Size(901, 503);
            this.dgv_User.StripeOddColor = System.Drawing.Color.FromArgb(((int)(((byte)(235)))), ((int)(((byte)(243)))), ((int)(((byte)(255)))));
            this.dgv_User.TabIndex = 1;
            //
            // UserManagementForm
            //
            this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.None;
            this.ClientSize = new System.Drawing.Size(982, 658);
            this.Controls.Add(this.dgv_User);
            this.Controls.Add(this.btn_Del);
            this.Controls.Add(this.btn_Updata);
            this.Controls.Add(this.btn_Add);
            this.Name = "UserManagementForm";
            this.Text = "UserManagementForm__";
            this.ZoomScaleRect = new System.Drawing.Rectangle(15, 15, 800, 450);
            ((System.ComponentModel.ISupportInitialize)(this.dgv_User)).EndInit();
            this.ResumeLayout(false);

        }

        #endregion

        private Sunny.UI.UIButton btn_Add;
        private Sunny.UI.UIButton btn_Updata;
        private Sunny.UI.UIButton btn_Del;
        private Sunny.UI.UIDataGridView dgv_User;
    }
}

3.3 UserUpdataForm.cs(添加、修改用户对话框)

using System;
using System.Windows.Forms;
using Sunny.UI;
using UserManage.Extensions;
using UserManage.Model;

namespace UserManage.View
{
    public partial class UserUpdataForm : UIForm
    {

        private UILabel lblUsername;
        private UILabel lblUserType;
        private UILabel lblPassword;
        private UITextBox txtUsername;
        private UIComboBox comUserType;
        private UITextBox txtPassword;
        private UIButton btnEnter;

        public UserType UserType => comUserType.Text.GetUserTypeByText();

        public string UserName => txtUsername.Text;
        public string Password => txtPassword.Text;

        public event EventHandler EnterClicked;

        public UserUpdataForm()
        {
            InitializeComponent();
            InitializeUI();
        }

        private void InitializeUI()
        {
            // 设置窗体样式
            this.Size = new System.Drawing.Size(300, 280);
            this.StartPosition = FormStartPosition.CenterScreen;

            int locationY = 80;
            int yInterval = 20;

            // 用户名标签
            lblUsername = new UILabel();
            lblUsername.Location = new System.Drawing.Point(30, locationY);
            lblUsername.Size = new System.Drawing.Size(80, 25);
            lblUsername.Text = "用户名:";
            this.Controls.Add(lblUsername);

            // 用户名文本框
            txtUsername = new UITextBox();
            txtUsername.Location = new System.Drawing.Point(120, locationY);
            txtUsername.Size = new System.Drawing.Size(150, 25);
            this.Controls.Add(txtUsername);

            // 用户类型
            locationY += yInterval + txtUsername.Height;
            lblUserType = new UILabel();
            lblUserType.Location = new System.Drawing.Point(30, locationY);
            lblUserType.Size = new System.Drawing.Size(80, 25);
            lblUserType.Text = "用户类型:";
            this.Controls.Add(lblUserType);

            // 用户类型下拉框
            comUserType = new UIComboBox();
            comUserType.Location = new System.Drawing.Point(120, locationY);
            comUserType.Size = new System.Drawing.Size(150, 25);
            this.Controls.Add(comUserType);

            // 密码标签
            locationY += yInterval + comUserType.Height;
            lblPassword = new UILabel();
            lblPassword.Location = new System.Drawing.Point(30, locationY);
            lblPassword.Size = new System.Drawing.Size(80, 25);
            lblPassword.Text = "密码:";
            this.Controls.Add(lblPassword);

            // 密码文本框
            txtPassword = new UITextBox();
            txtPassword.Location = new System.Drawing.Point(120, locationY);
            txtPassword.Size = new System.Drawing.Size(150, 25);
            this.Controls.Add(txtPassword);

            // 登录按钮
            locationY += yInterval + txtPassword.Height;
            btnEnter = new UIButton();
            btnEnter.Size = new System.Drawing.Size(100, 30);
            int btnLoginX = txtPassword.Location.X + txtPassword.Width - btnEnter.Width;
            btnEnter.Location = new System.Drawing.Point(btnLoginX, locationY);
            btnEnter.Click += BtnEnterClick;
            this.Controls.Add(btnEnter);
        }

        private void BtnEnterClick(object sender, EventArgs e)
        {
            EnterClicked?.Invoke(this, EventArgs.Empty);
        }

        public void AddUserType(params UserType[] userTypes)
        {
            if (comUserType != null)
            {
                foreach (var userType in userTypes)
                {
                    comUserType.Items.Add(userType.GetUserTypeText());
                }
            }
        }

        public void RefreshAddUserInfo()
        {
            txtUsername.Text = string.Empty;
            txtPassword.Text = string.Empty;
            comUserType.Text = string.Empty;
            this.Text = "添加用户";
            btnEnter.Text = "添加";
            txtUsername.ReadOnly = false;
        }

        public void RefreshUdpataUserInfo(User user)
        {
            comUserType.Text = user.UserType.GetUserTypeText();
            txtUsername.Text = user.Username;
            txtPassword.Text = user.Password;
            txtUsername.ReadOnly = true;
            this.Text = "修改用户";
            btnEnter.Text = "确认";
        }
    }
}

4 扩展类

using Sunny.UI;
using UserManage.Model;

namespace UserManage.Extensions
{
    public static class UserManageExtension
    {
        public static string GetUserTypeText(this UserType type)
        {
            switch (type)
            {
                case UserType.Developer:
                    return "开发者";
                case UserType.Admin:
                    return "管理员";
                case UserType.NormalUser:
                    return "普通用户";
                default:
                    return "未登录";
            }
        }
        public static UserType GetUserTypeByText(this string text)
        {
            if (text.Equals(UserType.Developer.GetUserTypeText()))
                return UserType.Developer;
            else if (text.Equals(UserType.Admin.GetUserTypeText()))
                return UserType.Admin;
            else if (text.Equals(UserType.NormalUser.GetUserTypeText()))
                return UserType.NormalUser;
            else
                return UserType.Null;
        }

        public static void ShowMsg(string text, string title = "提示")
        {
            UIMessageBox.ShowError(text);
        }

        public static bool Confirm(string text)
        {
            return UIMessageBox.ShowAsk(text);
        }

    }
}

你可能感兴趣的:(#,Winform,c#,mvc,设计模式)
