服务器列表
| LVS主 |
10.92.21.12 |
| LVS备 |
10.92.21.17 |
| LVS VIP |
10.92.21.222:80 |
| 应用 |
10.92.21.18:8080 |
| 应用 |
xxx.xxx.xxx.xxx:yyyy |
安装包列表
| 依赖包 |
libapr1-1.3.8-2.1.x86_64.rpm |
| 依赖包 |
apr-util-ldap-1.4.1-1.1.x86_64.rpm |
| 依赖包 |
apr-util-1.4.1-1.1.x86_64.rpm |
| 依赖包 |
php-common-5.3.3-3.el6.x86_64.rpm |
| 依赖包 |
php-cli-5.3.3-3.el6.x86_64.rpm |
| 依赖包 |
php-5.3.3-3.el6.x86_64.rpm |
| 依赖包 |
httpd-tools-2.2.15-9.el6.x86_64.rpm |
| 核心包 |
ipvsadm-1.25-9.el6.x86_64.rpm |
| 核心包 |
httpd-2.2.15-9.el6.x86_64.rpm |
| 核心包 |
piranha-0.8.5-7.el6.x86_64.rpm |
按顺序安装上述rpm包
执行命令：rpm –ivh ${包名}
配置文件
lvs.cf
serial_no = 126
primary = 10.92.21.12
service = lvs
backup_active = 1
backup = 10.92.21.17
heartbeat = 1
heartbeat_port = 539
keepalive = 6
deadtime = 18
network = direct
debug_level = NONE
monitor_links = 0
syncdaemon = 0
virtual lvs {
active = 1
address =10.92.21.222 eth1:1
vip_nmask = 255.255.255.0
port = 80
#persistent = 3600
send_program = "/etc/sysconfig/ha/lvs.sh %h"
expect = "OK"
use_regex = 0
load_monitor = none
scheduler = wrr
protocol = tcp
timeout = 10
reentry = 15
quiesce_server = 0
server web1 {
address = 10.92.21.18
active = 1
port = 8080
weight = 1
}
server web2 {
address = xxx.xxx.xxx.xxx
active = 1
port = yyyy
weight = 1
}
}
把该文件放到etc/sysconfig/ha下
lvs.sh
#!/bin/sh
tmpUriName=$1
uri="http://${tmpUriName}:8080/CSMBP/lvs.Monitor"
keyword="SUCCESS"
timeout=10
errorTimes="1"
writeError(){
if [ -f /tmp/.errorcount_${tmpUriName} ]; then
errorCount="$(cat /tmp/.errorcount_${tmpUriName})"
else
errorCount="0"
fi
if [ $errorCount == ${errorTimes} ]; then
echo "NOSUCCESS"
#echo "LOG ${tmpUriName} FAIL">>/tmp/.errorcount
else
echo ${errorTimes} >/tmp/.errorcount_${tmpUriName}
echo "OK"
#echo "LOG ${tmpUriName} FAIL OK">>/tmp/.errorcount
fi
}
testConn(){
if [ `GET -t ${timeout} ${uri} |grep ${keyword} |wc -l` -gt 0 ]; then
echo "0" > /tmp/.errorcount_${tmpUriName}
echo "OK"
#echo "LOG ${tmpUriName} OK">>/tmp/.errorcount
else
writeError
fi
}
testConn
把该文件放到etc/sysconfig/ha下
网卡配置
LVS服务器端 10.92.21.12
/etc/sysconfig/network-scripts/ifcfg-eth1
DEVICE="eth1" BOOTPROTO="static" IPADDR=10.92.21.12 GATEWAY=10.92.21.1 NETMASK=255.255.255.0 MTU="1500" NM_CONTROLLED="yes" ONBOOT="yes"
/etc/sysctl.conf
net.ipv4.ip_forward = 0 改成 net.ipv4.ip_forward = 1 添加Arp抑制配置： net.ipv4.conf.lo.arp_ignore=1 net.ipv4.conf.lo.arp_announce=2 net.ipv4.conf.all.arp_ignore=1 net.ipv4.conf.all.arp_announce=2 net.ipv4.conf.default.rp_filter=1 vm.swappiness = 0 # turn off swapping net.ipv4.tcp_sack = 1 # enable selective acknowledgements net.ipv4.tcp_timestamps = 1 # needed for selective acknowledgements net.ipv4.tcp_window_scaling = 1 #scale the network window net.ipv4.tcp_congestion_control = cubic # better congestion algorythm net.ipv4.tcp_max_syn_backlog = 65536 net.core.netdev_max_backlog = 32768 net.core.somaxconn = 32768 net.core.wmem_default = 8388608 net.core.rmem_default = 8388608 net.core.rmem_max = 16777216 net.core.wmem_max = 16777216
LVS服务器端 10.92.21.17
/etc/sysconfig/network-scripts/ifcfg-eth1
DEVICE="eth1" BOOTPROTO="static" IPADDR=10.92.21.17 GATEWAY=10.92.21.1 NETMASK=255.255.255.0 MTU="1500" NM_CONTROLLED="yes" ONBOOT="yes"
/etc/sysctl.conf
net.ipv4.ip_forward = 0 改成 net.ipv4.ip_forward = 1 添加Arp抑制配置： net.ipv4.conf.lo.arp_ignore=1 net.ipv4.conf.lo.arp_announce=2 net.ipv4.conf.all.arp_ignore=1 net.ipv4.conf.all.arp_announce=2 net.ipv4.conf.default.rp_filter=1 vm.swappiness = 0 # turn off swapping net.ipv4.tcp_sack = 1 # enable selective acknowledgements net.ipv4.tcp_timestamps = 1 # needed for selective acknowledgements net.ipv4.tcp_window_scaling = 1 #scale the network window net.ipv4.tcp_congestion_control = cubic # better congestion algorythm net.ipv4.tcp_max_syn_backlog = 65536 net.core.netdev_max_backlog = 32768 net.core.somaxconn = 32768 net.core.wmem_default = 8388608 net.core.rmem_default = 8388608 net.core.rmem_max = 16777216 net.core.wmem_max = 16777216
LVS服务器端 10.92.21.18
/etc/sysconfig/network-scripts/ifcfg-eth1
DEVICE="eth1" BOOTPROTO="static" IPADDR=10.92.21.18 GATEWAY=10.92.21.1 NETMASK=255.255.255.0 MTU="1500" NM_CONTROLLED="yes" ONBOOT="yes"
/etc/sysctl.conf
net.ipv4.ip_forward = 0 改成 net.ipv4.ip_forward = 1 添加Arp抑制配置： net.ipv4.conf.lo.arp_ignore=1 net.ipv4.conf.lo.arp_announce=2 net.ipv4.conf.all.arp_ignore=1 net.ipv4.conf.all.arp_announce=2
/etc/sysconfig/iptables
*nat :PREROUTING ACCEPT [12:480] :POSTROUTING ACCEPT [0:0] :OUTPUT ACCEPT [0:0] -A PREROUTING -d 10.92.21.222/32 -p tcp -m tcp --dport 80 -j DNAT --to-destination 10.92.21.18:8080 COMMIT *filter :INPUT ACCEPT [0:0] :FORWARD ACCEPT [0:0] :OUTPUT ACCEPT [0:0] -A INPUT -m state --state ESTABLISHED,RELATED -j ACCEPT -A INPUT -p icmp -j ACCEPT -A INPUT -i lo -j ACCEPT -A INPUT -m state --state NEW -m tcp -p tcp --dport 22 -j ACCEPT -A INPUT -m state --state NEW -m tcp -p tcp --dport 8080 -j ACCEPT -A INPUT -j REJECT --reject-with icmp-host-prohibited -A FORWARD -j REJECT --reject-with icmp-host-prohibited COMMIT
LVS服务器端 xxx.xxx.xxx.xxx
/etc/sysconfig/network-scripts/ifcfg-eth1
DEVICE="eth1" BOOTPROTO="static" IPADDR=xxx.xxx.xxx.xxx GATEWAY=xxx.xxx.xxx.1 NETMASK=255.255.255.0 MTU="1500" NM_CONTROLLED="yes" ONBOOT="yes"
/etc/sysctl.conf
net.ipv4.ip_forward = 0 改成 net.ipv4.ip_forward = 1 添加Arp抑制配置： net.ipv4.conf.lo.arp_ignore=1 net.ipv4.conf.lo.arp_announce=2 net.ipv4.conf.all.arp_ignore=1 net.ipv4.conf.all.arp_announce=2
/etc/sysconfig/iptables
*nat :PREROUTING ACCEPT [12:480] :POSTROUTING ACCEPT [0:0] :OUTPUT ACCEPT [0:0] -A PREROUTING -d 10.92.21.222/32 -p tcp -m tcp --dport 80 -j DNAT --to-destination xxx.xxx.xxx.xxx:yyyy COMMIT *filter :INPUT ACCEPT [0:0] :FORWARD ACCEPT [0:0] :OUTPUT ACCEPT [0:0] -A INPUT -m state --state ESTABLISHED,RELATED -j ACCEPT -A INPUT -p icmp -j ACCEPT -A INPUT -i lo -j ACCEPT -A INPUT -m state --state NEW -m tcp -p tcp --dport 22 -j ACCEPT -A INPUT -m state --state NEW -m tcp -p tcp --dport 8080 -j ACCEPT -A INPUT -j REJECT --reject-with icmp-host-prohibited -A FORWARD -j REJECT --reject-with icmp-host-prohibited COMMIT
启动LVS
a)10.92.21.12和10.92.21.17上执行命令
service pulse start
查看 ifconfig ，如果在12或17上出现
则说明VIP已成功启动
b)在启动了eth1:1的机器上执行ipvsadm –L查看负载情况

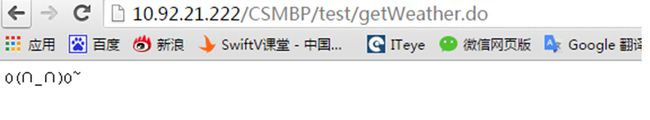

c) 通过vip访问应用 http://10.92.21.222/CSMBP/test/getWeather.do
d)日志文件是/var/log/message
、
