Android 属性动画实现的扇形菜单效果

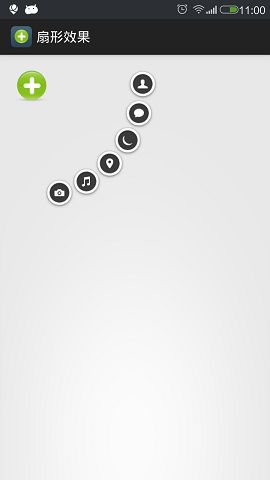

属性动画实现的扇形菜单效果，超级简单。直接上图上干货。

代码MainActivity：

package com.daidai.sectormenu;

import java.util.ArrayList;
import java.util.List;

import android.animation.AnimatorSet;
import android.animation.ObjectAnimator;
import android.app.Activity;
import android.app.AlertDialog;
import android.content.DialogInterface;
import android.os.Bundle;
import android.view.KeyEvent;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.ImageView;
import android.widget.Toast;

public class MainActivity extends Activity implements OnClickListener{

	private int[] res = {R.id.iv_open, R.id.iv_camera, R.id.iv_music, R.id.iv_place, R.id.iv_sleep, R.id.iv_thought, R.id.iv_with};
	private List<ImageView> imageViewList = new ArrayList<ImageView>();
	private boolean isOpen = false;//菜单是否打开状态
	private final int r = 300;//扇形半径
	private float angle;//按钮之间的夹角
	private final long intervalTime = 100; //菜单展开的时间间隔

	@Override
	protected void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
		setContentView(R.layout.activity_main);

		initImageView();
		//计算按钮之间的夹角
		angle=(float)Math.PI/(2*(res.length-1));

	}

	/**
	 * 初始化View
	 */
	private void initImageView(){
		ImageView imageView = null;
		for(int i = 0; i < res.length; i++){
			imageView = (ImageView) findViewById(res[i]);
			imageView.setOnClickListener(this);
			imageViewList.add(imageView);
		}
	}

	/**
	 * 点击事件
	 */
	@Override
	public void onClick(View view) {
		switch (view.getId()) {
		case R.id.iv_open:
			if(isOpen){
				closeAnim();
			}else{
				startAnim();
			}
			break;
		default:
			Toast.makeText(MainActivity.this, ""+view.getId(), Toast.LENGTH_SHORT).show();
			break;
		}
	}

	/**
	 * 展开菜单
	 */
	private void startAnim(){
		ObjectAnimator animatorX = null;
		ObjectAnimator animatorY = null;
		float translationX ;//横坐标偏移距离
		float translationY ;//纵坐标偏移距离
		for(int i = 1; i < res.length; i++){
			translationX = (float) (r*Math.sin(i*angle));
			translationY = (float) (r*Math.cos(i*angle));
			animatorX = ObjectAnimator.ofFloat(imageViewList.get(i),"translationX", 0F, translationX);
			animatorY = ObjectAnimator.ofFloat(imageViewList.get(i),"translationY", 0F, translationY);
			AnimatorSet animSet = new AnimatorSet();
			animSet.playTogether(animatorX, animatorY);
			animSet.setDuration(i * intervalTime);
			animSet.start();
		}
		isOpen = true;
	}

	/**
	 * 关闭菜单
	 */
	private void closeAnim(){
		ObjectAnimator animatorX = null;
		ObjectAnimator animatorY = null;
		float translationX ;//横坐标偏移距离
		float translationY ;//纵坐标偏移距离
		for(int i = res.length - 1; i > 0; i--){
			translationX = (float) (r*Math.sin(i*angle));
			translationY = (float) (r*Math.cos(i*angle));
			animatorX = ObjectAnimator.ofFloat(imageViewList.get(i),"translationX", translationX, 0F);
			animatorY = ObjectAnimator.ofFloat(imageViewList.get(i),"translationY", translationY, 0F);
			AnimatorSet animSet = new AnimatorSet();
			animSet.playTogether(animatorX, animatorY);
			animSet.setDuration((res.length - i) * intervalTime);
			animSet.start();
		}
		isOpen = false;
	}

	/**
	 * 监听是否按下返回键
	 */
	public boolean onKeyDown(int keyCode, KeyEvent event){
		//如果按下返回键，执行退出操作
		if(keyCode == KeyEvent.KEYCODE_BACK){
			showDialog();
		}
		return super.onKeyDown(keyCode, event);
	}

	/**
	 * 退出弹框
	 */
	private void showDialog(){
		new AlertDialog.Builder(this)
			.setTitle("退出")
			.setMessage("要退出么？")
			.setNegativeButton("退出", new DialogInterface.OnClickListener() {
					@Override
					public void onClick(DialogInterface arg0, int arg1) {
						finish();
					}
				})
			.setPositiveButton("返回", new DialogInterface.OnClickListener() {
					@Override
					public void onClick(DialogInterface arg0, int arg1) {

					}
			}).show();
	}


}

布局activity_main.xml：

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:paddingBottom="@dimen/activity_vertical_margin"
    android:paddingLeft="@dimen/activity_horizontal_margin"
    android:paddingRight="@dimen/activity_horizontal_margin"
    android:paddingTop="@dimen/activity_vertical_margin"
    tools:context="com.daidai.sectormenu.MainActivity" >

    <ImageView
        android:id="@+id/iv_camera"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:paddingLeft="5dp"
        android:paddingTop="5dp"
        android:src="@drawable/camera"/>

    <ImageView
        android:id="@+id/iv_music"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:paddingLeft="5dp"
        android:paddingTop="5dp"
        android:src="@drawable/music"/>

    <ImageView
        android:id="@+id/iv_place"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:paddingLeft="5dp"
        android:paddingTop="5dp"
        android:src="@drawable/place"/>

    <ImageView
        android:id="@+id/iv_sleep"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:paddingLeft="5dp"
        android:paddingTop="5dp"
        android:src="@drawable/sleep"/>

    <ImageView
        android:id="@+id/iv_thought"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:paddingLeft="5dp"
        android:paddingTop="5dp"
        android:src="@drawable/thought"/>

    <ImageView
        android:id="@+id/iv_with"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:paddingLeft="5dp"
        android:paddingTop="5dp"
        android:src="@drawable/with"/>

    <ImageView
        android:id="@+id/iv_open"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:paddingLeft="5dp"
        android:paddingTop="5dp"
        android:src="@drawable/open"/>


</RelativeLayout>

本人是一名Java开发人员，初次涉及Android开发，希望大家能多多指点。

同时附上源码下载以供参考：http://pan.baidu.com/s/1qWDi0ri
