OEM12c 安装配置MySQL Plug-in用来监控MySQL
emcli安装参考
Plug-in
Announcing MySQL Plugin 12.1.0.1.0 for Oracle Enterprise Manager 12c Cloud Control
--注册信息
[root@test agent]# /oem/emcli setup -url=https://omsdb.localdomain:7301/em -username=sysman
Oracle Enterprise Manager 12c 3.
Copyright (c) 1996, 2013 Oracle Corporation and/or its affiliates. All rights reserved.
The configuration directory "/root" may not be local. See the "dir" option in the help for the setup command.
Do you want to continue using this directory? [yes/no] yes
Enter password
Warning: This certificate has not been identified as trusted in the local trust store
--------------------------------------
[
[
Version: V1
Subject: CN=omsdb.localdomain, OU=FOR TESTING ONLY, O=MyOrganization, L=MyTown, ST=MyState, C=US
Signature Algorithm: MD5withRSA, OID = 1.2.840.113549.1.1.4
Key: Sun RSA public key, 512 bits
modulus: 9774958300566363503040586563208719740991935019890276590480512776276093552614004362217344254713840684473865384959907800325054231280357054886533950898531631
public exponent: 65537
Validity: [From: Tue Feb 18 13:40:23 CST 2014,
To: Mon Feb 19 13:40:23 CST 2029]
Issuer: CN=CertGenCAB, OU=FOR TESTING ONLY, O=MyOrganization, L=MyTown, ST=MyState, C=US
SerialNumber: [ 32a8b9c4 41026faa 37b98eb0 1084ec9f]
]
Algorithm: [MD5withRSA]
Signature:
0000: 33 8F 2F 33 59 89 15 46 C3 7A DF 91 3E 6D F6 59 3./3Y..F.z..>m.Y
0010: BC A7 EC 2B D8 9B 70 E1 E6 06 1A C6 DB 3D A6 E6 ...+..p......=..
0020: 7E D6 B8 58 61 86 C5 B0 15 E7 FF 98 61 D5 DD 1C ...Xa.......a...
0030: F6 63 A3 29 1C C8 CB 4A F0 D6 70 92 BD 0C E6 CA .c.)...J..p.....
]
--------------------------------------
Do you trust the certificate chain? [yes/no] yes
Emcli setup successful
--导入插件，这里/home/oracle/12.1.0.1.2_pythian.mysql.prod_2000_0.opar是OMS服务器所在的路径名称
[root@test oem]# ./emcli import_update -omslocal -file=/home/oracle/12.1.0.1.2_pythian.mysql.prod_2000_0.opar
Processing update: Plug-in - MySQL plug-in by Alex Gorbachev, The Pythian Group
Successfully uploaded the update to Enterprise Manager. Use the Self Update Console to manage this update.
--在MySQL服务器安装em agent过程省略可以参考下面链接,你可能需要安装一些必要的rpm包
OEM 12cR3使用agentDeploy方式安装agent
[mysql@test bin]$ ./emctl status agent
Oracle Enterprise Manager Cloud Control 12c Release 3
Copyright (c) 1996, 2013 Oracle Corporation. All rights reserved.
---------------------------------------------------------------
Agent Version : 12.1.0.3.0
OMS Version : 12.1.0.3.0
Protocol Version : 12.1.0.1.0
Agent Home : /agent/agent_inst
Agent Binaries : /agent/core/12.1.0.3.0
Agent Process ID : 24406
Parent Process ID : 24364
Agent URL : https://test.localdomain:3872/emd/main/
Repository URL : https://omsdb.localdomain:4900/empbs/upload
Started at : 2014-02-20 14:15:15
Started by user : mysql
Last Reload : (none)
Last successful upload : 2014-02-20 15:16:34
Last attempted upload : 2014-02-20 15:16:34
Total Megabytes of XML files uploaded so far : 0.3
Number of XML files pending upload : 0
Size of XML files pending upload(MB) : 0
Available disk space on upload filesystem : 30.47%
Collection Status : Collections enabled
Heartbeat Status : Ok
Last attempted heartbeat to OMS : 2014-02-20 15:18:25
Last successful heartbeat to OMS : 2014-02-20 15:18:25
Next scheduled heartbeat to OMS : 2014-02-20 15:19:25
---------------------------------------------------------------
Agent is Running and Ready

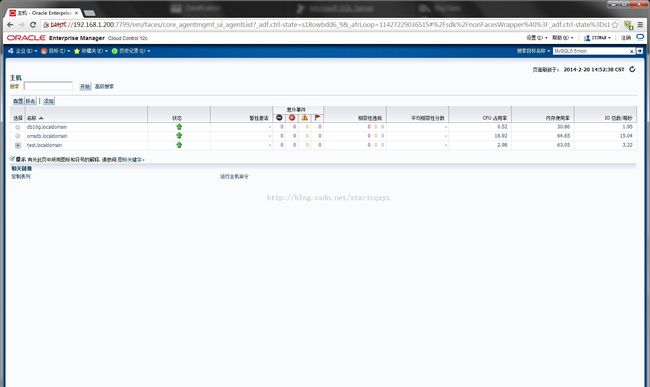

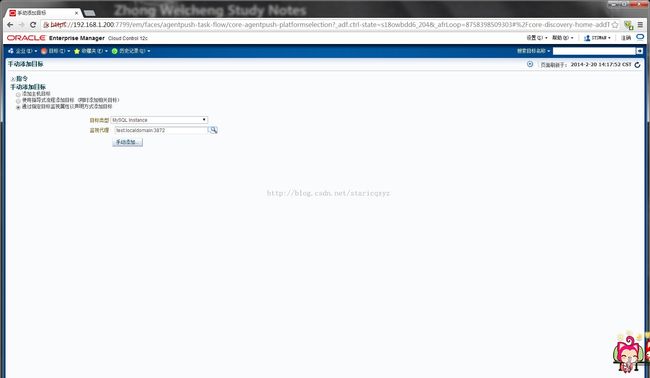

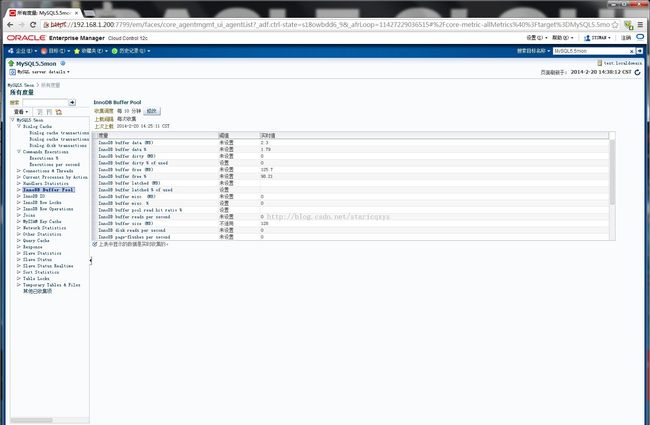

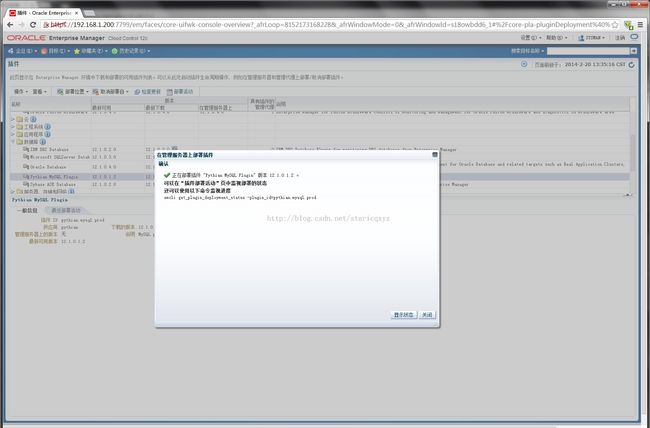

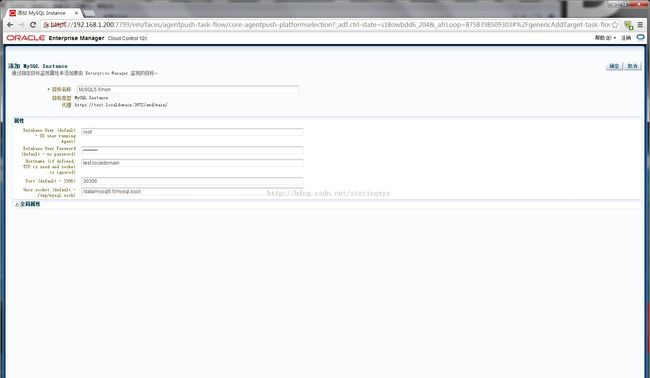

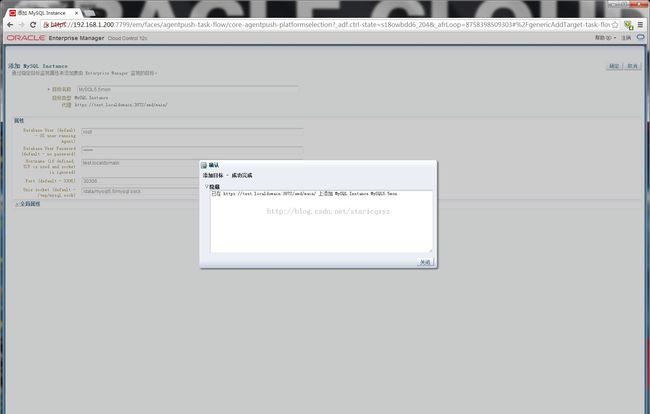

--以下是安装配置和监控界面
