枚举PEB获取进程模块列表

枚举进程模块的方法有很多种，常见的有枚举PEB和内存搜索法，今天，先来看看实现起来最简单的枚举PEB实现获取进程模块列表。

首先，惯例是各种繁琐的结构体定义。需要包含 ntifs.h 和 WinDef.h, 此处不再列出，各位看官根据情况自行添加。

typedef PPEB (__stdcall *PFNPsGetProcessPeb)(PEPROCESS pEProcess);

typedef ULONG   PPS_POST_PROCESS_INIT_ROUTINE;

typedef struct _PEB_LDR_DATA {
    BYTE       Reserved1[8];
    PVOID      Reserved2[3];
    LIST_ENTRY InMemoryOrderModuleList;
} PEB_LDR_DATA, *PPEB_LDR_DATA;

typedef struct _RTL_USER_PROCESS_PARAMETERS {
    BYTE           Reserved1[16];
    PVOID          Reserved2[10];
    UNICODE_STRING ImagePathName;
    UNICODE_STRING CommandLine;
} RTL_USER_PROCESS_PARAMETERS, *PRTL_USER_PROCESS_PARAMETERS;

typedef struct _PEB {
    BYTE                          Reserved1[2];
    BYTE                          BeingDebugged;
    BYTE                          Reserved2[1];
    PVOID                         Reserved3[2];
    PPEB_LDR_DATA                 Ldr;
    PRTL_USER_PROCESS_PARAMETERS  ProcessParameters;
    BYTE                          Reserved4[104];
    PVOID                         Reserved5[52];
    PPS_POST_PROCESS_INIT_ROUTINE PostProcessInitRoutine;
    BYTE                          Reserved6[128];
    PVOID                         Reserved7[1];
    ULONG                         SessionId;
} PEB, *PPEB;

typedef struct _LDR_DATA_TABLE_ENTRY
{
    LIST_ENTRY InLoadOrderLinks;
    LIST_ENTRY InMemoryOrderLinks;
    LIST_ENTRY InInitializationOrderLinks;
    PVOID DllBase;
    PVOID EntryPoint;
    DWORD SizeOfImage;
    UNICODE_STRING FullDllName;
    UNICODE_STRING BaseDllName;
    DWORD Flags;
    WORD LoadCount;
    WORD TlsIndex;
    LIST_ENTRY HashLinks;
    PVOID SectionPointer;
    DWORD CheckSum;
    DWORD TimeDateStamp;
    PVOID LoadedImports;
    PVOID EntryPointActivationContext;
    PVOID PatchInformation;
}LDR_DATA_TABLE_ENTRY,*PLDR_DATA_TABLE_ENTRY;

下面进入真正的实现代码：

NTSTATUS GetProcessModules(ULONG ulProcessId)
{
    NTSTATUS nStatus;
    //PEB结构指针
    PPEB pPEB = NULL;

    //EPROCESS结构指针
    PEPROCESS  pEProcess = NULL;

    //查找的函数名称
    UNICODE_STRING uniFunctionName;

    //进程参数信息
    PRTL_USER_PROCESS_PARAMETERS pParam  = NULL;

    //LDR数据结构
    PPEB_LDR_DATA pPebLdrData = NULL;

    //LDR链表入口
    PLDR_DATA_TABLE_ENTRY pLdrDataEntry = NULL;

    //链表头节点、尾节点
    PLIST_ENTRY pListEntryStart = NULL;
    PLIST_ENTRY pListEntryEnd = NULL;

    //函数指针
    PFNPsGetProcessPeb  PsGetProcessPeb = NULL;

    //保存APC状态
    KAPC_STATE KAPC ={0};

    //是否已经附加到进程
    BOOLEAN bIsAttached = FALSE;

    //获取进程的EPROCESS结构指针
    nStatus = PsLookupProcessByProcessId((HANDLE)ulProcessId, &pEProcess);
    if (!NT_SUCCESS(nStatus))
    {
        return STATUS_UNSUCCESSFUL;
    }

    //查找函数地址
    RtlInitUnicodeString(&uniFunctionName, L"PsGetProcessPeb");
    PsGetProcessPeb = (PFNPsGetProcessPeb)MmGetSystemRoutineAddress(&uniFunctionName);
    if (PsGetProcessPeb == NULL)
    {
        KdPrint(("Get PsGetProcessPeb Failed~!\n"));
        return STATUS_UNSUCCESSFUL;
    }

    //获取PEB指针
    pPEB = PsGetProcessPeb(pEProcess);
    if (pPEB == NULL)
    {
        KdPrint(("Get pPEB Failed~!\n"));
        return STATUS_UNSUCCESSFUL;
    }

    //附加到进程
    KeStackAttachProcess(pEProcess, &KAPC);

    bIsAttached = TRUE;

    //指向LDR
    pPebLdrData = pPEB->Ldr;

    //头节点、尾节点
    pListEntryStart = pListEntryEnd = pPebLdrData->InMemoryOrderModuleList.Flink;


    //开始遍历_LDR_DATA_TABLE_ENTRY
    do
    {
        //通过_LIST_ENTRY的Flink成员获取_LDR_DATA_TABLE_ENTRY结构
        pLdrDataEntry = (PLDR_DATA_TABLE_ENTRY)CONTAINING_RECORD(pListEntryStart,LDR_DATA_TABLE_ENTRY, InMemoryOrderLinks);

        //输出DLL全路径
        KdPrint(("%wZ \n", &pLdrDataEntry->FullDllName));

        pListEntryStart = pListEntryStart->Flink;

    }while(pListEntryStart != pListEntryEnd);


    //Detach进程
    if (bIsAttached != FALSE)
    {
        KeUnstackDetachProcess(&KAPC);
    }

    //减少引用计数
    if (pEProcess != NULL)
    {
        ObDereferenceObject(pEProcess);
        pEProcess = NULL;
    }

    return STATUS_SUCCESS;
}

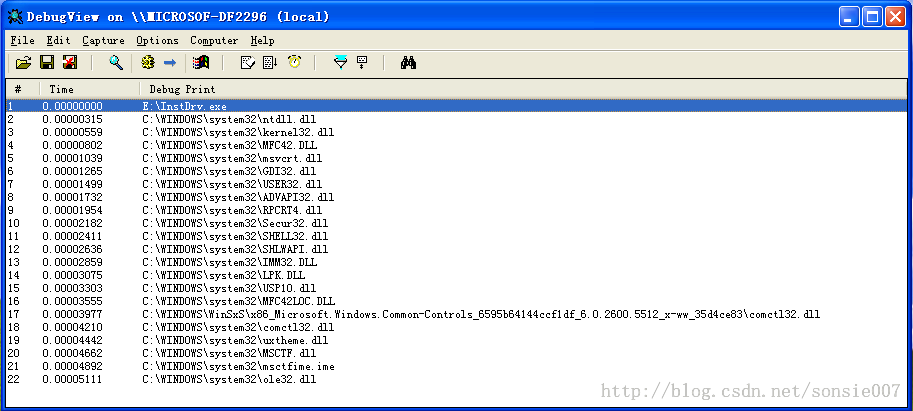

下面是运行截图：
