Android自定义ExpandableListView



http://hi.baidu.com/spz_mao/item/ae984bd403d1f81f21e250ef

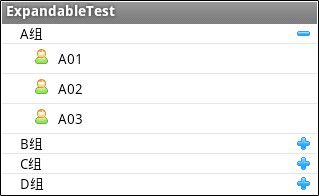

  实现这样的效果需要自定义一个Adapter，自定义的Adapter继承BaseExpandableListAdapter，重写getGroupView和

getChildView方法时实例化自己的布局文件就可以了。下面是实现代码：

主布局文件  main.xml

<?xmlversion="1.0"encoding="utf-8"?>
 <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
     android:layout_width="fill_parent"
     android:layout_height="fill_parent"
     android:orientation="vertical"
     android:background="#ffffff"
     >

     <ExpandableListView
         android:id="@+id/elist"
         android:layout_width="fill_parent"
         android:layout_height="wrap_content"
         android:background="#ffffff"
      />

</LinearLayout>

子视图布局文件

child_layout.xml

<?xmlversion="1.0"encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
     android:layout_width="match_parent"
     android:layout_height="wrap_content"
     android:orientation="horizontal"
     android:paddingLeft="30dp"
     >

     <ImageView
         android:id="@+id/civ"
         android:layout_height="wrap_content"
         android:layout_width="wrap_content"
         android:src="@drawable/ren"
         android:padding="5dp"
      />

     <TextView
         android:id="@+id/ctv"
         android:layout_height="wrap_content"
         android:layout_width="wrap_content"
         android:padding="5dp"
         android:textColor="#000000"
      />

</LinearLayout>



分组视图布局文件 group_layout.xml

<?xmlversion="1.0"encoding="utf-8"?>
   <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
       android:id="@+id/grlayout"
       android:layout_width="match_parent"
       android:layout_height="wrap_content"
       android:orientation="horizontal">

       <TextView
             android:id="@+id/gtv"
             android:layout_width="wrap_content"
             android:layout_height="fill_parent"
             android:paddingLeft="20dp"
             android:textColor="#000000"
        />

       <ImageView
             android:id="@+id/giv"
             android:layout_width="wrap_content"
             android:layout_height="wrap_content"
             android:layout_alignParentRight="true"
             android:layout_centerVertical="true"
             android:paddingRight="10dp"
             android:src="@drawable/jia"
        />

   </RelativeLayout>

自定义适配器 MyElistAdapter.java

publicclass MyElistAdapter extends BaseExpandableListAdapter {
      // 分组数据
     private String[] group = { "A组", "B组", "C组", "D组" };
     private String[][] child = { { "A01", "A02", "A03" },
             { "B01", "B02", "B03" }, { "C01", "C02", "C03" },
             { "D04", "D05", "D06" } };
     private Context mContext;

     public MyElistAdapter(Context mContext) {
             super();
             this.mContext = mContext;
     }

     @Override
     public int getGroupCount() {
         return group.length;
     }

     @Override
     public int getChildrenCount(int groupPosition) {
             return child[groupPosition].length;
     }

     @Override
     public Object getGroup(int groupPosition) {
             return group[groupPosition];
     }

     @Override
     public Object getChild(int groupPosition, int childPosition) {
             return child[groupPosition][childPosition];
     }

     @Override
     public long getGroupId(int groupPosition) {
             return groupPosition;
     }

     @Override
     public long getChildId(int groupPosition, int childPosition) {
             returnchildPosition;
     }

     @Override
     public boolean hasStableIds() {
             return true;
     }

     @Override
     public View getGroupView(int groupPosition, boolean isExpanded,
     View convertView, ViewGroup parent) {
             // 实例化布局文件
             RelativeLayout glayout = (RelativeLayout) LayoutInflater.from(mContext)
             .inflate(R.layout.group_layout, null);
              ImageView iv = (ImageView) glayout.findViewById(R.id.giv);
              // 判断分组是否展开，分别传入不同的图片资源
             if (isExpanded) {
                     iv.setImageResource(R.drawable.jian);
             } else {
                     iv.setImageResource(R.drawable.jia);
             }
            TextView tv = (TextView) glayout.findViewById(R.id.gtv);
             tv.setText(this.getGroup(groupPosition).toString());
             return glayout;
      }

      @Override
     public View getChildView(int groupPosition, int childPosition,
     boolean isLastChild, View convertView, ViewGroup parent) {
             // 实例化布局文件
             LinearLayout clayout = (LinearLayout) LayoutInflater.from(mContext)
             .inflate(R.layout.child_layout, null);
             TextView tv = (TextView) clayout.findViewById(R.id.ctv);
             tv.setText(getChild(groupPosition, childPosition).toString());
             return clayout;
     }

     @Override
     public boolean isChildSelectable(int groupPosition, int childPosition) {
             return true;
     }
 }

MainActivity.java

public class ExpandableTestActivity extends Activity {
      private ExpandableListView elistview;

      @Override
      public void onCreate(Bundle savedInstanceState) {
              super.onCreate(savedInstanceState);
              setContentView(R.layout.main);
              elistview = (ExpandableListView) findViewById(R.id.elist);
              //这里要把系统自带的图标去掉
              elistview.setGroupIndicator(null);
              elistview.setAdapter(new ElistAdapter(this));
              // elistview.setChildDivider(null);
              // elistview.setDivider(null);
       }
  }
