设计模式学习-----原型模式

原型模式

    GOOD:从一个对象再创建另外一个可定制的对象,而无需知道任何创建的细节。并能提高创建的性能。 说白了就COPY技术,把一个对象完整的COPY出一份。

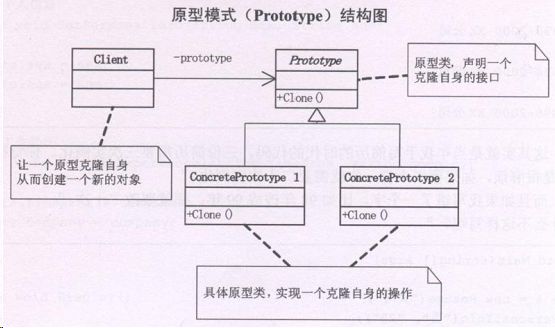

设计模式学习-----原型模式_第1张图片

转载请注明,文章来自:http://blog.csdn.net/windows_nt

例:

#include<iostream>
#include <vector>
#include <string>
using namespace std;

class Prototype //抽象基类
{
private:
	string m_strName;
public:
	Prototype(string strName) { m_strName = strName; }
	Prototype() { m_strName = "我的名字叫刘彦敏,你呢?"; }
	void Show()
	{
		cout<<m_strName<<endl;
	}
	virtual Prototype* Clone() = 0 ;
} ;

// class ConcretePrototype1
class ConcretePrototype1 : public Prototype
{
public:
	ConcretePrototype1(string strName) : Prototype(strName){}
	ConcretePrototype1(){}

	virtual Prototype* Clone()
	{
		ConcretePrototype1 *p = new ConcretePrototype1() ;
		*p = *this ; //复制对象
		return p ;
	}
} ;

// class ConcretePrototype2
class ConcretePrototype2 : public Prototype
{
public:
	ConcretePrototype2(string strName) : Prototype(strName){}
	ConcretePrototype2(){}

	virtual Prototype* Clone()
	{
		ConcretePrototype2 *p = new ConcretePrototype2() ;
		*p = *this ; //复制对象
		return p ;
	}
} ;

//客户端
int main()
{
	ConcretePrototype1* test = new ConcretePrototype1("刘彦敏");
	ConcretePrototype2* test2 = (ConcretePrototype2*)test->Clone();
	test->Show();
	test2->Show();
	return 0;
}
