（八）分布式通信----主机Host

 ==>>点击查看本系列文章目录



上节中有谈到的是通信主机（TransportHost），本节中主机（ServiceHost）负责管理服务的生命周期。

项目中将两个主机拆分开，实现不同的功能：

通信主机：用于启动通信监听端口；

生命周期管理的主机：负责模块功能的依赖注入，管理生命周期。

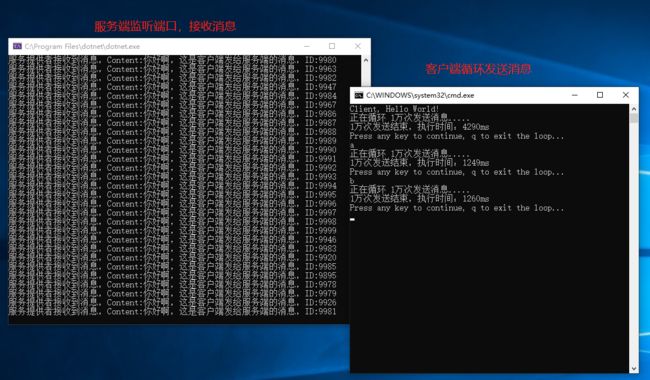

先看一下启动服务端主机和客户端主机后完成通信的效果图：

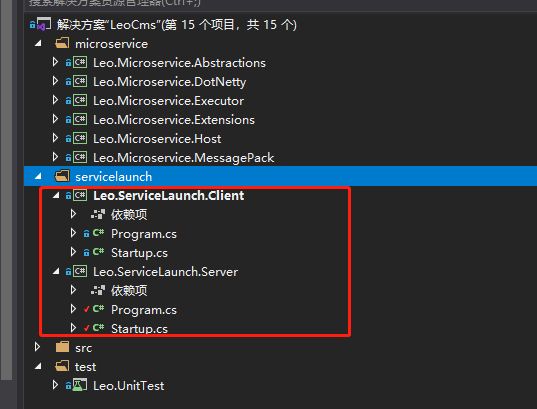

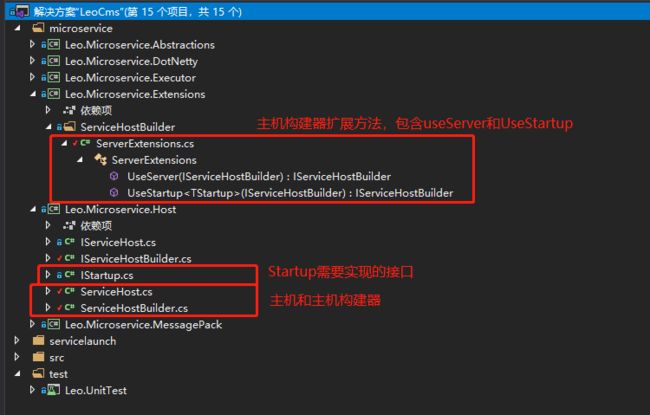

 文件结构如下：



ServiceHost 主机由ServiceHostBuilder来构建。

过程如下：

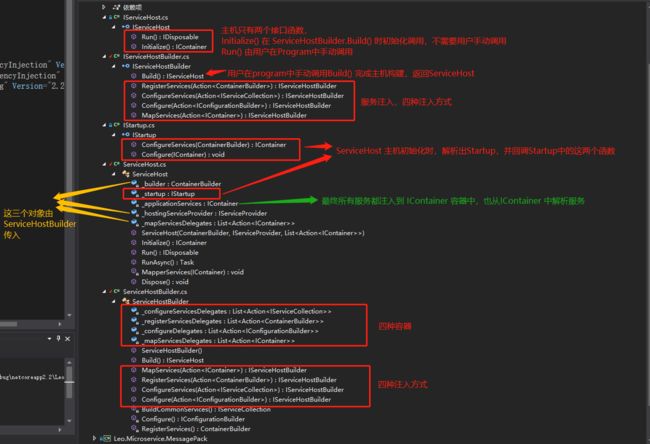

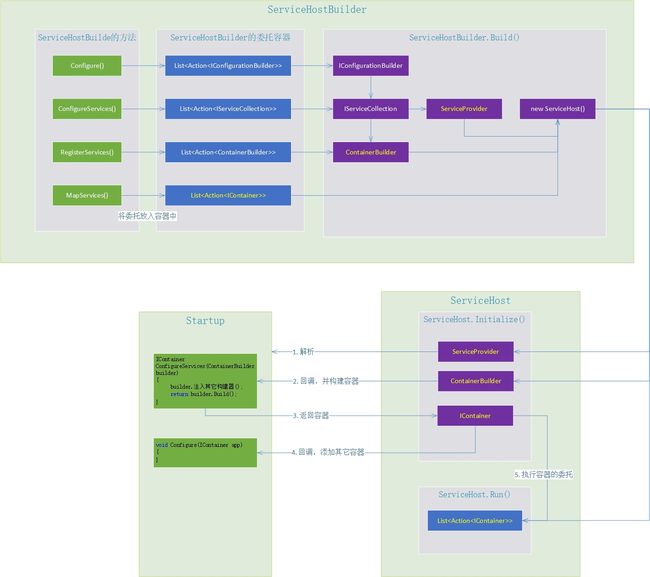

先看调用图：

1.Program中Main() 调用 ServiceHostBuilder 的方法：MapServices、RegisterServices、ConfigureServices、Configure

　　分别将委托填充到 List>、List>、List>、List> 类型的容器中。

　　其中 IContainer、ContainerBuilder 是 Autofac中的容器，IServiceCollection、IConfigurationBuilder 是 Microsoft中的容器。

2. Program中Main() 调用 ServiceHostBuilder 的方法 UseStartup()  ，Startup 必须实现 IStartup，完成Startup 的单例注入（微软中的 Startup 可以不实现 IStartup ，但是必须使用方法ConfigureServices、Configure）

3. Program中Main() 调用 ServiceHostBuilder 的方法 Build()

　　（1）回调容器 List>、List>、List>、List> 中的委托。

　　　　  容器生成过程： ConfigureServices　　 ---》　　List>　　　　　　---》　　IServiceCollection

　　　　　　　　　　　　Configure　　　　　　---》　　List>  　　　　---》　　IConfigurationBuilder

　　　　　　　　　　　　IServiceCollection + IConfigurationBuilder　　---》　　IServiceCollection 　　---》　　ServiceProvider

　　　　　　　　　　　　RegisterServices　　   ---》　　List>　　　　　　 ---》　　ContainerBuilder

　　　　　　　　　　　　ContainerBuilder + IServiceCollection　　       ---》　　ContainerBuilder

　　　　　　　　　　　　MapServices　　　　  ---》　　List>

　　（2）将上面红色字体的对象通过构造函数传给new 的 ServiceHost 对象。

　　（3）调用ServiceHost .Initialize(),  该方法中执行如下过程

　　　　a. 用ServiceProvider 解析出 Startup 对象

　　　　b. 回调Startup的 IContainer ConfigureServices(ContainerBuilder builder) , 返回构建好的容器 IContainer

　　　　c. 回调Startup的 void Configure(IContainer app) , IContainer中注入其它功能

　　（4）将包含IContainer容器的ServiceHost 对象返回

4. ServiceHost.Run(), 回调主机中一直未执行的容器委托 List>

总结一下，整个过程就是将原来的四个委托的容器最后合并成一个 IContainer 容器。

解析容器中的服务，可以用 ：

IContainer _container;
IDemoService service = _container.Resolve();



服务端和客户端启动：





代码：

我们先看客户端和服务端代码：

服务端：

namespace Leo.ServiceLaunch.Server
{
    class Program
    {
        static void Main(string[] args)
        {
            Console.WriteLine("Server, Hello World!");

            var host = new ServiceHostBuilder()
                .RegisterServices(builder =>
                {
                    builder.RegisterType().As().SingleInstance();
                    builder.RegisterType(typeof(HttpServiceExecutor)).As(typeof(IServiceExecutor)).Named("tcp").SingleInstance();
                    builder.Register(provider =>
                    {
                        return new DotNettyServerMessageListener(provider.Resolve>(),
                              provider.Resolve());
                    }).SingleInstance();
                    builder.Register(provider =>
                    {
                        var serviceExecutor = provider.ResolveKeyed("tcp");
                        var messageListener = provider.Resolve();
                        return new DotNettyTransportHost(async endPoint =>
                        {
                            await messageListener.StartAsync(endPoint);
                            return messageListener;
                        }, serviceExecutor);
                    }).As();
                })
                .UseServer()  // 指定监听的端口
                .UseStartup()
                .Build();

            using (host.Run())
            {
                Console.WriteLine($"服务端启动成功，{DateTime.Now}。");
            }

            Console.ReadLine();
        }

    }
}

namespace Leo.ServiceLaunch.Server
{
    class Startup : IStartup
    {
        public IContainer ConfigureServices(ContainerBuilder builder)
        {
            return builder.Build();
        }

        public void Configure(IContainer app)
        {

        }
    }
}

客户端：

namespace Leo.ServiceLaunch.Client
{
    class Program
    {
        static void Main(string[] args)
        {
            Console.WriteLine("Client, Hello World!");

            var host = new ServiceHostBuilder()
                .RegisterServices(builder =>
                {
                    builder.RegisterType().As().SingleInstance();
                    builder.Register(provider =>
                    {
                        IServiceExecutor serviceExecutor = null;
                        if (provider.IsRegistered(typeof(IServiceExecutor)))  // 没有注册客户端接收消息执行器，因此一直为空
                            serviceExecutor = provider.Resolve();
                        return new DotNettyTransportClientFactory(provider.Resolve(),
                            provider.Resolve>(),
                            serviceExecutor);
                    }).As(typeof(ITransportClientFactory)).SingleInstance();
                })
                .UseStartup()
                .Build();

            using (host.Run())
            {
                Startup.Test();
            }
            Console.ReadLine();
        }
    }
}

namespace Leo.ServiceLaunch.Client
{
    class Startup : IStartup
    {
        private static IContainer _container;
        public void Configure(IContainer app)
        {
        }

        public IContainer ConfigureServices(ContainerBuilder builder)
        {
            _container = builder.Build();
            return _container;
        }

        internal static void Test()
        {
            Task.Run(async () =>
            {
                do
                {
                    Console.WriteLine("正在循环 1万次发送消息.....");

                    //1w次调用
                    var watch = Stopwatch.StartNew();
                    for (var i = 1; i < 10000; i++)
                    {
                        var invokeMessage = new TransportMessage
                        {
                            Id = i.ToString(),
                            ContentType = "string",
                            Content = "你好啊，这是客户端发给服务端的消息"
                        };
                        try
                        {
                            var endPoint = new IPEndPoint(IPAddress.Parse("127.0.0.1"), 981);
                            ITransportClientFactory transportClientFactory = _container.Resolve();
                            var client = await transportClientFactory.CreateClientAsync(endPoint);
                            await client.SendAsync(invokeMessage);
                        }
                        catch (Exception exception)
                        {
                            Console.WriteLine(exception.ToString(), $"发起请求中发生了错误，服务Id：{invokeMessage.Id}。");
                            throw;
                        }
                    }
                    watch.Stop();
                    Console.WriteLine($"1万次发送结束，执行时间：{watch.ElapsedMilliseconds}ms");
                    Console.WriteLine("Press any key to continue, q to exit the loop...");
                    var key = Console.ReadLine();
                    if (key.ToLower() == "q")
                        break;
                } while (true);
            }).Wait();
        }
    }
}

主机：

IServiceHost：

    public interface IServiceHost : IDisposable
    {
        IDisposable Run();

        IContainer Initialize();
    }

IServiceHostBuilder：

    public interface IServiceHostBuilder
    {
        IServiceHost Build();

        IServiceHostBuilder RegisterServices(Action builder);

        IServiceHostBuilder ConfigureServices(Action configureServices);

        IServiceHostBuilder Configure(Action builder);

        IServiceHostBuilder MapServices(Action mapper);
    }

ServiceHost：

public class ServiceHost : IServiceHost
    {
        private readonly ContainerBuilder _builder;
        private IStartup _startup;
        private IContainer _applicationServices;
        private readonly IServiceProvider _hostingServiceProvider;
        private readonly List> _mapServicesDelegates;

        public ServiceHost(ContainerBuilder builder,
            IServiceProvider hostingServiceProvider,
             List> mapServicesDelegate)
        {
            _builder = builder;
            _hostingServiceProvider = hostingServiceProvider;
            _mapServicesDelegates = mapServicesDelegate;
        }

        public IContainer Initialize()
        {
            if (_applicationServices == null)
            {
                try
                {
                    if (_applicationServices == null)
                    {
                        if (_startup == null)
                        {
                            // 解析出 Startup
                            _startup = _hostingServiceProvider.GetRequiredService();
                        }
                        //回调Startup中的 ConfigureServices，
                        _applicationServices = _startup.ConfigureServices(_builder);
                    }
                    if (_applicationServices == null)
                        _applicationServices = _builder.Build();
                    Action configure = _startup.Configure;
                    configure(_applicationServices);
                }
                catch (Exception ex)
                {
                    Console.Out.WriteLine("应用程序启动异常: " + ex.ToString());
                    throw;
                }
            }
            return _applicationServices;
        }

        public IDisposable Run()
        {
            RunAsync().GetAwaiter().GetResult();
            return this;
        }

        public async Task RunAsync()
        {
            if (_applicationServices != null)
                MapperServices(_applicationServices);
        }

        private void MapperServices(IContainer mapper)
        {
            foreach (var mapServices in _mapServicesDelegates)
            {
                mapServices(mapper);
            }
        }

        public void Dispose()
        {
            (_hostingServiceProvider as IDisposable)?.Dispose();
        }
    }

ServiceHostBuilder：

public class ServiceHostBuilder : IServiceHostBuilder
    {
        private readonly List> _configureServicesDelegates;
        private readonly List> _registerServicesDelegates;
        private readonly List> _configureDelegates;
        private readonly List> _mapServicesDelegates;

        public ServiceHostBuilder()
        {
            _configureServicesDelegates = new List>();
            _registerServicesDelegates = new List>();
            _configureDelegates = new List>();
            _mapServicesDelegates = new List>();

        }

        public IServiceHost Build()
        {
            #region Microsoft原生的容器
            //执行 IServiceCollection 类型的委托
            var services = BuildCommonServices();
            //执行 IConfigurationBuilder 类型的委托
            var config = Configure();
            //日志注入到 IServiceCollection
            services.AddLogging();
            //IConfigurationBuilder 注入到 IServiceCollection
            services.AddSingleton(typeof(IConfigurationBuilder), config);
            //用 IServiceCollection 生成 ServiceProvider 服务提供器
            var hostingServiceProvider = services.BuildServiceProvider();
            #endregion

            #region Autofac的容器
            //执行 ContainerBuilder 类型的委托
            var hostingServices = RegisterServices();
            #endregion

            //将 IServiceCollection 填充到 Autofac 的 ContainerBuilder 构建器中
            hostingServices.Populate(services);


            //把Autofac的ContainerBuild的容器构建器、Microsoft的ServiceProvider服务提供器、已有的IContainer容器的委托 都放入主机中
            var host = new ServiceHost(hostingServices, hostingServiceProvider, _mapServicesDelegates);
            //主机初始化以后返回的是IContainer容器
            var container = host.Initialize();
            return host;
        }

        public IServiceHostBuilder MapServices(Action mapper)
        {
            if (mapper == null)
            {
                throw new ArgumentNullException(nameof(mapper));
            }
            _mapServicesDelegates.Add(mapper);
            return this;
        }

        public IServiceHostBuilder RegisterServices(Action builder)
        {
            if (builder == null)
            {
                throw new ArgumentNullException(nameof(builder));
            }
            _registerServicesDelegates.Add(builder);
            return this;
        }

        public IServiceHostBuilder ConfigureServices(Action configureServices)
        {
            if (configureServices == null)
            {
                throw new ArgumentNullException(nameof(configureServices));
            }
            _configureServicesDelegates.Add(configureServices);
            return this;
        }

        public IServiceHostBuilder Configure(Action builder)
        {
            if (builder == null)
            {
                throw new ArgumentNullException(nameof(builder));
            }
            _configureDelegates.Add(builder);
            return this;
        }

        private IServiceCollection BuildCommonServices()
        {
            var services = new ServiceCollection();
            foreach (var configureServices in _configureServicesDelegates)
            {
                configureServices(services);
            }
            return services;
        }

        private IConfigurationBuilder Configure()
        {
            //var config = new ConfigurationBuilder().SetBasePath(AppContext.BaseDirectory);
            var config = new ConfigurationBuilder();
            foreach (var configure in _configureDelegates)
            {
                configure(config);
            }
            return config;
        }

        private ContainerBuilder RegisterServices()
        {
            var hostingServices = new ContainerBuilder();
            foreach (var registerServices in _registerServicesDelegates)
            {
                registerServices(hostingServices);
            }
            return hostingServices;
        }
    }

IStartup：

    public interface IStartup
    {
        IContainer ConfigureServices(ContainerBuilder builder);

        void Configure(IContainer app);
    }

ServerExtensions：

    public static class ServerExtensions
    {
        public static IServiceHostBuilder UseServer(this IServiceHostBuilder hostBuilder)
        {
            return hostBuilder.MapServices(async mapper =>
            {
                int _port = 981;
                string _ip = "127.0.0.1";

                Console.WriteLine($"准备启动服务主机，监听地址：{_ip}:{_port}。");
                var transportHosts = mapper.Resolve>();
                Task.Factory.StartNew(async () =>
                {
                    foreach (var transportHost in transportHosts)
                        await transportHost.StartAsync(_ip, _port);
                }).Wait();
            });
        }

        public static IServiceHostBuilder UseStartup(this IServiceHostBuilder hostBuilder) where TStartup : IStartup
        {
            return hostBuilder
                .ConfigureServices(services =>
                {
                    services.AddSingleton(typeof(IStartup), typeof(TStartup));
                });
        }
    }
