Maven+SpringMVC+Mybatis整合入门Demo

1 数据库准备

（1）建立一个名为mytest的数据库

（2）创建表

CREATE TABLE `t_user` (
`USER_ID` int(11) NOT NULL AUTO_INCREMENT,
`USER_NAME` char(30) NOT NULL,
`USER_PASSWORD` char(10) NOT NULL,
PRIMARY KEY (`USER_ID`),
KEY `IDX_NAME` (`USER_NAME`)
)ENGINE=InnoDB AUTO_INCREMENT=11 DEFAULT CHARSET=utf8

（3）插入数据

INSERT INTO t_user (USER_ID, USER_NAME,USER_PASSWORD) VALUES (1, 'Zhang San', '654321');
INSERT INTO t_user (USER_ID, USER_NAME,USER_PASSWORD) VALUES (2, 'Li Si', '123456');

2 参考http://blog.csdn.net/haishu_zheng/article/details/51490299，用第二种方法创建一个名为maven_springmvc_mybatis_demo的工程。

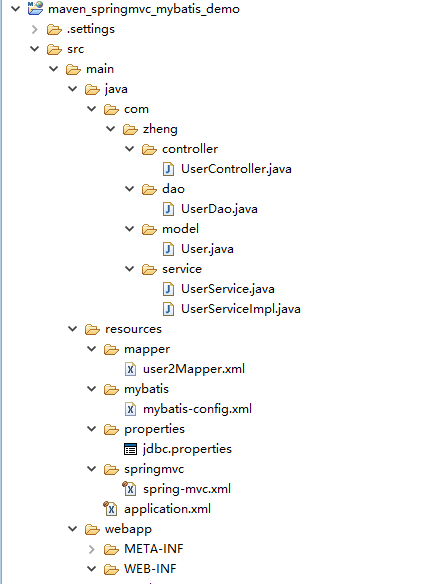

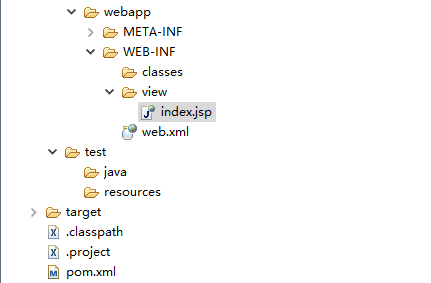

3 文件目录结构如下图所示

4 pom.xml的完整内容为

    4.0.0
    maven_springmvc_mybatis_demo
    maven_springmvc_mybatis_demo
    0.0.1-SNAPSHOT
    war
    maven_springmvc_mybatis_demo




        3.2.9.RELEASE

        4.10

        3.2.8





           org.springframework
           spring-core
           ${spring.version}


           org.springframework
           spring-webmvc
           ${spring.version}


           org.springframework
           spring-context
           ${spring.version}


           org.springframework
           spring-context-support
           ${spring.version}


           org.springframework
           spring-aop
           ${spring.version}


           org.springframework
           spring-aspects
           ${spring.version}


           org.springframework
           spring-tx
           ${spring.version}


           org.springframework
           spring-jdbc
           ${spring.version}


           org.springframework
           spring-web
           ${spring.version}




           junit
           junit
           ${junit.version}
           test




           org.springframework
           spring-test
           ${spring.version}
           test




           org.mybatis
           mybatis
           ${mybatis.version}




           org.mybatis
           mybatis-spring
           1.2.2




           mysql
           mysql-connector-java
           5.1.34




           javax
           javaee-api
           7.0
           provided




           javax
           javaee-web-api
           7.0
           provided





5 web.xml中的完整内容为

  maven_springmvc_mybatis_demo



        contextConfigLocation
        classpath:application.xml



        org.springframework.web.context.ContextLoaderListener




		dispatcherServlet
		org.springframework.web.servlet.DispatcherServlet

			contextConfigLocation

			classpath:springmvc/spring-mvc.xml

		1



		dispatcherServlet
		/


6 User.java的完整代码为

package com.zheng.model;

public class User {
	private Integer userId;
    private String userName;
    private String userPassword;

    public Integer getUserId() {
        return userId;
    }

    public void setUserId(Integer userId) {
        this.userId = userId;
    }

    public String getUserName() {
        return userName;
    }

    public void setUserName(String userName) {
        this.userName = userName;
    }

    public String getUserPassword() {
        return userPassword;
    }

    public void setUserPassword(String userPassword) {
        this.userPassword = userPassword;
    }
}

7 UserDao.java的完整代码为

package com.zheng.dao;

import com.zheng.model.User;

public interface UserDao {
	public User selectUserById(Integer userId);
}

8 UserService.java的完整代码为

package com.zheng.service;

import com.zheng.model.User;

public interface UserService {
	User selectUserById(Integer userId);
}

9 UserServiceImpl.java的完整代码为

package com.zheng.service;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import com.zheng.dao.UserDao;
import com.zheng.model.User;
import com.zheng.service.UserService;

@Service
public class UserServiceImpl implements UserService {
	@Autowired
    private UserDao userDao;

    public User selectUserById(Integer userId) {
        return userDao.selectUserById(userId);

    }
}

10 UserController.java的完整代码为

package com.zheng.controller;

import javax.annotation.Resource;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.servlet.ModelAndView;

import com.zheng.model.User;
import com.zheng.service.UserService;

@Controller
public class UserController {

    @Resource
    private UserService userService;

    @RequestMapping("/showUserInfo")
    public ModelAndView getIndex(){
        ModelAndView mav = new ModelAndView("index");
        User user = userService.selectUserById(1);
        mav.addObject("user", user);
        return mav;
    }
}

11 User2Mapper.xml的完整代码为












		SELECT * FROM t_user WHERE USER_ID = #{userId}


12 mybatis-config.xml的完整代码为

13 jdbc.properties的完整代码为

jdbc_driverClassName=com.mysql.jdbc.Driver
jdbc_url=jdbc:mysql://localhost:3306/mytest
jdbc_username=root
jdbc_password=root

14 spring-mvc.xml的完整代码为

15 application.xml的完整代码为






               classpath:properties/*.properties











			${jdbc_driverClassName}


			${jdbc_url}


			${jdbc_username}


			${jdbc_password}



















16 index.jsp中的完整代码为：

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%>


User Info
用户名： ${user.userName}

 密码： ${user.userPassword}

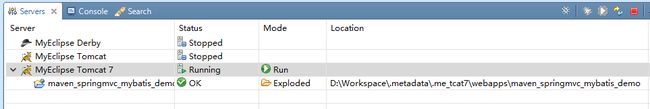

17 将项目添加进Tomcat 7中并运行

在浏览器中输入

http://localhost:8080/maven_springmvc_mybatis_demo/showUserInfo

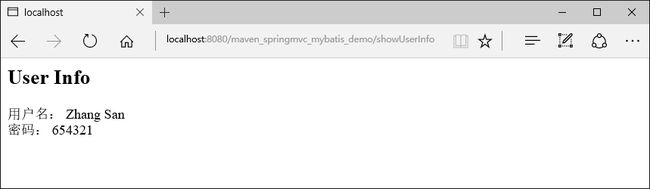

显示结果为

18 源码下载地址

CSDN：http://download.csdn.net/detail/haishu_zheng/9534859

Github：https://github.com/zhenghaishu/maven_springmvc_mybatis_demo
