Spring MVC中使用 Swagger2 构建Restful API

0.Spring MVC配置文件中的配置

1.maven依赖



			io.springfox
			springfox-swagger2
			2.4.0


			io.springfox
			springfox-swagger-ui
			2.4.0


2.Swagger配置文件

package com.jay.plat.config.util;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.EnableWebMvc;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurationSupport;


import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;
/*
 * Restful API 访问路径:
 * http://IP:port/{context-path}/swagger-ui.html
 * eg:http://localhost:8080/jd-config-web/swagger-ui.html
 */
@EnableWebMvc
@EnableSwagger2
@ComponentScan(basePackages = {"com.jay.plat.config.controller"})
@Configuration
public class RestApiConfig extends WebMvcConfigurationSupport{

    @Bean
    public Docket createRestApi() {
        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(apiInfo())
                .select()
                .apis(RequestHandlerSelectors.basePackage("com.jay.plat.config.controller"))
                .paths(PathSelectors.any())
                .build();
    }

    private ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                .title("Spring 中使用Swagger2构建RESTful APIs")
                .termsOfServiceUrl("http://blog.csdn.net/he90227")
                .contact("逍遥飞鹤")
                .version("1.1")
                .build();
    }
}

配置说明：



@Configuration 配置注解，自动在本类上下文加载一些环境变量信息
@EnableWebMvc
@EnableSwagger2 使swagger2生效
@ComponentScan("com.myapp.packages") 需要扫描的包路径

3.Controller中使用注解添加API文档

package com.jay.spring.boot.demo10.swagger2.controller;

import java.util.ArrayList;
import java.util.Collections;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;

import com.jay.spring.boot.demo10.swagger2.bean.User;

import io.swagger.annotations.ApiImplicitParam;
import io.swagger.annotations.ApiImplicitParams;
import io.swagger.annotations.ApiOperation;

@RestController
@RequestMapping(value = "/users") // 通过这里配置使下面的映射都在/users下，可去除
public class UserController {

	static Map users = Collections.synchronizedMap(new HashMap());

	@ApiOperation(value = "获取用户列表", notes = "")
	@RequestMapping(value = { "" }, method = RequestMethod.GET)
	public List getUserList() {
		List r = new ArrayList(users.values());
		return r;
	}

	@ApiOperation(value = "创建用户", notes = "根据User对象创建用户")
	@ApiImplicitParam(name = "user", value = "用户详细实体user", required = true, dataType = "User")
	@RequestMapping(value = "", method = RequestMethod.POST)
	public String postUser(@RequestBody User user) {
		users.put(user.getId(), user);
		return "success";
	}

	@ApiOperation(value = "获取用户详细信息", notes = "根据url的id来获取用户详细信息")
	@ApiImplicitParam(name = "id", value = "用户ID", required = true, dataType = "Long")
	@RequestMapping(value = "/{id}", method = RequestMethod.GET)
	public User getUser(@PathVariable Long id) {
		return users.get(id);
	}

	@ApiOperation(value = "更新用户详细信息", notes = "根据url的id来指定更新对象，并根据传过来的user信息来更新用户详细信息")
	@ApiImplicitParams({ @ApiImplicitParam(name = "id", value = "用户ID", required = true, dataType = "Long"),
			@ApiImplicitParam(name = "user", value = "用户详细实体user", required = true, dataType = "User") })
	@RequestMapping(value = "/{id}", method = RequestMethod.PUT)
	public String putUser(@PathVariable Long id, @RequestBody User user) {
		User u = users.get(id);
		u.setName(user.getName());
		u.setAge(user.getAge());
		users.put(id, u);
		return "success";
	}

	@ApiOperation(value = "删除用户", notes = "根据url的id来指定删除对象")
	@ApiImplicitParam(name = "id", value = "用户ID", required = true, dataType = "Long")
	@RequestMapping(value = "/{id}", method = RequestMethod.DELETE)
	public String deleteUser(@PathVariable Long id) {
		users.remove(id);
		return "success";
	}

}

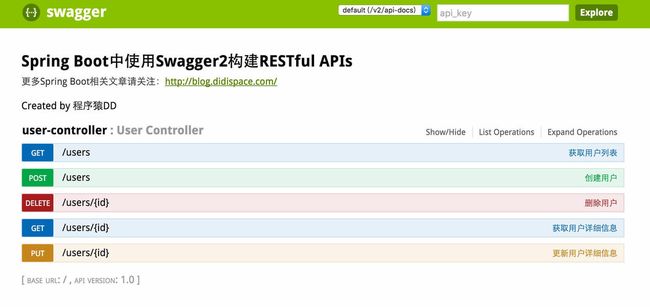

4.效果展示

访问路径：

Restful API 访问路径:
 * http://IP:port/{context-path}/swagger-ui.html
 * eg:http://localhost:8080/jd-config-web/swagger-ui.html

参考：

http://www.cnblogs.com/yuananyun/p/4993426.html

http://www.jianshu.com/p/8033ef83a8ed
