开源PagerSlidingTabStrip的使用Tab与ViewPager的完美结合

链接地址：https://github.com/astuetz/PagerSlidingTabStrip

下载PagerSlidingTabStrip-master

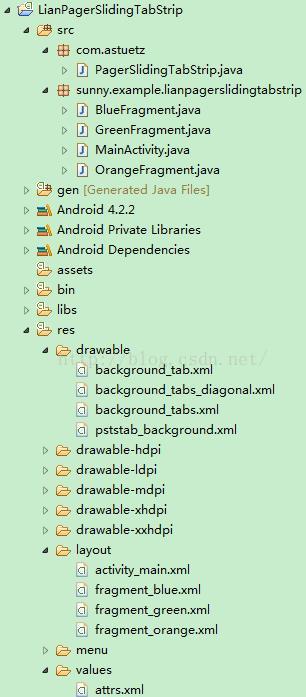

将com.astuetz包，res下的下的资源复制进工程

布局文件：activity_main.xml

android:layout_below="@id/tabs"一定要记得写上，是让ViewPager控件在tabs之下。还有注释部分的属性可以使用。使用格式：app:

在MainActivity.java中使用：

public class MainActivity extends FragmentActivity {

	@Override
	protected void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
		setContentView(R.layout.activity_main);

		ViewPager viewPager = (ViewPager)findViewById(R.id.viewPager);
		viewPager.setAdapter(new myPagerAdapter(getSupportFragmentManager()));
		PagerSlidingTabStrip tabs = (PagerSlidingTabStrip)findViewById(R.id.pagerSlidingTabStrip);
		//PagerSlidingTabStrip绑定ViewPager
		tabs.setViewPager(viewPager);
	}

	class myPagerAdapter extends FragmentPagerAdapter{

		String[] title = {"item1","item2","item3"};
		BlueFragment blueFragment;
		GreenFragment greenFragment;
		OrangeFragment orangeFragment;

		public myPagerAdapter(FragmentManager fm) {
			super(fm);
			// TODO Auto-generated constructor stub
		}
		@Override
		public Fragment getItem(int position) {
			// TODO Auto-generated method stub
			switch(position){
			case 0:
				blueFragment = new BlueFragment();
				return blueFragment;
			case 1:
				greenFragment = new GreenFragment();
				return greenFragment;
			case 2:
				orangeFragment = new OrangeFragment();
				return orangeFragment;
			default:
				return null;
			}

		}

		@Override
		public int getCount() {
			// TODO Auto-generated method stub
			return title.length;
		}

		@Override
        public CharSequence getPageTitle(int position) {
            return title[position];
        }
	}


}

//PagerSlidingTabStrip绑定ViewPager
tabs.setViewPager(viewPager);

其中每个page是一个Fragment。

完整代码上传在：https://github.com/HiSunny/PagerSlidingTabStrip
