struts2+ckeditor+ckfinder实现文件的上传、从数据库获取数据、修改并提交到数据库中保存
示例下载地址：http://download.csdn.net/detail/lin062854/7116033
第一步：工具下载
首先下载struts2
下载地址：http://struts.apache.org/download.cgi#struts2315-SNAPSHOT
第二下载：CKEditor
下载地址：http://ckeditor.com/download （最新版本ckeditor 4.1.2）
第三下载：CKFinder
下载地址：http://cksource.com/ckfinder/download （最新版本ckfinder 2.3.1）
第二步：新建项目
打开myeclipse -->File --> New -->Web Project
项目名：ThreeGorgesSoulSystem
第三步：整合

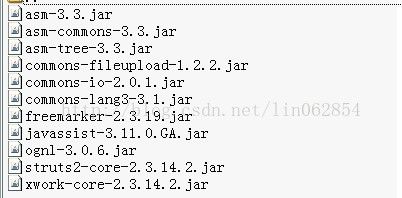

首先解压：struts-2.3.14.2-all.zip，然后拷贝最小安装包放在WEB-INF/lib下：
在struts-2.3.14.2\apps打开struts2-blank.war，在WEB-INF\src\java下，拷贝struts.xml到classpath（src）下
编辑WEB-INF\web.xml
struts2
com.orange.web.filter.FCKFilter
struts2
/*
/index.jsp
解压ckeditor_ckeditor_4.1.2_full.zip,然后将ckeditor文件夹全部拷到WebRoot根目录下。
修改ckeditor文件下的config.js文件，代码如下：
/*
Copyright (c) 2003-2011, CKSource - Frederico Knabben. All rights reserved.
For licensing, see LICENSE.html or http://ckeditor.com/license
*/
CKEDITOR.editorConfig = function (config) {
// Define changes to default configuration here. For example:
// config.language = 'fr';
// config.uiColor = '#AADC6E';
//CKFinder.SetupCKEditor(null, '../ckfinder/'); //注意ckfinder的路径对应实际放置的位置
config.skin = 'v2'; // 皮肤
//config.uiColor = '#FFF'; // 皮肤背景颜色
//config.resize_enabled = false; // 取消 “拖拽以改变尺寸”功能
config.language = 'zh-cn'; //配置语言
config.font_names = '宋体;楷体_GB2312;新宋体;黑体;隶书;幼圆;微软雅黑;Arial;Comic Sans MS;Courier New;Tahoma;Times New Roman;Verdana'; // 字体
config.width = 1000; //宽度
config.height = 450; //高度
//config.toolbar = "Basic"; // 基础工具栏
config.toolbar = "Full"; // 全能工具栏
// 自定义工具栏
config.toolbar_Full =
[
['Source', '-', 'Preview', '-', 'Templates'],
['Cut', 'Copy', 'Paste', 'PasteText', 'PasteFromWord', '-', 'Print', 'SpellChecker', 'Scayt'],
['Undo', 'Redo', '-', 'Find', 'Replace', '-', 'SelectAll', 'RemoveFormat'],
['Form', 'Checkbox', 'Radio', 'TextField', 'Textarea', 'Select', 'Button', 'ImageButton', 'HiddenField'],
'/',
['Bold', 'Italic', 'Underline', 'Strike', '-', 'Subscript', 'Superscript'],
['NumberedList', 'BulletedList', '-', 'Outdent', 'Indent', 'Blockquote', 'CreateDiv'],
['JustifyLeft', 'JustifyCenter', 'JustifyRight', 'JustifyBlock'],
['Link', 'Unlink', 'Anchor'],
['Image', 'Flash', 'Table', 'HorizontalRule', 'Smiley', 'SpecialChar', 'PageBreak'],
'/',
['Styles', 'Format', 'Font', 'FontSize'],
['TextColor', 'BGColor'],
['Maximize', 'ShowBlocks', '-', 'About']
];
config.toolbar_Basic =
[
['Bold', 'Italic', '-', 'NumberedList', 'BulletedList', '-', 'Link', 'Unlink', '-', 'About']
];
/*** 文件上传功能的配置-----------------------
*/
config.filebrowserBrowseUrl = 'ckfinder/ckfinder.html';
config.filebrowserImageBrowseUrl = 'ckfinder/ckfinder.html?type=Images';
config.filebrowserFlashBrowseUrl = 'ckfinder/ckfinder.html?type=Flash';
config.filebrowserUploadUrl = 'ckfinder/core/connector/java/connector.java?command=QuickUpload&type=Files';
config.filebrowserImageUploadUrl = 'ckfinder/core/connector/java/connector.java?command=QuickUpload&type=Images';
config.filebrowserFlashUploadUrl = 'ckfinder/core/connector/java/connector.java?command=QuickUpload&type=Flash';
//---------------------------文件上传功能的配置结束--------
};

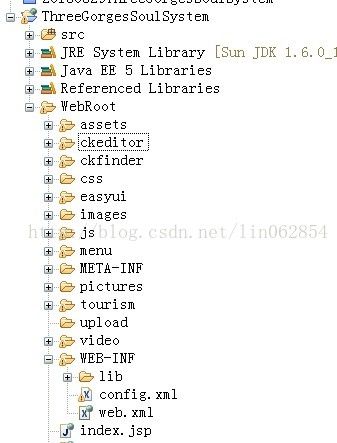

接着解压：ckfinder_java_2.3.1.zip，在ckfinder目录下再解压CKFinderJava.war，将CKFinderJava下的ckfinder文件夹拷贝到WebRoot根目录下，目录结构如下图：
接着把config.xml拷贝到WEB-INF/下
配置config.xml文件：
true
/ThreeGorgesSoulSystem/upload/
true
true
%BASE_URL%files/
%BASE_DIR%files
0
7z,aiff,asf,avi,bmp,csv,doc,docx,fla,flv,gif,gz,gzip,jpeg,jpg,mid,mov,mp3,mp4,mpc,mpeg,mpg,ods,odt,pdf,png,ppt,pptx,pxd,qt,ram,rar,rm,rmi,rmvb,rtf,sdc,sitd,swf,sxc,sxw,tar,tgz,tif,tiff,txt,vsd,wav,wma,wmv,xls,xlsx,zip
%BASE_URL%images/
%BASE_DIR%images
0
bmp,gif,jpeg,jpg,png
%BASE_URL%flash/
%BASE_DIR%flash
0
swf,flv
*
*
/
true
true
true
true
true
true
true
true
true
%BASE_URL%_thumbs/
%BASE_DIR%_thumbs
false
100
100
80
imageresize
com.ckfinder.connector.plugins.ImageResize
fileeditor
com.ckfinder.connector.plugins.FileEditor
com.ckfinder.connector.configuration.ConfigurationPathBuilder
在配置web.xml文件中添加ckeditor+ckfinder配置信息
struts2
com.orange.web.filter.FCKFilter
struts2
/*
ConnectorServlet
com.ckfinder.connector.ConnectorServlet
XMLConfig
/WEB-INF/config.xml
debug
false
1
ConnectorServlet
/ckfinder/core/connector/java/connector.java
/index.jsp
注：1.将ckfinder中的_samples文件夹直接删除

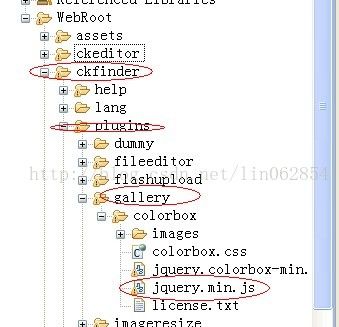

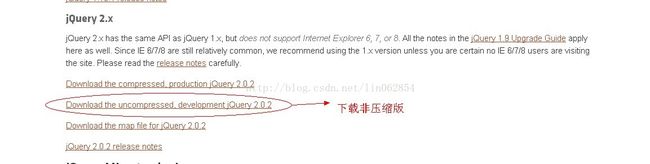

2.如果jquery.min.js出错，是因为采用了压缩的jquery库，不被识别，在http://jquery.com/download/下载
点击链接，把jQuery2.0.2中的代码直接替换项目中jquery.min.js中的代码
第四步：java代码和页面
action层中的代码：
package com.orange.web.action;
import java.sql.SQLException;
import com.orange.domain.Classify;
import com.orange.domain.Menu;
import com.orange.service.ClassifyService;
import com.orange.service.MenuService;
import com.orange.service.impl.ClassifyServiceImpl;
import com.orange.service.impl.MenuServiceImpl;
public class ClassifyAction {
/**
* menuId
*/
private int menuId;
/**
* 分类信息
*/
private Classify classify;
/**
* 获取文本域中的内容（ckeditor中textared内容）
*/
private String editor1;
/**
* 简介
*/
private Classify intro;
/**
* 文化
*/
private Classify cultural;
/**
* 精神
*/
private Classify spirit;
/**
* 旅游
*/
private Classify tourism;
private ClassifyService classifyService = new ClassifyServiceImpl();
private MenuService menuService = new MenuServiceImpl();
public String listToMenuId() {
try {
classify = classifyService.listToMenuId(menuId);
} catch (SQLException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
return "listToMenuId";
}
public String updateClassify(){
Menu menu = new Menu();
try {
menu = menuService.listMenu(menuId);
classify.setMenu(menu);
classify.setClassifyContent(editor1);
classifyService.updateClassify(classify);
} catch (SQLException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
return initalize();
}
public String initalize() {
try {
intro = classifyService.listToMenuId(11000);
cultural = classifyService.listToMenuId(21000);
spirit = classifyService.listToMenuId(31000);
tourism = classifyService.listToMenuId(41000);
} catch (SQLException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
return "threegorgessoul";
}
public int getMenuId() {
return menuId;
}
public void setMenuId(int menuId) {
this.menuId = menuId;
}
public Classify getClassify() {
return classify;
}
public void setClassify(Classify classify) {
this.classify = classify;
}
public String getEditor1() {
return editor1;
}
public void setEditor1(String editor1) {
this.editor1 = editor1;
}
public Classify getIntro() {
return intro;
}
public void setIntro(Classify intro) {
this.intro = intro;
}
public Classify getCultural() {
return cultural;
}
public void setCultural(Classify cultural) {
this.cultural = cultural;
}
public Classify getSpirit() {
return spirit;
}
public void setSpirit(Classify spirit) {
this.spirit = spirit;
}
public Classify getTourism() {
return tourism;
}
public void setTourism(Classify tourism) {
this.tourism = tourism;
}
}
service层：
package com.orange.service.impl;
import java.sql.SQLException;
import java.util.List;
import com.orange.dao.ClassifyDao;
import com.orange.dao.impl.ClassifyDaoImpl;
import com.orange.domain.Classify;
import com.orange.service.ClassifyService;
public class ClassifyServiceImpl implements ClassifyService {
private ClassifyDao classifyDao = new ClassifyDaoImpl();
/**
* 添加分类
*
* @param classify
* @throws SQLException
*/
public void addClassify(Classify classify) throws SQLException {
classifyDao.addClassify(classify);
}
/**
* 修改评论
*
* @param classify
* @throws SQLException
*/
public void updateClassify(Classify classify) throws SQLException {
classifyDao.updateClassify(classify);
}
/**
* 删除评论
*
* @param classify_Id
* @throws SQLException
*/
public void deleteClassify(int classifyId) throws SQLException {
classifyDao.deleteClassify(classifyId);
}
/**
* 根据id查看评论
*
* @param classify_Id
* @return
* @throws SQLException
*/
public Classify listClassify(int classifyId) throws SQLException {
return classifyDao.listClassify(classifyId);
}
/**
* 根据menuId查看评论
*
* @param classify_Id
* @return
* @throws SQLException
*/
public Classify listToMenuId(int menuId) throws SQLException {
return classifyDao.listToMenuId(menuId);
}
/**
* 查看所有评论信息
*
* @return
* @throws SQLException
*/
public List listAllClassify() throws SQLException {
return classifyDao.listAllClassify();
}
/**
* 查询从page条数据开始，总控查询rows条记录
*
* @param page
* @param rows
* @return
* @throws SQLException
*/
public List listAllClassify(int page, int rows)
throws SQLException {
return classifyDao.listAllClassify(page, rows);
}
/**
* 查询数据库中得所有记录数据
*
* @return
* @throws SQLException
*/
public int getCount() throws SQLException {
return classifyDao.getCount();
}
}
dao层：
package com.orange.dao.impl;
import java.sql.Connection;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.util.ArrayList;
import java.util.LinkedList;
import java.util.List;
import com.orange.common.DataBaseUtils;
import com.orange.dao.ClassifyDao;
import com.orange.domain.Classify;
import com.orange.domain.Menu;
public class ClassifyDaoImpl implements ClassifyDao {
Classify classify = new Classify();
public void addClassify(Classify classify) throws SQLException {
String sql = "insert into t_classify(classify_title,classify_content,menu_id) values(?, ?, ?)";
Object[] params = {
classify.getClassifyTitle(),
classify.getClassifyContent(),
classify.getMenu().getMenuId()
};
DataBaseUtils.executeUpdate(sql, params);
}
public void updateClassify(Classify classify) throws SQLException {
String sql = "update t_classify set classify_title=?,classify_content=?,menu_id=? where classify_id = ?";
Object[] params = {
classify.getClassifyTitle(),
classify.getClassifyContent(),
classify.getMenu().getMenuId(),
classify.getClassifyId()
};
DataBaseUtils.executeUpdate(sql, params);
}
public void deleteClassify(int classifyId) throws SQLException {
String sql = "delete from t_classify where classify_Id=?";
Object[] params = { classifyId };
DataBaseUtils.executeUpdate(sql, params);
}
public Classify listClassify(int classifyId) throws SQLException {
Classify classify = null;
Connection conn = null;
PreparedStatement pst = null;
ResultSet res = null;
try {
conn = DataBaseUtils.getConnection();
pst = conn.prepareStatement("SELECT " +
"c.classify_id,c.classify_title,c.classify_content,c.menu_id, " +
"m.menu_id,m.menu_name,m.model_id " +
" FROM " +
"t_classify AS c , " +
"t_menu AS m " +
" WHERE " +
"c.menu_id = m.menu_id AND " +
"c.classify_id = ?");
pst.setInt(1, classifyId);
res = pst.executeQuery();
if (res.next()) {
classify = new Classify();
classify.setClassifyId(res.getInt("classify_Id"));
classify.setClassifyTitle(res.getString("classify_title"));
classify.setClassifyContent(res.getString("classify_content"));
Menu menu = new Menu();
menu.setMenuId(res.getInt("menu_id"));
menu.setMenuName(res.getString("menu_name"));
menu.setModel(null);
classify.setMenu(menu);
}
} finally {
DataBaseUtils.close(conn, pst, res);
}
return classify;
}
/**
* 根据menuId查看评论
*
* @param classify_Id
* @return
* @throws SQLException
*/
public Classify listToMenuId(int menuId) throws SQLException {
Classify classify = null;
Connection conn = null;
PreparedStatement pst = null;
ResultSet res = null;
try {
conn = DataBaseUtils.getConnection();
pst = conn.prepareStatement("SELECT " +
"c.classify_id,c.classify_title,c.classify_content,c.menu_id, " +
"m.menu_id,m.menu_name,m.model_id " +
" FROM " +
"t_classify AS c , " +
"t_menu AS m " +
" WHERE " +
"c.menu_id = m.menu_id AND " +
"c.menu_id = ?");
pst.setInt(1, menuId);
res = pst.executeQuery();
if (res.next()) {
classify = new Classify();
classify.setClassifyId(res.getInt("classify_Id"));
classify.setClassifyTitle(res.getString("classify_title"));
classify.setClassifyContent(res.getString("classify_content"));
Menu menu = new Menu();
menu.setMenuId(res.getInt("menu_id"));
menu.setMenuName(res.getString("menu_name"));
menu.setModel(null);
classify.setMenu(menu);
}
} finally {
DataBaseUtils.close(conn, pst, res);
}
return classify;
}
public List listAllClassify() throws SQLException {
List classifys = new LinkedList();
Connection conn = null;
PreparedStatement pst = null;
ResultSet res = null;
try {
conn = DataBaseUtils.getConnection();
pst = conn
.prepareStatement("SELECT c.classify_id,c.classify_title,c.classify_content,c.menu_id,m.menu_id,m.menu_name,m.model_id FROMt_classify AS c ,t_menu AS m WHERE c.menu_id = m.model_id");
res = pst.executeQuery();
while (res.next()) {
classify = new Classify();
classify.setClassifyId(res.getInt("classify_Id"));
classify.setClassifyTitle(res.getString("classify_title"));
classify.setClassifyContent(res.getString("classify_content"));
Menu menu = new Menu();
menu.setMenuId(res.getInt("menu_id"));
menu.setMenuName(res.getString("menu_name"));
menu.setModel(null);
classify.setMenu(menu);
}
} finally {
DataBaseUtils.close(conn, pst, res);
}
return classifys;
}
public List listAllClassify(int page, int rows)
throws SQLException {
Connection conn = null;
PreparedStatement pst = null;
ResultSet res = null;
List classifys = new ArrayList();
try {
// 连接数据库
conn = DataBaseUtils.getConnection();
// 创建sql执行器
pst = conn
.prepareStatement("SELECT c.classify_id,c.classify_title,c.classify_content,c.menu_id,m.menu_id,m.menu_name,m.model_id FROMt_classify AS c ,t_menu AS m WHERE c.menu_id = m.model_id");
pst.setInt(1, (page - 1) * rows);
pst.setInt(2, rows);
// 执行sql语句
res = pst.executeQuery();
while (res.next()) {
Classify classify = new Classify();
classify = new Classify();
classify.setClassifyId(res.getInt("classify_Id"));
classify.setClassifyTitle(res.getString("classify_title"));
classify.setClassifyContent(res.getString("classify_content"));
Menu menu = new Menu();
menu.setMenuId(res.getInt("menu_id"));
menu.setMenuName(res.getString("menu_name"));
menu.setModel(null);
classify.setMenu(menu);
classifys.add(classify);
}
} finally {
DataBaseUtils.close(conn, pst, res);
}
return classifys;
}
public int getCount() throws SQLException {
Connection conn = null;
PreparedStatement pst = null;
ResultSet res = null;
int count = -1;
conn = DataBaseUtils.getConnection();
pst = conn.prepareStatement("select count(0) as count from t_classify");
res = pst.executeQuery();
res.next();
count = res.getInt(1);
return count;
}
}
连接数据库信息：
package com.orange.common;
import java.sql.Connection;
import java.sql.DriverManager;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.SQLException;
public class DataBaseUtils {
public static Connection getConnection() throws SQLException {
try {
Class.forName("com.mysql.jdbc.Driver");
Connection conn = DriverManager.getConnection("jdbc:mysql://localhost:3306/threegorgessouldb", "root", "123456");
return conn;
} catch (ClassNotFoundException e) {
e.printStackTrace();
throw new SQLException("没有找到驱动包");
}
}
public static void close(Connection conn, PreparedStatement pst, ResultSet res) throws SQLException {
if(res != null) {
res.close();
}
if(pst != null) {
pst.close();
}
if(conn != null) {
conn.close();
}
}
public static void executeUpdate(String sql, Object[] params) throws SQLException {
Connection conn = null;
PreparedStatement pst = null;
try {
conn = DataBaseUtils.getConnection();
pst = conn.prepareStatement(sql);
for(int i=0;iindex.jsp
<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%>
<%
String path = request.getContextPath();
String basePath = request.getScheme()+"://"+request.getServerName()+":"+request.getServerPort()+path+"/";
%>
My JSP 'left.jsp' starting page
三峡简介
三峡文化
三峡精神
三峡景点
update.jsp
<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%>
<%
String path = request.getContextPath();
String basePath = request.getScheme()+"://"+request.getServerName()+":"+request.getServerPort()+path+"/";
%>
My JSP 'index.jsp' starting page
第五步：
因为struts2拦截器会拦截所有以"/"开头的URL,CKEd的servlet拦截器拦截所有以"
/ckfinder/core/connector/java/connector.java"开头的URL.当时CKEditor上传图片的时 候,URL中包含有"/"(指网站根目录),优先被struts2的拦截器拦截,这样上传的URL请求就不会转发到CKEditor的servlet中, 所有上传图片也就不会成功.
解决步骤：
第一个办法（最简单）：是将struts2的拦截器"/*"改成"#.action"或者"*.do"，可以这样改：
struts2
*.action
第二个办法是:
自己来定义一个CKeditor的过滤器,让它来继承Struts2的过滤器FilterDispatcher,其完整代码是
package com.orange.web.filter;
import java.io.IOException;
import javax.servlet.FilterChain;
import javax.servlet.ServletException;
import javax.servlet.ServletRequest;
import javax.servlet.ServletResponse;
import javax.servlet.http.HttpServletRequest;
import org.apache.struts2.dispatcher.FilterDispatcher;
@SuppressWarnings("deprecation")
public class FCKFilter extends FilterDispatcher {
public void doFilter(ServletRequest req,ServletResponse res, FilterChain chain) throws IOException, ServletException {
HttpServletRequest request = (HttpServletRequest) req;
String URI = request.getRequestURI();
String[] uriArray = URI.split("/ckfinder/core/connector/java/*/");
int arrayLen = uriArray.length;
if (arrayLen >= 2) {
chain.doFilter(req, res);
}else {
super.doFilter(req, res, chain);
}
}
}

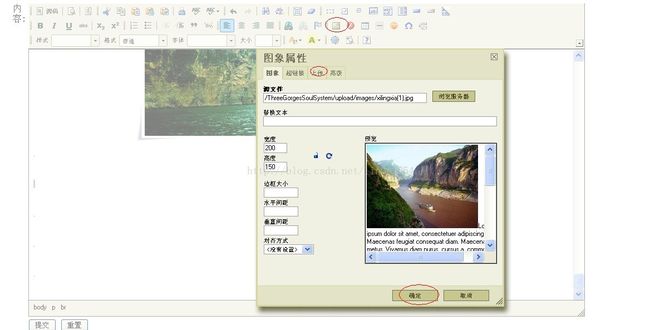

第六步：运行测试
示例下载地址：http://download.csdn.net/detail/lin062854/7116033
