数据结构与算法C++之单源最短路径算法 dijkstra

单源最短路径算法 dijkstra

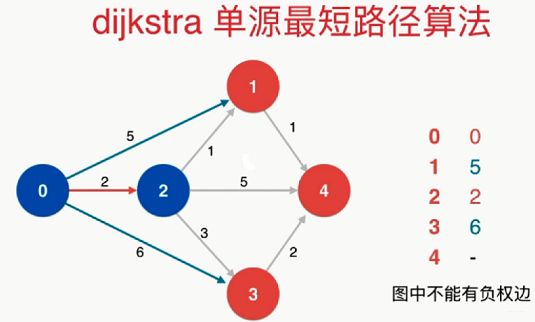

（1）从起始节点0开始，与0连接的节点有1,2,3，将它们的权重存入右表中，可以看出最小的权重是边0-2，权重为2，那么在图中不能有负权边的前提下，0-2的最短路径就是边0-2

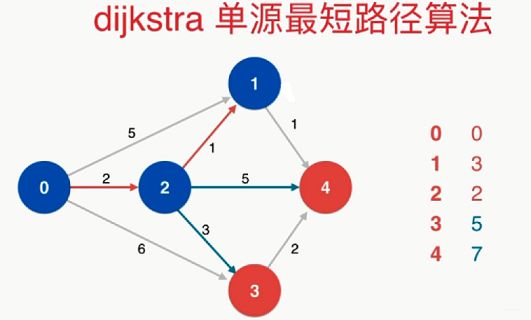

（2）接下来，以节点2为出发点，考察与2连接的节点1,4,3，边2-1的权重为1，那么0-2-1的耗费为3，比上图表中0-1的耗费5要小，所以将1位置的5替换为3；边2-4权重为5，表中没有4的耗费，那么0-2-4的耗费7填入表中；边2-3权重为3，那么0-2-3耗费为5，比表中0-3的耗费6要小，那么将上图表中3对应的耗费6改为耗费5，如下图

（3）在上面的基础上，我们可以确定0到1最短的路径是0-2-1，耗费为3，因此节点1也确定下来了，标记为蓝色，表格中节点1对应的耗费3标为红色

（4）此时节点2的邻边都遍历完了，确定了节点1为最短路径，此时将节点1固定住，将节点1作为出发点，节点1的邻边只有一个4, 0-2-1-4的耗费为4，比原来的7小，所以将7替换为4，此时节点1的邻边都遍历完了，确定节点4为最短路径，标记为蓝色，表格中节点4对应的耗费4标红

（5）此时节点4没有相邻的节点，剩下的节点3也没有别的选择了，0-2-3就是最短路径，如下图

程序实现如下

#include
#include "SparseGraph.h"
#include "ReadGraph.h"
#include "Dijkstra.h"

using namespace std;

int main()
{
    string filename = "testG1.txt";
    int V = 5;

    SparseGraph<int> g = SparseGraph<int>(V, true);
    ReadGraph<SparseGraph<int>, int> readGraph( g, filename );

    cout<<"Test Dijkstra:"<<endl<<endl;
    Dijkstra<SparseGraph<int>, int> dij(g, 0);
    for( int i = 1; i < V; i ++){
        cout<<"Shortest Path to "<<i<<" : "<<dij.shortestPathTo(i)<<endl;
        dij.showPath(i);
        cout<<"---------"<<endl;
    }

    return 0;
}

Dijkstra.h

#include
#include
#include

#ifndef _EDGE_H_
#define _EDGE_H_
#include "Edge.h"
#endif

#ifndef _INDEXMINHEAP_H_
#define _INDEXMINHEAP_H_
#include "IndexMinHeap.h"
#endif

using namespace std;

template<typename Graph, typename Weight>
class Dijkstra{

private:
    Graph &G;
    int s;

    Weight *distTo;
    bool *marked;
    vector< Edge<Weight>* > from;

public:
    Dijkstra(Graph &graph, int s):G(graph){
        this->s = s;
        distTo = new Weight[G.V()];
        marked = new bool[G.V()];
        for ( int i = 0; i < G.V(); i ++){
            distTo[i] = Weight();
            marked[i] = false;
            from.push_back(NULL);
        }

        IndexMinHeap<Weight> ipq(G.V());

        // Dijkstra
        distTo[s] = Weight();
        ipq.insert( s, distTo[s] );
        marked[s] = true;

        while ( !ipq.isEmpty() ){

            int v = ipq.extractMinIndex();

            //distTo[v] 就是s到v的最短距离
            marked[v] = true;

            typename Graph::adjIterator adj(G, v);
            for( Edge<Weight>* e = adj.begin(); !adj.end(); e = adj.next() ){
                int w = e->other(v);
                if ( !marked[w] ){
                    if ( from[w] == NULL || distTo[v] + e->wt() < distTo[w] ){
                        distTo[w] = distTo[v] + e->wt();
                        from[w] = e;
                        if ( ipq.contain(w) )
                            ipq.change( w, distTo[w] );
                        else
                            ipq.insert( w, distTo[w]);
                    }
                }
            }
        }
    }

    ~Dijkstra(){
        delete[] distTo;
        delete[] marked;
    }

    Weight shortestPathTo( int w ){
        assert( w >= 0 && w < G.V() );
        return distTo[w];
    }

    bool hasPathTo( int w ){
        assert( w >= 0 && w < G.V() );
        return marked[w];
    }

    void shortestPath( int w, vector< Edge<Weight> > &vec){
        assert( w >= 0 && w < G.V() );

        stack< Edge<Weight>* > s;
        Edge<Weight> *e = from[w];

        while( e->v() != this->s ){
            s.push(e);
            e = from[e->v()];
        }
        s.push(e);

        while( !s.empty() ){
            e = s.top();
            vec.push_back( *e );
            s.pop();
        }
    }

    void showPath( int w ){
        assert( w >= 0 && w < G.V() );

        vector< Edge<Weight> > vec;
        shortestPath(w, vec);
        for ( int i = 0; i < vec.size(); i ++ ){
            cout<<vec[i].v()<<" -> ";
            if ( i == vec.size() - 1 )
                cout<<vec[i].w()<<endl;
        }
    }
};

其他的函数见上几篇博客

testG1.txt 为

5 8
0 1 5
0 2 2
0 3 6
1 4 1
2 1 1
2 4 5
2 3 3
3 4 2

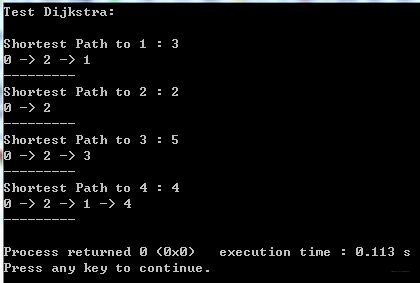

输出为
