Spring整合RocketMQ(Version 1.3)
相对于Version1.2版本，主要是增加了一个消费失败处理器，当消费失败时可执行指定的处理方法。当消费次数超过最大消费次数时，可做相应处理。RocketMQ在
Version 3.4 .9 后可指定消息的最大消费次数，若未指定时，默认最大消费次数为16，当超过最大消费次数时，放入死信队列。16的次数有点多了，可以在配置Consumer时设置下，减小其值，这样当多次消费失败时，能及时感知到，对消息进行及时处理。

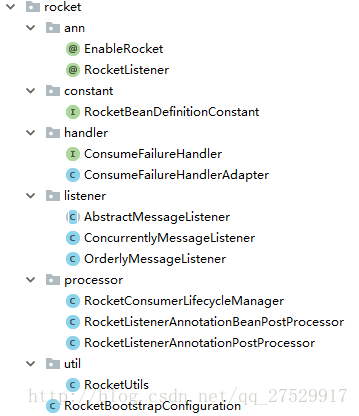

先看整合框架结构图：
ConsumeFailureHandler：消费失败处理器
import org.apache.rocketmq.client.consumer.listener.ConsumeConcurrentlyContext;
import org.apache.rocketmq.client.consumer.listener.ConsumeConcurrentlyStatus;
import org.apache.rocketmq.client.consumer.listener.ConsumeOrderlyContext;
import org.apache.rocketmq.client.consumer.listener.ConsumeOrderlyStatus;
import org.apache.rocketmq.common.message.MessageClientExt;
/**
* 消费失败处理器
*
* @author Administrator
* @create 2018-04-08 18:53
*/
public interface ConsumeFailureHandler {
/**
* 处理有序消费失败情况
*
* @param msg
* @param context
* @param maxReconsumeTimes 消费最大消费次数
* @return 处理后的结果
*/
ConsumeOrderlyStatus handlerOrderlyFailure(MessageClientExt msg, ConsumeOrderlyContext context, int maxReconsumeTimes);
/**
* 处理有序消费失败情况
*
* @param msg
* @param context
* @param maxReconsumeTimes 消费最大消费次数
* @param ex
* @return 处理后的结果
*/
ConsumeOrderlyStatus handlerOrderlyFailure(MessageClientExt msg, ConsumeOrderlyContext context, int maxReconsumeTimes, Exception ex);
/**
* 处理并发消费失败情况
*
* @param msg
* @param context
* @param maxReconsumeTimes 消费最大消费次数
* @return 处理后的结果
*/
ConsumeConcurrentlyStatus handlerConcurrentlyFailure(MessageClientExt msg, ConsumeConcurrentlyContext context, int maxReconsumeTimes);
/**
* 处理并发消费失败情况
*
* @param msg
* @param context
* @param maxReconsumeTimes 消费最大消费次数
* @param ex
* @return 处理后的结果
*/
ConsumeConcurrentlyStatus handlerConcurrentlyFailure(MessageClientExt msg, ConsumeConcurrentlyContext context, int maxReconsumeTimes, Exception ex);
}当消费失败时，消息监听器会执行相应的处理方法，将其返回结果作为最终的消息处理结果。
import java.lang.reflect.Method;
import java.util.List;
import com.bob.common.utils.rocket.ann.RocketListener;
import com.bob.common.utils.rocket.handler.ConsumeFailureHandler;
import org.apache.rocketmq.client.consumer.listener.ConsumeOrderlyContext;
import org.apache.rocketmq.client.consumer.listener.ConsumeOrderlyStatus;
import org.apache.rocketmq.client.consumer.listener.MessageListenerOrderly;
import org.apache.rocketmq.common.message.MessageClientExt;
import org.apache.rocketmq.common.message.MessageExt;
import org.springframework.util.ReflectionUtils;
/**
* 封装{@link RocketListener}方法,生成有序的消息监听器
*
* @author wb-jjb318191
* @create 2018-04-02 16:24
*/
public class OrderlyMessageListener extends AbstractMessageListener implements MessageListenerOrderly {
public OrderlyMessageListener(Object consumeBean, Method consumeMethod, ConsumeFailureHandler failureHandler) {
super(consumeBean, consumeMethod, failureHandler);
}
@Override
public ConsumeOrderlyStatus consumeMessage(List msgs, ConsumeOrderlyContext context) {
Object[] args = buildConsumeArguments(msgs, context);
boolean result;
Exception ex = null;
try {
result = (boolean)ReflectionUtils.invokeMethod(consumeMethod, consumeBean, args);
if (result) {
return ConsumeOrderlyStatus.SUCCESS;
}
} catch (Exception e) {
ex = e;
}
MessageClientExt msg = (MessageClientExt)msgs.get(0);
warnWhenConsumeFailed(msg, ex);
if (ex == null) {
return failureHandler.handlerOrderlyFailure(msg, context, getMaxReconsumeTimes());
} else {
return failureHandler.handlerOrderlyFailure(msg, context, getMaxReconsumeTimes(), ex);
}
}
}
import java.lang.reflect.Method;
import java.util.List;
import com.bob.common.utils.rocket.ann.RocketListener;
import com.bob.common.utils.rocket.handler.ConsumeFailureHandler;
import org.apache.rocketmq.client.consumer.listener.ConsumeConcurrentlyContext;
import org.apache.rocketmq.client.consumer.listener.ConsumeConcurrentlyStatus;
import org.apache.rocketmq.client.consumer.listener.MessageListenerConcurrently;
import org.apache.rocketmq.common.message.MessageClientExt;
import org.apache.rocketmq.common.message.MessageExt;
import org.springframework.util.ReflectionUtils;
/**
* 封装{@link RocketListener}标识的方法成一个消息并发消费器
*
* @author wb-jjb318191
* @create 2018-03-20 10:03
*/
public class ConcurrentlyMessageListener extends AbstractMessageListener implements MessageListenerConcurrently {
public ConcurrentlyMessageListener(Object consumeBean, Method consumeMethod, ConsumeFailureHandler failureHandler) {
super(consumeBean, consumeMethod, failureHandler);
}
@Override
public ConsumeConcurrentlyStatus consumeMessage(List msgs, ConsumeConcurrentlyContext context) {
Object[] args = buildConsumeArguments(msgs, context);
boolean result;
Exception ex = null;
try {
result = (boolean)ReflectionUtils.invokeMethod(consumeMethod, consumeBean, args);
if (result) {
return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
}
} catch (Exception e) {
ex = e;
}
MessageClientExt msg = (MessageClientExt)msgs.get(0);
warnWhenConsumeFailed(msg, ex);
if (ex == null) {
return failureHandler.handlerConcurrentlyFailure(msg, context, getMaxReconsumeTimes());
} else {
return failureHandler.handlerConcurrentlyFailure(msg, context, getMaxReconsumeTimes(), ex);
}
}
} 在定义@RocketListener时，可以指定失败处理器，默认情况下使用ConsumeFailureHandlerAdapter。
import java.lang.annotation.Documented;
import java.lang.annotation.ElementType;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;
import com.bob.common.utils.rocket.handler.ConsumeFailureHandler;
import com.bob.common.utils.rocket.handler.ConsumeFailureHandlerAdapter;
/**
* RocketMQ消费者监听
*
* @author wb-jjb318191
* @create 2018-03-20 9:19
*/
@Documented
@Retention(RetentionPolicy.RUNTIME)
@Target({ElementType.METHOD})
public @interface RocketListener {
/**
* 消费者组
*
* @return
*/
String consumerGroup() default "";
/**
* @return
*/
String topic() default "";
/**
* @return
*/
String tag() default "";
/**
* @return
*/
String namesrvAddr() default "";
/**
* 是否有序
*
* @return
*/
boolean orderly() default false;
/**
* 配置Properties文件名称
*
* @return
*/
String configProperties() default "";
/**
* 消费失败处理器 BeanName
*
* @return
*/
String faliureHandler() default "";
}
import org.apache.rocketmq.client.consumer.listener.ConsumeConcurrentlyContext;
import org.apache.rocketmq.client.consumer.listener.ConsumeConcurrentlyStatus;
import org.apache.rocketmq.client.consumer.listener.ConsumeOrderlyContext;
import org.apache.rocketmq.client.consumer.listener.ConsumeOrderlyStatus;
import org.apache.rocketmq.common.message.MessageClientExt;
/**
* 消费失败处理器适配器
*
* @author Administrator
* @create 2018-04-08 18:59
*/
public class ConsumeFailureHandlerAdapter implements ConsumeFailureHandler {
@Override
public ConsumeOrderlyStatus handlerOrderlyFailure(MessageClientExt msg, ConsumeOrderlyContext context, int maxReconsumeTimes) {
return ConsumeOrderlyStatus.SUSPEND_CURRENT_QUEUE_A_MOMENT;
}
@Override
public ConsumeOrderlyStatus handlerOrderlyFailure(MessageClientExt msg, ConsumeOrderlyContext context, int maxReconsumeTimes, Exception ex) {
return ConsumeOrderlyStatus.SUSPEND_CURRENT_QUEUE_A_MOMENT;
}
@Override
public ConsumeConcurrentlyStatus handlerConcurrentlyFailure(MessageClientExt msg, ConsumeConcurrentlyContext context, int maxReconsumeTimes) {
return ConsumeConcurrentlyStatus.RECONSUME_LATER;
}
@Override
public ConsumeConcurrentlyStatus handlerConcurrentlyFailure(MessageClientExt msg, ConsumeConcurrentlyContext context, int maxReconsumeTimes, Exception ex) {
return ConsumeConcurrentlyStatus.RECONSUME_LATER;
}
}
其他类的内部结构和上个版本差异不大，就不继续列举了。
下面说明下使用方法，在定义消费者时，可以指定其消息的最大消费次数：
rocket-concurrently-config.properties:
namesrvAddr=127.0.0.1:9876
instanceName=concurrently
vipChannelEnabled=false
consumerGroup=my-group
topic=my-topic
tag=*
consumeFromWhere=CONSUME_FROM_LAST_OFFSET
consumeThreadMin=4
consumeThreadMax=4
pullBatchSize=3
#自定义消息最大重消费次数,超过此数值时消息被加入死信队列
maxReconsumeTimes=1使用@RocketListener标识消费方法时，可以指定消费失败处理器：
@Configuration
public class RocketConsumerConfiguration {
@Bean
public DefaultConsumeFailureHandler defaultConsumeFailureHandler(){
return new DefaultConsumeFailureHandler();
}
/**
* 定义RocketMQ消费器
*
* @param msg
* @param context
* @return true:消费成功; false:消费失败,发回给Broker,一段时间后重试
*/
@RocketListener(configProperties = "rocket-concurrently-config.properties", faliureHandler = "defaultConsumeFailureHandler")
public boolean concurrently(MessageClientExt msg, ConsumeConcurrentlyContext context) {
String delay = msg.getProperty(PROPERTY_DELAY_TIME_LEVEL);
int reconsumeTimes = msg.getReconsumeTimes();
System.out.println(String.format("延迟级别: [%s], 重消费次数:[%d], 消费内容为[%s]", delay, reconsumeTimes, new String(msg.getBody())));
throw new IllegalArgumentException("测试消费时抛出异常");
}
}
import com.bob.common.utils.rocket.handler.ConsumeFailureHandlerAdapter;
import org.apache.rocketmq.client.consumer.listener.ConsumeConcurrentlyContext;
import org.apache.rocketmq.client.consumer.listener.ConsumeConcurrentlyStatus;
import org.apache.rocketmq.common.message.MessageClientExt;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
/**
* 消费失败处理器
*
* @author Administrator
* @create 2018-04-08 19:40
*/
public class DefaultConsumeFailureHandler extends ConsumeFailureHandlerAdapter {
private static final Logger LOGGER = LoggerFactory.getLogger(DefaultConsumeFailureHandler.class);
@Override
public ConsumeConcurrentlyStatus handlerConcurrentlyFailure(MessageClientExt msg, ConsumeConcurrentlyContext context, int maxReconsumeTimes) {
if (msg.getReconsumeTimes() == maxReconsumeTimes) {
LOGGER.info("当前消息即将被纳入死信队列");
}
LOGGER.info("自定义消费失败处理器");
return super.handlerConcurrentlyFailure(msg, context, maxReconsumeTimes);
}
@Override
public ConsumeConcurrentlyStatus handlerConcurrentlyFailure(MessageClientExt msg, ConsumeConcurrentlyContext context, int maxReconsumeTimes, Exception ex) {
LOGGER.info("自定义消费失败处理器");
return super.handlerConcurrentlyFailure(msg, context, maxReconsumeTimes, ex);
}
}
最后源码地址奉上：https://pan.baidu.com/s/1kdAENIrpB2d1s5hRtVW15A
