.net swagger自动生成API接口文档

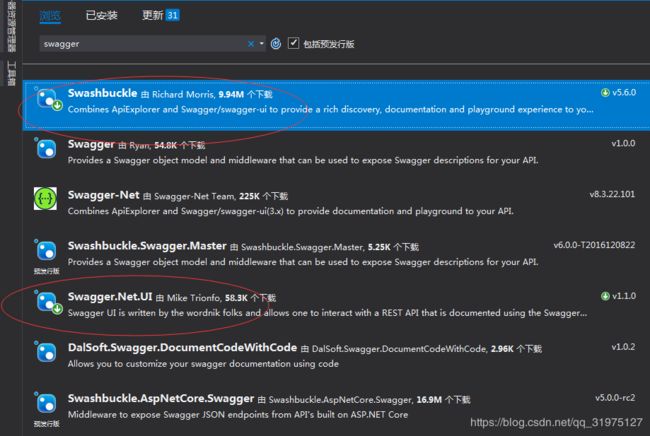

第一步安装swagger
第二步：配置swagger
[assembly: PreApplicationStartMethod(typeof(SwaggerConfig), "Register")]
namespace HCApi.WebApi
{
public class SwaggerConfig
{
public static void Register()
{
var xmlFile = string.Format("{0}/bin/HCApi.WebApi.xml", System.AppDomain.CurrentDomain.BaseDirectory);
var thisAssembly = typeof(SwaggerConfig).Assembly;
GlobalConfiguration.Configuration
.EnableSwagger(c =>
{
c.IncludeXmlComments(GetXmlCommentsPath("HCApi.EntityModel"));
c.SingleApiVersion("v1", "HCApi.WebApi").Description("项目API");
c.IncludeXmlComments(xmlFile);
c.ResolveConflictingActions(apiDescriptions => apiDescriptions.First());
//在接口类、方法标记属性[hiddenApi]，可以阻止【Swagger文档】生成
c.DocumentFilter();
c.SchemaFilter();
c.CustomProvider((defaultProvider) => new HCApi.WebApi.App_Start.SwaggerControllerDescProvider(defaultProvider, xmlFile));
c.ResolveConflictingActions(apiDescriptions => apiDescriptions.First());
})
.EnableSwaggerUi(c =>
{
c.InjectJavaScript(Assembly.GetExecutingAssembly(), "HCApi.WebApi.SwaggerUI.swagger.js");
});
}
private static string GetXmlCommentsPath(string name)
{
return string.Format("{0}/bin/{1}.XML", System.AppDomain.CurrentDomain.BaseDirectory, name);
}
}
} using System;
using System.IO;
using System.Web;
using System.Web.Http;
using System.Web.Http.Description;
using System.Web.Http.Dispatcher;
using System.Web.Routing;
using Swagger.Net;
//[assembly: WebActivator.PreApplicationStartMethod(typeof(HCApi.WebApi.App_Start.SwaggerNet), "PreStart")]
//[assembly: WebActivator.PostApplicationStartMethod(typeof(HCApi.WebApi.App_Start.SwaggerNet), "PostStart")]
namespace HCApi.WebApi.App_Start
{
public static class SwaggerNet
{
public static void PreStart()
{
RouteTable.Routes.MapHttpRoute(
name: "SwaggerApi",
routeTemplate: "api/docs/{controller}",
defaults: new { swagger = true }
);
}
public static void PostStart()
{
var config = GlobalConfiguration.Configuration;
config.Filters.Add(new SwaggerActionFilter());
try
{
config.Services.Replace(typeof(IDocumentationProvider),
new XmlCommentDocumentationProvider(HttpContext.Current.Server.MapPath("~/bin/HCApi.WebApi.XML")));
}
catch (FileNotFoundException)
{
throw new Exception("Please enable \"XML documentation file\" in project properties with default (bin\\HCApi.WebApi.XML) value or edit value in App_Start\\SwaggerNet.cs");
}
}
}
} public class SwaggerControllerDescProvider : ISwaggerProvider
{
private readonly ISwaggerProvider _swaggerProvider;
private static ConcurrentDictionary _cache = new ConcurrentDictionary();
private readonly string _xml;
///
///
///
///
/// xml文档路径
public SwaggerControllerDescProvider(ISwaggerProvider swaggerProvider, string xml)
{
_swaggerProvider = swaggerProvider;
_xml = xml;
}
public SwaggerDocument GetSwagger(string rootUrl, string apiVersion)
{
var cacheKey = string.Format("{0}_{1}", rootUrl, apiVersion);
SwaggerDocument srcDoc = null;
//只读取一次
if (!_cache.TryGetValue(cacheKey, out srcDoc))
{
srcDoc = _swaggerProvider.GetSwagger(rootUrl, apiVersion);
srcDoc.vendorExtensions = new Dictionary { { "ControllerDesc", GetControllerDesc() } };
_cache.TryAdd(cacheKey, srcDoc);
}
return srcDoc;
}
///
/// 从API文档中读取控制器描述
///
/// 所有控制器描述
public ConcurrentDictionary GetControllerDesc()
{
string xmlpath = _xml;
ConcurrentDictionary controllerDescDict = new ConcurrentDictionary();
if (File.Exists(xmlpath))
{
XmlDocument xmldoc = new XmlDocument();
xmldoc.Load(xmlpath);
string type = string.Empty, path = string.Empty, controllerName = string.Empty;
string[] arrPath;
int length = -1, cCount = "Controller".Length;
XmlNode summaryNode = null;
foreach (XmlNode node in xmldoc.SelectNodes("//member"))
{
type = node.Attributes["name"].Value;
if (type.StartsWith("T:"))
{
//控制器
arrPath = type.Split('.');
length = arrPath.Length;
controllerName = arrPath[length - 1];
if (controllerName.EndsWith("Controller"))
{
//获取控制器注释
summaryNode = node.SelectSingleNode("summary");
string key = controllerName.Remove(controllerName.Length - cCount, cCount);
if (summaryNode != null && !string.IsNullOrEmpty(summaryNode.InnerText) && !controllerDescDict.ContainsKey(key))
{
controllerDescDict.TryAdd(key, summaryNode.InnerText.Trim());
}
}
}
}
}
return controllerDescDict;
} ///
/// 中文转换
///
var SwaggerTranslator = (function () {
//定时执行检测是否转换成中文,最多执行500次 即500*50/1000=25s
var iexcute = 0,
//中文语言包
_words = {
"Warning: Deprecated": "警告：已过时",
"Implementation Notes": "实现备注",
"Response Class": "响应类",
"Status": "状态",
"Parameters": "参数",
"Parameter": "参数",
"Value": "值",
"Description": "描述",
"Parameter Type": "参数类型",
"Data Type": "数据类型",
"Response Messages": "响应消息",
"HTTP Status Code": "HTTP状态码",
"Reason": "原因",
"Response Model": "响应模型",
"Request URL": "请求URL",
"Response Body": "响应体",
"Response Code": "响应码",
"Response Headers": "响应头",
"Hide Response": "隐藏响应",
"Headers": "头",
"Try it out!": "试一下！",
"Show/Hide": "显示/隐藏",
"List Operations": "显示操作",
"Expand Operations": "展开操作",
"Raw": "原始",
"can't parse JSON. Raw result": "无法解析JSON. 原始结果",
"Model Schema": "模型架构",
"Model": "模型",
"apply": "应用",
"Username": "用户名",
"Password": "密码",
"Terms of service": "服务条款",
"Created by": "创建者",
"See more at": "查看更多：",
"Contact the developer": "联系开发者",
"api version": "api版本",
"Response Content Type": "响应Content Type",
"fetching resource": "正在获取资源",
"fetching resource list": "正在获取资源列表",
"Explore": "浏览",
"Show Swagger Petstore Example Apis": "显示 Swagger Petstore 示例 Apis",
"Can't read from server. It may not have the appropriate access-control-origin settings.": "无法从服务器读取。可能没有正确设置access-control-origin。",
"Please specify the protocol for": "请指定协议：",
"Can't read swagger JSON from": "无法读取swagger JSON于",
"Finished Loading Resource Information. Rendering Swagger UI": "已加载资源信息。正在渲染Swagger UI",
"Unable to read api": "无法读取api",
"from path": "从路径",
"Click to set as parameter value": "点击设置参数",
"server returned": "服务器返回"
},
//定时执行转换
_translator2Cn = function () {
if ($("#resources_container .resource").length > 0) {
_tryTranslate();
}
if ($("#explore").text() == "Explore" && iexcute < 500) {
iexcute++;
setTimeout(_translator2Cn, 50);
}
},
//设置控制器注释
_setControllerSummary = function () {
$.ajax({
type: "get",
async: true,
url: $("#input_baseUrl").val(),
dataType: "json",
success: function (data) {
var summaryDict = data.ControllerDesc;
var id, controllerName, strSummary;
$("#resources_container .resource").each(function (i, item) {
id = $(item).attr("id");
if (id) {
controllerName = id.substring(9);
strSummary = summaryDict[controllerName];
if (strSummary) {
$(item).children(".heading").children(".options").prepend('' + strSummary + ' ');
}
}
});
}
});
},
//尝试将英文转换成中文
_tryTranslate = function () {
$('[data-sw-translate]').each(function () {
$(this).html(_getLangDesc($(this).html()));
$(this).val(_getLangDesc($(this).val()));
$(this).attr('title', _getLangDesc($(this).attr('title')));
});
},
_getLangDesc = function (word) {
return _words[$.trim(word)] !== undefined ? _words[$.trim(word)] : word;
};
return {
Translator: function () {
document.title = "API描述文档";
$('body').append('');
$("#logo").html("接口描述").attr("href", "/Home/Index");
//设置控制器描述
_setControllerSummary();
_translator2Cn();
}
}
})();
//执行转换
SwaggerTranslator.Translator(); [AttributeUsage(AttributeTargets.Method | AttributeTargets.Class)]
public partial class HiddenApiAttribute : Attribute { }
public class HiddenApiFilter : IDocumentFilter
{
///
/// 重写Apply方法，移除隐藏接口的生成
///
/// swagger文档文件
///
/// api接口集合
public void Apply(SwaggerDocument swaggerDoc, SchemaRegistry schemaRegistry, IApiExplorer apiExplorer)
{
foreach (ApiDescription apiDescription in apiExplorer.ApiDescriptions)
{
if (Enumerable.OfType(apiDescription.GetControllerAndActionAttributes()).Any())
{
string key = "/" + apiDescription.RelativePath;
if (key.Contains("?"))
{
int idx = key.IndexOf("?", StringComparison.Ordinal);
key = key.Substring(0, idx);
}
swaggerDoc.paths.Remove(key);
}
}
}
} [AttributeUsage(AttributeTargets.Property)]
public class SwaggerExcludeAttribute : Attribute { }
public class SwaggerExcludeFilter : ISchemaFilter
{
#region ISchemaFilter Members
public void Apply(Schema schema, SchemaRegistry schemaRegistry, Type type)
{
if (schema?.properties == null || type == null)
return;
var excludedProperties = type.GetProperties()
.Where(t =>
t.GetCustomAttribute()
!= null);
foreach (var excludedProperty in excludedProperties)
{
if (schema.properties.ContainsKey(excludedProperty.Name))
schema.properties.Remove(excludedProperty.Name);
}
}
#endregion

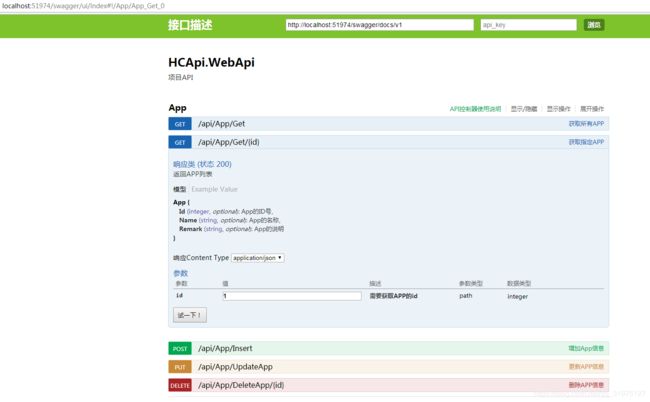

} 第三步：使用
///
/// 获取所有APP
///
/// 所有APP集合
[HttpGet]
public HttpResponseMessage Get()
{
return MyJson.ObjectToJson(GetApps());
}
///
/// 获取指定APP
///
/// 需要获取APP的id
/// 返回指定APP
[SwaggerResponse(HttpStatusCode.OK, "返回APP列表", Type = typeof(App))]
[HttpGet]
public HttpResponseMessage Get(int id)
{
var app = GetApps().Where(m => m.Id.Equals(id)).FirstOrDefault();
return MyJson.ObjectToJson(app);
}
///
/// 增加App信息
///
///
///
/// 更新APP信息
///
/// APP信息
/// 更新结果
[HttpPut]
public ResultJson UpdateApp([FromBody]App value)
{
ResultJson json = new ResultJson() { Code = 200, Message = "Ok" };
return json;
}
///
/// 删除APP信息
///
/// APP编号
/// 删除结果
[HttpDelete]
public HttpResponseMessage DeleteApp(int id)
{
ResultJson json = new ResultJson() { Code = 200, Message = "Ok" };
return MyJson.ObjectToJson(json);
} ///
/// App信息
///
public class App
{
///
/// App的ID号
///
public int Id { get; set; }
///
/// App的名称
///
public string Name { get; set; }
///
/// App的说明
///
public string Remark { get; set; }
}
///
/// 返回处理结果
///
public class ResultJson
{
///
/// 返回代码
///
public int Code { get; set; }
///
/// 返回消息
///
public string Message { get; set; }
}
public class MyJson
{
///
/// 读取json信息
///
/// 传入对象
///
结束
