基于 ggplot2包以及 corrplot包的相关矩阵可视化包 ggcorrplot， ggcorrplot包提供对相关矩阵重排序以及在相关图中展示显著性水平的方法，同时也能计算相关性p-value
计算相关矩阵(cor()计算结果不提供p-value)
library(ggcorrplot)
data("mtcars")
corr <- round(cor(mtcars), 1)

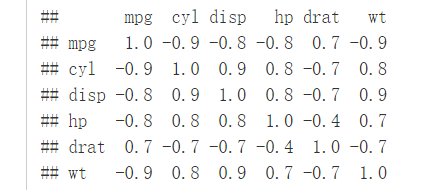

head(corr[, 1:6])
用ggcorrplot包提供的函数cor_pmat()
p.mat <- cor_pmat(mtcars)

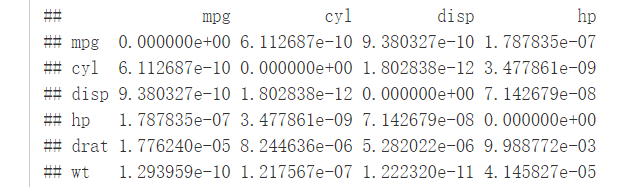

head(p.mat[, 1:4])
可视化相关性矩阵

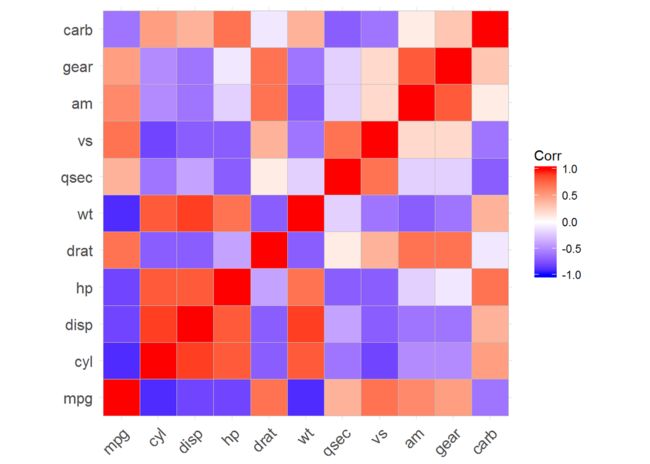

ggcorrplot(corr)#method默认为square
方法为circle

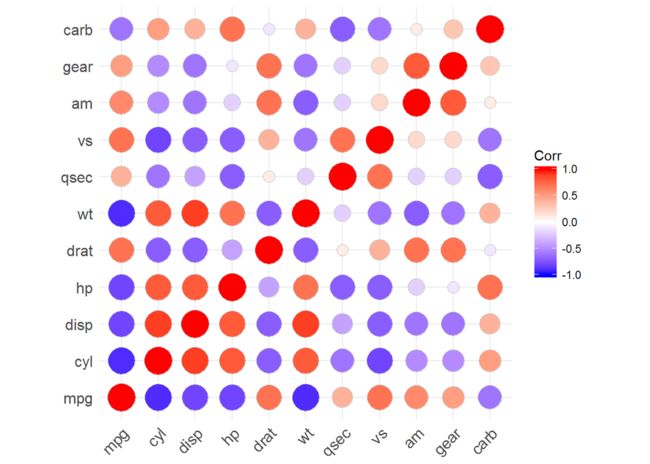

ggcorrplot(corr, method = "circle")
重排矩阵，使用分等级聚类
ggcorrplot(corr, hc.order = TRUE, outline.color = "white")
控制矩阵形状

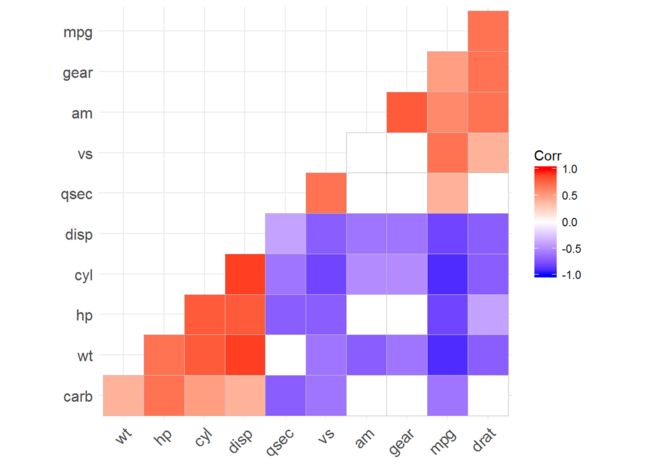

ggcorrplot(corr, hc.order = TRUE, type = "lower", outline.color = "white")#下三角形
上三角形

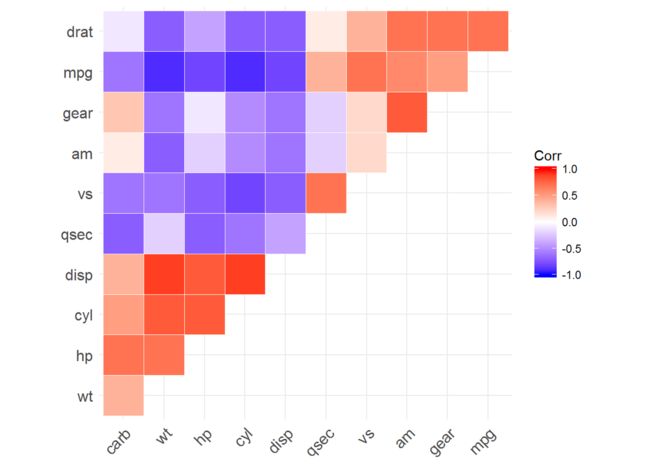

ggcorrplot(corr, hc.order = TRUE, type = "upper", outline.color = "white")

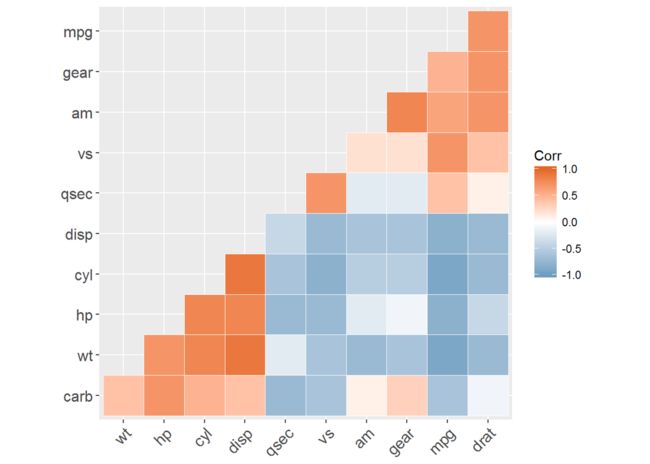

更改颜色以及主题
ggcorrplot(corr, hc.order = TRUE, type = "lower", outline.color = "white",
ggtheme = ggplot2::theme_gray, colors = c("#6D9EC1", "white", "#E46726"))
添加相关系数

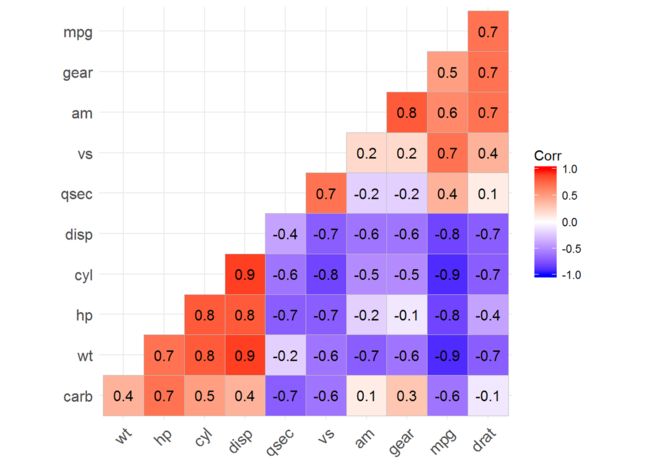

ggcorrplot(corr, hc.order = TRUE, type = "lower", lab = TRUE)
增加显著性水平，不显著的话就不添加了

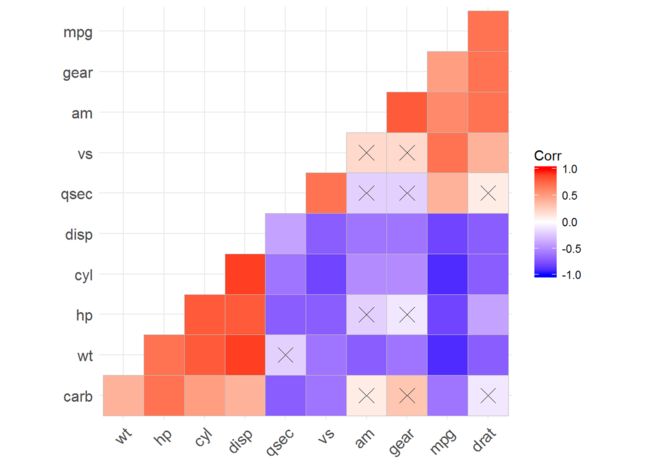

ggcorrplot(corr, hc.order = TRUE, type = "lower", p.mat = p.mat)
将不显著的色块设置成空白
ggcorrplot(corr, p.mat = p.mat, hc.order=TRUE, type = "lower", insig = "blank")
