前言

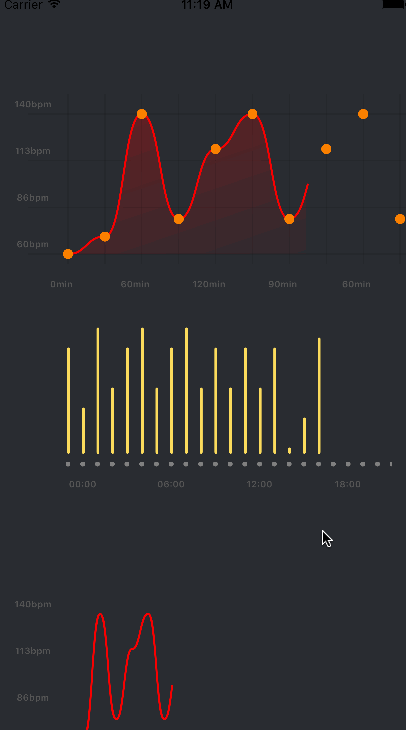

最近做手表手环类app比较多，这种类型的app有个特点就是最喜欢用图表去展示数据。接到公司项目的时候看到图表第一时间就网上找找有没有合适的，这样既省时又高效。但是搜索一圈之后发现都没有找到满意，所以最后决定还是自己动手写一个出来，借鉴了UUChart的写法。
调用方式
YzcChartView *view = [[YzcChartView alloc] initWithFrame:CGRectMake(10, 100, self.view.frame.size.width, 200)];
view.style = YzcLineGrid;
view.isdrawLine = YES; //网格线
view.isDrawPoint = YES; //圆点
view.isShadow = YES; //阴影填充
view.unit = @"bpm"; //左边的单位
view.lineColor = [UIColor redColor];
view.pointColor = [UIColor orangeColor];
view.yLabels = @[@"60",@"70",@"140",@"80",@"120",@"140",@"80",@"120",@"140",@"80",@"120",@"80",@"120",@"80",@"120"];
view.xLabels = @[@"0min",@"30min",@"60min",@"90min",@"120min",@"60min",@"90min",@"120min",@"60min",@"90min",@"120min",@"120min",@"60min",@"90min",@"120min"];
[view strokeChart];
[self.scrollView addSubview:view];
代码实现
绘画表格竖线和X轴刻度
- (void)setXLabels:(NSArray *)xLabels
{
_xLabels = xLabels;
CGFloat num = 0;
if (xLabels.count>=20) {
num=20.0;
}else if (xLabels.count<=1){
num=1.0;
}else{
num = xLabels.count;
}
_xLabelWidth = (self.myScrollView.frame.size.width - UUYLabelwidth * 0.5)/(self.style ? 23 : 10);
NSInteger count = xLabels.count > 10 ? xLabels.count : 10;
count = self.style ? 24 : count;
for (int i=0; i绘画横线和Y轴的刻度
- (void)setYLabels:(NSArray *)yLabels
{
_yLabels = yLabels;
_xLabelWidth = (self.myScrollView.frame.size.width - UUYLabelwidth * 0.5)/(self.style ? 23 : 10);
CGFloat _yValueMax = [[self.yLabels valueForKeyPath:@"@max.floatValue"] floatValue];
CGFloat _yValueMin = [[self.yLabels valueForKeyPath:@"@min.floatValue"] floatValue];
float level = (_yValueMax-_yValueMin) /3;
CGFloat chartCavanHeight = self.frame.size.height - UULabelHeight*3;
CGFloat levelHeight = chartCavanHeight /3;
for (int i=0; i<4; i++) {
YzcLabel * label = [[YzcLabel alloc] initWithFrame:CGRectMake(0,chartCavanHeight - i * levelHeight, UUYLabelwidth+20, UULabelHeight)];
label.text = [NSString stringWithFormat:@"%d%@",(int)(level * i+_yValueMin),self.unit ? self.unit : @""];
[self addSubview:label];
}
if (self.style == YzcLineGrid) {
//画横线
for (int i=0; i<4; i++) {
CAShapeLayer *shapeLayer = [CAShapeLayer layer];
UIBezierPath *path = [UIBezierPath bezierPath];
[path moveToPoint:CGPointMake(20,UULabelHeight+i*levelHeight)];
[path addLineToPoint:CGPointMake(self.frame.size.width,UULabelHeight+i*levelHeight)];
[path closePath];
shapeLayer.path = path.CGPath;
shapeLayer.strokeColor = self.xlineColor ? self.xlineColor.CGColor :[[[UIColor blackColor] colorWithAlphaComponent:0.1] CGColor];
shapeLayer.fillColor = [[UIColor whiteColor] CGColor];
shapeLayer.lineWidth = 1;
[self.layer insertSublayer:shapeLayer atIndex:0];
}
float max = (([yLabels count]-1)*_xLabelWidth + chartMargin)+_xLabelWidth;
if (self.myScrollView.frame.size.width < max-10) {
self.myScrollView.contentSize = CGSizeMake(max+10, 0);
}
}
}
渐变图层的填充方法
渐变图层的颜色设置成折线的颜色一样，然后调颜色透明度即可，这样看起来就会有渐变效果，最后加上动画。
/**
添加渐变图层
*/
- (void)addGradientLayer:(UIBezierPath *)bezier1
{
CAShapeLayer *shadeLayer = [CAShapeLayer layer];
shadeLayer.path = bezier1.CGPath;
shadeLayer.fillColor = [UIColor greenColor].CGColor;
CAGradientLayer *gradientLayer = [CAGradientLayer layer];
gradientLayer.frame = CGRectMake(5, 0, 0, self.myScrollView.bounds.size.height-20);
gradientLayer.cornerRadius = 5;
gradientLayer.masksToBounds = YES;
gradientLayer.colors = @[(__bridge id)[self.lineColor colorWithAlphaComponent:0.4].CGColor,(__bridge id)[self.lineColor colorWithAlphaComponent:0.0].CGColor]; //如果需要调图层颜色，只需要修改这里即可
gradientLayer.locations = @[@(0.1f),@(1.0f)];
gradientLayer.startPoint = CGPointMake(0, 0);
gradientLayer.endPoint = CGPointMake(1, 1);
CALayer *baseLayer = [CALayer layer];
[baseLayer addSublayer:gradientLayer];
[baseLayer setMask:shadeLayer];
[self.myScrollView.layer insertSublayer:baseLayer atIndex:0];
CABasicAnimation *anmi1 = [CABasicAnimation animation];
anmi1.keyPath = @"bounds";
anmi1.duration = _yLabels.count*0.4;
anmi1.toValue = [NSValue valueWithCGRect:CGRectMake(5, 0, 2*self.lastPoint.x, self.myScrollView.bounds.size.height-20)];
anmi1.timingFunction = [CAMediaTimingFunction functionWithName:kCAMediaTimingFunctionEaseInEaseOut];
anmi1.fillMode = kCAFillModeForwards;
anmi1.autoreverses = NO;
anmi1.removedOnCompletion = NO;
[gradientLayer addAnimation:anmi1 forKey:@"bounds"];
}
最后就是绘画数据
- (void)strokeChart
{
BOOL isShowMaxAndMinPoint = YES;
NSInteger maxValue = [[_yLabels valueForKeyPath:@"@max.intValue"] integerValue];
NSInteger minValue = [[_yLabels valueForKeyPath:@"@min.intValue"] integerValue];
//划线
CAShapeLayer *_chartLine = [CAShapeLayer layer];
_chartLine.lineCap = kCALineCapRound; //设置线条拐角帽的样式
_chartLine.lineJoin = kCALineJoinRound; //设置两条线连结点的样式
_chartLine.fillColor = [[UIColor clearColor] CGColor];
_chartLine.lineWidth = 2.0;
_chartLine.strokeEnd = 0.0;
[self.myScrollView.layer addSublayer:_chartLine];
//线
UIBezierPath *progressline = [UIBezierPath bezierPath];
CGFloat firstValue = [[_yLabels objectAtIndex:0] floatValue];
CGFloat xPosition = UUYLabelwidth;
CGFloat chartCavanHeight = self.frame.size.height - UULabelHeight*3;
//第一个点
float grade = ((float)firstValue-minValue) / ((float)maxValue-minValue);
if (isnan(grade)) {
grade = 0;
}
CGPoint firstPoint = CGPointMake(xPosition, chartCavanHeight - grade * chartCavanHeight+UULabelHeight);
[progressline moveToPoint:firstPoint];
[progressline setLineWidth:2.0];
[progressline setLineCapStyle:kCGLineCapRound];
[progressline setLineJoinStyle:kCGLineJoinRound];
//遮罩层形状
UIBezierPath *bezier1 = [UIBezierPath bezierPath];
bezier1.lineCapStyle = kCGLineCapRound;
bezier1.lineJoinStyle = kCGLineJoinMiter;
[bezier1 moveToPoint:firstPoint];
self.originPoint = firstPoint; //记录原点
NSInteger index = 0;
for (NSString * valueString in _yLabels) {
float grade =([valueString floatValue] - minValue) / ((float)maxValue-minValue);
if (isnan(grade)) {
grade = 0;
}
CGPoint point = CGPointMake(xPosition+index*_xLabelWidth, chartCavanHeight - grade * chartCavanHeight+UULabelHeight);
if (index != 0) {
[progressline addCurveToPoint:point controlPoint1:CGPointMake((point.x+self.prePoint.x)/2, self.prePoint.y) controlPoint2:CGPointMake((point.x+self.prePoint.x)/2, point.y)];
[progressline moveToPoint:point];
[bezier1 addCurveToPoint:point controlPoint1:CGPointMake((point.x+self.prePoint.x)/2, self.prePoint.y) controlPoint2:CGPointMake((point.x+self.prePoint.x)/2, point.y)];
}
if (index == _yLabels.count-1) {
self.lastPoint = point; //记录最后一个点
}
if (self.isDrawPoint) {
[self addPoint:point
index:index
isShow:isShowMaxAndMinPoint
value:[valueString floatValue]];
}
index += 1;
self.prePoint = point;
}
if (self.isdrawLine) {
_chartLine.path = progressline.CGPath;
_chartLine.strokeColor = self.lineColor ? self.lineColor.CGColor : [UIColor greenColor].CGColor;
CABasicAnimation *pathAnimation = [CABasicAnimation animationWithKeyPath:@"strokeEnd"];
pathAnimation.duration = _yLabels.count*0.4;
pathAnimation.timingFunction = [CAMediaTimingFunction functionWithName:kCAMediaTimingFunctionEaseInEaseOut];
pathAnimation.fromValue = [NSNumber numberWithFloat:0.0f];
pathAnimation.toValue = [NSNumber numberWithFloat:1.0f];
pathAnimation.autoreverses = NO;
[_chartLine addAnimation:pathAnimation forKey:@"strokeEndAnimation"];
_chartLine.strokeEnd = 1.0;
if (self.isShadow) {
[bezier1 addLineToPoint:CGPointMake(self.lastPoint.x, self.frame.size.height - UULabelHeight*2)];
[bezier1 addLineToPoint:CGPointMake(self.originPoint.x, self.frame.size.height - UULabelHeight*2)];
[bezier1 addLineToPoint:self.originPoint];
[self addGradientLayer:bezier1];
}
}
}
最后附上完整demo地址：https://github.com/Yzc-jason/YzcChart
初笔，请多多指教，欢迎发问。如果有幸你也用上了，记得点个star哈。
