HTML5超酷秒表动画 可暂停和重置秒表

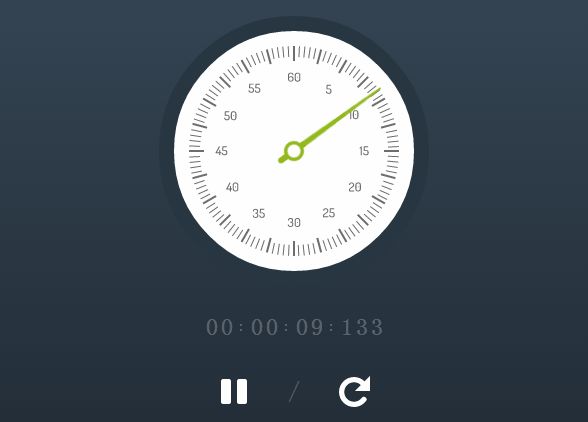

关于HTML5和CSS3的时钟应用在之前我们已经分享过不少了，还有一些HTML5的日期选择应用。今天我们要分享一款基于HTML5和CSS3的圆盘秒表动画，秒表可以精确到0.001秒，并且可以在计时过程中暂停计时，同时秒表可以随时重置。

在线演示

下面来分析一下实现的源代码，主要由HTML和CSS代码组成，CSS相对比较复杂，因为涉及到动画。

HTML代码：

<input id="help" name="controls" type="checkbox" />

  <input id="settings" name="controls" type="checkbox" />



  <input id="orange"  name="color" type="radio"  />

  <input id="green"  name="color" type="radio" checked="checked" />



  <div>



    <input id="start" name="controls" type="radio" />

    <input id="stop" name="controls" type="radio" />

    <input id="reset" name="controls" type="radio" />



    <div>

      <div>

        <div>

        </div>

      </div>



      <div>

        <div>

          <div>

            0 1 2 3 4 5 6 7 8 9

          </div>

        </div>

        <div>

          <div>

            0 1 2 3 4 5 6 7 8 9

          </div>

        </div>

        <div>

          :

        </div>



        <div>

          <div>

            0 1 2 3 4 5

          </div>

        </div>

        <div>

          <div>

            0 1 2 3 4 5 6 7 8 9

          </div>

        </div>

        <div>

          :

        </div>



        <div>

          <div>

            0 1 2 3 4 5

          </div>

        </div>

        <div>

          <div>

            0 1 2 3 4 5 6 7 8 9

          </div>

        </div>

        <div>

          :

        </div>



        <div>

          <div>

            0 1 2 3 4 5 6 7 8 9

          </div>

        </div>

        <div>

          <div>

            0 1 2 3 4 5 6 7 8 9

          </div>

        </div>

        <div>

          <div>

            0 1 2 3 4 5 6 7 8 9

          </div>

        </div>



      </div>



      <div>

        <label id="haptic" for="stop">

        </label>

        <label id="haptic2" for="start">

        </label>

        <label id="haptic3" for="reset">

        </label>



      </div>



    </div>



  </div>

这里主要是定义了圆盘时钟的基本结构，以及开始、暂停和复位按钮。接下来重点是CSS代码：

CSS代码：

首先来定义一些动画：

@-webkit-keyframes start_haptic {from { -webkit-transform:scale(.98)}to {}}

@-webkit-keyframes stop_haptic {from { -webkit-transform:scale(.98)}to {}}

@-webkit-keyframes reset_haptic {from { -webkit-transform:scale(.98)}to {}}



@-webkit-keyframes launch {from { -webkit-transform:scale(1.2); opacity:0} to {}}

@-webkit-keyframes info {from { -webkit-transform:scale(.8) translateY(100px); opacity:0} to {}}

@-webkit-keyframes menu {from { -webkit-transform:scale(.9) translateY(-50px); opacity:0} to {}}



@-webkit-keyframes reset {from {-webkit-transform:rotateZ(180deg);} 60%{ -webkit-transform:rotateZ(-30deg);} 70%{ -webkit-transform:rotateZ(10deg);} 80%{ -webkit-transform:rotateZ(-10deg);}to { -webkit-transform:rotateZ(0);}}



@-webkit-keyframes arrow { from  { -webkit-transform: rotateZ(0deg);}to{-webkit-transform: rotateZ(360deg)}}

@-webkit-keyframes sec{ from  { top:0px;}to{top:-300px;}}

@-webkit-keyframes sec1{ from  { top:0px;}to{top:-180px;}}

再将这些动画在各个按钮被激活时启用这些动画：

.start:checked~.container .mil0{-webkit-animation-play-state:running;}

.stop:checked~.container .mil0{-webkit-animation-play-state:paused;}

.start:checked~.container .mil{-webkit-animation-play-state:running;}



.stop:checked~.container .mil{-webkit-animation-play-state:paused;}

.start:checked~.container .mil1{-webkit-animation-play-state:running;}

.stop:checked~.container .mil1{-webkit-animation-play-state:paused;}



.reset:checked~.container .mil1{-webkit-animation:none;top:0;transition:.2s;}

.reset:checked~.container .mil0{-webkit-animation:none;top:0;transition:.2s;}

.reset:checked~.container .mil{-webkit-animation:none;top:0;transition:.2s;}



.start:checked~.container .sec{-webkit-animation-play-state:running;}

.stop:checked~.container .sec{-webkit-animation-play-state:paused;}

.reset:checked~.container .sec{-webkit-animation:none;top:0;transition:.2s;}



.start:checked~.container .sec1{-webkit-animation-play-state:running;}

.stop:checked~.container .sec1{-webkit-animation-play-state:paused;}

.reset:checked~.container .sec1{-webkit-animation:none;top:0;transition:.2s;}



.start:checked~.container .min{-webkit-animation-play-state:running;}

.stop:checked~.container .min{-webkit-animation-play-state:paused;}

.reset:checked~.container .min{-webkit-animation:none;top:0;transition:.2s;}



.start:checked~.container .min1{-webkit-animation-play-state:running;}

.stop:checked~.container .min1{-webkit-animation-play-state:paused;}

.reset:checked~.container .min1{-webkit-animation:none;top:0;transition:.2s;}



.start:checked~.container .arrow{-webkit-animation-play-state:running;}

.stop:checked~.container .arrow{-webkit-animation-play-state:paused;}

.reset:checked~.container .arrow{-webkit-animation:reset  .4s; -webkit-animation-fill-mode:forwards;}



.controls{ height:60px;width:200px;margin:0 auto;  position:relative;  }



.stop_,.start_{position:absolute; z-index:3; height:60px; width:80px; left:60px; transition:.2s; background-position:center center;background-repeat:no-repeat;}

最后将源代码一并附上，下载地址>>
