【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库

一、说明

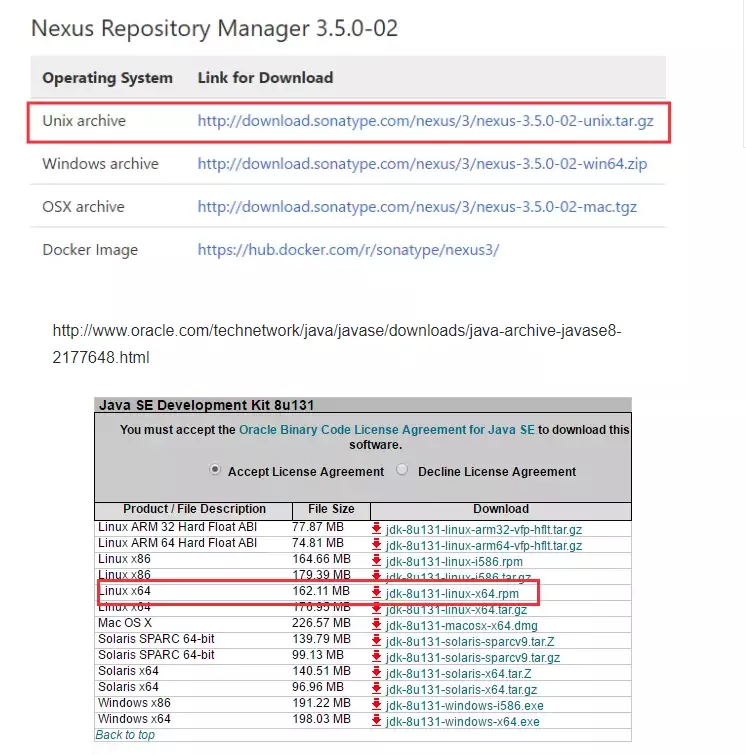

用nexus搭建docker私有镜像仓库,我们可以去官网下载nexus安装包安装,然后做安装配置。



【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第1张图片

从nexus3.x开始,我们的另一个选择是拉nexus的镜像,用容器运行nexus服务。



二、实验环境

操作系统: CentOS7.5 Minimal

nexusServer   192.168.1.106

dockerClient    192.168.1.104



三、 安装docker

在nexusServer 和dockerClient  服务器

关闭selinux

# setenforce 0

# sed  -i  's/^SELINUX=.*/SELINUX=permissive/g'  /etc/selinux/config



安装docker

 # yum -y install  yum-utils device-mapper-persistent-data lvm2

# yum-config-manager   --add-repo    https://download.docker.com/linux/centos/docker-ce.repo

# yum list docker-ce  --showduplicates| sort  -r

#  yum -y install docker-ce-18.06.0.ce

# systemctl  start docker

# systemctl  status docker

# systemctl  enable  docker

# docker version



四、拉取镜像,运行nexus服务

在nexusServer 服务器

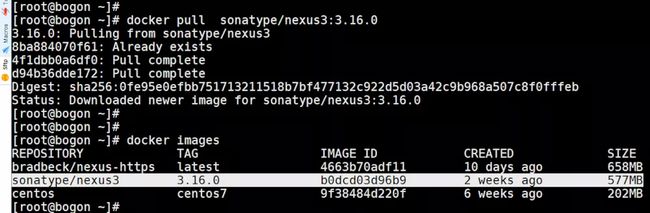

# docker pull sonatype/nexus3:3.16.0

# docker images

【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第2张图片



#  mkdir /opt/nexus-data

# chown -R  200 /opt/nexus-data

注:容器中nexus的默认运行用户是nexus,uid和gid为200



用命令行形式运行nexus容器

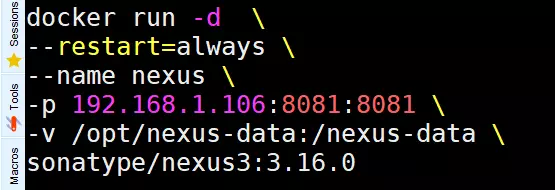

#  docker run -d  \

--restart=always \

--name nexus \

--ulimit nofile=65536:65536 \

 -p 192.168.1.106:8081:8081 \

 -v /opt/nexus-data:/nexus-data \

sonatype/nexus3:3.16.0

【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第3张图片

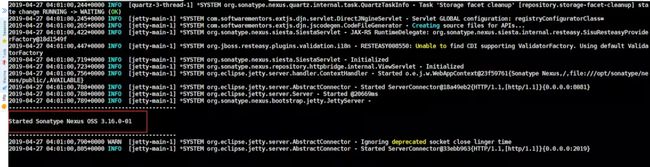

# docker logs   -f  nexus

【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第4张图片

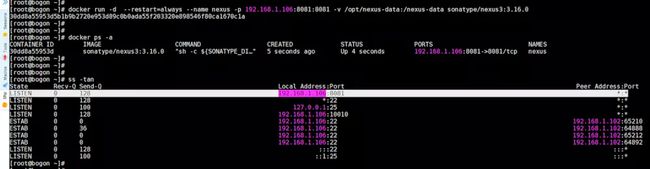

# docker  ps  -a

# ss  -tan



【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第5张图片

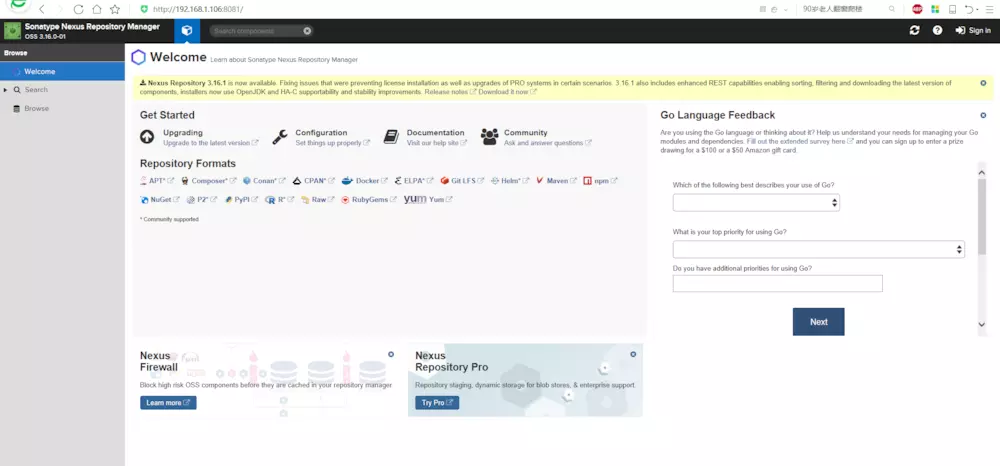

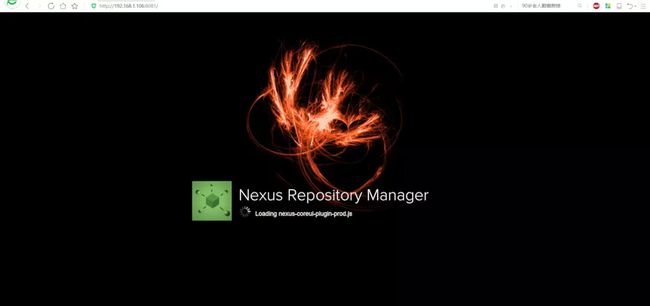

浏览器访问: http:192.168.1.106:8081

【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第6张图片

【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第7张图片

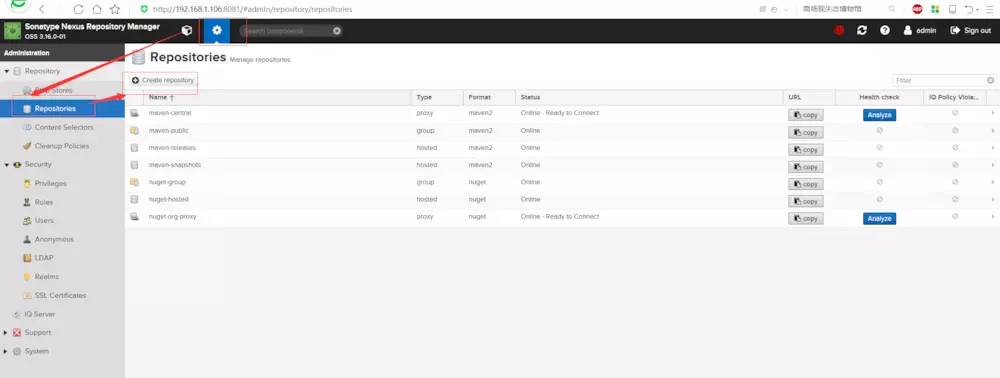

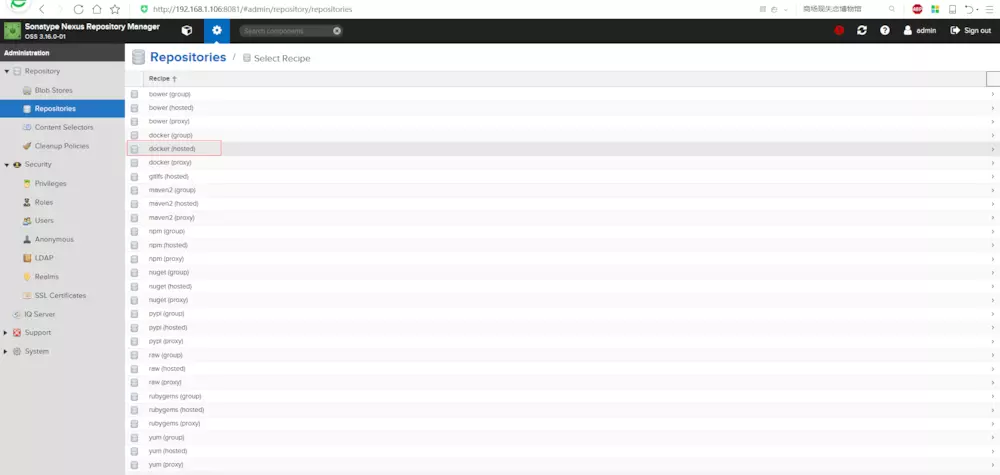

五,创建一个docker仓库

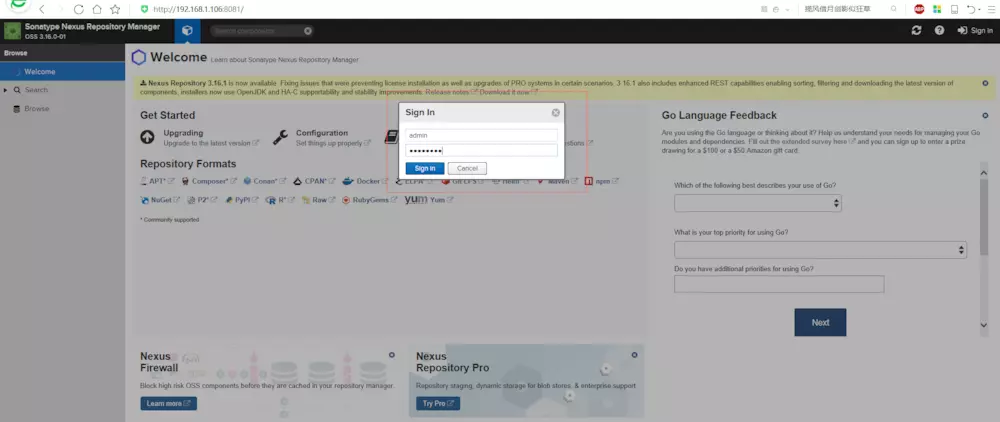

浏览器访问: http:192.168.1.106:8081

默认登录用户密码:admin/admin123

【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第8张图片

【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第9张图片

【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第10张图片

【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第11张图片

官方镜像搭建的nexus,不支持https,仓库端口只能选择http,否则服务异常

【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第12张图片

【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第13张图片

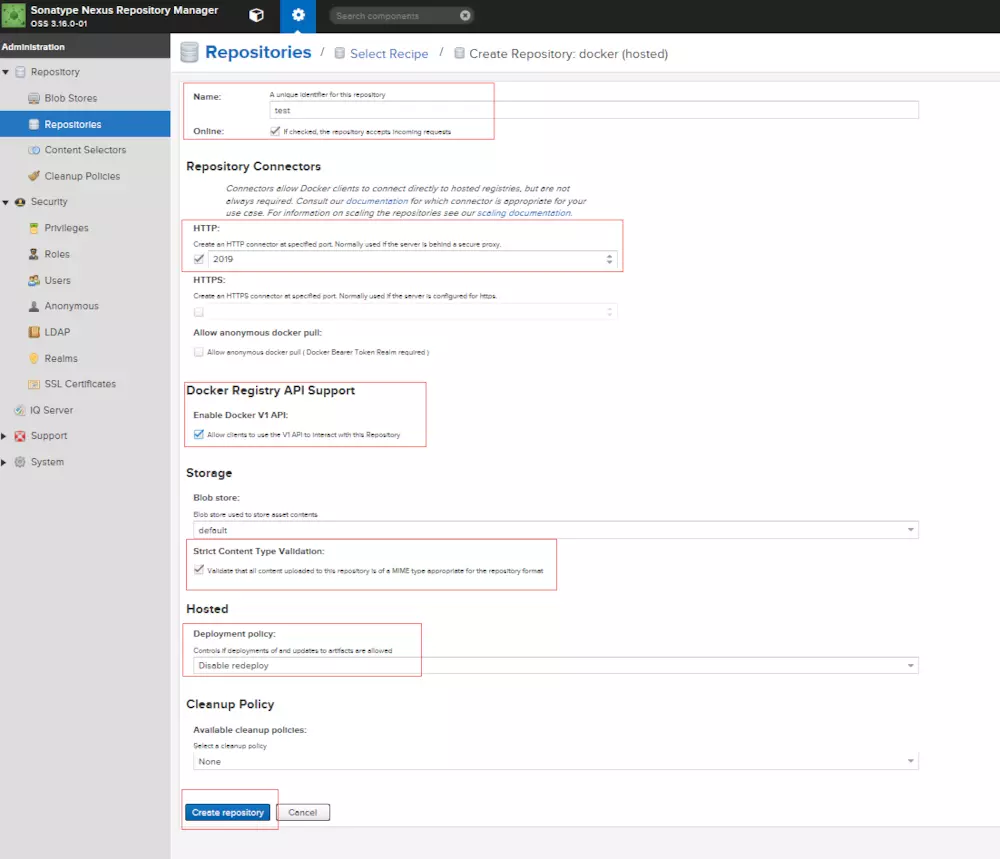

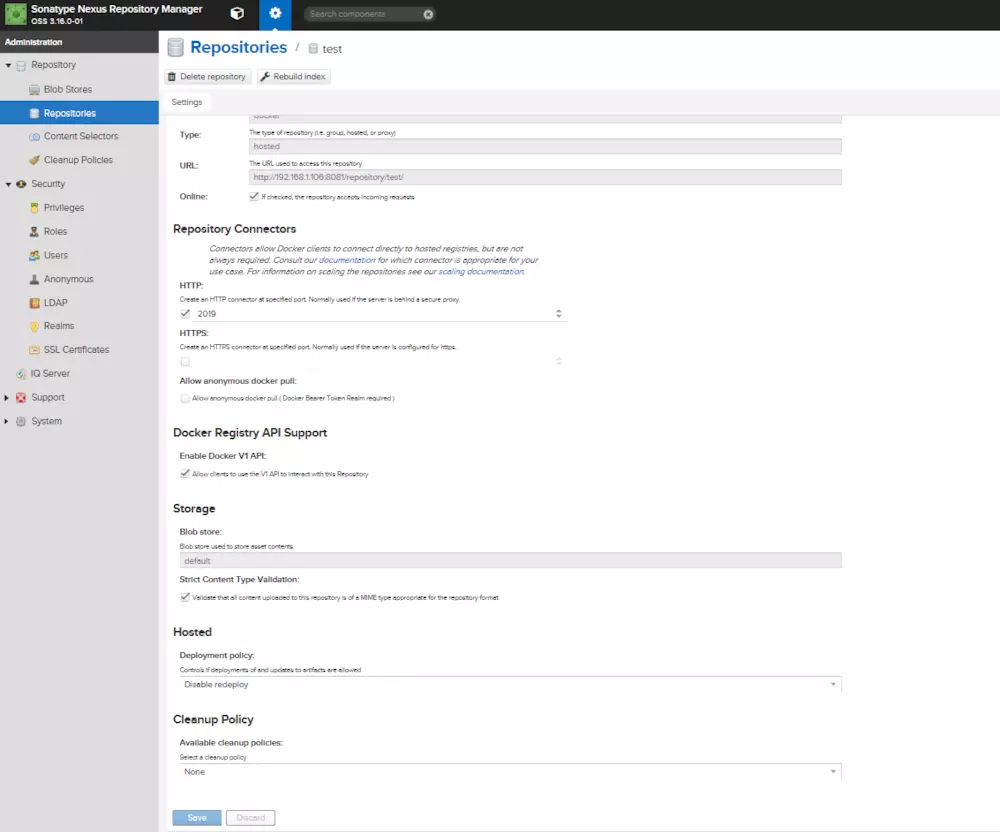

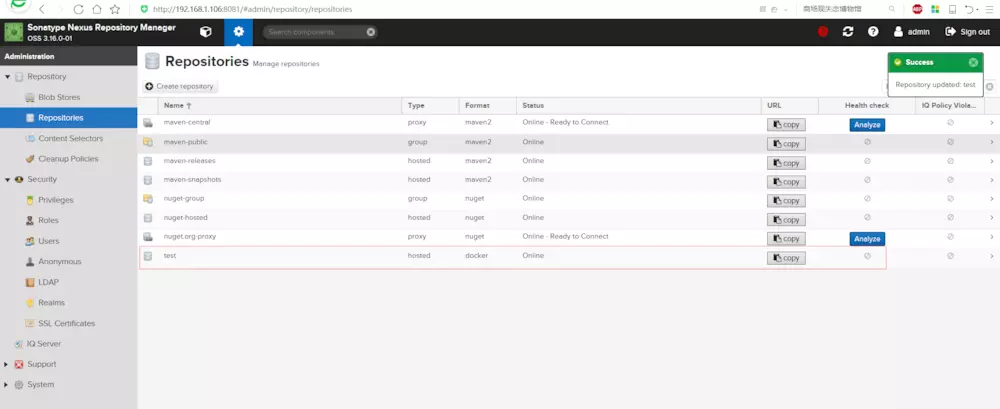

我们创建了一个名为 test的镜像仓库,仓库端口为 2019,协议为http,不是https!





重启nexus服务,开放2019端口



# docker stop nexus

# docker rm nexus



#  docker run -d  \

--restart=always \

--name nexus \

--ulimit nofile=65536:65536 \

 -p 192.168.1.106:8081:8081 \

 -p 192.168.1.106:2019:2019 \

 -v /opt/nexus-data:/nexus-data \

sonatype/nexus3:3.16.0



【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第14张图片

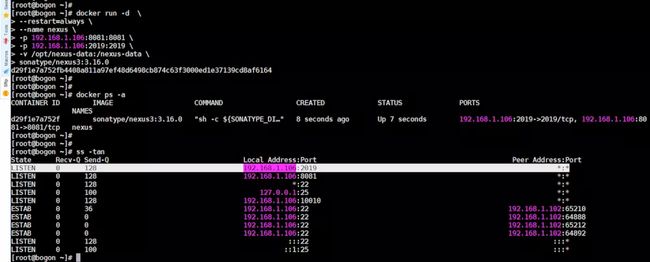

# docker ps -a

# ss  -tan



【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第15张图片



服务端启动方式改进,将nexus注册成系统服务

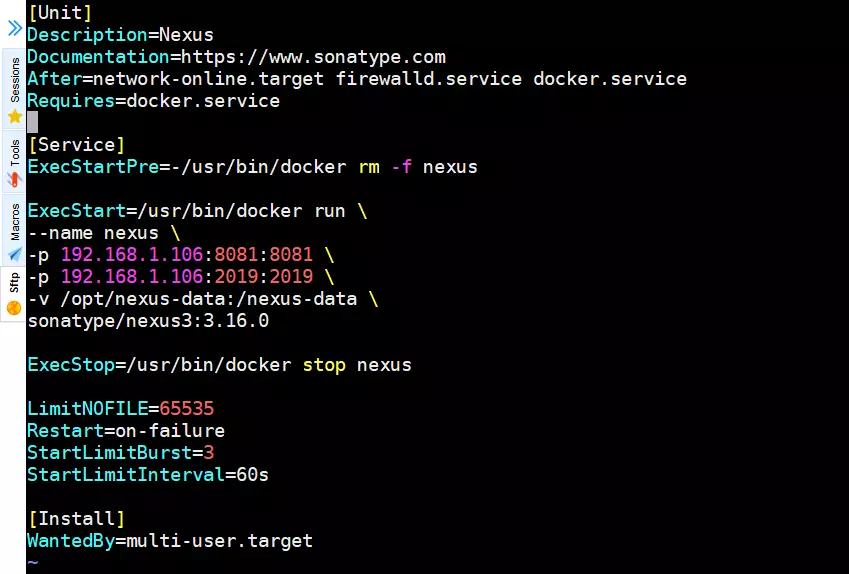

编写unit文件

# vim /etc/systemd/system/nexus.service

####################################################

[Unit]

Description=Nexus

Documentation=https://www.sonatype.com

After=network-online.target firewalld.service docker.service

Requires=docker.service

[Service]

ExecStartPre=-/usr/bin/docker rm -f nexus

ExecStart=/usr/bin/docker run \

--name nexus \

--ulimit nofile=65536:65536 \

-p 192.168.1.106:8081:8081 \

-p 192.168.1.106:2019:2019 \

-v /opt/nexus-data:/nexus-data \

sonatype/nexus3:3.16.0

ExecStop=/usr/bin/docker stop nexus

LimitNOFILE=65535

Restart=on-failure

StartLimitBurst=3

StartLimitInterval=60s

[Install]

WantedBy=multi-user.target

#####################################################

【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第16张图片

停止和删除命令行启动的nexus服务

# docker stop nexus

# docker rm nexus

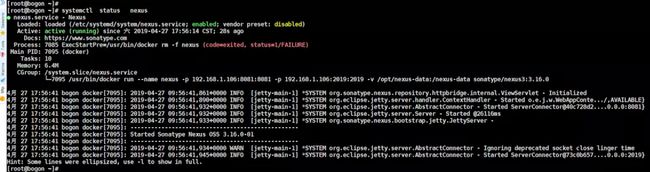

用systemd启动服务

# systemctl daemon-reload

#  systemctl start  nexus

#  systemctl enable nexus

#  systemctl status nexus

【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第17张图片



六、客户端测试



测试服务端端口连通性

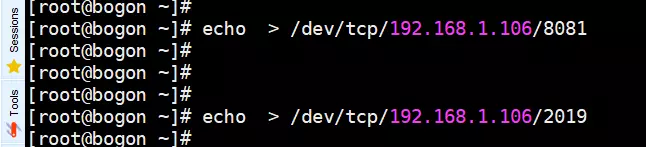

# echo > /dev/tcp/192.168.1.106/8081

# echo > /dev/tcp/192.168.1.106/2019



【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第18张图片

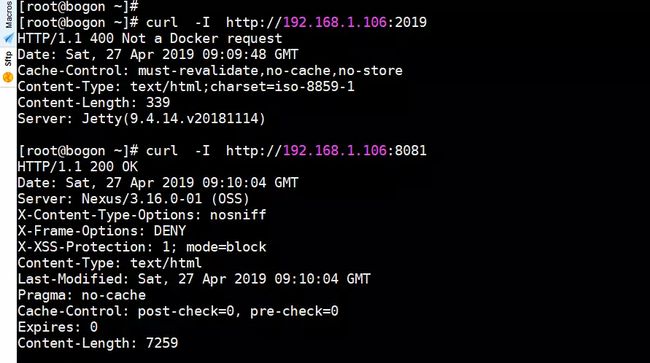

# curl -I http://192.168.1.106:8081

# curl -I  http://192.168.1.106:2019



【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第19张图片

在nexusClient客户端登录仓仓库

#  docker  login  http://192.68.1.106:2019  -u admin  -p "admin123"

# cat /root/.docker/config.json



nexsu仓库开的是http,dockr 要走https,怎么解决?

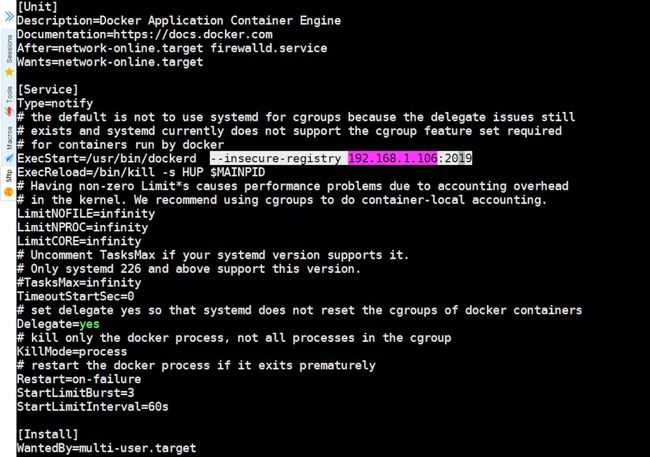

添加仓库信任

# vim /usr/lib/systemd/system/docker.service

#######################################################

ExecStart=/usr/bin/dockerd   --insecure-registry 192.168.1.106:2019

########################################################



【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第20张图片

systemctl daemon-reload

# systemctl restart docker



#  docker  login  192.168.1.106:2019  -u admin  -p "admin123"

#  docker  login  http://192.168.1.106:2019  -u admin  -p "admin123"



【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第21张图片



测试推送一个镜像

# docker pull busybox:latest

# docker tag busybox:latest 192.168.1.106:2019/busybox:v1

# docker push 192.168.1.106:2019/busybox:v1

【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第22张图片

【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第23张图片





七、改nexus仓库的http为https

前面我们用docker容器搭建nexus服务,创建了一个名为 test的镜像仓库,仓库端口为 2019,协议为http,不是https。

nexsu仓库开的是http,dockr 要走https,我们是通过在客户端添加仓库信任解决的。

那么,有没有更符合最佳实践的方式呢?有!用nexus-https镜像,nexus官方镜像的改进版。

Sonatype Nexus Repository Manager 3 with HTTPS support, based on CentOS



bradbeck/nexus-https

https://hub.docker.com/r/bradbeck/nexus-https

https://github.com/bradbeck/nexus-https





在nexusServer 服务器

#  docker  stop nexus

# docker rm  nexus

# rm  -rf  /opt/nexus-data



# docker pull bradbeck/nexus-https

# docker images



用nexus-https镜像起一个容器,获取配置https所需的配置文件

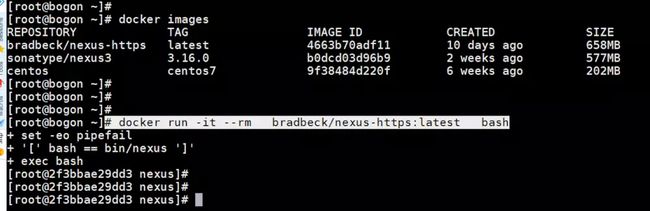

# docker run -it --rm bradbeck/nexus-https:latest bash

【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第24张图片

对nexusServer服务器,另开一个Xshell窗口

# docker  ps -a

可以看到,起了一容器ID为 2f3bbae29dd3 的容器,当然,你起的容器ID肯定不同,灵活应变。

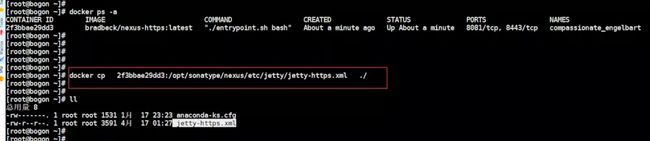

从容器中拷贝文件

docker cp 2f3bbae29dd3:/opt/sonatype/nexus/etc/jetty/jetty-https.xml ./

【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第25张图片

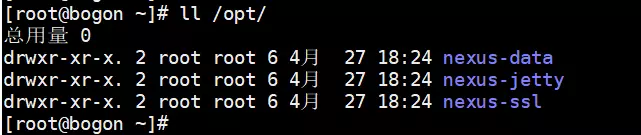

创建容器服务相关目录

# mkdir /opt/nexus-data

# mkdir /opt/nexus-ssl

# mkdir /opt/nexus-jetty

【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第26张图片

#  chown   -R  200   /opt/nexus-data  /opt/nexus-ssl     /opt/nexus-jetty

# cp   jetty-https.xml     /opt/nexus-jetty



生成keystore证书文件

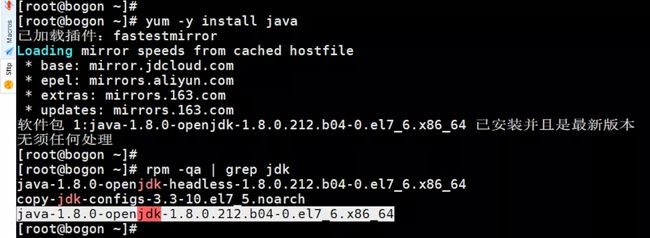

安装keytool证书工具

#  yum  -y install  java

【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第27张图片

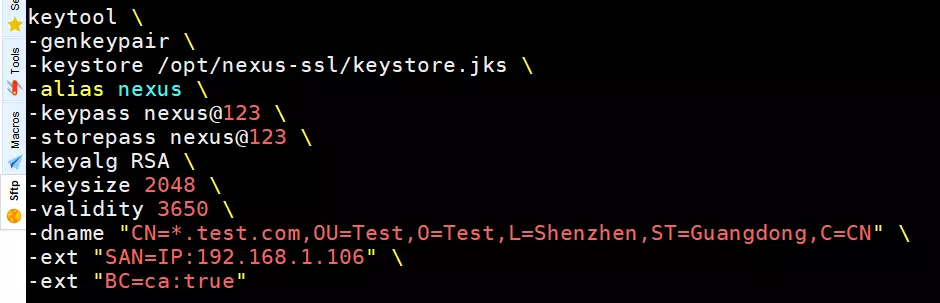

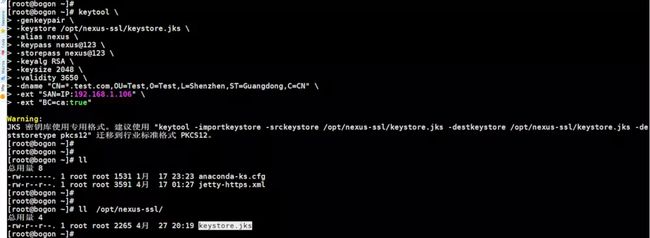

生成证书

# keytool  \

-genkeypair \

-keystore  /opt/nexus-ssl/keystore.jks \

-alias nexus \

-keypass nexus@123 \

-storepass nexus@123 \

-keyalg RSA \

-keysize 2048 \

-validity 5000 \

-dname "CN=*.test.com,OU=TEST,O=TEST,L=Shenzhen,ST=Guangdong,C=CN" \

-ext "SAN=IP:192.168.1.106"  \

-ext "BC=ca:true"

【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第28张图片

# ll /opt/nexus-ssl/

【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第29张图片

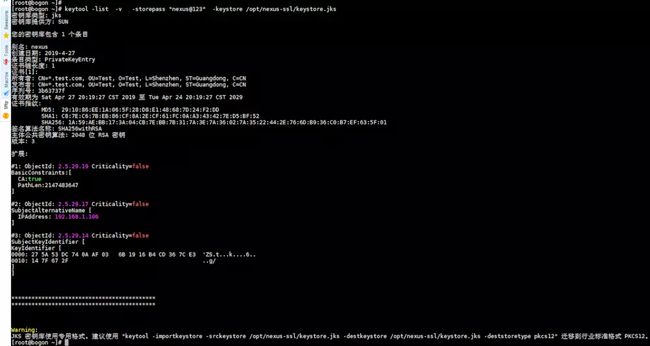

# keytool -list -v -storepass "nexus@123" -keystore /opt/nexus-ssl/keystore.jks

【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第30张图片

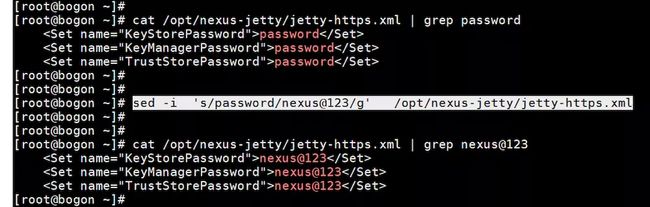

修改配置文件中证书默认密码

# sed   -i   's/password/nexus@123/g'   /opt/nexus-jetty/jetty-https.xml

【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第31张图片

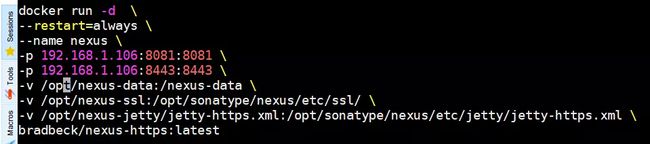

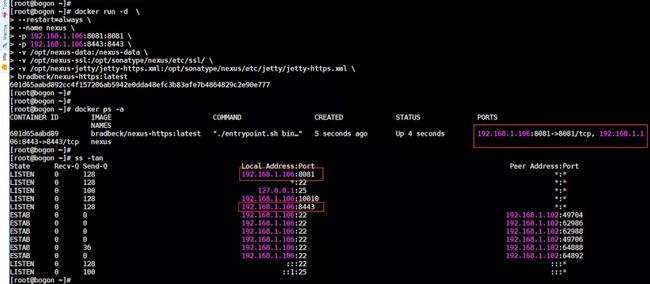

用nexus-https镜像启动nexus容器



# docker run -d \

--restart=always \

--name nexus \

--ulimit nofile=65536:65536 \

-p 192.168.1.106:8081:8081 \

-p 192.168.1.106:8443:8443 \

-v /opt/nexus-data:/nexus-data \

-v /opt/nexus-ssl:/opt/sonatype/nexus/etc/ssl/ \

-v /opt/nexus-jetty/jetty-https.xml:/opt/sonatype/nexus/etc/jetty/jetty-https.xml \

bradbeck/nexus-https:latest

【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第32张图片



# docker  ps -a

# ss -tan



【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第33张图片

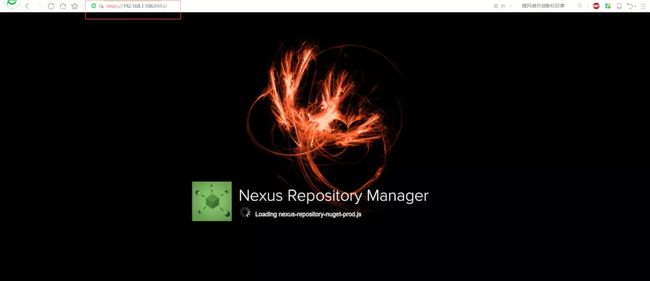

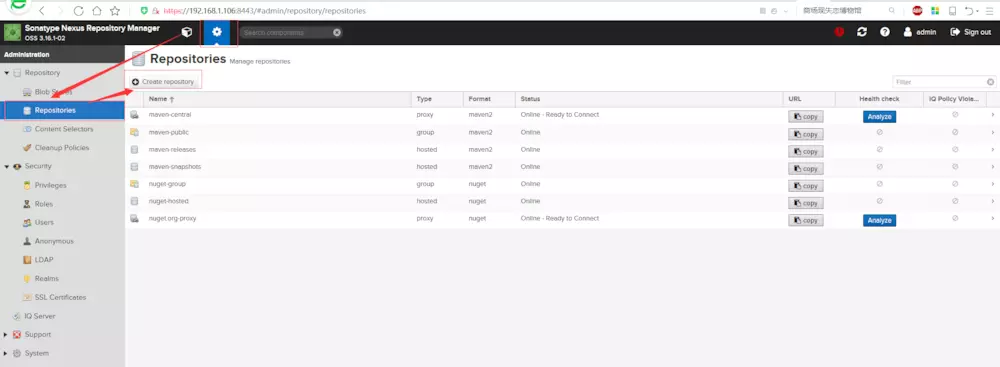

浏览器访问

https:192.168.1.106:8443

http://192.168.1.106:8081

果不用http,那么启动容器的时候,不映射http的8081端口到宿主机。

默认登录用户密码:admin/admin123

【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第34张图片

【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第35张图片



【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第36张图片

【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第37张图片

【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第38张图片

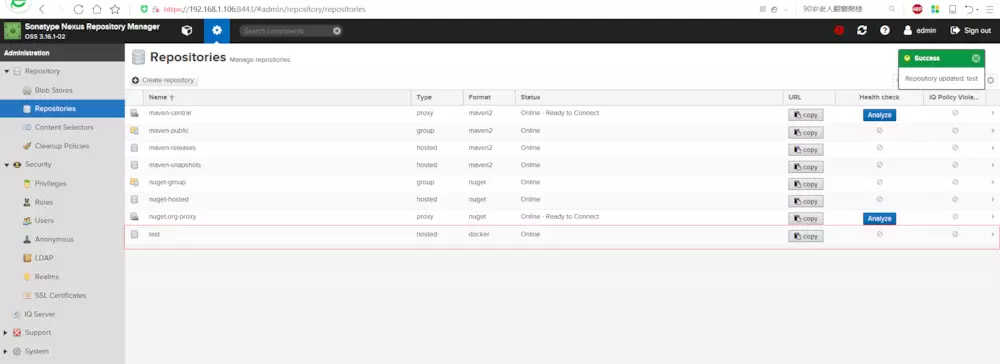

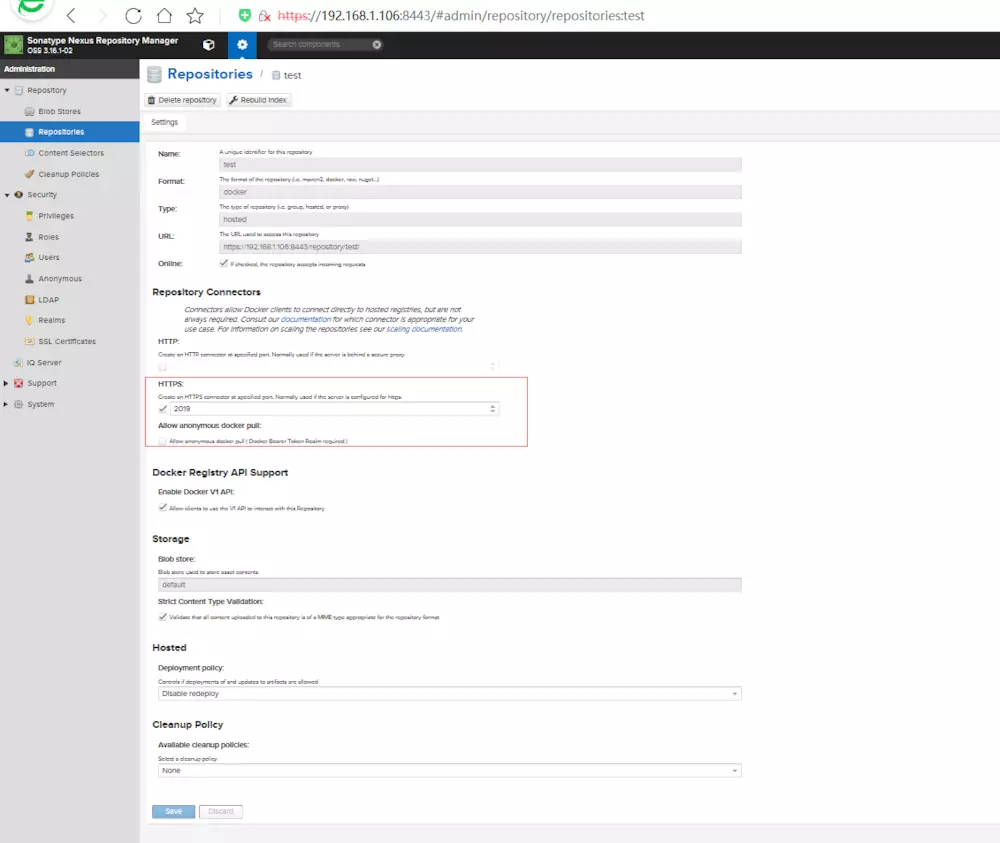

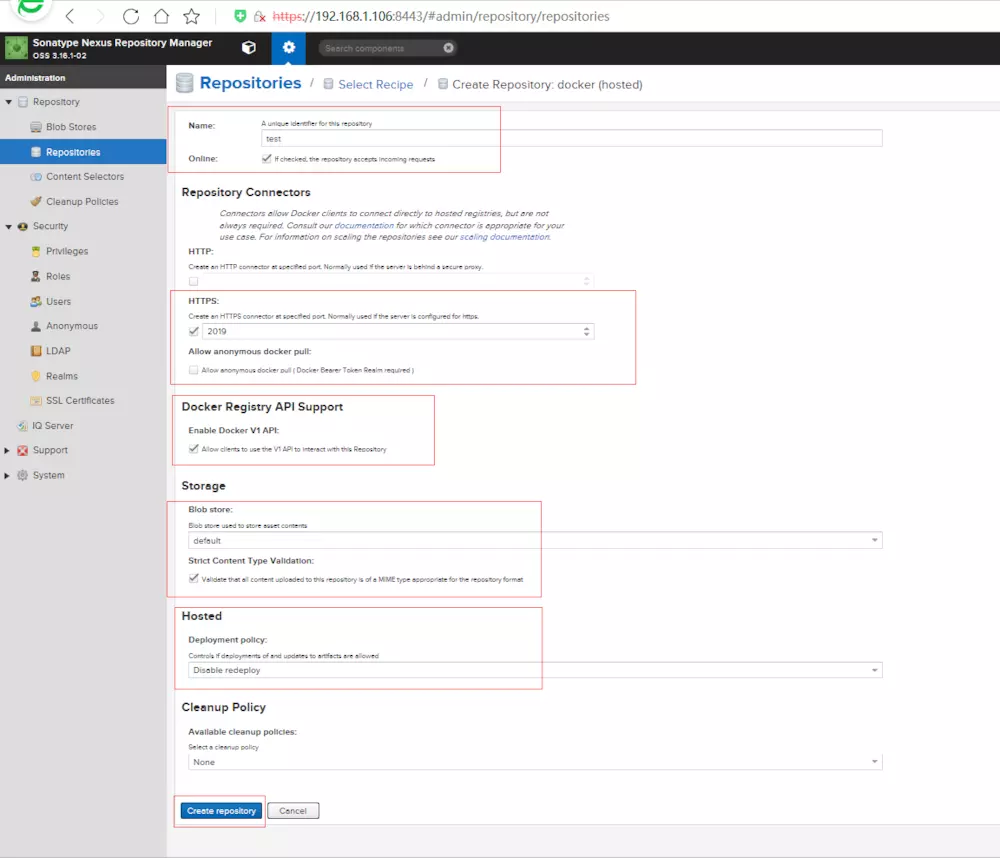

我们创建了一个名为 test的镜像仓库,仓库端口为 2019,协议为https,不是http!

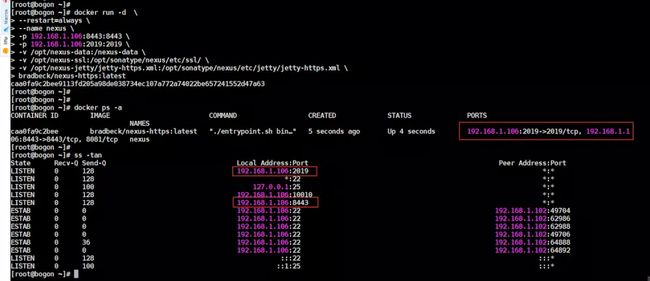

重启nexus服务,开放2019端口

# docker stop nexus

# docker rm nexus

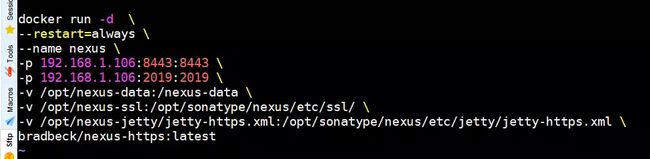

# docker run -d \

--restart=always \

--name nexus \

--ulimit nofile=65536:65536 \

-p 192.168.1.106:8443:8443 \

-p 192.168.1.106:2019:2019 \

-v /opt/nexus-data:/nexus-data \

-v /opt/nexus-ssl:/opt/sonatype/nexus/etc/ssl/ \

-v /opt/nexus-jetty/jetty-https.xml:/opt/sonatype/nexus/etc/jetty/jetty-https.xml \

bradbeck/nexus-https:latest

【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第39张图片



# docker stop nexus

# docker rm nexus

【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第40张图片

服务端启动方式改进,将nexus注册成系统服务



编写unit文件

# vim /etc/systemd/system/nexus.service

####################################################

[Unit]

Description=Nexus

Documentation=https://www.sonatype.com

After=network-online.target firewalld.service docker.service

Requires=docker.service

[Service]

ExecStartPre=-/usr/bin/docker rm -f nexus

ExecStart=/usr/bin/docker run \

--name nexus \

--ulimit nofile=65536:65536 \

-p 192.168.1.106:8443:8443 \

-p 192.168.1.106:2019:2019 \

-v /opt/nexus-data:/nexus-data \

-v /opt/nexus-ssl:/opt/sonatype/nexus/etc/ssl/ \

-v /opt/nexus-jetty/jetty-https.xml:/opt/sonatype/nexus/etc/jetty/jetty-https.xml \

bradbeck/nexus-https:latest

ExecStop=/usr/bin/docker stop nexus

LimitNOFILE=65535

Restart=on-failure

StartLimitBurst=3

StartLimitInterval=60s

[Install]

WantedBy=multi-user.target

#####################################################



停止和删除命令行启动的nexus服务

# docker stop nexus

# docker rm nexus



用systemd启动服务

# systemctl daemon-reload

#  systemctl start  nexus

#  systemctl enable nexus



# docker  logs  -f nexus

#  systemctl status nexus

【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第41张图片



八、客户端测试



在dockerCleint服务器



测试服务端端口连通性

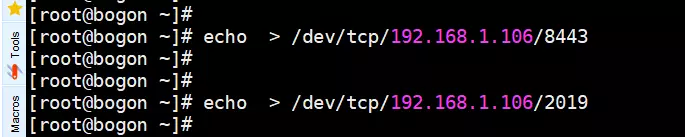

# echo > /dev/tcp/192.168.1.106/8443

# echo > /dev/tcp/192.168.1.106/2019

【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第42张图片

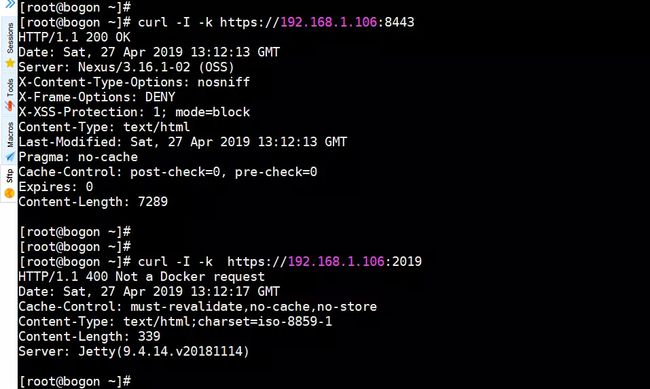

# curl  -I    -k  https://192.168.1.106:8443

# curl  -I   -k  https://192.168.1.106:2019



【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第43张图片

在nexusClient客户端登录仓库

# docker login 192.168.1.106:2019 -u admin -p "admin123"



获取nexus服务端证书



# yum  -y install  java

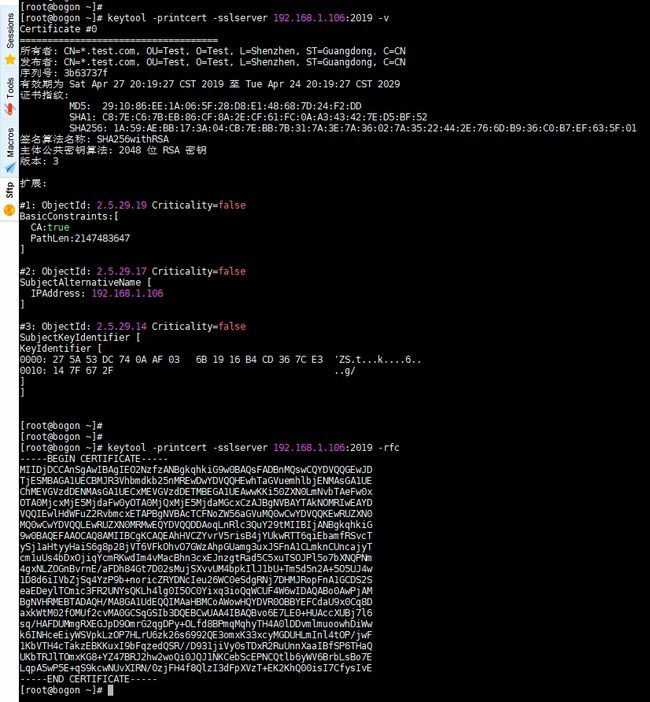

# keytool -printcert  -sslserver  192.168.1.106:2019  -v

# keytool  -printcert  -sslserver  192.168.1.106:2019  -rfc



【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第44张图片

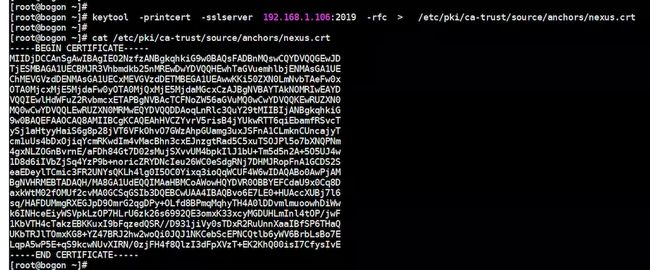

#  keytool  -printcert  -sslserver  192.168.1.106:2019  -rfc  >   /etc/pki/ca-trust/source/anchors/nexus.crt

# cat   /etc/pki/ca-trust/source/anchors/nexus.crt

【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第45张图片

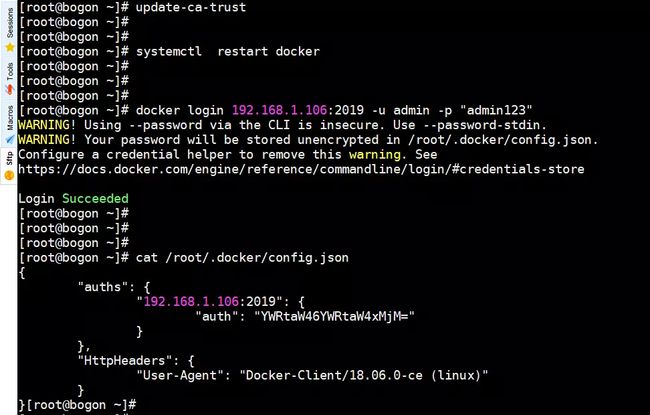

刷新操作系统认证,重启docker



# update-ca-trust

# systemctl restart docker



# docker login 192.168.1.106:2019 -u admin -p "admin123"

# docker login https://192.168.1.106:2019 -u admin -p "admin123"

# cat /root/.docker/config.json



【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第46张图片

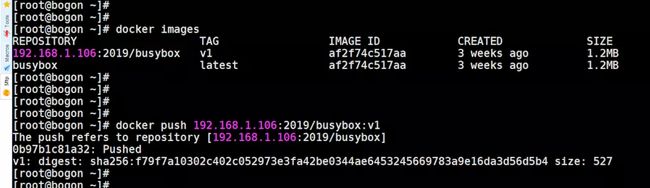

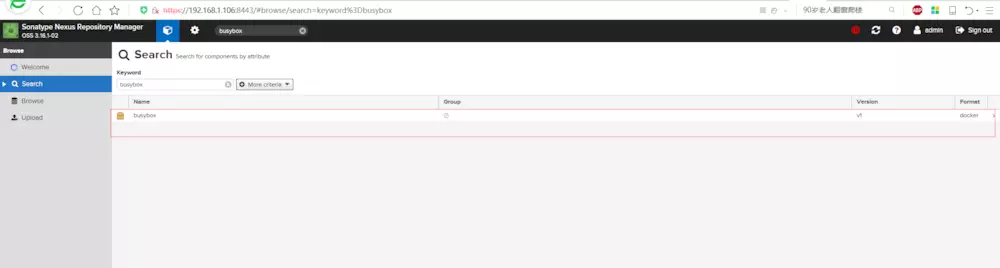

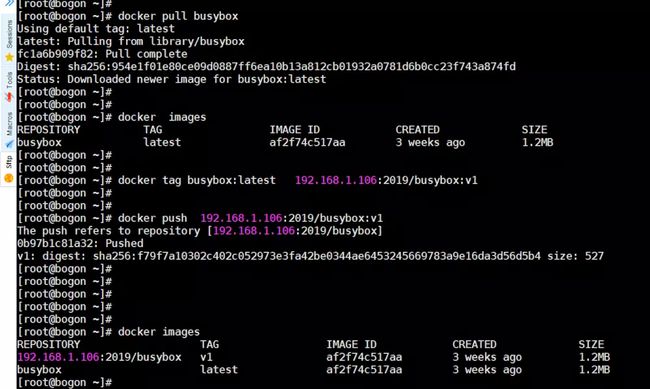

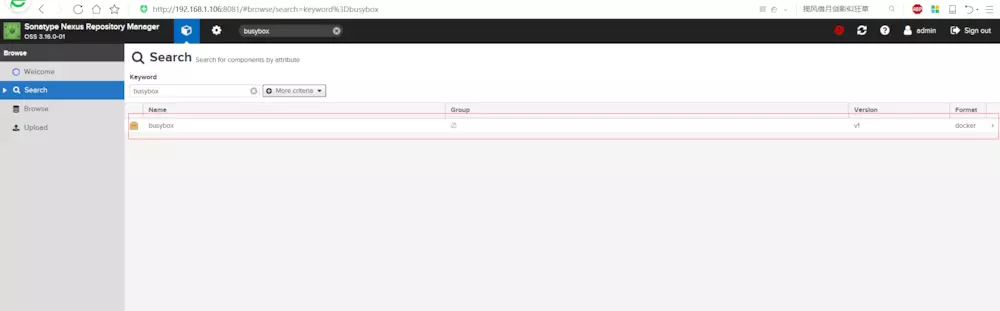

测试推送一个镜像

# docker pull busybox:latest

# docker tag busybox:latest 192.168.1.106:2019/busybox:v1

# docker push 192.168.1.106:2019/busybox:v1



【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第47张图片

【nexus】用nexus3.x 官方镜像搭建docker私有镜像仓库_第48张图片
