从ESP32 BLE应用理解GATT

目录

1、背景

1.1参考资料

1.2 GATT是什么玩意

2、ESP32 例程分析

2.1 GATT 服务器的架构组织

2.2 从GATT回调函数注册程序esp_ble_gatts_register_callback开始深入分析

3 建立连接之前的GATT状态机

3.1 创建服务 creating services

3.2 启动服务并创建Characteristics

3.2.1 添加Characteristic Value declaration ATT-------看这里

3.3 添加Characteristic descriptor 描述符

4 建立连接时GATT的状态机研究

4.1连接后触发的连接回调函数

4.2连接后MTU大小确定

4.3 发送应答数据

4.4 客户端和服务器端 收发数据

4.4.1 手机端的操作

4.4.2 设备端的操作

4.4.4.1 使能通知

4.4.4.2 读写数据

4.5 Characteristic结构

5. 数据交互其他必要知道的

6.结束语


 1、背景

虽然看了一些BLE的资料,可是对蓝牙依旧不太了解。现在从ESP32 的示例出发结合esp_gatts_api.h学习GATT。

本文以创建Service和Characteristic为中心展开分析。

1.1参考资料

BLE GATT 介绍 http://www.cnblogs.com/smart-mutouren/p/5937990.html

ble v4.2

1.2 GATT是什么玩意

GATT是用A他tribute Protocal(属性协议)定义的一个service(服务)框架。这个框架定义了Services以及它们的Characteristics的格式和规程。规程就是定义了包括发现、读、写、通知、指示以及配置广播的characteristics。------BLE V4.2给出了如下定义(翻译有待加强)。

从ESP32 BLE应用理解GATT_第1张图片 Profile中所使用的Protocols(协议)

为实现这个Profile的设备定义了两种角色:Client(客户端)、Server(服务器)。角色不是不固定的哦.....

在GATT的Profile的定义11个features,映射了程序Procedure。

Feature对应的Procedure
序号 Feature Procedure
1 Server Configuration 服务器配置 Exchange MTU  连接期间只能配置一次,确定连接通信的ATT_MTU大小;否则就用默认的23-3 = 20
2 Primary Service Discover 主服务查找 Discover All Primary Services/Discover Primary Services By Service UUID 把主服务都找出来,
3 Relationship Discover 查找Included Services
4 Characteristic Discover 特征查找

Discover All Characteristic of a Service./Discover Characteristic By UUID

这里找到的是Characteristic declaration的ATT Handle 和ATT Value。这个ATT value包括Characteristic Properties, 特征值的句柄和Characteristic UUID。特征值的句柄在读写特征值时要用到。

5
6
7
8
9
10
11

1)配置交换(exchanging configuration)

2)发现一个设备上的服务s和特征s

3)读取一个特征值(characteristic value)

4)写入一个特征值

5)通知一个特征值

6)指示一个特征值

2、ESP32 例程分析

一旦两个设备建立了连接,GATT就开始发挥效用,同时意味着GAP协议管理的广播过程结束了。

GATT连接是独占的,即一个BLE周边设备同时只能与一个中心设备连接。??????

profile 可以理解为一种规范,一个标准的通信协议中,存于从机(Server)中。蓝牙组织规定了一些标准的Profile。每个profile中包含多个Service,每个service代表从机的一种能力。

2.1 GATT 服务器的架构组织

一个GATT 服务器应用程序架构(由Application Profiles组织起来)如下:

从ESP32 BLE应用理解GATT_第2张图片

每个Application Profile描述了一个方法来对为一个客户端应用程序设计的功能进行分组,例如在智能手机或平板电脑上运行的移动应用程序。

每个Profile定义为一个结构体,结构体成员依赖于该Application Profile 实现的services服务和characteristic特征。结构体成员还包括GATT interface(GATT 接口)、Application ID(应用程序ID)和处理profile事件的回调函数。

每个profile包括GATT interface(GATT 接口)、Application ID(应用程序ID)、 Connection ID(连接ID)、Service Handle(服务句柄)、Service ID(服务ID)、Characteristic handle(特征句柄)、Characteristic UUID(特征UUID)、ATT权限、Characteristic Properties、描述符句柄、描述符UUID

如果Characteristic 支持通知(notifications)或指示(indicatons),它就必须是实现CCCD(Client Characteristic  Configuration Descriptor)----这是额外的ATT。描述符有一个句柄和UUID。

struct gatts_profile_inst {
    esp_gatts_cb_t gatts_cb;
    uint16_t gatts_if;
    uint16_t app_id;
    uint16_t conn_id;
    uint16_t service_handle;
    esp_gatt_srvc_id_t service_id;
    uint16_t char_handle;
    esp_bt_uuid_t char_uuid;
    esp_gatt_perm_t perm;
    esp_gatt_char_prop_t property;
    uint16_t descr_handle;
    esp_bt_uuid_t descr_uuid;
};

Application Profile存储在数组中,并分配相应的回调函数gatts_profile_a_event_handler() 和 gatts_profile_b_event_handler()。

在GATT客户机上的不同的应用程序使用不同的接口,用gatts_if参数来表示。在初始化时,gatts-if参数初始化为ESP_GATT_IF_NONE,在注册客户端时(如注册profile A的客户端时gatt_if = 3,在注册profile B的客户端时gatt_if = 4)

/* One gatt-based profile one app_id and one gatts_if, this array will store the gatts_if returned by ESP_GATTS_REG_EVT */
static struct gatts_profile_inst gl_profile_tab[PROFILE_NUM] = {
    [PROFILE_A_APP_ID] = {
        .gatts_cb = gatts_profile_a_event_handler,
        .gatts_if = ESP_GATT_IF_NONE,       /* Not get the gatt_if, so initial is ESP_GATT_IF_NONE */
    },
    [PROFILE_B_APP_ID] = {
        .gatts_cb = gatts_profile_b_event_handler,/* This demo does not implement, similar as profile A */
        .gatts_if = ESP_GATT_IF_NONE,       /* Not get the gatt_if, so initial is ESP_GATT_IF_NONE */
    },
};

这是两个元素的数组。可以用Application ID来注册Application Profiles,Application ID是由应用程序分配的用来标识每个Profile。 通过这种方法,可以在一个Server中run多个Application Profile。

esp_ble_gatts_app_register(PROFILE_A_APP_ID);

2.2 从GATT回调函数注册程序esp_ble_gatts_register_callback开始深入分析

看样子,也是一个状态机,下面是GATT回调函数的注册函数esp_ble_gatts_register_callback

esp_err_t esp_ble_gatts_register_callback(esp_gatts_cb_t callback);

作用:向BTA GATTS模块注册应用程序回调函数。

callback回调函数处理从BLE堆栈推送到应用程序的所有事件

对于GATT server回调函数类型进行分析

typedef void (* esp_gatts_cb_t)(esp_gatts_cb_event_t event,
esp_gatt_if_t gatts_if, esp_ble_gatts_cb_param_t *param);

回调函数的参数:
event: esp_gatts_cb_event_t  这是一个枚举类型,表示调用该回调函数时的事件(或蓝牙的状态)

gatts_if: esp_gatt_if_t (uint8_t) 这是GATT访问接口类型,通常在GATT客户端上不同的应用程序用不同的gatt_if(不同的Application profile对应不同的gatts_if) 调用esp_ble_gatts_app_register()时,注册Application profile 就会有一个gatts_if。

param: esp_ble_gatts_cb_param_t 指向回调函数的参数,是个联合体类型,不同的事件类型采用联合体内不同的成员结构体。

第一步、看看蓝牙状态机有哪些状态类型esp_gatts_cb_event_t

typedef enum {
    ESP_GATTS_REG_EVT                 = 0,       /*!< When register application id, the event comes */
    ESP_GATTS_READ_EVT                = 1,       /*!< When gatt client request read operation, the event comes */
    ESP_GATTS_WRITE_EVT               = 2,       /*!< When gatt client request write operation, the event comes */
    ESP_GATTS_EXEC_WRITE_EVT          = 3,       /*!< When gatt client request execute write, the event comes */
    ESP_GATTS_MTU_EVT                 = 4,       /*!< When set mtu complete, the event comes */
    ESP_GATTS_CONF_EVT                = 5,       /*!< When receive confirm, the event comes */
    ESP_GATTS_UNREG_EVT               = 6,       /*!< When unregister application id, the event comes */
    ESP_GATTS_CREATE_EVT              = 7,       /*!< When create service complete, the event comes */
    ESP_GATTS_ADD_INCL_SRVC_EVT       = 8,       /*!< When add included service complete, the event comes */
    ESP_GATTS_ADD_CHAR_EVT            = 9,       /*!< When add characteristic complete, the event comes */
    ESP_GATTS_ADD_CHAR_DESCR_EVT      = 10,      /*!< When add descriptor complete, the event comes */
    ESP_GATTS_DELETE_EVT              = 11,      /*!< When delete service complete, the event comes */
    ESP_GATTS_START_EVT               = 12,      /*!< When start service complete, the event comes */
    ESP_GATTS_STOP_EVT                = 13,      /*!< When stop service complete, the event comes */
    ESP_GATTS_CONNECT_EVT             = 14,      /*!< When gatt client connect, the event comes */
    ESP_GATTS_DISCONNECT_EVT          = 15,      /*!< When gatt client disconnect, the event comes */
    ESP_GATTS_OPEN_EVT                = 16,      /*!< When connect to peer, the event comes */
    ESP_GATTS_CANCEL_OPEN_EVT         = 17,      /*!< When disconnect from peer, the event comes */
    ESP_GATTS_CLOSE_EVT               = 18,      /*!< When gatt server close, the event comes */
    ESP_GATTS_LISTEN_EVT              = 19,      /*!< When gatt listen to be connected the event comes */
    ESP_GATTS_CONGEST_EVT             = 20,      /*!< When congest happen, the event comes */
    /* following is extra event */
    ESP_GATTS_RESPONSE_EVT            = 21,      /*!< When gatt send response complete, the event comes */
    ESP_GATTS_CREAT_ATTR_TAB_EVT      = 22,      /*!< When gatt create table complete, the event comes */
    ESP_GATTS_SET_ATTR_VAL_EVT        = 23,      /*!< When gatt set attr value complete, the event comes */
    ESP_GATTS_SEND_SERVICE_CHANGE_EVT = 24,      /*!< When gatt send service change indication complete, the event comes */
} esp_gatts_cb_event_t;

第二步、再来看一个很有意思的联合体类型esp_ble_gatts_cb_param_t,不同的事件类型联合体的对象也不同。


typedef union {
    /**
     * @brief ESP_GATTS_REG_EVT
     */
    struct gatts_reg_evt_param {
        esp_gatt_status_t status;       /*!< Operation status */
        uint16_t app_id;                /*!< Application id which input in register API */
    } reg;                              /*!< Gatt server callback param of ESP_GATTS_REG_EVT */


........................
  /**
    * @brief ESP_GATTS_SET_ATTR_VAL_EVT
    */
 struct gatts_set_attr_val_evt_param{
        uint16_t srvc_handle;           /*!< The service handle */
        uint16_t attr_handle;           /*!< The attribute  handle */
        esp_gatt_status_t status;       /*!< Operation status*/
    } set_attr_val;                     /*!< Gatt server callback param of ESP_GATTS_SET_ATTR_VAL_EVT */

    /**
    * @brief ESP_GATTS_SEND_SERVICE_CHANGE_EVT
    */
    struct gatts_send_service_change_evt_param{
        esp_gatt_status_t status;       /*!< Operation status*/
    } service_change;                    /*!< Gatt server callback param of ESP_GATTS_SEND_SERVICE_CHANGE_EVT */

} esp_ble_gatts_cb_param_t;

示例中的gatts_event_handler()回调函数---调用esp_ble_gatts_app_register(1),触发ESP_GATTS_REG_EVT时

1.完成对每个profile 的gatts_if 的注册

 gl_profile_tab[param->reg.app_id].gatts_if = gatts_if;

2.如果gatts_if == 某个Profile的gatts_if时,调用对应profile的回调函数处理事情。

if (gatts_if == ESP_GATT_IF_NONE||gatts_if == gl_profile_tab[idx].gatts_if) 			{
                if (gl_profile_tab[idx].gatts_cb) {
                    gl_profile_tab[idx].gatts_cb(event, gatts_if, param);
                }
            }

状态机一般状态转变过程:

以gatts_server这个demo为例,讲解GATT状态机的一般过程:

/*********************************建立连接之前*******************************************************/
ESP_GATTS_REG_EVT---->ESP_GATTS_CREATE_EVT---->ESP_GATTS_START_EVT---->ESP_GATTS_ADD_CHAR_EVT--->ESP_GATTS_ADD_CHAR_DESCR_EVT

注册->创建->启动->添加特征->添加特征描述

/*********************************有Client开始连接之后:*******************************************************/

CONNECT_EVT---->ESP_GATTS_MTU_EVT--->GATT_WRITE_EVT--->ESP_GATTS_CONF_EVT-->GATT_READ_EVT

                                     /***********************

                                    *建立连接之前回调函数事件分析

                                   *********************/

在Demo的ESP_GATTS_REG_EVT事件中,调用esp_ble_gap_set_device_name(char *)来设置蓝牙设备名字;调用esp_ble_gap_config_adv_data(esp_ble_adv_data_t *adv_data)来配置广播数据;最后调用

esp_ble_gatts_create_service(esp_gatt_if_t gatts_if, esp_gatt_srvc_id_t *service_id, uint16_t num_handle)指定gatts_if和service_id来创建服务<实际调用btc_transfer_context()来完成服务的创建和调用回调函数>。服务创建完成就会触发回调函数向frofile报告状态和服务ID。Service_id对于后面添加included serivces 和 characteristics/descriptor都要用到。触发ESP_GATTS_CREATE_EVT事件

/**********************************************************************************************************************************************/

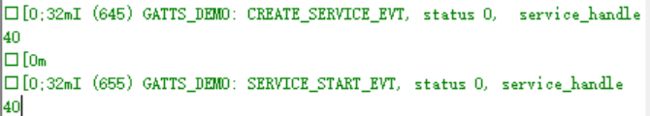

在Demo的ESP_GATTS_CREATE_EVT中调用esp_ble_gatts_start_service(uint16_t service_handle)来启动服务;再调用

esp_ble_gatts_add_char(uint16_t service_handle, esp_bt_uuid_t *char_uuid, esp_gatt_perm_t perm, esp_gatt_char_prop_t property, esp_attr_value_t *char_val, esp_attr_control_t *control)来添加特性(特征的UUID, 特征值描述符属性权限, 特征属性、特征值、属性响应控制字节)。

触发ESP_GATTS_START_EVTESP_GATTS_ADD_CHAR_EVT事件

/***************************************************************************************************/

ESP_GATTS_ADD_CHAR_EVT事件中,获取特征值调用esp_err_tesp_ble_gatts_add_char_descr(uint16_t service_handle, esp_bt_uuid_t *descr_uuid, esp_gatt_perm_tperm, esp_attr_value_t *char_descr_val, esp_attr_control_t *control)来添加特征描述符

从ESP32 BLE应用理解GATT_第3张图片

对于注册函数,还可以这样操作

1>当-调用esp_ble_gatts_app_register()注册一个应用程序Profile(Application Profile),触发ESP_GATTS_REG_EVT事件,除了可以完成对应profile的gatts_if的注册,还可以调用esp_bel_create_attr_tab()来创建profile Attributes 表或创建一个服务esp_ble_gatts_create_service()

esp_err_t esp_ble_gatts_create_attr_tab(const esp_gatts_attr_db_t *gatts_attr_db,
                                            esp_gatt_if_t gatts_if,
                                            uint8_t max_nb_attr,
                                            uint8_t srvc_inst_id);

作用:创建一个服务Attribute表。

参数

gatts_attr_db :指向加入profile的服务 attr 表 (从Service 到 Characteristic....)

gatts_if: GATT服务器的访问接口

max_nb_attr: 加入服务数据库的attr的数目

srvc_inst_id: 服务instance

typedef struct
{
    esp_attr_control_t      attr_control;                   /*!< The attribute control type */
    esp_attr_desc_t         att_desc;                       /*!< The attribute type */
} esp_gatts_attr_db_t;

 对于结构体esp_gatts_attr_db_t的成员attr_control的可取值

#define ESP_GATT_RSP_BY_APP             0         //由应用程序回复写入\读取操作应答
#define ESP_GATT_AUTO_RSP                1         //由GATT堆栈自动回复吸入\读取操作应答

成员 att_desc的结构体类型

/**
 * @brief Attribute description (used to create database)
 */
 typedef struct
 {
     uint16_t uuid_length;              /*!< UUID length */
     uint8_t  *uuid_p;                  /*!< UUID value */
     uint16_t perm;                     /*!< Attribute permission */
     uint16_t max_length;               /*!< Maximum length of the element*/
     uint16_t length;                   /*!< Current length of the element*/
     uint8_t  *value;                   /*!< Element value array*/
 } esp_attr_desc_t;

以心率计Profile为例说明:

 esp_ble_gatts_create_attr_tab(heart_rate_gatt_db, gatts_if,
                                      HRS_IDX_NB, HEART_RATE_SVC_INST_ID);

详细的heart_rate_gatt_db
/// Full HRS Database Description - Used to add attributes into the database
static const esp_gatts_attr_db_t heart_rate_gatt_db[HRS_IDX_NB] =
{
    // Heart Rate Service Declaration
    [HRS_IDX_SVC]                    =
    {{ESP_GATT_AUTO_RSP}, {ESP_UUID_LEN_16, (uint8_t *)&primary_service_uuid, ESP_GATT_PERM_READ,
      sizeof(uint16_t), sizeof(heart_rate_svc), (uint8_t *)&heart_rate_svc}},

    // Heart Rate Measurement Characteristic Declaration
    [HRS_IDX_HR_MEAS_CHAR]            =
    {{ESP_GATT_AUTO_RSP}, {ESP_UUID_LEN_16, (uint8_t *)&character_declaration_uuid, ESP_GATT_PERM_READ,
      CHAR_DECLARATION_SIZE,CHAR_DECLARATION_SIZE, (uint8_t *)&char_prop_notify}},

    // Heart Rate Measurement Characteristic Value
    [HRS_IDX_HR_MEAS_VAL]             =
    {{ESP_GATT_AUTO_RSP}, {ESP_UUID_LEN_16, (uint8_t *)&heart_rate_meas_uuid, ESP_GATT_PERM_READ,
      HRPS_HT_MEAS_MAX_LEN,0, NULL}},

    // Heart Rate Measurement Characteristic - Client Characteristic Configuration Descriptor
    [HRS_IDX_HR_MEAS_NTF_CFG]        =
    {{ESP_GATT_AUTO_RSP}, {ESP_UUID_LEN_16, (uint8_t *)&character_client_config_uuid, ESP_GATT_PERM_READ|ESP_GATT_PERM_WRITE,
      sizeof(uint16_t),sizeof(heart_measurement_ccc), (uint8_t *)heart_measurement_ccc}},

    // Body Sensor Location Characteristic Declaration
    [HRS_IDX_BOBY_SENSOR_LOC_CHAR]  =
    {{ESP_GATT_AUTO_RSP}, {ESP_UUID_LEN_16, (uint8_t *)&character_declaration_uuid, ESP_GATT_PERM_READ,
      CHAR_DECLARATION_SIZE,CHAR_DECLARATION_SIZE, (uint8_t *)&char_prop_read}},

    // Body Sensor Location Characteristic Value
    [HRS_IDX_BOBY_SENSOR_LOC_VAL]   =
    {{ESP_GATT_AUTO_RSP}, {ESP_UUID_LEN_16, (uint8_t *)&body_sensor_location_uuid, ESP_GATT_PERM_READ_ENCRYPTED,
      sizeof(uint8_t), sizeof(body_sensor_loc_val), (uint8_t *)body_sensor_loc_val}},

    // Heart Rate Control Point Characteristic Declaration
    [HRS_IDX_HR_CTNL_PT_CHAR]          =
    {{ESP_GATT_AUTO_RSP}, {ESP_UUID_LEN_16, (uint8_t *)&character_declaration_uuid, ESP_GATT_PERM_READ,
      CHAR_DECLARATION_SIZE,CHAR_DECLARATION_SIZE, (uint8_t *)&char_prop_read_write}},

    // Heart Rate Control Point Characteristic Value
    [HRS_IDX_HR_CTNL_PT_VAL]             =
    {{ESP_GATT_AUTO_RSP}, {ESP_UUID_LEN_16, (uint8_t *)&heart_rate_ctrl_point, ESP_GATT_PERM_WRITE_ENCRYPTED|ESP_GATT_PERM_READ_ENCRYPTED,
      sizeof(uint8_t), sizeof(heart_ctrl_point), (uint8_t *)heart_ctrl_point}},
};

上面的att 表有一个service、三个characteristic。

........

先把建立连接之前的GATT状态机搞清楚

3 建立连接之前的GATT状态机

3.1 创建服务 creating services

在触发ESP_GATTS_REG_EVT时,除了创建表还可以创建服务S,调用esp_ble_gatts_create_service来创建服务S。

esp_err_t esp_ble_gatts_create_service(esp_gatt_if_t gatts_if,
                                       esp_gatt_srvc_id_t *service_id, uint16_t num_handle);

作用:创建一个service。当一个service创建成功(done)后,ESP_CREATE_SERVICE_EVT事件触发回调函数被调用,该回调函数报告了profile的stauts和service ID。当要添加include service和 characteristics/descriptors入服务service,Service ID在回调函数中用到。

参数:gatts_if——GATT 服务器访问接口

service_id: 服务UUID相关信息

num_handle:该服务所需的句柄数 service handle、characteristic declaration handle、 characteristic value handle、characteristic description handle 的句柄数总和。Demo中用的是4.

查看参数service_id的类型

/// UUID type
typedef struct {
#define ESP_UUID_LEN_16     2
#define ESP_UUID_LEN_32     4
#define ESP_UUID_LEN_128    16
    uint16_t len;							/*!< UUID length, 16bit, 32bit or 128bit */
    union {
        uint16_t    uuid16;
        uint32_t    uuid32;
        uint8_t     uuid128[ESP_UUID_LEN_128];
    } uuid;									/*!< UUID */
} __attribute__((packed)) esp_bt_uuid_t;
/**
 * @brief Gatt id, include uuid and instance id
 */
typedef struct {
    esp_bt_uuid_t   uuid;                   /*!< UUID */
    uint8_t         inst_id;                /*!< Instance id */
} __attribute__((packed)) esp_gatt_id_t;
/**
 * @brief Gatt service id, include id
 *        (uuid and instance id) and primary flag
 */
typedef struct {
    esp_gatt_id_t   id;                     /*!< Gatt id, include uuid and instance */
    bool            is_primary;             /*!< This service is primary or not */
} __attribute__((packed)) esp_gatt_srvc_id_t;

服务ID参数包括

is_primary参数当前服务是否是首要的;---------服务声明中的Attribute Type 0x2800---Primary/0x2801---Secondary

id参数UUID的信息(包括uuid 和服务实例instance id)

         其中uuid是UUID的信息包括UUID的长度(16bit/32bit/128bit)及UUID具体值。

在Demo中,服务被定义为16bit的UUID的主服务。服务ID以实例ID为0,UUID为0x00FF来初始化,len为2个字节。

服务实例ID是用来区分在同一个Profile中具有相同UUID的多个服务。Application Profile中拥有相同UUID的两个服务,需要用不同的实例ID来引用。

如下示例展示了一个Service的创建。

 switch (event) {
    case ESP_GATTS_REG_EVT:
         ESP_LOGI(GATTS_TAG, "REGISTER_APP_EVT, status %d, app_id %d\n", param->reg.status, param->reg.app_id);
         gl_profile_tab[PROFILE_B_APP_ID].service_id.is_primary = true;
         gl_profile_tab[PROFILE_B_APP_ID].service_id.id.inst_id = 0x00;
         gl_profile_tab[PROFILE_B_APP_ID].service_id.id.uuid.len = ESP_UUID_LEN_16;
         gl_profile_tab[PROFILE_B_APP_ID].service_id.id.uuid.uuid.uuid16 = GATTS_SERVICE_UUID_TEST_B;

         esp_ble_gatts_create_service(gatts_if, &gl_profile_tab[PROFILE_B_APP_ID].service_id, GATTS_NUM_HANDLE_TEST_B);
         break;
…
}

 一个profile有一个primary服务,服务有UUID以及服务实例的ID。



3.2 启动服务并创建Characteristics

 当一个服务service创建成功(done)后,由该profile GATT handler 管理的 ESP_GATTS_CREATE_EVT事件被触发,在这个事件可以启动服务和添加characteristics到服务中。调用esp_ble_gatts_start_service来启动指定服务。

Characteristic是在GATT规范中最小的逻辑数据单元,由一个Value和多个描述特性的Desciptior组成。实际上,在与蓝牙设备打交道,主要就是读写Characteristic的value来完成。同样的,Characteristic也是通过16bit或128bit的UUID唯一标识

我们根据蓝牙设备的协议用对应的Characteristci进行读写即可达到与其通信的目的。

ESP_GATTS_CREATE_EVT事件中回调函数参数的类型为gatts_create_evt_param(包括操作函数、servic的句柄、服务的id) 如下所示。

  /**
     * @brief ESP_GATTS_CREATE_EVT
     */
    struct gatts_create_evt_param {
        esp_gatt_status_t status;       /*!< Operation status */
        uint16_t service_handle;        /*!< Service attribute handle */
        esp_gatt_srvc_id_t service_id;  /*!< Service id, include service uuid and other information */
    } create;                           /*!< Gatt server callback param of ESP_GATTS_CREATE_EVT */

esp_err_t esp_ble_gatts_start_service(uint16_t service_handle)

 esp_ble_gatts_start_service()这个函数启动一个服务。

参数: service_handle-------要被启动的服务句柄。

首先,由BLE堆栈生成生成的服务句柄(service handle)存储在Profile表中,应用层将用服务句柄来引用这个服务。调用esp_ble_gatts_start_service()和先前产生服务句柄来启动服务。

esp_err_t esp_ble_gatts_add_char(uint16_t service_handle, esp_bt_uuid_t *char_uuid

esp_gatt_perm_tperm, esp_gatt_char_prop_tproperty, esp_attr_value_t *char_val

esp_attr_control_t *control)

这样ESP_ATTS_START_EVT事件触发时,将打印输出信息启动的Service Handle之类的信息。如图所示

从ESP32 BLE应用理解GATT_第4张图片

添加特征到service中,调用esp_ble_gatts_add_char()来添加characteristics连同characteristic 权限和property(属性)到服务service中。

有必要再次解释一下property

Characteristic Properties这个域(bit控制)决定了Characteristic Value如何使用、Characteristic descriptors 如何访问。只要下标中对应bit被设备,那么对应描述的action就被允许。

从ESP32 BLE应用理解GATT_第5张图片

在Demo中,特征uuid的len为2字节,uuid为0x00FF,权限是可读可写,属性的读、写、通知bit置1,且设置特征值,

gl_profile_tab.char_uuid.len = ESP_UUID_LEN_16;
gl_profile_tab.char_uuid.uuid.uuid16 = GATTS_CHAR_UUID_TEST_A;
a_property = ESP_GATT_CHAR_PROP_BIT_READ | ESP_GATT_CHAR_PROP_BIT_WRITE | ESP_GATT_CHAR_PROP_BIT_NOTIFY;
        esp_err_t add_char_ret = esp_ble_gatts_add_char(gl_profile_tab.service_handle, &gl_profile_tab.char_uuid,
                                                        ESP_GATT_PERM_READ | ESP_GATT_PERM_WRITE,
                                                        a_property,
                                                        &gatts_demo_char1_val, NULL);



3.2.1 添加Characteristic Value declaration ATT-------看这里

添加Characteristic的接口

esp_err_t esp_ble_gatts_add_char(uint16_t service_handle, esp_bt_uuid_t *char_uuid,

esp_gatt_perm_t perm, esp_gatt_char_prop_t property, esp_attr_value_t *char_val, esp_attr_control_t *control)

参数:service_handle-------Characteristic要添加到的服务的Service handler服务句柄,一个Characteristic至少包括2个属性ATT,一个属性用于characteristic declaration/另一个用于存放特征值(characteristic value declaration).

char_uuid-------Characteristic 的UUID;  属于Characteristic declaration 这个ATT

perm------特征值声明(Characteristic value declaration) 属性(Attribute)访问权限;

ATT具有一组与其关联的权限值,权限值指定了读/写权限、认证权限、授权许可

                permission权限的可取值{可读、可加密读、可加密MITM读、可写、可加密写、可加密MITM写}

/**
 * @brief Attribute permissions
 */
#define    ESP_GATT_PERM_READ                  (1 << 0)   /* bit 0 -  0x0001 */    /* relate to BTA_GATT_PERM_READ in bta/bta_gatt_api.h */
#define    ESP_GATT_PERM_READ_ENCRYPTED        (1 << 1)   /* bit 1 -  0x0002 */    /* relate to BTA_GATT_PERM_READ_ENCRYPTED in bta/bta_gatt_api.h */
#define    ESP_GATT_PERM_READ_ENC_MITM         (1 << 2)   /* bit 2 -  0x0004 */    /* relate to BTA_GATT_PERM_READ_ENC_MITM in bta/bta_gatt_api.h */
#define    ESP_GATT_PERM_WRITE                 (1 << 4)   /* bit 4 -  0x0010 */    /* relate to BTA_GATT_PERM_WRITE in bta/bta_gatt_api.h */
#define    ESP_GATT_PERM_WRITE_ENCRYPTED       (1 << 5)   /* bit 5 -  0x0020 */    /* relate to BTA_GATT_PERM_WRITE_ENCRYPTED in bta/bta_gatt_api.h */
#define    ESP_GATT_PERM_WRITE_ENC_MITM        (1 << 6)   /* bit 6 -  0x0040 */    /* relate to BTA_GATT_PERM_WRITE_ENC_MITM in bta/bta_gatt_api.h */
#define    ESP_GATT_PERM_WRITE_SIGNED          (1 << 7)   /* bit 7 -  0x0080 */    /* relate to BTA_GATT_PERM_WRITE_SIGNED in bta/bta_gatt_api.h */
#define    ESP_GATT_PERM_WRITE_SIGNED_MITM     (1 << 8)   /* bit 8 -  0x0100 */    /* relate to BTA_GATT_PERM_WRITE_SIGNED_MITM in bta/bta_gatt_api.h */

property-----Characteristic Properties (特征值声明属性的Properties)

char_val------属性值 Characteristic Value

control-------属性响应控制字节

characteristic declaration的Attribute Value  包括 property、characteristic Value declaration handle、char_uuid 三个段;其中property、char_uuid在添加Characteristic调用的函数的参数中已经指明,只有characteristic Value declaration handle尚未明确指出。

示例:

gl_profile_tab[PROFILE_A_APP_ID].service_handle = param->create.service_handle;
gl_profile_tab[PROFILE_A_APP_ID].char_uuid.len = ESP_UUID_LEN_16;
gl_profile_tab[PROFILE_A_APP_ID].char_uuid.uuid.uuid16 = GATTS_CHAR_UUID_TEST_A;
esp_ble_gatts_add_char(gl_profile_tab[PROFILE_A_APP_ID].service_handle,
                            &gl_profile_tab[PROFILE_A_APP_ID].char_uuid,
                            ESP_GATT_PERM_READ | ESP_GATT_PERM_WRITE,
                            a_property,
                            &gatts_demo_char1_val,
                            NULL);

 characteristic value------这个属性ATT怎么添加入Characteristic中,看gatts_demo_char1_val的具体部分

/**
  * @brief set the attribute value type
  */
typedef struct
{
    uint16_t attr_max_len;                      /*!<  attribute max value length */
    uint16_t attr_len;                          /*!<  attribute current value length */
    uint8_t  *attr_value;                       /*!<  the pointer to attribute value */
} esp_attr_value_t;

uint8_t char1_str[] = {0x11,0x22,0x33};
esp_attr_value_t gatts_demo_char1_val =
{
    .attr_max_len = GATTS_DEMO_CHAR_VAL_LEN_MAX,
    .attr_len     = sizeof(char1_str),
    .attr_value   = char1_str,
};

从ESP32 BLE应用理解GATT_第6张图片

 在这个结构体里面包括了属性值最大长度、当前长度、当前值。由这个来指定 characteristic value declaration的。有这些值就足以构成一个 characteristic  value declaration ATT了

3.3 添加Characteristic descriptor 描述符

当特征添加到service中成功(done)时,触发ESP_GATTS_ADD_CHAR_EVT事件。触发ESP_GATTS_ADD_CHAR_EVT事件时,回调函数参数param的结构体为gatts_add_char_evt_param,包括操作状态、特征ATT的handle()、service_handle(服务句柄)、characteristc uuid(服务的UUID)

    /**
     * @brief ESP_GATTS_ADD_CHAR_EVT
     */
    struct gatts_add_char_evt_param {
        esp_gatt_status_t status;       /*!< Operation status */
        uint16_t attr_handle;           /*!< Characteristic attribute handle */
        uint16_t service_handle;        /*!< Service attribute handle */
        esp_bt_uuid_t char_uuid;        /*!< Characteristic uuid */
    } add_char;                         /*!< Gatt server callback param of ESP_GATTS_ADD_CHAR_EVT */

还可以通过调用esp_ble_gatts_get_attr_value()来获取跟具体的Characteristic Value declartation 属性的具体信息。

下面是调用的例子,输入参数是特征句柄;输出参数是length和prf_char

esp_ble_gatts_get_attr_value(param->add_char.attr_handle,  &length, &prf_char);

查看esp_ble_gatts_get_attr_value() 源码,进行分析

esp_err_t esp_ble_gatts_get_attr_value(uint16_t attr_handle, uint16_t *length, const uint8_t **value)
{
    if (attr_handle == ESP_GATT_ILLEGAL_HANDLE) {
        return ESP_FAIL;
    }
    btc_gatts_get_attr_value(attr_handle, length, (uint8_t **)value);
    return ESP_OK;
}
void btc_gatts_get_attr_value(uint16_t attr_handle, uint16_t *length, uint8_t **value)
{

    BTA_GetAttributeValue(attr_handle, length, value);
}
void BTA_GetAttributeValue(UINT16 attr_handle, UINT16 *length, UINT8 **value)
{
    bta_gatts_get_attr_value(attr_handle, length, value);
}
void bta_gatts_get_attr_value(UINT16 attr_handle, UINT16 *length, UINT8 **value)
{
    GATTS_GetAttributeValue(attr_handle, length, value);
}
/*******************************************************************************
**
** Function         GATTS_GetAttributeValue
**
** Description      This function sends to set the attribute value .
**
** Parameter        attr_handle: the attribute handle
**                  length:the attribute value length in the database
**                  value: the attribute value out put
**
** Returns          GATT_SUCCESS if successfully sent; otherwise error code.
**
*******************************************************************************/
tGATT_STATUS GATTS_GetAttributeValue(UINT16 attr_handle, UINT16 *length, UINT8 **value)
{
     tGATT_STATUS status;
     tGATT_HDL_LIST_ELEM  *p_decl;

     GATT_TRACE_DEBUG("GATTS_GetAttributeValue: attr_handle: %u\n",
                    attr_handle);

     if ((p_decl = gatt_find_hdl_buffer_by_attr_handle(attr_handle)) == NULL) {
         GATT_TRACE_ERROR("Service not created\n");
         return GATT_INVALID_HANDLE;
     }

     status =  gatts_get_attribute_value(&p_decl->svc_db, attr_handle, length, value);
     return status;
}

关于gatts_get_attribute_value()更底层的东西就要看ble协议栈的更底层的实现,这里很难查下去。但是可以通过打印输出来判断这里实现些什么。

从ESP32 BLE应用理解GATT_第7张图片

有上述打印可以看出,这里输出Characteristic value declaration的信息,因此esp_ble_gatts_get_attr_value()来输出特征值长度和特征值。

还可在ESP_GATTS_ADD_CHAR_EVT事件的回调函数中,给characteristic添加characteristic description ATT。

下面是添加char_descr的例子

gl_profile_tab[PROFILE_A_APP_ID].char_handle = param->add_char.attr_handle;
gl_profile_tab[PROFILE_A_APP_ID].descr_uuid.len = ESP_UUID_LEN_16;
gl_profile_tab[PROFILE_A_APP_ID].descr_uuid.uuid.uuid16 = ESP_GATT_UUID_CHAR_CLIENT_CONFIG;
esp_err_t add_descr_ret = esp_ble_gatts_add_char_descr(
gl_profile_tab[PROFILE_A_APP_ID].service_handle, &gl_profile_tab[PROFILE_A_APP_ID].descr_uuid,
ESP_GATT_PERM_READ | ESP_GATT_PERM_WRITE, NULL, NULL);
case ESP_GATTS_ADD_CHAR_DESCR_EVT:
        gl_profile_tab[PROFILE_A_APP_ID].descr_handle = param->add_char_descr.attr_handle;
        ESP_LOGI(GATTS_TAG, "ADD_DESCR_EVT, status %d, attr_handle %d, service_handle %d\n",
                 param->add_char_descr.status, param->add_char_descr.attr_handle, param->add_char_descr.service_handle);
        break;

 看看esp_ble_gatts_add_char_descr()这个函数的原型

esp_err_t esp_ble_gatts_add_char_descr (uint16_t service_handle,
                                        esp_bt_uuid_t   *descr_uuid,
                                        esp_gatt_perm_t perm, esp_attr_value_t *char_descr_val,
                                        esp_attr_control_t *control);

参数:service_handle:这个characteristic descriptor要添加的service handle。

perm: 描述符访问权限

descr_uuid:描述符UUID

char_descr_val:描述符值

control:ATT 应答控制字节

这个函数被用来添加Characteristic descriptor。当添加完成时,BTA_GATTS_ADD_DESCR_EVT 回调函数被调用去报告它的状态和ID。



gatt_server例子中:一共建立两个profile。A profile中包括的service UUID为0x00FF, characteristic UUID为0xFF01;

B profile中包括的service UUID为0x00EE, characteristic UUID为0xEE01

下面看是看开始建立连接后,GATT的状态机转变过程:

手机client连接到server,触发ESP_GATTS_CONNECT_EVT事件

/**
     * @brief ESP_GATTS_CONNECT_EVT
     */
    struct gatts_connect_evt_param {
        uint16_t conn_id;               /*!< Connection id */
        esp_bd_addr_t remote_bda;       /*!< Remote bluetooth device address */
    } connect;                          /*!< Gatt server callback param of ESP_GATTS_CONNECT_EVT */
/// Bluetooth address length
#define ESP_BD_ADDR_LEN     6

/// Bluetooth device address
typedef uint8_t esp_bd_addr_t[ESP_BD_ADDR_LEN];

ESP_GATTS_CONNECT_EVT事件回调函数param参数包括连接ID以及远端蓝牙设备地址。调用esp_ble_update_conn_params(&conn_params)来更新连接参数。这个函数只有在连接上以后才可以调用。

esp_ble_conn_update_params_t conn_params = {0};
        memcpy(conn_params.bda, param->connect.remote_bda, sizeof(esp_bd_addr_t));
        /* For the IOS system, please reference the apple official documents about the ble connection parameters restrictions. */
        conn_params.latency = 0;
        conn_params.max_int = 0x20;    // max_int = 0x20*1.25ms = 40ms
        conn_params.min_int = 0x10;    // min_int = 0x10*1.25ms = 20ms
        conn_params.timeout = 400;    // timeout = 400*10ms = 4000ms
esp_ble_gap_update_conn_params(&conn_params);

 参数连接更新参数(蓝牙设备地址、最小连接间隔、最大连接间隔、连接数量、LE LINK超时)。

/// Connection update parameters
typedef struct {
    esp_bd_addr_t bda;                              /*!< Bluetooth device address */
    uint16_t min_int;                               /*!< Min connection interval */
    uint16_t max_int;                               /*!< Max connection interval */
    uint16_t latency;                               /*!< Slave latency for the connection in number of connection events. Range: 0x0000 to 0x01F3 */
    uint16_t timeout;                               /*!< Supervision timeout for the LE Link. Range: 0x000A to 0x0C80.
                                                      Mandatory Range: 0x000A to 0x0C80 Time = N * 10 msec
                                                      Time Range: 100 msec to 32 seconds */
} esp_ble_conn_update_params_t;

                                     /***********************

                                    *建立连接之后回调函数事件分析

                                   *********************/



4 建立连接时GATT的状态机研究

 设备设备连上外围蓝牙时,打印如下所示:第一个触发了CONNECT回调函数;接着触发了MTU尺寸的大小确认事件。

从ESP32 BLE应用理解GATT_第8张图片

4.1连接后触发的连接回调函数

/**
     * @brief ESP_GATTS_CONNECT_EVT
     */
    struct gatts_connect_evt_param {
        uint16_t conn_id;               /*!< Connection id */
        esp_bd_addr_t remote_bda;       /*!< Remote bluetooth device address */
    } connect;

上面是连接回调函数param的参数结构体,包括连接id和远端(对端)蓝牙设备地址(bda)。

在一般回调函数处理中,记录对端的信息,且发送更新后的连接参数到对端设备 。

//start sent the update connection parameters to the peer device.
		esp_ble_gap_update_conn_params(&conn_params);

深入到 esp_ble_gap_update_conn_params(&conn_params)。这个函数只能在连接上时使用,用于更新连接参数。

/**
 * @brief           Update connection parameters, can only be used when connection is up.
 *
 * @param[in]       params   -  connection update parameters
 *
 * @return
 *                  - ESP_OK : success
 *                  - other  : failed
 *
 */
/// Connection update parameters
typedef struct {
    esp_bd_addr_t bda;                              /*!< Bluetooth device address */
    uint16_t min_int;                               /*!< Min connection interval */
    uint16_t max_int;                               /*!< Max connection interval */
    uint16_t latency;                               /*!< Slave latency for the connection in number of connection events. Range: 0x0000 to 0x01F3 */
    uint16_t timeout;                               /*!< Supervision timeout for the LE Link. Range: 0x000A to 0x0C80.
                                                      Mandatory Range: 0x000A to 0x0C80 Time = N * 10 msec
                                                      Time Range: 100 msec to 32 seconds */
} esp_ble_conn_update_params_t;

esp_err_t esp_ble_gap_update_conn_params(esp_ble_conn_update_params_t *params)
{
    btc_msg_t msg;
    btc_ble_gap_args_t arg;

    ESP_BLUEDROID_STATUS_CHECK(ESP_BLUEDROID_STATUS_ENABLED);

    msg.sig = BTC_SIG_API_CALL;
    msg.pid = BTC_PID_GAP_BLE;
    msg.act = BTC_GAP_BLE_ACT_UPDATE_CONN_PARAM;
    memcpy(&arg.conn_update_params.conn_params, params, sizeof(esp_ble_conn_update_params_t));

    return (btc_transfer_context(&msg, &arg, sizeof(btc_ble_gap_args_t), NULL) == BT_STATUS_SUCCESS ? ESP_OK : ESP_FAIL);
}

继续深入bt_status_t btc_transfer_context(btc_msg_t *msg, void *arg, int arg_len, btc_arg_deep_copy_t copy_func)

bt_status_t btc_transfer_context(btc_msg_t *msg, void *arg, int arg_len, btc_arg_deep_copy_t copy_func)
{
    btc_msg_t lmsg;

    if (msg == NULL) {
        return BT_STATUS_PARM_INVALID;
    }

    BTC_TRACE_DEBUG("%s msg %u %u %u %p\n", __func__, msg->sig, msg->pid, msg->act, arg);

    memcpy(&lmsg, msg, sizeof(btc_msg_t));
    if (arg) {
        lmsg.arg = (void *)osi_malloc(arg_len);
        if (lmsg.arg == NULL) {
            return BT_STATUS_NOMEM;
        }
        memset(lmsg.arg, 0x00, arg_len);    //important, avoid arg which have no length
        memcpy(lmsg.arg, arg, arg_len);
        if (copy_func) {
            copy_func(&lmsg, lmsg.arg, arg);
        }
    } else {
        lmsg.arg = NULL;
    }

    return btc_task_post(&lmsg, TASK_POST_BLOCKING);
}

 到此,不继续下去。

4.2连接后MTU大小确定

 当有手机(client客户端)连上server时,触发ESP_GATTS_MTU_EVT事件,其打印如下图所示

ESP_GATTS_MTU_EVT事件对应的回调函数中参数param的结构体为gatts_mtu_evt_param(包括连接id和MTU大小)

    /**
     * @brief ESP_GATTS_MTU_EVT
     */
    struct gatts_mtu_evt_param {
        uint16_t conn_id;               /*!< Connection id */
        uint16_t mtu;                   /*!< MTU size */
    } mtu;                              /*!< Gatt server callback param of ESP_GATTS_MTU_EVT */

在例子中设置本地的MTU大小为500,代码如下所示:

esp_err_t local_mtu_ret = esp_ble_gatt_set_local_mtu(500);

如上所述,设置了MTU的值(经过MTU交换,从而设置一个PDU中最大能够交换的数据量)。例如:主设备发出一个150字节的MTU请求,但是从设备回应的MTU是23字节,那么今后双方要以较小的值23字节作为以后的MTU。即主从双方每次在做数据传输时不超过这个最大数据单元。 MTU交换通常发生在主从双方建立连接后。MTU比较小,就是为什么BLE不能传输大数据的原因所在。

-----参照一分钟读懂低功耗(BLE)MTU交换数据包https://blog.csdn.net/viewtoolsz/article/details/76177465 这篇文章就可以了解MTU交换过程。

MTU交换请求用于client通知server关于client最大接收MTU大小并请求server响应它的最大接收MTU大小。

从ESP32 BLE应用理解GATT_第9张图片

Client的接收MTU 应该大于或等于默认ATT_MTU(23).这个请求已建立连接就由client发出。这个Client Rx MTU参数应该设置为client可以接收的attribute protocol PDU最大尺寸。

MTU交换应答发送用于接收到一个Exchange MTU请求

从ESP32 BLE应用理解GATT_第10张图片

这个应答由server发出,server的接收MTU必须大于或等于默认ATT_MTU大小。这里的Server Rx MTU应该设置为 服务器可以接收的attribute protocol PDU 最大尺寸。

Server和Client应该设置ATT_MTU为Client Rx MTU和Server Rx MTU两者的较小值。

这个ATT_MTU在server在发出这个应答后,在发其他属性协议PDU之前生效;在client收到这个应答并在发其他属性协议PDU之前生效。

4.3 发送应答数据

#if (GATTS_INCLUDED == TRUE)
esp_err_t esp_ble_gatts_send_response(esp_gatt_if_t gatts_if, uint16_t conn_id, uint32_t trans_id,
                                      esp_gatt_status_t status, esp_gatt_rsp_t *rsp);


    btc_msg_t msg;
    btc_ble_gatts_args_t arg;

    ESP_BLUEDROID_STATUS_CHECK(ESP_BLUEDROID_STATUS_ENABLED);

    msg.sig = BTC_SIG_API_CALL;
    msg.pid = BTC_PID_GATTS;
    msg.act = BTC_GATTS_ACT_SEND_RESPONSE;
    arg.send_rsp.conn_id = BTC_GATT_CREATE_CONN_ID(gatts_if, conn_id);
    arg.send_rsp.trans_id = trans_id;
    arg.send_rsp.status = status;
    arg.send_rsp.rsp = rsp;

    return (btc_transfer_context(&msg, &arg, sizeof(btc_ble_gatts_args_t),
                                 btc_gatts_arg_deep_copy) == BT_STATUS_SUCCESS ? ESP_OK : ESP_FAIL);
}
#endif

这个函数用于发送应答给对应请求。

参数: gatts_if-------GATT server 访问接口

conn_id-----连接ID

trans_id-----传输ID

status----应答状态

rsp-----应答数据 gatt attribute value

查看GATT 读应答结构

#define ESP_GATT_MAX_ATTR_LEN   600 //as same as GATT_MAX_ATTR_LEN
/// Gatt attribute value
typedef struct {
    uint8_t           value[ESP_GATT_MAX_ATTR_LEN];         /*!< Gatt attribute value */
    uint16_t          handle;                               /*!< Gatt attribute handle */
    uint16_t          offset;                               /*!< Gatt attribute value offset */
    uint16_t          len;                                  /*!< Gatt attribute value length */
    uint8_t           auth_req;                             /*!< Gatt authentication request */
} esp_gatt_value_t;
/// GATT remote read request response type
typedef union {
    esp_gatt_value_t attr_value;                            /*!< Gatt attribute structure */
    uint16_t            handle;                             /*!< Gatt attribute handle */
} esp_gatt_rsp_t;



4.4 客户端和服务器端 收发数据

4.4.1 手机端的操作

接下去看,连接以后收发数据

首先了解一下手机端在蓝牙连接、数据交互过程中的操作。


作者:WuTa0
链接:https://www.jianshu.com/p/f8130a0bfd94

  1. 检测蓝牙是否可用,绑定蓝牙服务
  2. 使用BluetoothAdapter.startLeScan来扫描低功耗蓝牙设备
  3. 在扫描到设备的回调函数中会得到BluetoothDevice对象,并使用BluetoothAdapter.stopLeScan停止扫描
  4. 使用BluetoothDevice.connectGatt来获取到BluetoothGatt对象 /*****************************************************************************************************************************************/
  5. 执行BluetoothGatt.discoverServices,这个方法是异步操作,在回调函数onServicesDiscovered中得到status, 通过判断status是否等于BluetoothGatt.GATT_SUCCESS来判断查找服务Service是否成功
  6. 如果成功了,则通过BluetoothGatt.getServices()来获取所有的Services;根据Sevice_UUID来查找想要的服务BluetoothGattService
  7. 接着通过BluetoothGattService.getCharacteristic(spiecial_char_UUID)获取BluetoothGattCharacteristic,最基本的一般获取Read_UUID的Charcteristic、Write_UUID的Characteristic、Notification_UUID的Characteristic。
  8. 设置通知打开------通知打开或关闭实际山是一次写入操作
  9. 然后通过BluetoothGattCharacteristic.getDescriptor获取BluetoothGattDescriptor
  10. 对于发送和接收数据 都是从BluetoothGatt.readCharacteristic和BluetoothGatt.writeCharcteristic来实现。
  11. 注意:在写时参数characteristic,调用setValue设置Characteristic的属性值,调用setWriteType设置写的方式(如WRITR_TYPE_NO_RESPONSE)

第3步扫描到设备会触发回调,在回调中,通常根据设备名称找到想要连接的设备,完成连接;连接后,获取到BluetoothGATT 对象,再从BluetoothGatt.discoverServices中获取各个Services,根据硬件工程师提供的UUID连接你需要的Service。最后,根据硬件工程师提供的UUID找到读、写和通知的UUID,然后再进行读写操作。  读写和设置通知均为单步操作,执行完一个才能执行下一个。

从这里出发,现在仍感觉不是很痛快,因此我从小程序的低功耗蓝牙接口出发,两相对照看。

写特征值

wx.writeBLECharacteristicValue(Object object)
Object{
deviceId::string            //必填,蓝牙设备id
serviceId::string          //必填,蓝牙特征值Characteristic对应服务的UUID
characteristicId::string   //必填,蓝牙特征值的UUID
value::ArrayBuffer         //必填,蓝牙设备特征值对应的二进制值
success::function          //非必填,接口调用成功后的回调函数
fail::function             //非必填,接口调用失败后的回调函数
complete::function         //非必填,接口调用结束后的回调函数(调用成功、失败都会执行)
}
向低功耗蓝牙设备特征值中写入二进制数据。 必须设备的特征值支持write权限才可以成功调用。

具体的如下所示,

 wx.writeBLECharacteristicValue({
     deviceId: that.data.deviceId,//设备deviceId
     serviceId: that.data.service_id,//设备service_id
     characteristicId: that.data.write_id,//设备write特征值
     value: buffer,//写入数据
     success: function (res) {
         console.log('发送数据:', res.errMsg)
     }
 });
---------------------
作者:Cc_JoJo
来源:CSDN
原文:https://blog.csdn.net/caohoucheng/article/details/81633822
版权声明:本文为博主原创文章,转载请附上博文链接!

读特征值

wx.readBLECharacteristicValue(Object object)
Objcet{
deviceId::string          //必填,蓝牙设备id
serviceId::string         //必填,蓝牙特征值对应服务的UUID
characteristic::string    //必填,蓝牙特征值UUID
success::function         //非必填,接口调用成功后回调函数
fail::function            //非必填,接口调用失败后回调函数
complete::function        //非必填,接口调用结束后回调函数(调用成功、失败都会执行)
}

具体的如下所示

wx.readBLECharacteristicValue({
  // 这里的 deviceId 需要已经通过 createBLEConnection 与对应设备建立链接
  deviceId,
  // 这里的 serviceId 需要在 getBLEDeviceServices 接口中获取
  serviceId,
  // 这里的 characteristicId 需要在 getBLEDeviceCharacteristics 接口中获取
  characteristicId,
  success(res) {
    console.log('readBLECharacteristicValue:', res.errCode)
  }
})

小程序上低功耗蓝牙一般操作流程

初始化蓝牙模块(wx.openBluetoothAdapter)------>开始搜索蓝牙外围设备(耗资源)(wx.startBluetoothDevicesDiscovery)----->

获取在蓝牙模块生效期间所有已发现的蓝牙设备(包括已经和本机处于连接状态的设备)(wx.getBluetoothDevices)----->

监听找到的新设备的事件(wx.onBluetoothDeviceFound(callback))------->连接低功耗蓝牙设备(wx.createBLEConnection())------>

获取蓝牙设备所有services(wx.getBLEDeviceServices())------>获取蓝牙设备某个服务中所有Characteristic(特征)(wx.getBLEDeviceCharacteristics)-------->启动低功耗蓝牙设备特征的值变化时的notify功能(wx.notifyBLECharacteristicValueChange())------->写入wx.writeBLECharactericValue()

目前,微信小程序上也应该是无应答写



4.4.2 设备端的操作

将ESP_GATTS_READ_EVT、ESP_GATTS_WRITE_EVT和ESP_GATTS_EXEC_WRITE_EVT三类事件param参数的类型如下

  /**
     * @brief ESP_GATTS_READ_EVT
     */
    struct gatts_read_evt_param {
        uint16_t conn_id;               /*!< Connection id */
        uint32_t trans_id;              /*!< Transfer id */
        esp_bd_addr_t bda;              /*!< The bluetooth device address which been read */
        uint16_t handle;                /*!< The attribute handle */
        uint16_t offset;                /*!< Offset of the value, if the value is too long */
        bool is_long;                   /*!< The value is too long or not */
        bool need_rsp;                  /*!< The read operation need to do response */
    } read;                             /*!< Gatt server callback param of ESP_GATTS_READ_EVT */


    /**
     * @brief ESP_GATTS_WRITE_EVT
     */
    struct gatts_write_evt_param {
        uint16_t conn_id;               /*!< Connection id */
        uint32_t trans_id;              /*!< Transfer id */
        esp_bd_addr_t bda;              /*!< The bluetooth device address which been written */
        uint16_t handle;                /*!< The attribute handle */
        uint16_t offset;                /*!< Offset of the value, if the value is too long */
        bool need_rsp;                  /*!< The write operation need to do response */
        bool is_prep;                   /*!< This write operation is prepare write */
        uint16_t len;                   /*!< The write attribute value length */
        uint8_t *value;                 /*!< The write attribute value */
    } write;                            /*!< Gatt server callback param of ESP_GATTS_WRITE_EVT */

    /**
     * @brief ESP_GATTS_EXEC_WRITE_EVT
     */
    struct gatts_exec_write_evt_param {
        uint16_t conn_id;               /*!< Connection id */
        uint32_t trans_id;              /*!< Transfer id */
        esp_bd_addr_t bda;              /*!< The bluetooth device address which been written */
#define ESP_GATT_PREP_WRITE_CANCEL 0x00 /*!< Prepare write flag to indicate cancel prepare write */
#define ESP_GATT_PREP_WRITE_EXEC   0x01 /*!< Prepare write flag to indicate execute prepare write */
        uint8_t exec_write_flag;        /*!< Execute write flag */
    } exec_write;

4.4.4.1 使能通知

使能notify并读取蓝牙发过来的数据,开启这个后我们就能实时获取蓝牙发过来的值了。

使能通知(notify enable)的打印如下所示,打开通知实际上的一个WRITE。对应于手机端的mBluetoothGatt.setCharacteristicNotification(characteristic,true).

【2018-12-25 16:01:24:307】_[0;32mI (27345) GATTS_DEMO: GATT_WRITE_EVT, conn_id 0, trans_id 3, handle 43_[0m
_[0;32mI (27345) GATTS_DEMO: GATT_WRITE_EVT, value len 2, value :_[0m
_[0;32mI (27345) GATTS_DEMO: 01 00 _[0m
_[0;32mI (27355) GATTS_DEMO: notify enable_[0m
_[0;33mW (27355) BT_BTC: btc_gatts_arg_deep_copy 11, NULL response_[0m
_[0;32mI (27365) GATTS_DEMO: ESP_GATTS_CONF_EVT, status 0 attr_handle 42_[0m

【2018-12-25 16:01:24:610】_[0;32mI (27645) GATTS_DEMO: GATT_WRITE_EVT, conn_id 0, trans_id 4, handle 47
_[0m
_[0;32mI (27645) GATTS_DEMO: GATT_WRITE_EVT, value len 2, value :_[0m
_[0;32mI (27645) GATTS_DEMO: 01 00 _[0m
_[0;32mI (27655) GATTS_DEMO: notify enable_[0m
_[0;33mW (27655) BT_BTC: btc_gatts_arg_deep_copy 11, NULL response_[0m
_[0;32mI (27665) GATTS_DEMO: ESP_GATTS_CONF_EVT status 0 attr_handle 46_[0m
_[0;32mI (27725) GATTS_DEMO: GATT_READ_EVT, conn_id 0, trans_id 5, handle 42
_[0m

 如果write.handle和descr_handle相同,且长度==2,确定descr_value描述值,根据描述值开启/关闭 通知notify/indicate。

	//the size of notify_data[] need less than MTU size
esp_ble_gatts_send_indicate(gatts_if, param->write.conn_id, gl_profile_tab[PROFILE_A_APP_ID].char_handle,
sizeof(notify_data), notify_data, false);

深入看看esp_ble_gatts_send_indicate

/**
 * @brief           Send indicate or notify to GATT client.
 *                  Set param need_confirm as false will send notification, otherwise indication.
 *
 * @param[in]       gatts_if: GATT server access interface
 * @param[in]       conn_id - connection id to indicate.
 * @param[in]       attr_handle - attribute handle to indicate.
 * @param[in]       value_len - indicate value length.
 * @param[in]       value: value to indicate.
 * @param[in]       need_confirm - Whether a confirmation is required.
 *                  false sends a GATT notification, true sends a GATT indication.
 *
 * @return
 *                  - ESP_OK : success
 *                  - other  : failed
 *
 */
esp_err_t esp_ble_gatts_send_indicate(esp_gatt_if_t gatts_if, uint16_t conn_id, uint16_t attr_handle,
                                      uint16_t value_len, uint8_t *value, bool need_confirm);

该函数将notify或indicate发给GATT的客户端;

need_confirm = false,则发送的是notification通知;

==true,发送的是指示indication。

其他参数: 服务端访问接口;连接id; 属性句柄,value_len; 值

4.4.4.2 读写数据

看看Write 和Read 触发的回调函数;读写打印如下所示:

【2019-01-02 10:37:09:539】[0;32mI (4697198) GATTS_DEMO: GATT_WRITE_EVT, conn_id 0, trans_id 11, handle 42[0m
[0;32mI (4697198) GATTS_DEMO: GATT_WRITE_EVT, value len 3, value :[0m
[0;32mI (4697208) GATTS_DEMO: 31 32 33 [0m
[0;33mW (4697208) BT_BTC: btc_gatts_arg_deep_copy 11, NULL response[0m
[0;32mI (4697278) GATTS_DEMO: GATT_READ_EVT, conn_id 0, trans_id 12, handle 42
[0m

/*************************************************************************************************************************************/

ESP_LOGI(GATTS_TAG, "GATT_WRITE_EVT, conn_id %d, trans_id %d, handle %d", param->write.conn_id, param->write.trans_id, param->write.handle);
		if (!param->write.is_prep){
			ESP_LOGI(GATTS_TAG, "GATT_WRITE_EVT, value len %d, value :", param->write.len);
			esp_log_buffer_hex(GATTS_TAG, param->write.value, param->write.len);
example_write_event_env(gatts_if, &a_prepare_write_env, param);
		break;
	}

深入example_write_event_env(),其核心代码如下 esp_ble_gatts_send_response函数

if (param->write.need_rsp){

.....
esp_err_t esp_ble_gatts_send_response(esp_gatt_if_t gatts_if, uint16_t conn_id, uint32_t trans_id,
                                      esp_gatt_status_t status, esp_gatt_rsp_t *rsp);
}

根据param->write.need_rsp是否需要应答来决定,是否调用esp_ble_gatts_send_response来应答。

而esp_ble_gatts_send_response()函数实际调用了btc_transfer_context,将信息发送出去。

need_rsp如何确定这个值,我很有疑问,看到这里的看客,知道的请回答我一下

/***********************************************************************************************************************/

先把Write搞清楚,先看看写的事件参数

 /**
     * @brief ESP_GATTS_WRITE_EVT
     */
    struct gatts_write_evt_param {
        uint16_t conn_id;               /*!< Connection id */
        uint32_t trans_id;              /*!< Transfer id */
        esp_bd_addr_t bda;              /*!< The bluetooth device address which been written */
        uint16_t handle;                /*!< The attribute handle */
        uint16_t offset;                /*!< Offset of the value, if the value is too long */
        bool need_rsp;                  /*!< The write operation need to do response */
        bool is_prep;                   /*!< This write operation is prepare write */
        uint16_t len;                   /*!< The write attribute value length */
        uint8_t *value;                 /*!< The write attribute value */
    } write;

 这里的is_prep 是针对单独一个Write Request Attribute Protocol 信息放不下的情况,即Write Long Characteristic;一般先prepare在excute; 由这个参数确定参数的是长包还是短包。

offset 是这包数据相对长数据的偏移,第一包是0x0000;

need_rsp是针对该写操作是否需要应答response。

value就是待写入的Characteristic Value的值。

目前,我弄的是Write Without Response

/*****************************************************************************************************************************************/

接下去看看Read,看看读的事件参数

    /**
     * @brief ESP_GATTS_READ_EVT
     */
    struct gatts_read_evt_param {
        uint16_t conn_id;               /*!< Connection id */
        uint32_t trans_id;              /*!< Transfer id */
        esp_bd_addr_t bda;              /*!< The bluetooth device address which been read */
        uint16_t handle;                /*!< The attribute handle */
        uint16_t offset;                /*!< Offset of the value, if the value is too long */
        bool is_long;                   /*!< The value is too long or not */
        bool need_rsp;                  /*!< The read operation need to do response */
    } read;                             /*!< Gatt server callback param of ESP_GATTS_READ_EVT */

 is_long针对客户端知道特征值句柄和特征值长度大于单独一个Read Response ATT 信息大小时,表示传输的是长数据,就用Read Blob Request。

handle 就是要读的Characteristic Value的句柄;

offset 就是要读的Characteristic Value偏移位置,第一包Read Blob Request时,offset为0x00;

对应的是Read Blob Response ATT 以一部分的Characteristic Value作为ATT Value 参数。

在看看ESP_IDF中关于read Response 的结构体。

/// Gatt attribute value
typedef struct {
    uint8_t           value[ESP_GATT_MAX_ATTR_LEN];         /*!< Gatt attribute value */
    uint16_t          handle;                               /*!< Gatt attribute handle */
    uint16_t          offset;                               /*!< Gatt attribute value offset */
    uint16_t          len;                                  /*!< Gatt attribute value length */
    uint8_t           auth_req;                             /*!< Gatt authentication request */
} esp_gatt_value_t;

/// GATT remote read request response type
typedef union {
    esp_gatt_value_t attr_value;                            /*!< Gatt attribute structure */
    uint16_t            handle;                             /*!< Gatt attribute handle */
} esp_gatt_rsp_t;

在我的项目中,客户端先写再读。

4.5 Characteristic结构

再次对Characteristic的结构分析一遍,记不住啊。

Characteristic 声明、Characteistic Value 声明、Characteristic Descriptor 声明。

5. 数据交互其他必要知道的

 权限对于数据交换,通常设置有读Characteristic写Characteristic-----------Write_SSID/Read_SSID.

Read/Write读/写-----一次会同时出发读和写两个回调事件;如上打印结果所述。

Read Only只读-------只能触发读回调事件;

Write Only只写------只能触发写回调事件;

6.结束语

关于GATT就先告一个段落,其他还有很多不足一处,需要一一修正补充。如果上述内容有其他问题,请指正,及时纠正我。在此谢谢大家。

你可能感兴趣的:(ESP32开发,freeRTOS)
