DJI SDK开发之相机应用源码详细解析

DJI Mobile SDK开发之相机应用篇–源码详细解析

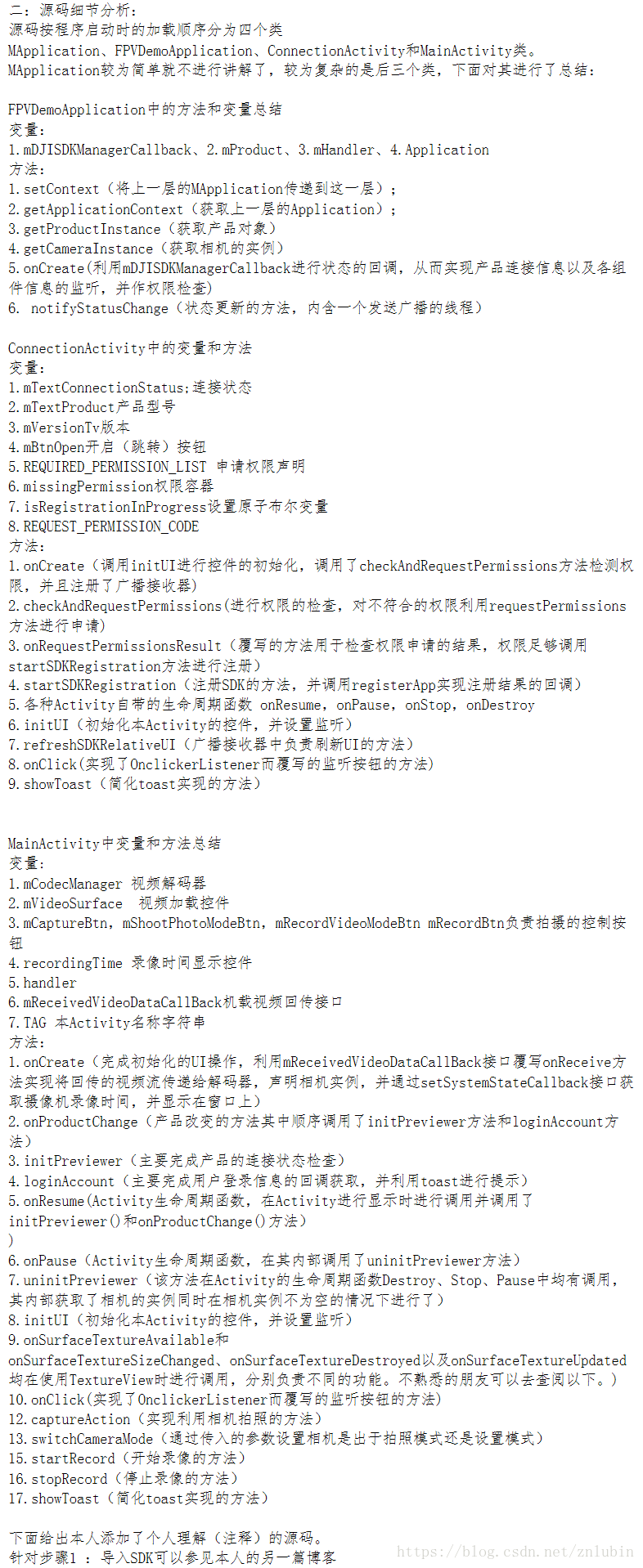

详细分析

package com.dji.FPVDemo;

import android.app.Application;
import android.content.Context;
import android.support.multidex.MultiDex;

import com.secneo.sdk.Helper;


public class MApplication extends Application {

    private FPVDemoApplication fpvDemoApplication;
    @Override

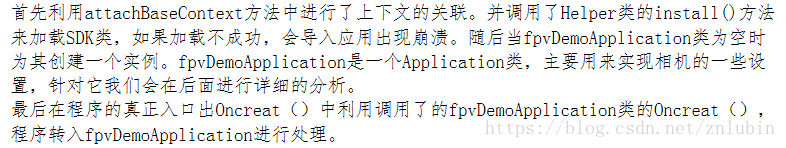

    protected void attachBaseContext(Context paramContext) {
        super.attachBaseContext(paramContext);
        Helper.install(MApplication.this);//即指定一种应用程序的加载形式 实质是利用DexInstall进行加载SDK
        if (fpvDemoApplication == null) {
            fpvDemoApplication = new FPVDemoApplication();//为空则创建实例
            fpvDemoApplication.setContext(this);
        }
    }

    @Override
    public void onCreate() {
        super.onCreate();
        fpvDemoApplication.onCreate();
    }

}

package com.dji.FPVDemo;

import android.app.Application;
import android.content.Context;
import android.content.Intent;
import android.os.Build;
import android.os.Handler;
import android.os.Looper;
import android.support.v4.content.ContextCompat;
import android.util.Log;
import android.widget.Toast;

import dji.common.error.DJIError;
import dji.common.error.DJISDKError;
import dji.sdk.base.BaseComponent;
import dji.sdk.base.BaseProduct;
import dji.sdk.camera.Camera;
import dji.sdk.products.Aircraft;
import dji.sdk.products.HandHeld;
import dji.sdk.sdkmanager.DJISDKManager;

public class FPVDemoApplication extends Application{

    public static final String FLAG_CONNECTION_CHANGE = "fpv_tutorial_connection_change";

    private DJISDKManager.SDKManagerCallback mDJISDKManagerCallback;//管理器回调接口
    private static BaseProduct mProduct;//产品类
    public Handler mHandler;//Handler

    private Application instance;

    /**
     * 为当前类中Application变量进行赋值的方法
     * @param application
     */
    public void setContext(Application application) {
        instance = application;
    }

    /**
     * 获取类中Application变量的方法
     * @return
     */
    @Override
    public Context getApplicationContext() {
        return instance;
    }

    /**
     * 无参的构造函数
     */
    public FPVDemoApplication() {

    }

    /**
     * 获取连接的产品对象
     */
    public static synchronized BaseProduct getProductInstance() {
        if (null == mProduct) {
            mProduct = DJISDKManager.getInstance().getProduct();
        }
        return mProduct;
    }

    /**
     * 获取连接的产品相机对象
     * @return
     */
    public static synchronized Camera getCameraInstance() {

        if (getProductInstance() == null) return null;

        Camera camera = null;

        //判别是无人机还是手持的云台设备
        if (getProductInstance() instanceof Aircraft){
            camera = ((Aircraft) getProductInstance()).getCamera();

        } else if (getProductInstance() instanceof HandHeld) {
            camera = ((HandHeld) getProductInstance()).getCamera();
        }

        return camera;
    }

    @Override
    public void onCreate() {
        super.onCreate();
        mHandler = new Handler(Looper.getMainLooper());//新建在主线程中执行的handler，方便更新UI

        /**
         *当启动SDK服务时，利用接口DJISDKManager.DJISDKManagerCallback
         * 的实例侦听SDK注册结果和产品更改。
         */
        mDJISDKManagerCallback = new DJISDKManager.SDKManagerCallback() {

            //监听注册结果
            @Override
            public void onRegister(DJIError djiError) {
                if(djiError == DJISDKError.REGISTRATION_SUCCESS) {
                    Handler handler = new Handler(Looper.getMainLooper());
                    handler.post(new Runnable() {
                        @Override
                        public void run() {
                            Toast.makeText(getApplicationContext(), "Register Success", Toast.LENGTH_LONG).show();
                        }
                    });//回到主线程进行消息的提示
                    DJISDKManager.getInstance().startConnectionToProduct();

                } else {

                    Handler handler = new Handler(Looper.getMainLooper());
                    handler.post(new Runnable() {

                        @Override
                        public void run() {
                            Toast.makeText(getApplicationContext(), "Register sdk fails, check network is available", Toast.LENGTH_LONG).show();
                        }
                    });

                }
                Log.e("TAG", djiError.toString());
            }

            /**
             * 监听产品是否处于断开连接状态
             */
            @Override
            public void onProductDisconnect() {
                Log.d("TAG", "onProductDisconnect");
                notifyStatusChange();
            }

            /**
             * 监听产品是否处于连接状态
             */
            @Override
            public void onProductConnect(BaseProduct baseProduct) {
                Log.d("TAG", String.format("onProductConnect newProduct:%s", baseProduct));
                notifyStatusChange();

            }

            /**

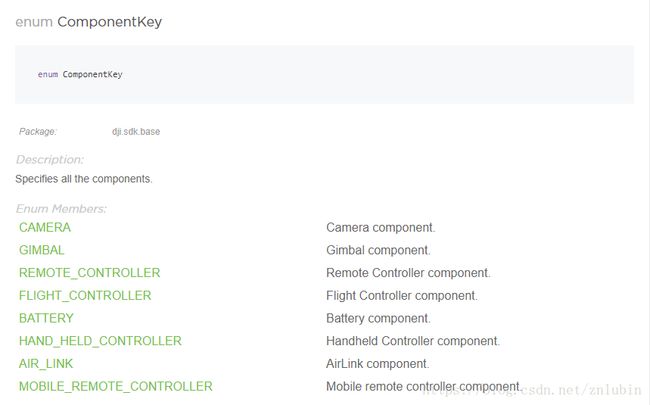

             * 监听产品中各种组件（相机，万向节等等）的连接状态
             * @param componentKey
             * @param oldComponent
             * @param newComponent
             */
            @Override
            public void onComponentChange(BaseProduct.ComponentKey componentKey, BaseComponent oldComponent,
                                          BaseComponent newComponent) {
                if (newComponent != null) {
                    newComponent.setComponentListener(new BaseComponent.ComponentListener() {

                        @Override
                        public void onConnectivityChange(boolean isConnected) {
                            Log.d("TAG", "onComponentConnectivityChanged: " + isConnected);
                            notifyStatusChange();
                        }
                    });
                }

                Log.d("TAG",
                        String.format("onComponentChange key:%s, oldComponent:%s, newComponent:%s",
                                componentKey,
                                oldComponent,
                                newComponent));

            }

        };
        //针对Android6.0以上的系统在SDK注册时检测权限
        int permissionCheck = ContextCompat.checkSelfPermission(getApplicationContext(), android.Manifest.permission.WRITE_EXTERNAL_STORAGE);
        int permissionCheck2 = ContextCompat.checkSelfPermission(getApplicationContext(), android.Manifest.permission.READ_PHONE_STATE);
        if (Build.VERSION.SDK_INT < Build.VERSION_CODES.M || (permissionCheck == 0 && permissionCheck2 == 0)) {
            //This is used to start SDK services and initiate SDK.
            DJISDKManager.getInstance().registerApp(getApplicationContext(), mDJISDKManagerCallback);
            Toast.makeText(getApplicationContext(), "registering, pls wait...", Toast.LENGTH_LONG).show();

        } else {
            Toast.makeText(getApplicationContext(), "Please check if the permission is granted.", Toast.LENGTH_LONG).show();
        }
    }

    /**
     * 通知状态更新的函数
     */
    private void notifyStatusChange() {
        mHandler.removeCallbacks(updateRunnable);//关闭之前的定时器
        mHandler.postDelayed(updateRunnable, 500);//0.5启动一次
    }

    /**
     * 状态跟新所需要用到的线程
     */
    private Runnable updateRunnable = new Runnable() {

        @Override
        public void run() {
            Intent intent = new Intent(FLAG_CONNECTION_CHANGE);
            getApplicationContext().sendBroadcast(intent);
        }
    };

}

package com.dji.FPVDemo;

import android.Manifest;
import android.app.Activity;
import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.content.IntentFilter;
import android.content.pm.PackageManager;
import android.os.AsyncTask;
import android.os.Build;
import android.os.Bundle;
import android.support.annotation.NonNull;
import android.support.v4.app.ActivityCompat;
import android.support.v4.content.ContextCompat;
import android.util.Log;
import android.view.View;
import android.widget.Button;
import android.widget.TextView;
import android.widget.Toast;

import java.util.ArrayList;
import java.util.List;
import java.util.concurrent.atomic.AtomicBoolean;

import dji.common.error.DJIError;
import dji.common.error.DJISDKError;
import dji.log.DJILog;
import dji.sdk.base.BaseComponent;
import dji.sdk.base.BaseProduct;
import dji.sdk.products.Aircraft;
import dji.sdk.sdkmanager.DJISDKManager;

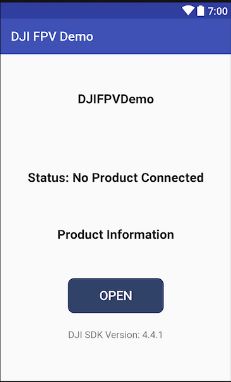

public class ConnectionActivity extends Activity implements View.OnClickListener {

    private static final String TAG = ConnectionActivity.class.getName();

    private TextView mTextConnectionStatus;//连接状态
    private TextView mTextProduct;//产品型号
    private TextView mVersionTv;//版本
    private Button mBtnOpen;//开启（跳转）按钮
    //申请权限声明
    private static final String[] REQUIRED_PERMISSION_LIST = new String[]{
            Manifest.permission.VIBRATE,
            Manifest.permission.INTERNET,
            Manifest.permission.ACCESS_WIFI_STATE,
            Manifest.permission.WAKE_LOCK,
            Manifest.permission.ACCESS_COARSE_LOCATION,
            Manifest.permission.ACCESS_NETWORK_STATE,
            Manifest.permission.ACCESS_FINE_LOCATION,
            Manifest.permission.CHANGE_WIFI_STATE,
            Manifest.permission.WRITE_EXTERNAL_STORAGE,
            Manifest.permission.BLUETOOTH,
            Manifest.permission.BLUETOOTH_ADMIN,
            Manifest.permission.READ_EXTERNAL_STORAGE,
            Manifest.permission.READ_PHONE_STATE,
    };
    private List missingPermission = new ArrayList<>();//权限容器
    private AtomicBoolean isRegistrationInProgress = new AtomicBoolean(false);//设置原子布尔变量 并初始化为空
    private static final int REQUEST_PERMISSION_CODE = 12345;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        checkAndRequestPermissions();//检测权限 放在加载布局之前
        setContentView(R.layout.activity_connection);

        initUI();//初始化UI

        // Register the broadcast receiver for receiving the device connection's changes.
        IntentFilter filter = new IntentFilter();//新建过滤器
        filter.addAction(FPVDemoApplication.FLAG_CONNECTION_CHANGE);//接受状态改变信息
        registerReceiver(mReceiver, filter);
    }

    /**
     * Checks if there is any missing permissions, and
     * requests runtime permission if needed.
     */
    private void checkAndRequestPermissions() {
        // Check for permissions
        for (String eachPermission : REQUIRED_PERMISSION_LIST) {
            if (ContextCompat.checkSelfPermission(this, eachPermission) != PackageManager.PERMISSION_GRANTED) {
                missingPermission.add(eachPermission);//将成功授权的权限添加至权限容器
            }
        }
        // Request for missing permissions
        if (!missingPermission.isEmpty() && Build.VERSION.SDK_INT >= Build.VERSION_CODES.M) {
            ActivityCompat.requestPermissions(this,
                    missingPermission.toArray(new String[missingPermission.size()]),
                    REQUEST_PERMISSION_CODE);//申请6.0后需要动态申请的权限
        }
    }


    /**
     * 申请权限的结果
     */
    @Override
    public void onRequestPermissionsResult(int requestCode,
                                           @NonNull String[] permissions,
                                           @NonNull int[] grantResults) {
        super.onRequestPermissionsResult(requestCode, permissions, grantResults);
        // Check for granted permission and remove from missing list
        if (requestCode == REQUEST_PERMISSION_CODE) {
            for (int i = grantResults.length - 1; i >= 0; i--) {
                if (grantResults[i] == PackageManager.PERMISSION_GRANTED) {
                    missingPermission.remove(permissions[i]);//在权限容器中删除该权限
                }
            }
        }
        // 权限不够不进行注册
        if (missingPermission.isEmpty()) {
            startSDKRegistration();
        } else {
            showToast("Missing permissions!!!");
        }
    }

    /**
     * 开始进行SDK注册操作
     */
    private void startSDKRegistration() {
        if (isRegistrationInProgress.compareAndSet(false, true)) {
            AsyncTask.execute(new Runnable() {
                @Override
                public void run() {
                    showToast( "registering, pls wait...");
                    //调用DJISDKManager的registerApp方法进行SDK注册
                    DJISDKManager.getInstance().registerApp(getApplicationContext(), new DJISDKManager.SDKManagerCallback() {
                        @Override
                        public void onRegister(DJIError djiError) {
                            if (djiError == DJISDKError.REGISTRATION_SUCCESS) {
                                DJILog.e("App registration", DJISDKError.REGISTRATION_SUCCESS.getDescription());
                                DJISDKManager.getInstance().startConnectionToProduct();
                                showToast("Register Success");
                            } else {
                                showToast( "Register sdk fails, check network is available");
                            }
                            Log.v(TAG, djiError.getDescription());
                        }

                        @Override
                        public void onProductDisconnect() {
                            Log.d(TAG, "onProductDisconnect");
                            showToast("Product Disconnected");

                        }
                        @Override
                        public void onProductConnect(BaseProduct baseProduct) {
                            Log.d(TAG, String.format("onProductConnect newProduct:%s", baseProduct));
                            showToast("Product Connected");

                        }
                        @Override
                        public void onComponentChange(BaseProduct.ComponentKey componentKey, BaseComponent oldComponent,
                                                      BaseComponent newComponent) {

                            if (newComponent != null) {
                                newComponent.setComponentListener(new BaseComponent.ComponentListener() {

                                    @Override
                                    public void onConnectivityChange(boolean isConnected) {
                                        Log.d(TAG, "onComponentConnectivityChanged: " + isConnected);
                                    }
                                });
                            }
                            Log.d(TAG,
                                    String.format("onComponentChange key:%s, oldComponent:%s, newComponent:%s",
                                            componentKey,
                                            oldComponent,
                                            newComponent));

                        }
                    });
                }
            });
        }
    }

    @Override
    public void onResume() {
        Log.e(TAG, "onResume");
        super.onResume();
    }

    @Override
    public void onPause() {
        Log.e(TAG, "onPause");
        super.onPause();
    }

    @Override
    public void onStop() {
        Log.e(TAG, "onStop");
        super.onStop();
    }

    @Override
    protected void onDestroy() {
        Log.e(TAG, "onDestroy");
        unregisterReceiver(mReceiver);
        super.onDestroy();
    }

    private void initUI() {

        mTextConnectionStatus = (TextView) findViewById(R.id.text_connection_status);//连接状态
        mTextProduct = (TextView) findViewById(R.id.text_product_info);//产品信息
        mBtnOpen = (Button) findViewById(R.id.btn_open);//进入下一个Activity
        mBtnOpen.setOnClickListener(this);
        mBtnOpen.setEnabled(false);//默认不可点击，当SDK注册成功才可进行点击
        mVersionTv = (TextView) findViewById(R.id.textView2);//信息提示
        mVersionTv.setText(getResources().getString(R.string.sdk_version, DJISDKManager.getInstance().getSDKVersion()));
    }

    /**
     * 广播接收器，接受状态更改信息，以此更新UI界面
     */
    protected BroadcastReceiver mReceiver = new BroadcastReceiver() {

        @Override
        public void onReceive(Context context, Intent intent) {
            refreshSDKRelativeUI();
        }
    };

    /**
     * 刷新与SDK相关的界面
     */
    private void refreshSDKRelativeUI() {
        BaseProduct mProduct = FPVDemoApplication.getProductInstance();

        //当产品不为空与产品的连接信息同时满足时
        if (null != mProduct && mProduct.isConnected()) {

            Log.v(TAG, "refreshSDK: True");
            mBtnOpen.setEnabled(true);//使能界面跳转按钮

            String str = mProduct instanceof Aircraft ? "DJIAircraft" : "DJIHandHeld";
            mTextConnectionStatus.setText("Status: " + str + " connected");

            //获取产品型号等信息
            if (null != mProduct.getModel()) {
                mTextProduct.setText("" + mProduct.getModel().getDisplayName());
            } else {
                mTextProduct.setText(R.string.product_information);
            }

        } else {//注册失败结果处理

            Log.v(TAG, "refreshSDK: False");
            mBtnOpen.setEnabled(false);

            mTextProduct.setText(R.string.product_information);
            mTextConnectionStatus.setText(R.string.connection_loose);
        }
    }

    @Override
    public void onClick(View v) {
        switch (v.getId()) {

            case R.id.btn_open: {
                Intent intent = new Intent(this, MainActivity.class);
                startActivity(intent);//跳转至下一个界面
                break;
            }
            default:
                break;
        }
    }

    /**
     *公用的弹出提示信息的方法
     */
    private void showToast(final String toastMsg) {
        runOnUiThread(new Runnable() {
            @Override
            public void run() {
                Toast.makeText(getApplicationContext(), toastMsg, Toast.LENGTH_LONG).show();

            }
        });
    }
}

package com.dji.FPVDemo;

import android.app.Activity;
import android.graphics.SurfaceTexture;
import android.os.Bundle;
import android.os.Handler;
import android.util.Log;
import android.view.TextureView;
import android.view.View;
import android.view.View.OnClickListener;
import android.view.TextureView.SurfaceTextureListener;
import android.widget.Button;
import android.widget.CompoundButton;
import android.widget.TextView;
import android.widget.Toast;
import android.widget.ToggleButton;

import dji.common.camera.SettingsDefinitions;
import dji.common.camera.SystemState;
import dji.common.error.DJIError;
import dji.common.product.Model;
import dji.common.useraccount.UserAccountState;
import dji.common.util.CommonCallbacks;
import dji.sdk.base.BaseProduct;
import dji.sdk.camera.Camera;
import dji.sdk.camera.VideoFeeder;
import dji.sdk.codec.DJICodecManager;
import dji.sdk.useraccount.UserAccountManager;

public class MainActivity extends Activity implements SurfaceTextureListener,OnClickListener{

    private static final String TAG = MainActivity.class.getName();
    protected VideoFeeder.VideoDataCallback mReceivedVideoDataCallBack = null;//机载视频回传接口

    // Codec for video live view
    protected DJICodecManager mCodecManager = null;//视频解码器

    protected TextureView mVideoSurface = null;//视频加载控件
    //捕获，照相，录像等模式选择按钮
    private Button mCaptureBtn, mShootPhotoModeBtn, mRecordVideoModeBtn;//负责拍摄的控制按钮
    private ToggleButton mRecordBtn;//开始与停止录像切换按钮
    private TextView recordingTime;//录像时间

    private Handler handler;

    @Override
    protected void onCreate(Bundle savedInstanceState) {

        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        handler = new Handler();

        initUI();//初始化UI

        // The callback for receiving the raw H264 video data for camera live view
        mReceivedVideoDataCallBack = new VideoFeeder.VideoDataCallback() {

            @Override
            public void onReceive(byte[] videoBuffer, int size) {
                if (mCodecManager != null) {
                    mCodecManager.sendDataToDecoder(videoBuffer, size);//传数据给视频解码器
                }
            }
        };

        Camera camera = FPVDemoApplication.getCameraInstance();//相机实例

        if (camera != null) {

            camera.setSystemStateCallback(new SystemState.Callback() {
                @Override
                public void onUpdate(SystemState cameraSystemState) {
                    if (null != cameraSystemState) {

                        int recordTime = cameraSystemState.getCurrentVideoRecordingTimeInSeconds();//获取播放时间
                        int minutes = (recordTime % 3600) / 60;//得到分钟数
                        int seconds = recordTime % 60;//得到秒数

                        final String timeString = String.format("%02d:%02d", minutes, seconds);//转换时间
                        final boolean isVideoRecording = cameraSystemState.isRecording();//播放标志位

                        //在ui线程更新界面
                        MainActivity.this.runOnUiThread(new Runnable() {

                            @Override
                            public void run() {

                                recordingTime.setText(timeString);//设置播放时间

                                /*
                                 * Update recordingTime TextView visibility and mRecordBtn's check state
                                 */
                                if (isVideoRecording){
                                    recordingTime.setVisibility(View.VISIBLE);
                                }else
                                {
                                    recordingTime.setVisibility(View.INVISIBLE);
                                }
                            }
                        });
                    }
                }
            });

        }

    }

    /**
     * 产品更改的方法
     */
    protected void onProductChange() {
        initPreviewer();
        loginAccount();
    }

    /**
     * 登录账号管理
     */
    private void loginAccount(){

        UserAccountManager.getInstance().logIntoDJIUserAccount(this,
                new CommonCallbacks.CompletionCallbackWith() {
                    @Override
                    public void onSuccess(final UserAccountState userAccountState) {
                        Log.e(TAG, "Login Success");
                    }
                    @Override
                    public void onFailure(DJIError error) {
                        showToast("Login Error:"
                                + error.getDescription());
                    }
                });
    }

    /**
     * Activity进行显示的方法
     */
    @Override
    public void onResume() {
        Log.e(TAG, "onResume");
        super.onResume();
        initPreviewer();
        onProductChange();
        if(mVideoSurface == null) {
            Log.e(TAG, "mVideoSurface is null");
        }
    }

    @Override
    public void onPause() {
        Log.e(TAG, "onPause");
        uninitPreviewer();
        super.onPause();
    }

    @Override
    public void onStop() {
        Log.e(TAG, "onStop");
        super.onStop();
    }

    public void onReturn(View view){
        Log.e(TAG, "onReturn");
        this.finish();
    }

    @Override
    protected void onDestroy() {
        Log.e(TAG, "onDestroy");
        uninitPreviewer();
        super.onDestroy();
    }

    private void initUI() {
        // init mVideoSurface
        mVideoSurface = (TextureView)findViewById(R.id.video_previewer_surface);//视频显示界面

        recordingTime = (TextView) findViewById(R.id.timer);
        mCaptureBtn = (Button) findViewById(R.id.btn_capture);
        mRecordBtn = (ToggleButton) findViewById(R.id.btn_record);
        mShootPhotoModeBtn = (Button) findViewById(R.id.btn_shoot_photo_mode);
        mRecordVideoModeBtn = (Button) findViewById(R.id.btn_record_video_mode);

        //判断视频界面是否为空
        if (null != mVideoSurface) {
            mVideoSurface.setSurfaceTextureListener(this);
        }

        mCaptureBtn.setOnClickListener(this);
        mRecordBtn.setOnClickListener(this);
        mShootPhotoModeBtn.setOnClickListener(this);
        mRecordVideoModeBtn.setOnClickListener(this);

        recordingTime.setVisibility(View.INVISIBLE);

        mRecordBtn.setOnCheckedChangeListener(new CompoundButton.OnCheckedChangeListener() {
            @Override
            public void onCheckedChanged(CompoundButton buttonView, boolean isChecked) {
                if (isChecked) {
                    startRecord();
                } else {
                    stopRecord();
                }
            }
        });
    }

    /**
     * 初始化审查器
     */
    private void initPreviewer() {

        BaseProduct product = FPVDemoApplication.getProductInstance();//获取产品

        if (product == null || !product.isConnected()) {
            showToast(getString(R.string.disconnected));
        } else {
            if (null != mVideoSurface) {
                mVideoSurface.setSurfaceTextureListener(this);//设置视频显示窗口的监听
            }
            //检测获取到的产品名称是否为未知的产品，若不是进行视频的最初回调
            if (!product.getModel().equals(Model.UNKNOWN_AIRCRAFT)) {
                VideoFeeder.getInstance().getPrimaryVideoFeed().setCallback(mReceivedVideoDataCallBack);
            }
        }
    }

    /**
     * 非初始化审查器
     */
    private void uninitPreviewer() {
        Camera camera = FPVDemoApplication.getCameraInstance();//获取相机实例
        if (camera != null){
            //利用VideoFeeder中VideoFeed的接口的setCallback视频资源为空 从而不再加载视频数据
            VideoFeeder.getInstance().getPrimaryVideoFeed().setCallback(null);

        }
    }

    /**
     * 初始化TextureView
     * @param surface
     * @param width
     * @param height
     */
    @Override
    public void onSurfaceTextureAvailable(SurfaceTexture surface, int width, int height) {
        Log.e(TAG, "onSurfaceTextureAvailable");
        if (mCodecManager == null) {
            mCodecManager = new DJICodecManager(this, surface, width, height);
        }
    }

    /**
     * 更改缓冲区大小时使用
     * @param surface
     * @param width
     * @param height
     */
    @Override
    public void onSurfaceTextureSizeChanged(SurfaceTexture surface, int width, int height) {
        Log.e(TAG, "onSurfaceTextureSizeChanged");
    }

    /**
     * 指定SurfaceTexture即将被销毁时调用
     * @param surface
     * @return
     */
    @Override
    public boolean onSurfaceTextureDestroyed(SurfaceTexture surface) {
        Log.e(TAG,"onSurfaceTextureDestroyed");
        if (mCodecManager != null) {
            mCodecManager.cleanSurface();
            mCodecManager = null;
        }

        return false;
    }

    /**
     * 指定SurfaceTexture的更新时调用
     * @param surface
     */
    @Override
    public void onSurfaceTextureUpdated(SurfaceTexture surface) {
    }

    public void showToast(final String msg) {
        runOnUiThread(new Runnable() {
            public void run() {
                Toast.makeText(MainActivity.this, msg, Toast.LENGTH_SHORT).show();
            }
        });
    }

    /**
     * 按钮响应函数
     * @param v
     */
    @Override
    public void onClick(View v) {

        switch (v.getId()) {
            case R.id.btn_capture:{
                captureAction();
                break;
            }
            case R.id.btn_shoot_photo_mode:{
                switchCameraMode(SettingsDefinitions.CameraMode.SHOOT_PHOTO);
                break;
            }
            case R.id.btn_record_video_mode:{
                switchCameraMode(SettingsDefinitions.CameraMode.RECORD_VIDEO);//将模式参数进行传递
                break;
            }
            default:
                break;
        }
    }

    /**
     * 改变相机模式的函数
     * @param cameraMode
     */
    private void switchCameraMode(SettingsDefinitions.CameraMode cameraMode){

        Camera camera = FPVDemoApplication.getCameraInstance();
        if (camera != null) {
            camera.setMode(cameraMode, new CommonCallbacks.CompletionCallback() {
                @Override
                public void onResult(DJIError error) {

                    if (error == null) {
                        showToast("Switch Camera Mode Succeeded");
                    } else {
                        showToast(error.getDescription());
                    }
                }
            });
            }
    }

    // 利用相机进行拍照的函数
    private void captureAction(){

        final Camera camera = FPVDemoApplication.getCameraInstance();//获取相机对象
        if (camera != null) {
            SettingsDefinitions.ShootPhotoMode photoMode = SettingsDefinitions.ShootPhotoMode.SINGLE; // Set the camera capture mode as Single mode
            camera.setShootPhotoMode(photoMode, new CommonCallbacks.CompletionCallback(){
                    @Override
                    public void onResult(DJIError djiError) {
                        if (null == djiError) {
                            handler.postDelayed(new Runnable() {
                                @Override
                                public void run() {
                                    camera.startShootPhoto(new CommonCallbacks.CompletionCallback() {
                                        @Override
                                        public void onResult(DJIError djiError) {
                                            if (djiError == null) {
                                                showToast("take photo: success");
                                            } else {
                                                showToast(djiError.getDescription());
                                            }
                                        }
                                    });
                                }
                            }, 2000);
                        }
                    }
            });
        }
    }

    /**
     * 开始录像的函数
     */
    private void startRecord(){

        final Camera camera = FPVDemoApplication.getCameraInstance();//获取相机对象
        if (camera != null) {
            camera.startRecordVideo(new CommonCallbacks.CompletionCallback(){
                @Override
                public void onResult(DJIError djiError)
                {
                    if (djiError == null) {
                        showToast("Record video: success");
                    }else {
                        showToast(djiError.getDescription());
                    }
                }
            }); // Execute the startRecordVideo API
        }
    }

    /**
     * 停止摄影方法的函数
     */
    private void stopRecord(){

        Camera camera = FPVDemoApplication.getCameraInstance();
        if (camera != null) {
            camera.stopRecordVideo(new CommonCallbacks.CompletionCallback(){

                @Override
                public void onResult(DJIError djiError)
                {
                    if(djiError == null) {
                        showToast("Stop recording: success");
                    }else {
                        showToast(djiError.getDescription());
                    }
                }
            }); // Execute the stopRecordVideo API
        }
    }
}

实现后界面如图：

DJI源码下载地址：https://github.com/DJI-Mobile-SDK-Tutorials/Android-FPVDemo
