带你玩转区块链--实现Dapp众筹项目-第二章-第二节【以太坊篇】
一、意义：
在上一节课中，我们已经能基于以太坊智能合约做一些简单的Dapp应用了，但在真正生成环境中，这些知识远远不够。为了更好的掌握这部分知识，在这一节中，我们通过一个新项目（众筹）来加强和学习新的知识点。废话不多说，我们言归正传。
项目简介：
众筹是指用团购+预购的形式，向网友募集项目资金的模式。众筹利用互联网和SNS传播的特性，让小企业、艺术家或个人对公众展示他们的创意，争取大家的关注和支持，进而获得所需要的资金援助。在传统众筹项目中，资金难以监管、追溯。参与方是拥有很大风险，因为项目方可以融资后拿钱跑路。通过前几节课的学习，我们知道区块链就是一个超级数据库，不可修改，可追溯。所以我们考虑在技术上通过区块链改进众筹项目。
---------------------------------------------------------------------------------------------------------------------------------------
如果您改进了代码或者想对照代码学习，请访问我的Github。
如果您有问题想要讨论。请加我微信:laughing_jk(加我，请备注来源，谢谢)
众筹项目源码：https://github.com/lsy-zhaoshuaiji/FundingFactory
---------------------------------------------------------------------------------------------------------------------------------------
二、需求分析：
1.每个用户都能参与项目和发布项目
2.众筹总金额等于基本筹金乘以份数，每份众筹金一样。
3.项目方可设置一个时间段和份数值，若在某个时间段众筹份数小于某个值，则代表众筹失败，进行合约退款。
4.项目方提出一个花费请求，每个人都有投票的权利，投票后结果不可更改，不可逆。
5.项目方提出一个花费请求，1/2参与人投票赞成票，则代表通过协议。若少于1/2，则不可花费该资金。
6.花费请求通过后，可以手动向某个特点地址进行付款。
三、概要设计
由于该项目中，弱化了项目方的权利，且产生的数据具有可追溯性，不可修改性，所以我们需要在项目中引入以太坊智能合约。该项目采用（B/S架构），具体设计如下：
1.底层使用ETH智能合约实现该项目的数据存储、 （数据库模块）
2.使用React实现前端与用户的交互 （ 前端模块）
3.使用node.js/web3实现对智能合约的控制和交互 （ 后台模块）
四、详细设计
由于我们设计的是众筹平台，在平台中存在多个众筹项目，一个项目对应着一个合约。所以平台中可能存在多个智能合约。我们把控制多个智能合约的总合约叫做工厂合约（FundingFactorty）。把控制本身项目的合约叫做单例合约（Funding）。
4.1合约编写

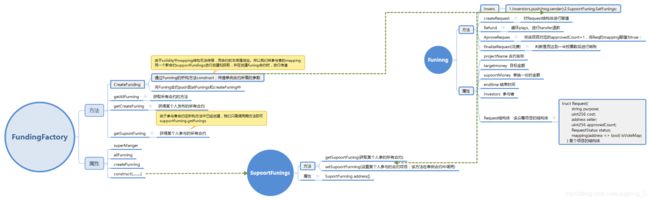

4.1.1、思维导图如下图：
4.1.2、单例模式能合约代码
pragma solidity ^0.4.24;
import './fundingFactory.sol';
contract Findding{
address public manager;
string public projectName;
uint256 public targetMoney;
uint256 public supportMoney;
uint256 public endTime;
address [] public Investors;
SupportFundingContract supportFundings;
enum RequestStatus{
Voting,Approving,Completed
}
struct Request{
string purpose;
uint256 cost;
address seller;
uint256 approvedCount;
RequestStatus status;
mapping(address => bool) isVoteMap;
}
Request [] public allRequests;
mapping(address=>bool) public isInverstorMap;
constructor(string _projectName,uint256 _targetMoney,uint256 _supportMoney,uint256 _duration,address _creator,SupportFundingContract _supportFundings) public{
manager=_creator;
projectName=_projectName;
targetMoney=_targetMoney;
supportMoney=_supportMoney;
endTime=block.timestamp+_duration;
supportFundings=_supportFundings;
}
//"大黄蜂",10,5,3600
//"sfsdfsd",5,"0xca35b7d915458ef540ade6068dfe2f44e8fa733c"
modifier OnlyManager(){
require(msg.sender==manager);
_;
}
function getLastTime()public view returns(uint256){
return endTime-block.timestamp;
}
function InverstorCount()public view returns(uint256){
return Investors.length;
}
function getRequestCount()view public returns(uint256){
return allRequests.length;
}
function Invers() payable public {
require(supportMoney*10**18==msg.value);
isInverstorMap[msg.sender]=true;
Investors.push(msg.sender);
supportFundings.setFunding(msg.sender,this);
}
function Refund() OnlyManager public{
for (uint256 i=0;i= req.cost*10**18);
require(req.approvedCount *2 >=Investors.length);
req.seller.transfer(req.cost*10**18);
req.status=RequestStatus.Completed;
}
} 4.1.3、工厂模式智能合约代码
pragma solidity ^0.4.24;
import './Test.sol';
contract FundingFactory{
address public superManager;
address [] allFundings;
mapping(address=>address[]) public createFundings;
// mapping(address=>address[]) public joinFundings;
SupportFundingContract supportFundings= new SupportFundingContract();
constructor()public{
superManager=msg.sender;
}
function createFundingFactory(string _projectName,uint256 _targetMoney,uint256 _supportMoney,uint256 _duration) public{
address funding=new Findding(_projectName, _targetMoney, _supportMoney, _duration,msg.sender,supportFundings);
allFundings.push(funding);
createFundings[msg.sender].push(funding);
}
function getAllFundings()public view returns(address []){
return allFundings;
}
function getCreateFundings()public view returns(address[]){
return createFundings[msg.sender];
}
function getSupportFundings()view public returns(address []){
return supportFundings.getFunding(msg.sender);
}
}
contract SupportFundingContract{
mapping(address => address[]) joinFundings;
function setFunding(address _support,address _funding) public {
joinFundings[_support].push(_funding);
}
function getFunding(address _support)public view returns(address []){
return joinFundings[_support];
}
}4.1.4、全局交互合约
在众筹统计与自己相关的合约时，单例合约需要调用工厂合约的参与者 mapping(address => address [])字段，而在solidity中无法传递复杂参数。由于合约的本质就是地址，地址在solidity中是可以传递的，所以这时候我们需要在创建一个合约，来专门复杂添加/获取与自己相关的合约。
contract SupportFundingContract{
mapping(address => address[]) joinFundings;
function setFunding(address _support,address _funding) public {
joinFundings[_support].push(_funding);
}
function getFunding(address _support)public view returns(address []){
return joinFundings[_support];
}
}4.2创建Dapp项目部署合约
4.2.1、准备工作
create-react-app dapp
cd lottery-react
npm install [email protected]
npm install web3
npm install [email protected]
npm i semantic-ui-react
npm i semantic-ui-css
//如果报错，就不要担忧，只要package.json里面有上述模块，且能使用就行在安装后所需依赖后，
1.清理react工程，删除src中除App.js/index.js以外的所有内容，并在src中创建display、eth、utils目录
2.在display中创建ui.js 来编写该项目的前端组件；
3.eth文件夹中创建FundingFactory.js与合约进行交互，
4.在utils创建initWeb3.js，获取用户metamask中传来的web3对象。
4.2.2、创建01-compile.js、02-deploy.js
上节课程中，我们经常创建这两个文件。我就多不解释了。这两个文件是用来编译、部署合约的。但在此项目中由于出现了两个合约，在node.js编译中 会出现引用报错。所以这里建议兄弟们，将两个合约写在一个合约中，或者直接用remix部署到rosten测试网中后，用web3获取合约对象。这里，为了方法调试代码我们建议兄弟们先将两个合约写在一个合约中用node.js编译，在编码过程结束后再直接部署到rosten测试网中。
//01-compile.js
let fs=require('fs');
let solc=require('solc');
let data=fs.readFileSync('./contracts/FundingFactory.sol','utf-8');
let output=solc.compile(data,1);
module.exports = output['contracts'][':FundingFactory'];
//deploy.js
let {interface,bytecode}=require('./01-compile');
let Web3=require('web3');
let web3= new Web3();
web3.setProvider('http://127.0.0.1:8545');
let contract=new web3.eth.Contract(JSON.parse(interface));
let deploy=async ()=>{
try {
let accounts = await web3.eth.getAccounts();
console.log('accounts :', accounts);
let instance = await contract.deploy({
data: bytecode,
}).send({
from: accounts[0],
gas: '5000000',
});
console.log(instance.options.address);
module.exports = instance
} catch (e) {
console.log(e)
}
};
deploy();
4.2.3、编写initWeb3.js/获取用户端web3
老版本的metamask(小狐狸)不需要授权、只需要用web3.eth.currentProvider
即可获取web3对象。新版本中的metamask需要先授权，才能获取web3对象、我们通过window.ethereum先判断是否为新版本
let Web3=require('web3');
let web3=new Web3();
let web3Provider;
if (window.ethereum) {
web3Provider = window.ethereum;
try {
// 请求用户授权
window.ethereum.enable().then()
} catch (error) {
// 用户不授权时
console.error("User denied account access")
}
} else if (window.web3) { // 老版 MetaMask Legacy dapp browsers...
web3Provider = window.web3.currentProvider;
}
web3.setProvider(web3Provider);//web3js就是你需要的web3实例
web3.eth.getAccounts(function (error, result) {
if (!error)
console.log(result,"")//授权成功后result能正常获取到账号了
});
module.exports =web3;
4.2.4、编写FunningFactory.js/获取合约实例
let web3= require('../utils/initWeb3');
let abi=[....]//填你自己的ABI
let address='0xE0C2A2f2d0697410D8399c22fff3BAC69F5A5B0E';
let contractInstance=new web3.eth.Contract(abi,address);
console.log(contractInstance.options.address,"oooooooooooooooooooooo");
module.exports=contractInstance;4.3搭建项目框架、实现合约与前端交互
4.3.1创建createFunningTab组件，实现数据显示
1.修改FundingFactory.js，实现工厂合约与单例合约对象，为了显示单例合约中的详细信息。单例合约返回创建方法
let web3 = require('../utils/initWeb3');
let abi=....
let address='0xe8bf0428371d6ddfeeba85d2451edea443bb8edf';
let FactoryInstance=new web3.eth.Contract(abi,address);
console.log(FactoryInstance.options.address,"oooooooooooooooooooooo");
//单例合约
let FunningABI=....
let newFunningInstance=()=>{
return new web3.eth.Contract(FunningABI);
};
module.exports={
FactoryInstance,
newFunningInstance,
};2. 在display文件夹中创建createFunningTab文件夹并创建createFunning.js，并在该文件中获取单例合约，并调用单例合约方法获取单例合约信息。
import React from 'react';
import {Component}from 'react'
import {detailsPromise} from '../../eth/interaction'
import CardList from "../comm/comm";
class CreateFundingTab extends Component{
state={
createDetailInfo:[],
};
async componentWillMount(){
let createDetailInfo=await detailsPromise();
// detailInfo.then(details=>{
// console.log(details);
// });
console.table(createDetailInfo,"wwwwwwwwwwwwwwwwwww");
this.setState({
createDetailInfo,
})
}
render(){
return(
)
}
}
export default CreateFundingTab; 在eth文件夹创建interaction.js实现promise封装:
let {FactoryInstance,newFunningInstance}=require('../eth/FundingFactory');
let detailsPromise=async (index)=>{
let currentFunding=[];
if (index === 1){
currentFunding=await FactoryInstance.methods.getAllFundings().call();
}else if (index === 2){
currentFunding=await FactoryInstance.methods.getCreateFundings().call();
}else {
currentFunding=await FactoryInstance.methods.getSupportFundings().call();
}
let details=currentFunding.map(function (v) {
return new Promise(async (resolve, reject) => {
try {
let Funding = newFunningInstance();
Funding.options.address = v;
let address=v;
let manager = await Funding.methods.manager().call();
let projectName = await Funding.methods.projectName().call();
let targetMoney = await Funding.methods.targetMoney().call();
let supportMoney = await Funding.methods.supportMoney().call();
let endTime = await Funding.methods.endTime().call();
let balance=await Funding.methods.getBalance().call();
let InverstorCount=await Funding.methods.InverstorCount().call();
let detail = {balance,InverstorCount,address,manager, projectName, targetMoney, supportMoney, endTime};
resolve(detail)
} catch (e) {
reject(e)
}
});
});
let detailInfo=Promise.all(details);
return detailInfo
};
export {
detailsPromise,
}在src/display/comm文件夹中的comm.js，进行前端渲染:
import React from 'react'
import { Card,List, Image,Progress } from 'semantic-ui-react'
const imageSrc = 'img/logo.png';
const CardList = (props) => {
let details=props.detailInfo;
let cards=details.map(detail=>{
return
{
cards
}
)
};
const CardExample = (props) => {
let detail2=props.detail1;
let {balance,InverstorCount,address,manager, projectName, targetMoney, supportMoney, endTime}=detail2;
let percent=parseFloat(balance)/parseFloat(targetMoney)*100;
return (
{projectName}
剩余时间:{endTime}
众筹目标:{targetMoney} Wei
已筹
{balance} wei
已达
{percent}%
参与人数
{InverstorCount}
)
};
export default CardList4.3.2创建allFunningTab组件
在display文件夹中创建allFunningTab文件夹并创建allFunning.js（代码实现与上相同 ，只需将interactoin.js的index改为1即可）
4.3.3创建supportFunningTab组件
在display文件夹中创建supportFunningTab文件夹并创建supportFunning.js（代码实现与上相同 ，只需将interactoin.js的index改为3即可）
4.3.3实现发起众筹功能
创建createFundingForm.js
import React, {Component} from 'react';
import {Dimmer, Form, Label, Loader, Segment} from 'semantic-ui-react'
import {createFunding} from "../../eth/interaction";
class CreateFundingForm extends Component {
state = {
active: false,
projectName: '',
supportMoney: '',
targetMoney: '',
duration: '',
}
//表单数据数据变化时触发
handleChange = (e, {name, value}) => this.setState({[name]: value})
handleCreate = async () => {
let {active, projectName, targetMoney, supportMoney, duration} = this.state
console.log('projectName:', projectName)
console.log('targetMoney:', supportMoney)
this.setState({active: true})
try {
let res = await createFunding(projectName, targetMoney, supportMoney, duration)
alert(`创建合约成功!\n`)
this.setState({active: false})
} catch (e) {
this.setState({active: false})
console.log(e)
}
}
render() {
let {active, projectName, targetMoney, supportMoney, duration} = this.state
return (
Loading
)
}
}
export default CreateFundingForm
修改interaction.js，与合约进行交互
let web3 = require('../utils/initWeb3');
let {FactoryInstance,newFunningInstance}=require('../eth/FundingFactory');
let detailsPromise=async (index)=>{
let currentFunding=[];
if (index === 1){
currentFunding=await FactoryInstance.methods.getAllFundings().call();
}else if (index === 2){
currentFunding=await FactoryInstance.methods.getCreateFundings().call();
}else {
currentFunding=await FactoryInstance.methods.getSupportFundings().call();
}
let details=currentFunding.map(function (v) {
return new Promise(async (resolve, reject) => {
try {
let Funding = newFunningInstance();
Funding.options.address = v;
let address=v;
let manager = await Funding.methods.manager().call();
let projectName = await Funding.methods.projectName().call();
let targetMoney = await Funding.methods.targetMoney().call();
let supportMoney = await Funding.methods.supportMoney().call();
let endTime = await Funding.methods.endTime().call();
let balance=await Funding.methods.getBalance().call();
let InverstorCount=await Funding.methods.InverstorCount().call();
let detail = {balance,InverstorCount,address,manager, projectName, targetMoney, supportMoney, endTime};
resolve(detail)
} catch (e) {
reject(e)
}
});
});
let detailInfo=Promise.all(details);
return detailInfo
};
let createFunding=(projectName, targetMoney, supportMoney, duration)=>{
return new Promise(async (resolve, reject) => {
// function createFundingFactory(string _projectName,uint256 _targetMoney,uint256 _supportMoney,uint256 _duration) public{
try {
let accounts = await web3.eth.getAccounts();
let instance = await FactoryInstance.methods.createFundingFactory(projectName, targetMoney, supportMoney, duration).send({
from: accounts[0],
});
resolve(instance)
} catch (e) {
reject(e)
}
})
};
export {
detailsPromise,
createFunding,
}4.3.3实现参与众筹功能
修改allfundingTab
import React from 'react';
import {Component}from 'react'
import {detailsPromise,handleInvestFunc} from '../../eth/interaction'
import CardList from "../comm/comm";
import {Dimmer, Form, Label, Loader, Segment} from 'semantic-ui-react'
class AllFundingTab extends Component{
state={
active: false,
allFundingTab:[],
seletedFundingDetail: ''
};
async componentWillMount(){
let allFundingTab=await detailsPromise(1);
console.table(allFundingTab,"wwwwwwwwwwwwwwwwwww");
this.setState({
allFundingTab,
})
}
onCardClick = (seletedFundingDetail) => {
console.log("aaa :", seletedFundingDetail);
this.setState({
seletedFundingDetail
})
};
handleInvest = async () => {
let {balance,InverstorCount,address,manager, projectName, targetMoney, supportMoney, endTime} = this.state.seletedFundingDetail;
//需要传递选中合约地址
//创建合约实例，参与众筹（send, 别忘了value转钱）
this.setState({active: true})
try {
let res = await handleInvestFunc(address, supportMoney)
this.setState({active: false})
console.log('1111111')
} catch (e) {
this.setState({active: false})
console.log(e)
}
}
render(){
let {balance,InverstorCount,address,manager, projectName, targetMoney, supportMoney, endTime} = this.state.seletedFundingDetail;
return(
参与众筹
支持中
)
}
}
export default AllFundingTab;
修改comm.js
import React from 'react'
import { Card,List, Image,Progress } from 'semantic-ui-react'
const imageSrc = 'img/logo.png';
const CardList = (props) => {
let details=props.detailInfo;
let onCardClick=props.onCardClick
let cards=details.map(detail=>{
return
{
cards
}
)
};
const CardExample = (props) => {
let detail2=props.detail1;
let {balance,InverstorCount,address,manager, projectName, targetMoney, supportMoney, endTime}=detail2;
let percent=parseFloat(balance)/parseFloat(targetMoney)*100;
return (
props.onCardClick(detail2)}>
{projectName}
剩余时间:{endTime}
众筹目标:{targetMoney} Wei
已筹
{balance} wei
已达
{percent}%
参与人数
{InverstorCount}
)
};
export default CardList修改interaction.js
let web3 = require('../utils/initWeb3');
let {FactoryInstance,newFunningInstance}=require('../eth/FundingFactory');
let detailsPromise=async (index)=>{
let currentFunding=[];
if (index === 1){
currentFunding=await FactoryInstance.methods.getAllFundings().call();
}else if (index === 2){
console.log("uuuuuuuuuuuuuuuuuuuuuuuuuu")
currentFunding=await FactoryInstance.methods.getCreateFundings().call();
console.log("currentFunding:",currentFunding)
}else if (index === 3){
currentFunding=await FactoryInstance.methods.getSupportFundings().call();
}
let details=currentFunding.map(function (v) {
return new Promise(async (resolve, reject) => {
try {
let Funding = newFunningInstance();
Funding.options.address = v;
let address=v;
let manager = await Funding.methods.manager().call();
let projectName = await Funding.methods.projectName().call();
let targetMoney = await Funding.methods.targetMoney().call();
let supportMoney = await Funding.methods.supportMoney().call();
let endTime = await Funding.methods.endTime().call();
let balance=await Funding.methods.getBalance().call();
let InverstorCount=await Funding.methods.InverstorCount().call();
let detail = {balance,InverstorCount,address,manager, projectName, targetMoney, supportMoney, endTime};
resolve(detail)
} catch (e) {
reject(e)
}
});
});
let detailInfo=Promise.all(details);
return detailInfo
};
let createFunding=(projectName, targetMoney, supportMoney, duration)=>{
return new Promise(async (resolve, reject) => {
// function createFundingFactory(string _projectName,uint256 _targetMoney,uint256 _supportMoney,uint256 _duration) public{
try {
let accounts = await web3.eth.getAccounts();
let instance = await FactoryInstance.methods.createFundingFactory(projectName, targetMoney, supportMoney, duration).send({
from: accounts[0],
});
resolve(instance)
} catch (e) {
reject(e)
}
})
};
let handleInvestFunc = (address, supportMoney) => {
return new Promise(async (resolve, reject) => {
try { //创建合约实例
let fundingInstance = newFunningInstance()
//填充地址
fundingInstance.options.address = address
let accounts = await web3.eth.getAccounts()
let res = await fundingInstance.methods.Invers().send({
from: accounts[0],
value: supportMoney,
}
)
resolve(res)
} catch (e) {
reject(e)
}
})
}
export {
detailsPromise,
createFunding,
handleInvestFunc,
}在solidity中使用了msg.sender就要使用from字段，不然会显示报错
4.3.4实现发起项目和项目投票
由于该功能依然是是react和合约的交互，所以在这里就不放代码了，如果有需要代码的童鞋请去github上下载，
实现逻辑：1.在前端创建表单，2.通过表单传递函数到interaction中，3.在interaction中实现与合约的交互
五、项目总结
该项目主要目的是实现工厂模式和单例模式的交互，在此部分中，我们需要谨记工厂模式的合约是可以直接获取的，而单例合约的address需要传递后调用。其余的便是react的知识，通过该项目我们更加熟悉了合约部分，接下来我们继续研究ETH的其他功能
