Echarts可视化图表常用案例3
接着上一个案列 https://blog.csdn.net/weixin_43650973/article/details/107955962
改变图例组件展现了不同系列的标记颜色（ legend)
legend: {
textStyle: {
color: "rgba(255,255,255,.5)",
fontSize: "12"
}
}修改y轴分割线的颜色
yAxis: [
{
// 修改分割线的颜色
splitLine: {
lineStyle: {
color: "rgba(255,255,255,.1)"
}
}
}
],单独修改当前线条的样式
series: [
{
// 单独修改当前线条的样式
lineStyle: {
color: "#0184d5",
width: "2"
}
]折线 填充颜色设置
series: [
{
areaStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 0, 0, 1, [{
offset: 0,
color: 'rgba(1, 132, 213, 0.4)'
},
{
offset: 1,
color: 'rgba(1, 132, 213, 0.1)'
}
], false),
shadowColor: "rgba(0, 0, 0, 0.1)"
}
}
]设置拐点,拐点大小,始不显示拐点， 鼠标经过显示
// 设置拐点
symbol: "circle",
// 拐点大小
symbolSize: 8,
// 开始不显示拐点， 鼠标经过显示
showSymbol: false,设置拐点颜色以及边框
// 设置拐点颜色以及边框
itemStyle: {
color: "#0184d5",
borderColor: "rgba(221, 220, 107, .1)",
borderWidth: 12
},完整代码如下

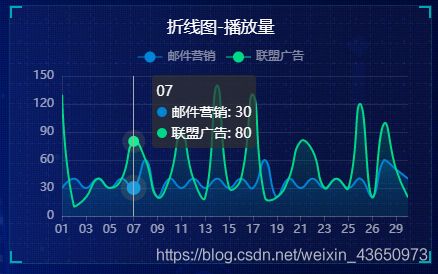

(function() {
var myChart = echarts.init(document.querySelector(".line2 .chart"));
var option = {
tooltip: {
trigger: "axis"
},
legend: {
top: "0%",
data: ["邮件营销", "联盟广告"],
textStyle: {
color: "rgba(255,255,255,.5)",
fontSize: "12"
}
},
grid: {
left: "10",
top: "30",
right: "10",
bottom: "10",
containLabel: true
},
xAxis: [
{
type: "category",
boundaryGap: false,
// x轴更换数据
data: [
"01",
"02",
"03",
"04",
"05",
"06",
"07",
"08",
"09",
"10",
"11",
"12",
"13",
"14",
"15",
"16",
"17",
"18",
"19",
"20",
"21",
"22",
"23",
"24",
"25",
"26",
"26",
"28",
"29",
"30"
],
// 文本颜色为rgba(255,255,255,.6) 文字大小为 12
axisLabel: {
textStyle: {
color: "rgba(255,255,255,.6)",
fontSize: 12
}
},
// x轴线的颜色为 rgba(255,255,255,.2)
axisLine: {
lineStyle: {
color: "rgba(255,255,255,.2)"
}
}
}
],
yAxis: [
{
type: "value",
axisTick: { show: false },
axisLine: {
lineStyle: {
color: "rgba(255,255,255,.1)"
}
},
axisLabel: {
textStyle: {
color: "rgba(255,255,255,.6)",
fontSize: 12
}
},
// 修改分割线的颜色
splitLine: {
lineStyle: {
color: "rgba(255,255,255,.1)"
}
}
}
],
series: [
{
name: "邮件营销",
type: "line",
smooth: true,
// 单独修改当前线条的样式
lineStyle: {
color: "#0184d5",
width: "2"
},
// 填充颜色设置
areaStyle: {
color: new echarts.graphic.LinearGradient(
0,
0,
0,
1,
[
{
offset: 0,
color: "rgba(1, 132, 213, 0.4)" // 渐变色的起始颜色
},
{
offset: 0.8,
color: "rgba(1, 132, 213, 0.1)" // 渐变线的结束颜色
}
],
false
),
shadowColor: "rgba(0, 0, 0, 0.1)"
},
// 设置拐点
symbol: "circle",
// 拐点大小
symbolSize: 8,
// 开始不显示拐点， 鼠标经过显示
showSymbol: false,
// 设置拐点颜色以及边框
itemStyle: {
color: "#0184d5",
borderColor: "rgba(221, 220, 107, .1)",
borderWidth: 12
},
data: [
30,
40,
30,
40,
30,
40,
30,
60,
20,
40,
30,
40,
30,
40,
30,
40,
30,
60,
20,
40,
30,
40,
30,
40,
30,
40,
20,
60,
50,
40
]
},
{
name: "联盟广告",
type: "line",
smooth: true,
lineStyle: {
normal: {
color: "#00d887",
width: 2
}
},
areaStyle: {
normal: {
color: new echarts.graphic.LinearGradient(
0,
0,
0,
1,
[
{
offset: 0,
color: "rgba(0, 216, 135, 0.4)"
},
{
offset: 0.8,
color: "rgba(0, 216, 135, 0.1)"
}
],
false
),
shadowColor: "rgba(0, 0, 0, 0.1)"
}
},
// 设置拐点 小圆点
symbol: "circle",
// 拐点大小
symbolSize: 5,
// 设置拐点颜色以及边框
itemStyle: {
color: "#00d887",
borderColor: "rgba(221, 220, 107, .1)",
borderWidth: 12
},
// 开始不显示拐点， 鼠标经过显示
showSymbol: false,
data: [
130,
10,
20,
40,
30,
40,
80,
60,
20,
40,
90,
40,
20,
140,
30,
40,
130,
20,
20,
40,
80,
70,
30,
40,
30,
120,
20,
99,
50,
20
]
}
]
};
myChart.setOption(option);
// 4. 让图表跟随屏幕自动的去适应
window.addEventListener("resize", function() {
myChart.resize();
});
})();
